bullet
Range performance to 900(+) meters
bulletWeight under 3.5 lbs (1.6 kg)
bulletLatest 8 - 12mm Un-cooled Detector Technology
bulletDigital Magnetic Compass
bulletUser Selectable Reticles
bullet
AA Battery Operation or External Power
bulletRugged, Reliable Performance
bulletShock Protected Precision Optics
bullet

2 Selectable Fields of View - Wide & Narrow

bullet

Weather and Shock Resistant

bullet

White Hot / Black Hot Polarity Control

bullet

NTSC Compatible Video Output

bullet

Tripod-Mount w/-20Thread

ELCPH25: DISCONTINUED

Ships with: Lens Cover, Batteries, Operator Manual, Lens Cleaning Paper and Hard Case
Optional Accessories: External 110v AC Power Adapter, External 12v DC Power Adapter, Hard Case



ELCAN Optical Technologies is pushing the envelope of optical and digital technologies to lead the future of man-portable sighting systems. The PhantomIR by ELCAN is a rugged lightweight infrared binocular system that uses the latest in low-power, compact, Uncooled thermal technology. Unlike image intensification night-vision devices that only magnify existing light, thermal imaging cuts through darkness, through smoke, dust and most fogs. It cannot be defeated by artificial light or adverse visible conditions. Despite its advanced technology, the PhantomIR is surprisingly affordable for large-scale deployment.

     The PhantomIR is a technically-advanced device for observation and perimeter security. It incorporates digital signal processing with integrated compact optics and rugged packaging with attention to ergonomic detail. It has been designed to endure the rigors of outdoor use, occasional rough handling, and accidental submersion for a few minutes in shallow water. Even with its lightweight design, the image quality is not compromised and maintains high performance at an unparalleled value.

     The PhantomIR provides the Soldier, Firefighter or Security Officer with Thermal Detection capabilities in less than 2 seconds. Easily find your way through the thickest of smoke, detect intruders where Night Vision leaves off.
     The "Top-of-the-Line" Technology found inside the PhantomIR is what permits the imager to be so small and lightweight. Measuring only 11 inches across and weighing only 3.5 pounds with the battery, it is perfect for covert operations or convenience.  Incorporating user-selectable Reticles, Digital Magnetic Compass, Zoom Tool for Military, Police, and Security Professionals.

System Technical Specifications
Detector Type
Uncooled Microbolometer
Spectral Response
8 - 12 microns
Cold Start Time
<2 seconds (typical)
Detector Resolution
320 x 240 FPA
Detection Range
900+ meters
Focus Range
1m  to ∞ (infinity)
Zoom
2X (2X - 4X nominal)
Diopter Adjust
+6 to -6
Shock Resistant
3 Meter Drop
Size in.
11" x 7" x 3"
Size mm
380 x 178 x 76
Weight w/Batteries
<3.5 lb (1.6 kg)
Infrared Polarity
White-Hot / Black-Hot

        Accessories

P/N: PHAC12
External Power Adapter (AC/DC 110v)

P/N: PHDC12
External Power Adapter (12v DC)
Hard Case


bullet

Fire and Safety

bullet

Hot-Spot Detection

bullet

Search and Rescue

bullet

Area Sweeps

bullet

Border Patrol

bullet

Fugitive Search

bullet

Covert Operations

bullet

Routine Night Patrol

bullet

Navigation

 ELCAN PhantomIR Infrared Binocular
Optical Magnification 1X 2X Nominal
Electronic Zoom 2X in addition to 2 FOV Optical Zoom (2X - 4X Nominal)
Pixel Count (Resolution) 320 x 240 FPA
Spectral Response 8-12 μm (filter bandwidth)
NETD <0.07C

Startup Time < 2 seconds
Detection Range for Human Activity Up to 2950 Feet (900 meters)
Recognition Range Up to 2450 Feet (750 meters)
Susceptibility to Blinding Visible Light None, Operational in Sand, Smoke, Fog
Infrared Polarity Control Selectable White Hot / Black Hot

2 Selectable Fields Of View Wide - Horizontal FOV 18.6 Vertical FOV 14
Narrow - Horizontal FOV 9.3 Vertical FOV 7
Individual Eye Correction +/- 6 Diopter Adjustments + Interpupillary Adjustments
Angular Resolution 0.5 milliradian
Minimum Focus Distance 3 ft. (1 meter) to
Focus Method Manual

Selectable Reticles Mil-Dot, Crosshair w/Dot or None

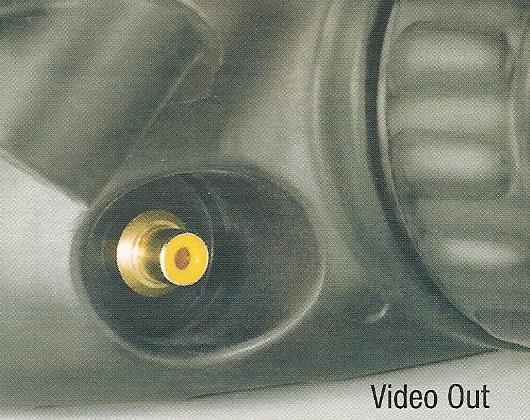

Output Format SMPTE-170M, NTSC compatible, RCA outlet jack
Viewfinder Display Monochrome LCD (320 x 240 pixels)
Gain / Level Control Automatic Control with Enhanced Image Processing

Power Source Four (4) Lithium AA batteries
Operating Time > 7 Hours, Low Battery Indicator

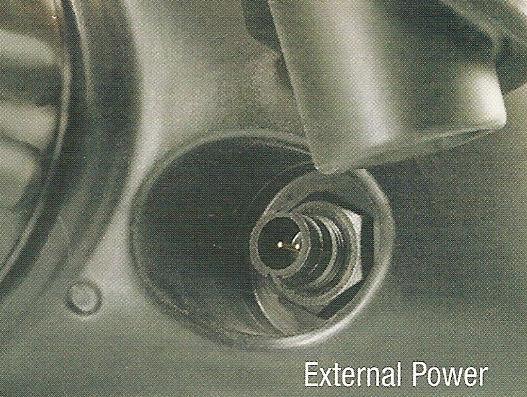

Auxiliary Power Optional 12 VDC or 120/240 VAC input on rear outlet jack

Operating Temperature -4F to 120.2F (-20C to 49C)
Storage Temperature -4F to 176F (-20C to 80C)
Environmental
Molded Santoprene Rubber Exterior
Waterproof to 9ft (3m) submersion, buoyant in fresh water Shockproof to 9 ft (3m) drop, Abrasion Resistant
EMC Compliance FCC Part 15 & CE Mark

Size in.
Size mm
11 L x 7 W x 3 H
380 x 178 x 76 cm)
Weight <3.5 lbs (1.6 kg), batteries installed
Tripod Attachment 1/4-20 UNC
Eye Cup Integral to camera body with 2 eye relief
