P/N:
TIWSOD61B Odin-61BW 35mm Thermal Weaponsight
1X (30Hz)
***DISCONTINUED***Information purposes
only
Odin Kits Include: Odin Thermal Monocular/Weaponsight, Head Mount Assembly w/Brow Pads, J-Bar (Swing Arm Assembly), Rubber Eyecup, CR123A Lithium Battery, Operators Manual, Lens Cover, Foam Padded Hard Shipping/Storage Case, Lens Cleaning Tissue, Demist Shield, Warranty Card, and Weapons Mount
Private labeling options available for large quantity orders
We accept all forms of Gov't payment, including WAWF, CAGE: 36BD2, Dealers Welcome
The
Odin-61BW is one of the smallest Thermal Imaging Monocular System today.
It features extremely small size and low weight because of its advanced
construction and characteristics using the latest technologies in high
grade polymers to make a MILSPEC system that is identical in size,
weight and shape to a AN/PVS-14.
The Odin-61BW is a multi-purpose system using the latest in miniature
thermal sensor technology combined with the new OLED Display to provide
a superior stable image in the smallest package available. The system
also includes an array of features that help the user to enhance the
sight to meet all of their requirements.

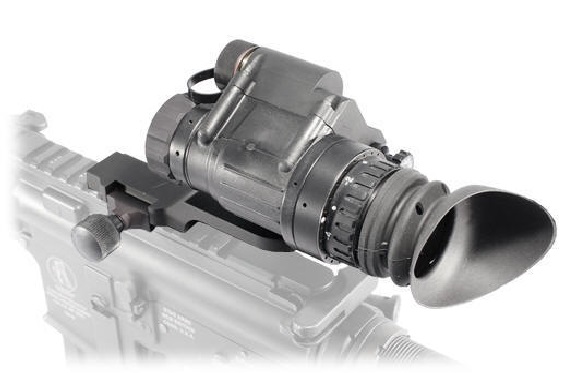

The
Odin-61BW has the ability to be rail mounted to a light caliber weapon
such as a M16 or M4 using the accessory weapon rail interface adapter.
An optional digital reticle aiming system is also available for the
Odin-61BW.
The Odin-61BW is one of the most
capable Thermal Monocular systems on the market and comes at a very
affordable price. The Odin-61BW 1x system is designed for Handheld & Head
or Helmet Mount
operations and uses nearly all the same accessories as the AN/PVS-14 Night
Vision Monocular.
Small & Lightweight, you'll be hard pressed to find another Thermal
Imager with such versatility and array of Accessories. Fits easily into
your pocket when not in use. See what you've been missing Day or Night,
because unlike Image Intensified (I2) Night Vision, the Odin
can be used at any time without fear of damage.
Features:
* Ergonomic Design Identical to the Highly Popular PVS-14 Monocular
* Compact & Lightweight Design Weighs only 12.35 oz/0.77 lbs/350 grams
* 24° x 18° Field Of View (FOV) 27mm Eye Relief
* PVS-14 Construction, MILSPEC Optics
* Can be Head/Helmet Mounted as well as Weapons Mountable
* Digital Brightness Control
* Variable Pivot Technology
* 1X Optical Magnification with 2X, 4X, and 8X E-Zoom
* Icon Based Menu System
* Diopter Range of +2 to -6 Diopters
* Multiple Reticles to Choose From
* White Hot / Black Hot Selectable, Multiple Color Modes
* 800 x 600 OLED Display, Analog Video Output
These
Sights are proudly manufactured in the USA with a 1 Year Warranty
THIS
PRODUCT IS NOT AVAILABLE FOR EXPORT
Export of the commodities herein described are strictly
prohibited without a valid export license issued by the US Dept of State, Office
of Defense Trade Controls, prescribed in the International Traffic in Arms
Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130.
KERIF Night
Vision shall not be the exporter either directly or indirectly of any controlled
item on behalf of any company, nor shall KERIF Night Vision be held responsible
for any expense loss or legal action resulting from any violation of US laws or
regulations governing the export of Night Vision Devices, Thermal Imaging
Devices, Infrared Lighting & LASER’s or any component thereof.
| DETECTION & RECOGNITION RANGES | |
| Human Detection | 750 meters/2,461 feet/820.2 yards |
| Human Recognition | 300 meters/984.3 feet/328.1 yards |
| Human Identification | 180 meters/590.6 feet/196.9 yards |
| Vehicle Detection | 1,650 meters/5,413 feet/1,804 yards |
| Vehicle Recognition | 660 meters/2,165 feet/721.8 yards |
| Vehicle Identification | 400 meters/1,312 feet/437.4 yards |
|
The Johnson
Criteria assumes that the critical dimension for a human is 6'
(1.83 meters). |
|
|
Vehicle Detection
Vehicle Recognition
Vehicle Identification
Human Detection
Human Recognition
Human Identification |
|
| SPECIFICATIONS | |
| Sensor (Microbolometer) | 640 x 480 |
| Type / Material | Uncooled Vanadium Oxide (VOx) |
| Image Size | 800 x 600 Output Resolution |
| Magnification | 0.5X |
| Optical Magnification | 1X, 2X, and 4X E-Zoom |
| Eye relief | 27mm/1.063 inches |
| Thermal Sensitivity | <50mK |
| Spectral Response | 7 - 14 µm |
| Lens | 35mm/1.378 inches |
| Field of View | 24° x 18° |
| ELECTRONIC DATA | |
| Frame Rate (Refresh) | 30 Hz |
| Start Up Time | < 4 Seconds |
| Video Output | Analog RS-170 |
| Display | Color OLED Matrix, SVGA < 800 x 600 |
| Reticle | Multiple Reticles to Choose from |
| Polarity Control | White Hot/Black Hot, Multiple Color Modes |
| Battery Type | (1) One CR123A |
| Battery Life, typical | 2+ Hours |
| MECHANICAL DATA | |
| Material Housing | MILSPEC High Grade Polymer (Identical to the PVS-14) |
| Material Lens Covers | Rubber, Black |
| Diopter Adjustment | -6 to +4 Diopters |
| Mounting | Same mounting options as the PVS-14, Head/Helmet Mount w/Swing Arm (J-Bar), Tripod Mount, Weapons Mount |
| DIMENSIONS | |
|
Length Width Height |
87
mm (3.425") 56 mm (2.205") 50 mm (1.969") |
| Weight | 350 grams/12.35oz/.7716lbs) |
| ENVIRONMENTAL DATA | |
| Temperature Range | -45ºC to +71ºC (-49ºF to +159.8ºF) |
| Water Resistance | Waterproof / Dustproof |
| Humidity | 95% at 20°C (68°F) to 50°C (122°F), cycling |
| Human | Vehicle | ||||||||||||
| 320x240 | Detect Recognize Identify | Detect Recognize Identify | Mag | E-Zoom | FOV | Length | Width | Height | Weight | ||||
| SOD31C | 500 m 1640 ft 547 yds | 225 m 738.2 ft 246 yds | 135 m 442.9 ft 148 yds | 1100 m 3,609 ft 1203 yds | 495 m 1624 ft 541.3 yds | 300 m 984.3 ft 328 yds | 1X |
2X 4X |
24° x 18° |
87 mm 3.43" | 56 mm 2.21" | 50 mm 1.97" | 350 g 12.35 oz 0.77 lbs |
| SOD32C | 750 m 2461 ft 820 yds | 300 m 984.3 ft 328 yds | 180 m 591 ft 197 yds | 1650 m 5413 ft 1804 yds | 660 m 2165 ft 722 yds | 400 m 1312 ft 438 yds | 2X |
4X 8X |
15° x 11° |
87 mm 3.43" | 56 mm 2.21" | 50 mm 1.97" | 350 g 12.35 oz 0.77 lbs |
| 640x480 | Detect Recognize Identify | Detect Recognize Identify | Mag | E-Zoom | FOV | Length | Width | Height | Weight | ||||
| SOD6WB | 500 m 1640 ft 547 yds | 225 m 738.2 ft 246 yds | 135 m 442.9 ft 148 yds | 1100 m 3,609 ft 1203 yds | 495 m 1624 ft 541.3 yds | 300 m 984.3 ft 328 yds | 0.5X |
1X 2X 4X |
48° x 36° |
87 mm 3.43" | 56 mm 2.21" | 50 mm 1.97" | 350 g 12.35 oz 0.77 lbs |
| SOD61B | 750 m 2461 ft 820 yds | 300 m 984.3 ft 328 yds | 180 m 591 ft 197 yds | 1650 m 5413 ft 1804 yds | 660 m 2165 ft 722 yds | 400 m 1312 ft 438 yds | 1X |
2X 4X 8X |
24° x 18° |
87 mm 3.43" | 56 mm 2.21" | 50 mm 1.97" | 350 g 12.35 oz 0.77 lbs |
| Odin-320 | Odin-640 | |||||
| SOD31C | SOD31D | SOD32C | SOD32D | SOD6WB | SOD61B | |
| Sensor (320 x 240) | ♦ | ♦ | ♦ | ♦ | ||
| Sensor (640 x 480) | ♦ | ♦ | ||||
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Material: Vandium Oxide | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Micron Pitch | 17µ | 17µ | 17µ | 17µ | 17µ | 17µ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Image Resolution 800x600 | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Selectable Reticle | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Magnification | 1X | 1X | 2X | 2X | 0.5X | 1X |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Optical Mag. (E-Zoom) |
2X 4X |
2X 4X |
4X 8X |
4X 8X |
1x 2X 4X |
2X 4X 8X |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| 27mm Eye Relief | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| <50mK Thermal Sensitivity | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| 7-14 µm Spectral Response | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Objective Lens (mm) | 17 | 17 | 35 | 35 | 17 | 35 |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Field of View (H x V) (Degrees) |
24° 18° |
24° 18° |
15° 11° |
15° 11° |
48° 36° |
24° 18° |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Frame Rate Hz (Refresh) | 30 | 60 | 30 | 60 | 30 | 30 |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| < 4 Sec Start Up | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| (1) CR123A Operation | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| 2+ Hr Operation (Typical) | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Diopter Adj. (-6 to +2) | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - | ||||||
| Waterproof/Dustproof | ♦ | ♦ | ♦ | ♦ | ♦ | ♦ |
| Odin Optional Accessories |
  KNV-NVAC-126
PVS-14/Odin
Dual Mount Adapter, Dovetail
$358.80 / Gov't: $351.33 KNV-NVAC-128 PVS-14/Odin Dual Mount Adapter, Wilcox Interface $456.00 / Gov't: $446.50 Combines 2 PVS-14 or Odin Monoculars together to create a Binocular. A great way to create a "Fusion" System is to use a PVS-14 on one side and an Odin on the other. It really works! |
 A3256345
Shuttered
Rubber Eyeguard
(Compress w/Star Opening)
$39.00 / Gov't: $37.50 NSN: 6650-01-444-1229 Prevents illuminating the shooters face for covert operations. |
  A3256348
Fixed Height
Weapons Mount
$92.00 / Gov't: $89.00 NSN: 5340-01-446-8588
|
  DLOC-P14
Quick-Disconnect Weapons Mount
$173.00 / Gov't: $167.00 Allows the Swing Arm Assembly and the DLOC-P14 to remain attached without wasting time switching them. Left or Right Hand Operation can be achieved simply by turning the locking ring 180°on the base. Aligns perfectly with the Aimpoint (ARMS#22 w/Spacer) or EOTech Holographic Sights. |
 A3144422
Rubber Eyecup
$12.75
/ Gov't: $11.99NSN: 5855-01-246-8273 Provides a comfortable platform for your eye. Flexible rubber |
 A3256353
Demist Shield (Eye
piece)
$17.50
/ Gov't: $16.50NSN: 5340-01-293-8675 Prevents eyepiece from fogging up |
  274049-1 Camera Adapter Assembly
46mm to Odin or PVS14 Eyepiece $42.00 / Gov't: $41.00 NSN: 4310-01-096-1353 |
  KNV-PVS14-HDMT-Kit
Headmount + PVS-14 Swing Arm
Interface
$165.00
/ Gov't: $159.00Headmount plus Headmount Adapter. Attaches to the NVG and interfaces w/the Head Mount. |
 A3256347
Swing Arm or "J-Bar"
$85.00 / Gov't: $81.00 NSN: 5965-01-444-1216 Head Mount & Helmet Mount Adapter. Attaches to the NVG and interfaces w/the Head Mount/Helmet Mount. |
|
|
 A3256368-1
PASGT Flip-up Helmet Mount
$215.00 / Gov't: $207.50 NSN: 5855-01-457-2953 |
 A3256368-2
MICH Flip-up Helmet Mount
$215.00 / Gov't: $207.50 NSN: 5855-01-551-4525 |
 26300G01
Wilcox NVG Interface for AN/PVS-14 & Odin Monoculars
MSRP: $214.37 NSN: TBD The Wilcox AN/PVS-14 Arm with NVG Interface Shoe provides a durable connection for mounting an AN/PVS-14 or Odin goggle to a Wilcox Combat Helmet Interface Mount. It can be easily mounted and dismounted by means of a thumb screw, and allows the operator to select the height and angle for comfort with the ability to make fine adjustments to the Arm to customize the position of the Night Vision Goggle for proper eye position and relief. |
|
|
 275121-2
Facemask Assembly
$822.25 / Gov't: $804.38 NSN: 5855-01-515-2102
1728010-2
Facemask Assembly
$395.53
/ Gov't: $395.53 |
  A3264350
Padded Hard Case, OD Green
$88.40 / Gov't: $85.00 |
 A3144257
Padded Hard Case, Military, OD
Green
$109.00 NSN: 5855-01-246-6805 |
 A3187392
Soft Carry/Storage Case, Military, OD Green
$29.95 / Gov't: $21.95 NSN: 5855-01-246-8269 or 5855-01-398-4284 |
