MSRP: No Price Listed
This page is for Information Only;
We no longer carry this product
See BNVS-SENTINEL or BNVD
for Dual Tube Goggle
P/N: 245080-xxx
(xxx = Tube Type)

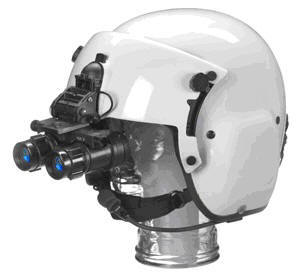

KERIF Night Vision is proud to offer
the L-3 M949 Series of Night Vision Goggles installed with the "Top-of-the-Line"
Generation III OMEGA and
INFINITY Image Tubes.
Other tube options including the ALPHA, GAMMA, and DELTA may be available to meet reduced budgets or for sales
involving export, so please call for a quote. The AN/AVS-9 M949 Aviation NVG's are manufactured to the highest quality standards and
meet all specifications of DO-275 with Class "B" filters. They feature
Gen III image intensifier tube technology available
from L-3.
The L-3 M949 INFINITY tube technology dramatically improves aviator NVG performance and offers the highest Resolution for optimum clarity and the highest Signal-to-Noise Ratio for low light conditions. The binocular viewing boasts large 25mm eyepieces to optimize depth perception with improved 40˚Degree FOV (Field of View). Other available options are Class "A" and Class "C" Leaky Green filters as well as L-3's thin-filmed OMEGA Gen III NVG's.
The M949 is based
on the military nomenclature AN/AVS-9 (ANVIS-9). Significant L-3 EOS design improvements
to the Aviator’s Night Vision Imaging System (ANVIS) increase situational
awareness, improve system performance and enhance ergonomic characteristics. The
M949 features binocular viewing for optimized depth perception and large 25mm
eyepieces that provides improved eye relief, accommodating operators wearing
eyeglasses.
These
NVG's are proudly made in the USA and qualify for the "Buy American"
requirements found in most government contracts.
There are multiple helmet mount options listed below.
Ergonomically designed interface controls that comprise of interpupillary and vertical/fore-aft/tilt adjustments for improved situational awareness and enhanced ergonomics, including interpupillary adjustments. Vertical, fore-aft, and tilt adjustments provide improved viewing of the entire system FOV (Field of View) of 40 degrees.
SHIPS WITH: Goggle, OPMAN, Soft Carrying Case, Low Profile Battery Pack, Clip-On Power Supply (COPS), Lens Cleaning Paper, Neck Cord, and Air Worthiness Log
Other
features include a clip-on power supply for pre-flight or dismounted operations along
with a LPPP (Low Profile Power Pack) that uses standard AA batteries and securely attaches to the flight
helmets. Lithium batteries will increase operational time.
With these primary and alternate battery
provisions plus aircraft power port, this triple redundancy provides a complete
system confidence.
• Clip-On Power Supply (COPS) for pre-flight or dismounted operations
• Low Profile Power Pack with primary and alternate battery plus aircraft power port provide triple redundancy for complete system confidence
• Multiple Helmet Mounts
• Clip-On Power Supply (COPS)
• Dual AA Battery Operation
• One-Year Warranty Standard
• Improved 40° Field of View (FOV)

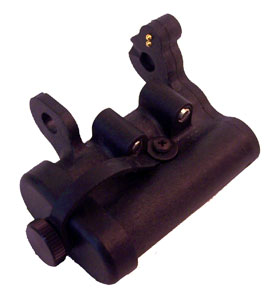

$180.00 Clip On Power Supply (COPS) Part Number A3260911 Clip On Power Supply (COPS) P/N: A3260911, NSN: 6135-01-447-8948 is used to power ANVIS-6 and ANVIS-9 goggles without being mounted on a helmet
LPBP (Low Profile
Battery Pack) P/N 268465 Low
Profile Battery Pack
NSN:
5855-01-440-1765

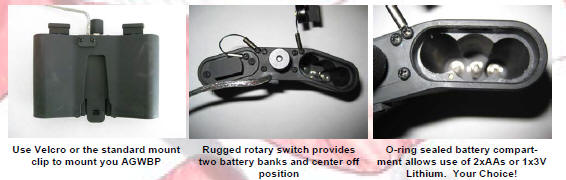

Air Ground
Warrior Battery Pack,
Equivalent to the Low Profile Battery Pack, Adams Industries has developed a
more robust and versatile Air Ground Warrior Battery Pack which is water
resistant and accepts BOTH AA and 3V Lithium Batteries. The current LPBP (PN
268465) is not water resistant and only accepts AA Batteries. Try finding a LPBP
within your lifetime...and at a fair price. The AGWBP is the answer to this
problem.
AIAGWBP-B, Black
Battery and Power Pack Assembly (Battery Pack) Information
(1) ANVIS Clip-On Power Source (P/N A3260911) has provided, as initial issue (one per ANVIS system), a new power source which is an additional authorized item of the ANVIS, per Change 2 of TM 11-5855-263-10. This power source, utilizing two AA alkaline batteries, allows users to operate the ANVIS without the need for the Aviator's helmet mount. This item will facilitate testing with the TS-4348, and will assist aircrew members during escape and evasion, (2) Batteries authorized for ANVIS are BA-5567/U lithium battery and (1.5 volt) AA alkaline battery, NSN 6135-00-985-7845. No other batteries (NiCad, Mercury, Carbon, any rechargeable, etc) are authorized for use with the ANVIS.
NOTE
AA lithium batteries (3.6 volts), NSN 6135-01-301-8776, are not authorized. (3) There is no authorized repair of the ANVIS battery pack and/or cap. (4) Battery packs marked with P/N 54490-5008900 and MFR-13567 function the same as "G3" battery packs. These battery packs will be tested the same as the G3 battery packs (The Low Battery Indicator) or LBI will blink during operation.
Additional Power Supply and Mount Options are listed in a chart towards the bottom of the page
EXPORT LICENSE REQUIRED.
Goggles
are restricted to Government Agencies and some Medical Companies
Please be prepared to provide credentials when ordering.
| M949 Aviator Night Vision Goggle, ANVIS-9 | |||||
| System Optics | |||||
| Magnification: | 1X | ||||
| Field of View (FOV): | 40˚ | ||||
| Objective Lens: | 27mm, (1.1") | ||||
| Focus Range: | 41cm minimum | ||||
| Diopter Adjustment: | +2 to -6 Diopters | ||||
| Eye Relief: | 25mm, (1") | ||||
| Interpupillary Adj.: | 52 - 72mm, (2 - 2.8") | ||||
| Tube Specifications | |||||
| Tube Type | Resolution | Signal-to-Noise | FOM | ||
| ALPHA | 45 lp/mm Min | 17.1:1 (min) | 1250 Max | ||
| GAMMA | 64 lp/mm Min | 21.0:1 (min) | 1600 Max | ||
| DELTA | 64 lp/mm Min | 21.0:1 (min) | 1600 Max | ||
| OMEGA | 64 lp/mm Min | 21.0:1 (min) | Unrestricted | ||
| INFINITY | 64 lp/mm Min | 25.0:1 (min) | Unrestricted | ||
| Warranty: | 1 Year | ||||
| Mechanical Specifications | |||||
| Power Sources: |
Low Profile
Power Pack (LPPP) w/4 AA Batteries (2 Primary, 2 Reserve) or Cable from Aircraft Power Converter to Low Profile Power Pack |
||||
| Battery Type / Life: | (2) AA / 20 Hours | ||||
| Warning Indicator: | Red LED Activates on Mount at 2.3 VDC | ||||
| Dimension: in | L: 4.6 " | W: 5.1" | H: 3.5" | ||
| Dimension: cm | L: 11.6cm | W:13cm | H: 8.9cm | ||
| Total Weight (oz./lbs/g) | 21 oz | 1.3lbs |
590 grams |
||
| Vertical Adjustment: | 25mm Min (1") | ||||
| Fore/Aft Adjustment: | 27mm Min (1.1") | ||||
| Tilt Adjustment.: | 10" Min | ||||
| Objective Adjustment: | 3/4 Turn (338˚) | ||||
| Automatic Breakaway: | 11 - 15g, (0.02 - 0.03 lbs) | ||||
| Image Tube Choices | |||||
| ALPHA | 245080-001 | ||||
| GAMMA | 245080-002 | ||||
| DELTA | 245080-003 | ||||
| OMEGA | 245080-004 | ||||
| INFINITY | 245080-005 | ||||
| INFORMATIONAL PURPOSES ONLY- WE DO NOT CARRY THESE PRODUCTS | |||||
| Clip On Power Supply (COPS) | 243706-100 | ||||
| Case, Standard M949 Shipping | 241793-100 | ||||
| Case, Standard M949 Carrying | 243719-103 | ||||
| Case Assy ESA | 244209-100 | ||||
| Filter, Daylight Training | 244328-100 | ||||
| M949 Spare Parts Kit | 244282-100 | ||||
| Low Profile Power Pack (LPPP) | 243668-100 | ||||
| Battery Holder | 5008902 | ||||
| Lens Brush | 207153-100 | ||||
| Mount Assembly Quick Don | 243736-100 | ||||
| Mount Assembly, SPH-5CG | 243736-100 / 242377-100 | ||||
| Mount Kit, ALPHA Helmet | 242388-100 | ||||
| Mount Assembly, Banana (HGU/55P) | 39109000-001 | ||||
| Mount Assembly, Standard V1A | 243710-100 | ||||
| Training & Operator's Manual | |||||
| 180 Day FAA Certification, Maintenance | |||||
| Continuing Airworthiness Log Book | D205869-078 | ||||
| AVIATION GOGGLES | ||
| GEN 3 Exportable* | L-3 | M949 (ANVIS-6/9 Style) Dual Tube Night Vision Binocular - Aviation |
| M949-Kit: Soft Case, LPP (Low Profile Battery Pack), COPS (Clip-On Power Supply), Lens Paper, Neck Cord, OPMAN | ||
| M890AV-CS1400 | PR = 1350 MIN, EBI = 5 MAX, SNR = 18:1, RES = 64 lp/mm MIN | |
| KNV-M949-MFB-A | M949 Aviator Goggle, Dual CS1400 Tubes, FOM1400, Class A Filter, M949-Kit | |
| KNV-M949-MFB-B | M949 Aviator Goggle, Dual CS1400 Tubes, FOM1400, Class B Filter, M949-Kit | |
| KNV-M949-MFB-C | M949 Aviator Goggle, Dual CS1400 Tubes, FOM1400, Class C Filter, M949-Kit | |
| M890AV-CS1600 | PR = 1800 MIN, EBI = 5 MAX, SNR = 21:1, RES = 64 lp/mm MIN | |
| KNV-M949-MFA-A | M949 Aviator Goggle, Dual CS1600 Tubes, FOM1600, Class A Filter, M949-Kit | |
| KNV-M949-MFA-B | M949 Aviator Goggle, Dual CS1600 Tubes, FOM1600, Class B Filter, M949-Kit | |
| KNV-M949-MFA-C | M949 Aviator Goggle, Dual CS1600 Tubes, FOM1600, Class C Filter, M949-Kit | |
| 245080-001 | F4949 ALPHA Binoculars, Night Vision, FOM1250, 17:1 SNR, 45lp/mm | |
| 245080-002 | F4949 GAMMA Binoculars, Night Vision, FOM | |
| 245080-003 | F4949 DELTA Binoculars, Night Vision, FOM1600, 21:1 SNR, 64lp/mm | |
| * End User must be provided at time of order; Export Docs must be available prior to shipment | ||
| GEN 3 | L-3 | M949 (ANVIS-6/9 Style) Dual Tube Night Vision Binocular - Aviation |
| M890AV-CS001 | PR = 1800 MIN, EBI = 2.5 MAX, SNR = 21:1, RES = 64 lp/mm MIN | |
| KNV-M949-MAG-A | M949 Aviator Goggle, Dual CS001 GATED Tubes, Class A Filter, M949-Kit | |
| KNV-M949-MAG-B | M949 Aviator Goggle, Dual CS001 GATED Tubes, Class B Filter, M949-Kit | |
| KNV-M949-MAG-C | M949 Aviator Goggle, Dual CS001 GATED Tubes, Class C Filter, M949-Kit | |
| M890AV-INFINITY | PR = 1800 MIN, EBI = 2.5 MAX, SNR = 26:1, RES = 64 lp/mm MIN | |
| KNV-M949-UNF-A | M949 Aviator Goggle, Dual CS001 GATED Tubes, Class A Filter, M949-Kit | |
| KNV-M949-UNF-B | M949 Aviator Goggle, Dual CS001 GATED Tubes, Class B Filter, M949-Kit | |
| KNV-M949-UNF-C | M949 Aviator Goggle, Dual CS001 GATED Tubes, Class C Filter, M949-Kit | |
| 245080-004 | F4949 OMEGA Binoculars, Auto Gated, 21:1 SNR, 64lp/mm | |
| 245080-005 | F4949 INFINITY Binoculars, UNFILMED Auto Gated, 25:1 SNR, 64lp/mm | |
| 245080-002-801 | F4949 DEFENDER Binoculars, Night Vision, Auto Gated, 25:1 SNR, 64lp/mm | |
Please understand that most of the products, technologies and services obtained from KERIF Night Vision are subject to one or more of the export control laws and regulations of the U.S. Government and fall under the control jurisdiction of either the Department of State or the Department of Commerce. It is unlawful to export, or attempt to export or otherwise transfer or sell any hardware or technical data or furnish any service to any foreign person, whether abroad or in the United States, for which a license or written approval of the U.S. Government is required, without first obtaining the required license or written approval from the Department of the U.S. Government having jurisdiction.
Thermal Imagers, Gen2 & Gen 3 Image Tubes or Night Vision Devices, Infrared Lighting, and some Optical Sighting equipment must be exported from the U.S. in accordance with the export administration regulations. Diversion contrary to U.S. law is prohibited. In accordance with Title 15 CFR Part 746, Supplement #1 to Part 774, and Title 31 CFR, Resale/Re-Export or Transfer to certain designated countries is prohibited without the prior written consent of the U.S. Dept. of Commerce and the U.S. Dept. of State. Diversion contrary to U.S. law is prohibited. In accordance with Title 15 CFR Part 746, Supplement #1 to Part 774, and Title 31 CFR, Resale/Re-Export or Transfer to certain designated countries is prohibited without the prior written consent of the U.S. Dept. of Commerce. KERIF Night Vision shall not be the exporter either directly or indirectly of any controlled item on behalf of any company, nor shall KERIF Night Vision be held responsible for any expense loss or legal action resulting from any violation of US laws or regulations governing the export of Night Vision Devices, Thermal Imaging Devices, Infrared Lighting & LASER’s or any component thereof.
| ***** ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE ***** | |||
| Adams Industries ANVIS Mounts for Standard ARMY Ground Helmets | Gov't | List | |
| AISAM-B | Surface ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate (not included), Black | $460.00 | $480.00 |
| AISAM-T | Surface ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate (not included), Tan | $483.00 | $504.00 |
| AISAM-B/ACH | Surface ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate and strap kit for the ACH (included), Equivalent to ITT P/N 274835-1, Black | $517.50 | $540.00 |
| AISAM-T/ACH | Surface ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate and strap kit for the ACH (included), Equivalent to ITT P/N 274835-1, Tan | $540.50 | $564.00 |
| AISAM-B/PASGT | Surface ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate and strap kit for the PASGT (included), Black | $517.50 | $540.00 |
| AISAM-T/PASGT | Surface ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate and strap kit for the PASGT (included), Tan | $540.50 | $564.00 |
| AISAM-B/UM | Surface ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using the NOROTOS Universal Shroud and Strap Kit, Black | $638.25 | $666.00 |
| AISAM-T/UM | Surface ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using the NOROTOS Universal Shroud and Strap Kit, Tan | $661.25 | $690.00 |
| AIHMRHED-B | HAMMERHEAD Self Powered ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate (not included), Black | $517.50 | $540.00 |
| AIHMRHED-T | HAMMERHEAD Self Powered ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using the standard mount plate (not included), Tan | $546.25 | $570.00 |
| AIHMRHED-B/ACH | HAMMERHEAD Self Powered ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate and strap kit for the ACH (included), Equivalent to ITT P/N 274835-1, Black | $575.00 | $600.00 |
| AIHMRHED-T/ACH | HAMMERHEAD Self Powered ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate and strap kit for the ACH (included), Equivalent to ITT P/N 274835-1, Tan | $603.75 | $630.00 |
| AIHMRHED-B/PASGT | HAMMERHEAD Self Powered ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate and strap kit for the PASGT (included), Black | $575.00 | $600.00 |
| AIHMRHED-T/PASGT | HAMMERHEAD Self Powered ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using standard mount plate and strap kit for the PASGT (included), Tan | $603.75 | $630.00 |
| AIHMRHED-B/UM | HAMMERHEAD Self Powered ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using the NOROTOS Universal Shroud and strap kit, Black | $680.80 | $710.40 |
| AIHMRHED-T/UM | HAMMERHEAD Self Powered ANVIS Mount, Attaches ANVIS/F5050/PVS-23 NVG's to ARMY Ground Helmets using the NOROTOS Universal Shroud and strap kit, Tan | $709.55 | $740.40 |
| AIRAM | Ruggedized ANVIS Mount, Generic model not set up for any particular helmet. Features a short flexible pigtail cable terminating in a LEMO connector | $460.00 | $480.00 |
| AIRAM/SPH.HGU.QD | Ruggedized ANVIS Mount for SPH/HGU Helmets configured w/Quick-Disconnect Visor Housing w/Quick-Release Plate and Button. Equivalent to NSN: 5855-01-527-5700, ITT PN: 271073-2 | $488.75 | $510.00 |
| AIRAM/SPH-4AF.GALLET | Ruggedized ANVIS Mount for SPH-4AF and GALLET CGF Helmets, Equivalent to NSN: 5855-01-440-6614, ITT P/N: 265897-1 | $460.00 | $480.00 |
| AIRAM/SPH-4B.HGU-56 | Ruggedized ANVIS Mount for SPH-4B and HGU-56 Helmets, Equivalent to NSN: 5855-01-451-7389, ITT P/N: A3260913 | $460.00 | $480.00 |
| AIAGWBP-B | Air Ground Warrior Battery Pack, Equivalent to NSN: 5855-01-440-1765, ITT P/N: 268465, Black | $373.75 | $390.00 |
| AIAGWBP-T | Air Ground Warrior Battery Pack, Equivalent to NSN: 5855-01-440-1765, ITT P/N: 268465, Tan | $402.50 | $420.00 |
The following tube series defines L-3 EOS image intensifier tubes by categories based on Figure of Merit (FOM). FOM is determined by multiplying the image tube’s center resolution by its Signal/Noise ratio. The resulting values categorize image tubes, and ultimately system performance, into defined levels of performance which are set by the U.S. Department of State in dealing with a broad range of customers worldwide.
