BNVS-15 Dual Tube Night Vision Binocular
*DISCONTINUED *Information Purposes Only
We accept Gov't Credit Cards, WAWF Contracts, and can submit invoices online. KERIF NV is a CCR Registered Veteran Owned Small Business. CAGE: 36BD2
Includes:
2 AA Alkaline Batteries,
Operators Manual, Lens Paper, 2 Rubber Eyecups, Soft Carrying Case with
Shoulder Strap, 2 Sacrificial Filters, 2 Demist Shields, Strap-On Helmet
Mount for PASGT, 1 Year Warranty
Dual

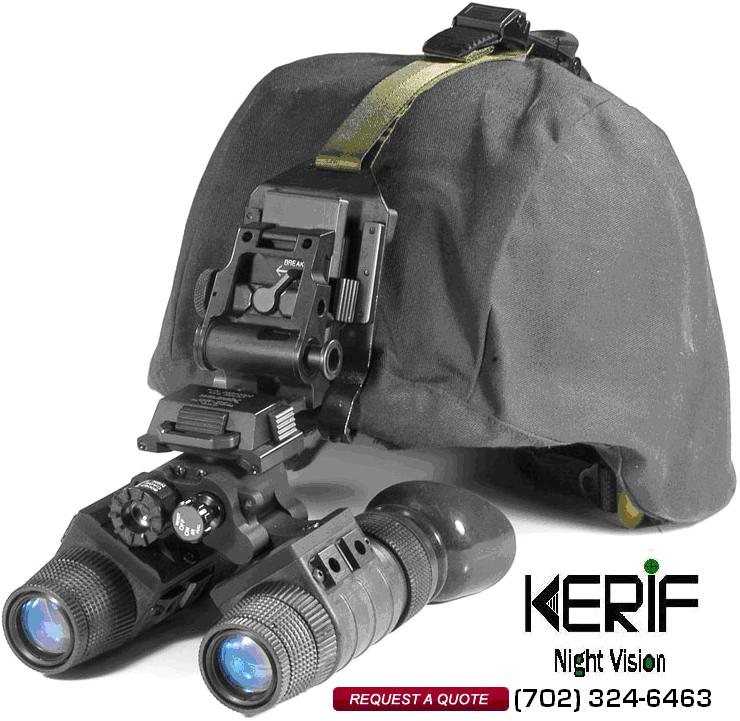

Tube Binocular SystemThe KNV-MM-14B (PVS-15 Style) Dual Mini-Monocular system can be separated for use individually or assembled with a unique bridge mechanism to create a very powerful binocular. Designed for submersion to a depth of 20 meters, this is one lightweight, ruggedized dual-tube night vision goggle system! It features 2 self-contained single battery power Mini-Monoculars and can be weapons mounted, hand held, head mounted or helmet mounted for hands-free tactical operations.
The advantage of the dual-tube design provides increased depth perception to the user for land, sea, or airborne operations. Battery usage for each MM-14 Mini-Monocular can be either a (1) AA 1.5V or CR123 3V Lithium battery, depending on your preference (a AA Battery adapter is provided to give you the choice). .

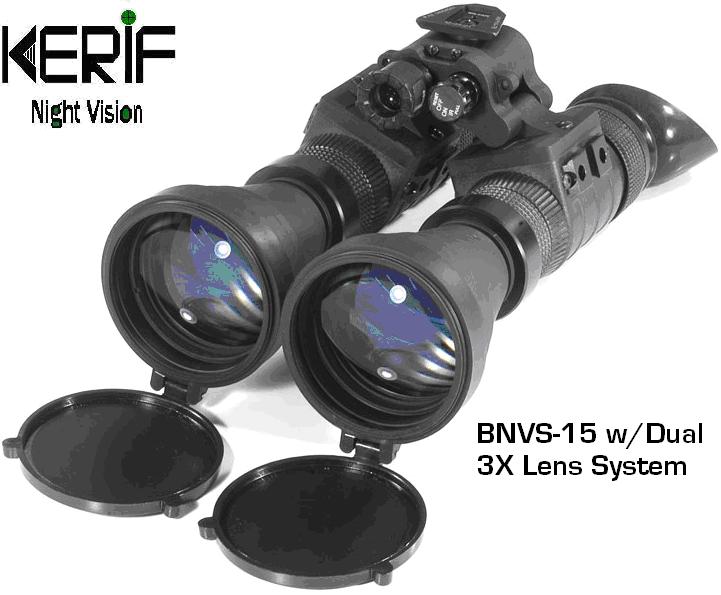

Where
long range surveillance is necessary, you can add (2) 3X magnifier
press-on lenses, and now you have a 3X Binocular system with
enhanced capability and performance.
Rugged Design - The system has been designed to be submersible to 20m, withstand salt fog, high humidity, high altitude, cold weather, shock, and high temperatures. The unit also uses a shoe style head/helmet mount interface design that makes for a more “stable” mount platform. Two LED indicators in the eyepieces give the user low battery and IR on indications for increased awareness.
High Performance - Using High quality optics that are coated to enhance night time operations the NVBS-15 can out perform all other systems on the market. Add high performance Gen III "Pinnacle" tubes and you have the ultimate Dual Tube Night Vision Binocular.
| System Technical Specifications | ||
|
Eye Relief
|
● | 27mm |
|
FOV
|
● | 40° standard |
| FOV @ 3X | ● | 13.3° w/3X Afocal |
| FOV @ 4X | ● | 10° w/4x Afocal 26º at 1X, 48.8m(146.3')@100yds |
|
Magnification
|
● | Unity 1X |
|
Diopter Adj.
|
● | +4 to -6 |
|
Focus Adj.
|
● | 15cm to ∞ |
|
Resolution
|
● | 1.3 cm/MR (typical Gen III) |
|
Interpupillary Adj.
|
● | 52mm to 80mm |
|
Internal Battery
|
● | CR123 lithium or AA |
|
Environment
|
● | -51C to +45C (operating), -51C to +85C (storage) |
|
Indicators
|
● | Low battery (yellow), IR illuminator (red) |
|
Size
|
● | 10.75 x10.25 x 7.30 cm |
|
Objective
|
● | 27mm, f/l 1.2 |
|
Spectral Response
|
● | 400-950nm |
|
Image Tube
|
● | 18mm 2nd/3rd Gen |
|
Battery Life
|
● | 40 Hrs |
|
Exterior Finish
|
● | Anodized Aluminum |
|
Weight
|
● | 400g |
|
Waterproof
|
● | 20m (submersible)28mm |
|
Shockproof
|
● | 450 g's |
An affordable Dual-Tube Binocular
designed for Military, Homeland Security, Police and Security
Professionals. Offers true Stereoscopic views for increased Depth
Perception. Used specifically where navigation at night is necessary.
* Currently Fielded with USMC
* 2nd/3rd Generation
* High Res: 64 lp/mm
* External Power Option
* MIL-SPEC
* MCN: 5855-01-C08-0938
* Stereoscopic View
* Hands-free Use
* Integrated IR Illuminator
* Submersible to 20m
* Stable Mounting
* Single Battery Use
* Head or Helmet Mountable
* Increased Depth Perception
* Enhanced Detection Range (man size target)
* Accepts In-Service Afocal Magnifiers
The Model M953 is based on the military DoD nomenclature AN/PVS-15 used by U.S. special forces. This rugged lightweight, self-contained twin tube goggle systems offers better depth perception than single tube systems, and provides the same performance characteristics as found in aviator systems. The M953 can be operated as a hand-held binocular, or helmet mounted. The M953 was designed specifically where critical mission performance and depth perception factors are required elements.
