BNVD
Prices Subject to change without notice. Please call to order.

Mini-MonocularKERIF Price:
Please call (702) 324-6463 or
email
sales@nitevis.com
Multiple Tube Configurations Available

All Units Include: Soft Carry Case, AA Batteries (2), Operators Manual, Neckcord, Objective and Eyepiece Lens Caps, Eyecups, Lens Paper, Headmount Assembly, Demist Shields, Sacrificial Windows and IR Flood/Spot Lens Assembly, Operator's Card, Bayonet Mounting Adapter and Dovetail Mounting Adapter.

Standard Accessories: Soft Carry Case, AA Batteries (2), Operators Manual, Neckcord, Objective and Eyepiece Lens Caps, Eyecups, Lens Paper, Demist Shields, Sacrificial Windows and IR Flood/Spot Lens Assembly, Operator’s Card and Dovetail Mounting Adapter.



Optional Accessories: 3X Afocal Magnifier Lens, Magnetic Compass, Helmet Mount PASGT (PVS-14/7D PN A3256368-1), MICH Helmet Mount (PN A3256368-2), Shuttered Eyeguards, Camera Adapter Kit, and Light Interference Filters (LIF for DOD Only).

Power Sourse (1) AA-Size Battery
Focus Range 9.8" to infinity
Operation Time 36.8 HRS @ 23°C
Magnification One Power (1x)
Field of View 40 ̊
Diopter Adjustment -6 to +2
Eye Relief 25 MM
Weight 19.2 oz (545 G)
Dimensions 5" x 5" x 3"

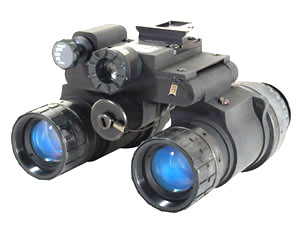

The NVD-BNVD Binocular is a dual tube night vision goggle with outstanding depth perception and sup-

portability at an affordable price. The NVD-BNVD series can be used as a monocular by choosing which side
you want to use as your night vision eye and rotate the other side/arm of the binocular up and out of the
way. When night vision is no longer needed, power off and rotate both sides up and out of the way. When
the NVD-BNVD is rotated up the low profile of the goggle should not interfere with anything above the user’s
head. This reduces risk of damage to the goggle and mount from rapid vehicle exits. This system complies with MIL-STD 810G, MIL-PRF-A3256342A(CR) and MIL-PREF-49427(CR).


    The Binocular Night Vision Device (BNVD) is a Dual Tube Night Vision Goggle/Monocular which offers outstanding depth perception and supportability at an affordable price. Never before could you utilize the depth perception of a collimated dual tube goggle and the convenience of a monocular in one system without switching equipment.



     The BNVD can be used as a monocular by choosing which side you want to use as your night vision eye and rotate the other side/arm of the binocular up and out of the way. Each arm is tight enough so that the rotated arm will not fall down, but stay in its user adjusted position. To use as a binocular, rotate both sides down or when night vision is no longer needed, shut off and rotate both sides up and out of the way.




     The BNVD is relatively small and lightweight and can be worn comfortably for extended periods of time. When not in use and rotated upright it should not interfere with anything above the user’s head. This reduces risk of damage to the goggle and mount from rapid vehicle exits. With this flexibility there are endless possibilities and combinations.

     The BNVD utilizes readily accessible MILSPEC accessories and optics. It includes a Headmount Assembly and other Helmet Mounting options are the same as for the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15 and AN/PVS-18. Optional ANVIS mount are also available, however the BNVD is not approved for aviation use. Switching from one mounting system to another can be accomplished by the end user within minutes.

Designed to operate during vehicle operation, assault missions, and amphibious operations.

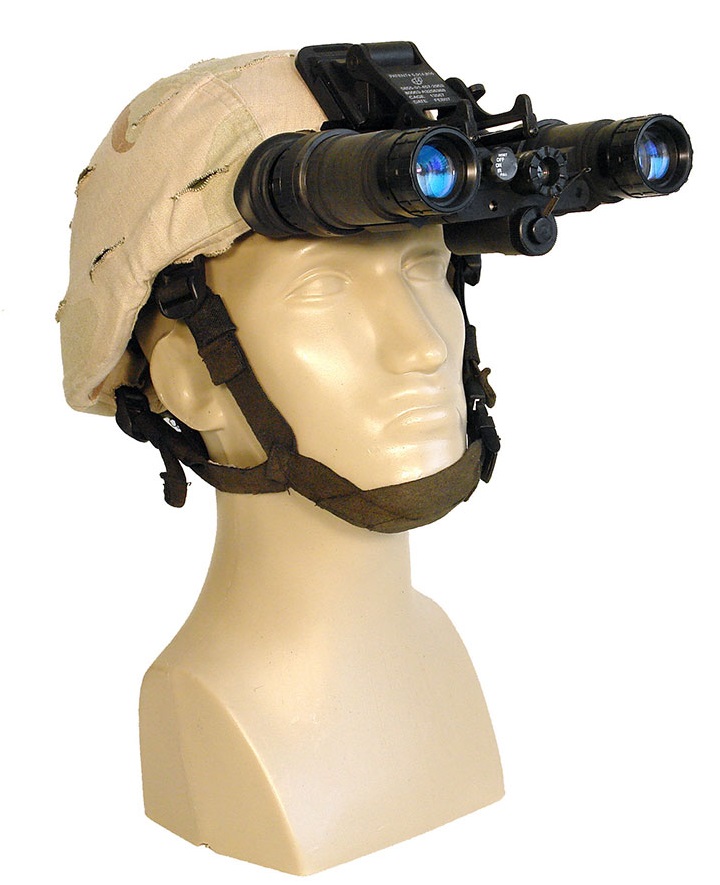

There are multiple helmet mount options.

    Like the military AN/PVS-15, the BNVD's are used to gain the advantage at night without sacrificing space and creating neck strain. Significant  design improvements, such as single battery operation and submersion to 66', increases situational awareness, improves system performance and enhances ergonomic characteristics.

Other features include High-Light Cutoff and Automatic Brightness Control (ABC) to help protect the tubes and optimize the viewing image. On the Dual-Gain (each side can be adjusted separately) and Single-Gain (one adjustment for both sides) models, a built-in IR illuminator, familiar to the PVS-14's and PVS-7's group of NVG's, helps keep dark alleys, caves, rooms with no windows, and other low-light surroundings from requiring additional lighting equipment.

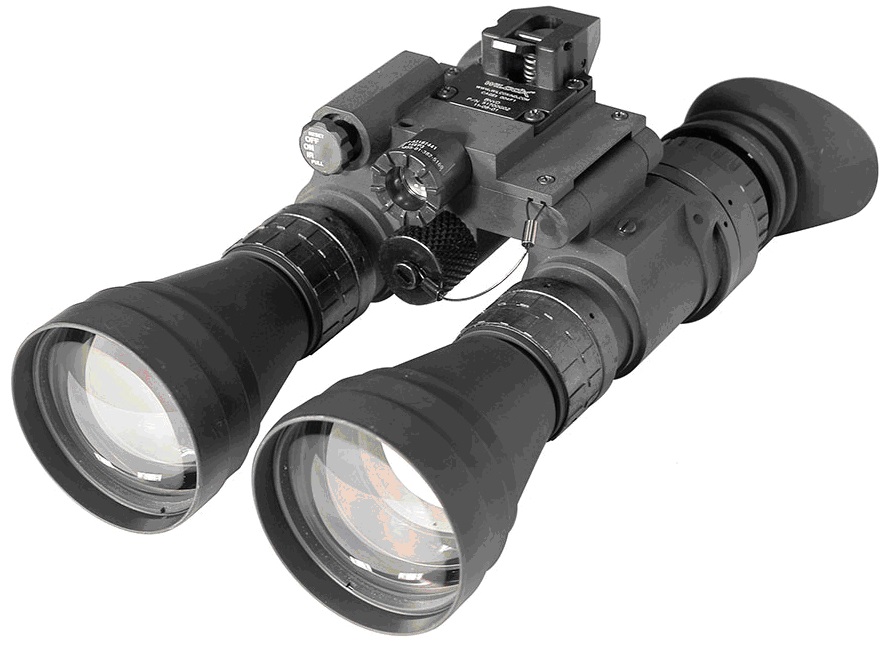

     Optional 3X Magnifier Lenses greatly enhance your long range capabilities, although narrowing your Field-of-View.  Perfect for Night Surveillance, Covert Tracking, and Search & Rescue Operations.



     The BNVD provides crisp, clear images under the darkest conditions, utilizing the most advanced Mil. Spec. housing, this system is built to handle the toughest of environments.




           These Binoculars are proudly Made in the USA



KNV-BNVD Features:

*                  Camera Adaptable

*                  Small and Lightweight

*                  Single AA Battery Operation

*                  Submersible to 66 Feet (MILSPEC Rated)

*                  Head/Helmet Mountable

*                  40˚ FOV

*                  Dual Tube Configuration for Depth Perception

*                  Inexpensive alternative to other Dual Tube Systems


System Technical Specifications
Magnification
1x
f-number
1.2
Field of View
40° Degrees
Diopter Adjustment
-6 to +2 Diopters
Eye Relief
1"/25mm
Weight
595 Grams/21 oz.
Focus Range
  9.8"/25cm to ∞ Infinity
Power Source
(1) AA Lithium
Continuous Operation
>30 Hours
IR Illuminator Range
~20 meters/65 Feet
Dimensions
5"L x 5"W x 3"H (12.7x12.7x
Optional Accessories
3X Afocal Magnifier Lenses
Flip-up Helmet Mount Assembly (MICH or PASGT)
Pelican Hard Case or Padded Hard Case (Ammo Can Style)
Shuttered Eyeguard's
Camera Adapter Kit
Light Interference Filters (DoD Only)

     The BNVD utilizes MIL SPEC accessories and optics and is built with either Commercial, MIL GRADE or MIL SPEC ITT/Exelis GEN III Pinnacle Auto Gated image intensifier tubes.

Tube Specifications

MIL GRADE P+

Commercial P

Commercial P-

Signal to Noise Ratio:

20.0 min.

18.0 min.

16.2 min.

Photocathode Response:

1750 min.

1500 min.

1350 min.

Halo:

n/a **

n/a **

n/a **

Electronic Background Input:

2.5 max.

2.5 max.

2.5 max.

Resolution:

64 lp/mm min.

64 lp/mm min.

64 lp/mm min.

Max Spots Allowed in Each Zone, Spot Size (in.)

ZONE

1 2 3

ZONE

1 2 3

ZONE

1 2 3

...............>.012-.015

0___0___0

0___0___0

0___0___0

...............>.009-.012

0___0___1

0___0___1

0___0___1

...............>.006-.009

0___2___2

0___2___2

0___2___2

...............>.003-.006

0___2___3

0___2___3

0___2___3

Tube Specifications

MIL SPEC-ULT

MIL SPEC-VG

MIL SPEC-YG

Signal to Noise Ratio:

30.0 min.

28.0 min.

25.0 min.

Photocathode Response:

2400 min.

2200 min.

1800 min.

Halo:

n/a **

n/a **

n/a **

(EBI) Electronic Background Input:

1.0 max.

2.5 max.

2.5 max.

Resolution:

64 lp/mm min.

64 lp/mm min.

64 lp/mm min.

Max Spots Allowed in Each Zone, Spot Size (in.)

ZONE

1 2 3

ZONE

1 2 3

ZONE

1 2 3

...............>.012-.015

0___0___0

0___0___0

0___0___0

...............>.009-.012

0___0___0

0___0___0

0___0___0

...............>.006-.009

0___0___1

0___0___1

0___1___1

...............>.003-.006

0___0___2

0___0___2

0___2___2

EXPORT LICENSE REQUIRED.
Export of the commodities herein described are strictly prohibited without a valid export license issued by the US Dept of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130

Night Vision Sights are restricted to domestic U.S. sales to U.S. Citizens only
Please be prepared to provide credentials when ordering.
