MSRP: No Price Listed
LE/Govt.: $Call
for Discount
UNFILMED White Phosphor Available
Supplied with:
* MILSPEC Binocular Assembly
* 2 AA Batteries
* OP Manual
* Soft Carry Case w/Alice Clips
* 2 Rubber Eyecups
* Lens Cleaning Paper
* 2 Sacrificial Windows
* 2 Demist Shields
* 1 YEAR WARRANTY
OPTIONAL Facemask or Helmet Mount

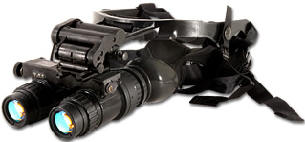

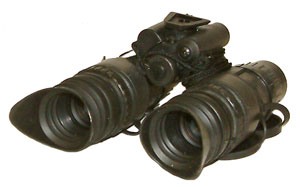

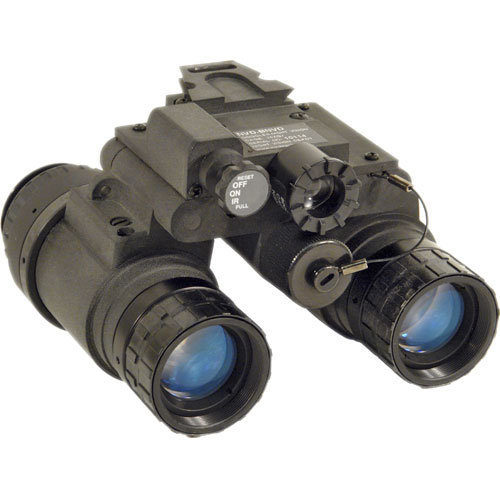

KERIF Night Vision is proud to offer the
M953 (AN/PVS-15) Dual-Tube Night
Vision Binocular/Goggle to our ever growing list of "Top-of-the-Line"
products. These NVG's are
manufactured to the highest quality standards required from our US Military,
utilizing the latest Thin-Filmed, Unfilmed,
and even Unfilmed White Phosphor Tubes, only
available from L-3, with an impressive Signal-to-Noise (SNR) Ratio of 25:1.
L-3's
Unfilmed tube technology dramatically improves NVG performance and
resolution in the lowest light conditions. The binocular viewing has large
25mm eyepieces to optimize depth perception with improved 40˚FOV (Field of
View)
that provides improved eye relief, accommodating operators wearing
eyeglasses.
The
M953 is built right here in the USA and has ergonomically designed interface
controls that comprise of interpupillary and vertical/fore-aft/tilt
adjustments for improved situational awareness.
Designed to operate during
vehicle operation, assault missions, and amphibious operations.
There are multiple helmet mount options.
Based on the military nomenclature AN/PVS-15,
the
M953's are used by US Special
Operations Forces to gain the advantage at night without sacrificing space
and creating neck strain. Significant L-3 EOS design
improvements, such as single battery operation and submersion
to 66', increases
situational awareness, improves system performance and enhances ergonomic
characteristics.
Other
features include High-Light Cutoff and Automatic Brightness Control (ABC) to
help protect the tubes and optimize the viewing image. A built-in IR
illuminator, familiar to the PVS-14's and PVS-7's group of NVG's, helps keep dark alleys, caves,
rooms with no windows, and other low-light surroundings from requiring
additional lighting equipment.
Optional
3X Magnifier Lenses greatly enhance your long range capabilities, although
narrowing your Field-of-View. Perfect for Night Surveillance, Covert
Tracking, and Search & Rescue Operations.
EXPORT LICENSE REQUIRED.
Export of the commodities herein described are strictly
prohibited without a valid export license issued by the US Dept of State, Office
of Defense Trade Controls, prescribed in the International Traffic in Arms
Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130
Goggles
are restricted to Gov't & Law Enforcement agencies only.
Please be prepared to provide credentials when ordering.
| Tube Specifications (Subject to change without notice) | |||
| Tube Type | Resolution | Signal-to-Noise | FOM |
| ALPHA | 45 lp/mm Min | 17.1:1 (min) | 1250 Max |
| DELTA | 64 lp/mm Min | 21.0:1 (min) | 1600 Max |
| OMEGA | 64 lp/mm Min | 21.0:1 (min) | Unrestricted |
| INFINITY | 64 lp/mm Min | 25.0:1 (min) | Unrestricted |
| System Optics | ||||
| Magnification: | 1X | |||
| Field of View (FOV): | 40˚ | |||
| Objective Lens: | 27mm, (1.1") | |||
| Focus Range: | 25 cm (9.8") min | |||
| Eye Relief: | 25mm, (1") | |||
| Diopter Adj. | +2 to -6 | |||
| Warranty: | 1 Year | |||
| Power Sources: | 1 AA Battery | |||
| Battery Life: | ≈ 16 Hours at Room Temperature | |||
| Mechanical Specifications | ||||
| Power Sources: | 1 AA Battery | |||
| Battery Type / Life: | (1) AA / 10 Hours | |||
| Dimension: in | L: 6.5 " | W: 4.9" | H: 3.3" | |
| Dimension: cm | L: 16.5cm | W:12.4cm | H: 8.5cm | |
| Total Weight (oz./lbs/g) | 22 oz | 1.6lbs |
726 grams |
|
| Color: | Black | |||
| Water Resistance: | Submersible to 66' (20 m) | |||
| Mounts: | Helmet Mount Adapter | |||
| Choose your product by Tube Grade (Must Call for Quote) | ||||
| ALPHA (245050-001) | KNV-PVS-15-Alpha | |||
| DELTA (245050-002) | KNV-PVS-15-Delta | |||
| OMEGA (245050-004) | KNV-PVS-15-Omega | |||
| INFINITY (245050-005) | KNV-PVS-15-Infinity | |||
| DEFENDER (245050-006) | KNV-PVS-15-Defender | |||
| Optional Accessories (INFORMATION ONLY- Accy's NOT available through KERIF) | ||||
| Spare Battery | ||||
| Compass | ||||
| Case, Carrying Commercial | ||||
| Case Shipping & Storage | ||||
| Filter, Daylight Training | ||||
| Filter Kit, Sacrificial | ||||
| Spare Parts Kit, M953 | ||||
| Demist Shield Assembly, Screw in | ||||
| Lens Paper | ||||
| Mount, PASGT/RBR Helmet | ||||
| Lens Covers w/Retainers | ||||
| Lens w/Adapters, 3X | ||||
| Lens w/Adapters, 5X | ||||
| Training & Operator's Manual | ||||
| Eyecup Assembly, 25mm Eye relief | ||||
