KNV-MICRO (MUM-14 Style/ANV-20/Mini-PVS-14)
Prices Subject to change without notice. Please call to order.

Mini-MonocularKERIF Price:
Please call (702) 324-6463 or
email
sales@nitevis.com
Multiple Tube Configurations Available

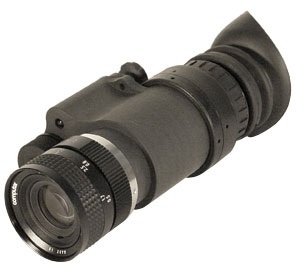

     The KNV-MICRO Monocular is an ultra small, American Made, Generation III image intensified night vision device that truly brings the term “Pocketscope” into definition. Yet the MICRO is much more than just a Pocketscope...it can also be Head or Helmet Mounted, Weapon Mounted, or adapted to a camera. The greatest feature besides being smaller lighter than the PVS-14 and is fully submersible to a depth of 66 feet (20 Meters).


     The KNV-MICRO’s small profile truly means that it will fit into a pocket for the ultimate night surveillance device, and its easily interchangeable CCTV objective lens means that when conditions warrant, a higher magnification objective lens can be used for longer range observation. The MICRO camera adapter (optional) also allows it to quickly and easily be attached to a camcorder or digital camera for recording night time pictures and videos.

The KNV-MICRO’s ability to be attached to the standard AN/PVS-14 head and helmet mounts via the optional adapter, allows the MICRO to utilize all standard AN/PVS-14 and AN/PVS-7B head and helmet mounts, which is great for hands free night time navigation.



The MICRO can also be utilized with the optional AN/PVS-14 Weapon Mount as a night vision weapon sight when used behind collimated reflex type sights such as the ELCAN, Aimpoint, or EOTech sights.

The KNV-MICRO is built using the highest quality Commercial, MIL GRADE or MIL SPEC ITT/Exelis GEN III Pinnacle Auto Gated image intensifier tubes and comes with a FIVE Year Limited Warranty.

The KNV-MICRO provides crisp, clear images under the darkest conditions. The same high quality tube as the ITT6015 but with a higher resolution. Utilizing the most advanced Mil. Spec. housing, this system is built to handle the toughest of environments.

     The “Single tube /Single eyepiece” approach to night vision is based upon the proven concept that the independent use of each eye maximizes the ability of the user to operate under a wide range of low light conditions. This tactic tends to enhance the field of view, while reducing the risk of temporary night blindness typically associated with night vision goggles. The user retains his full peripheral vision in the unaided eye in conjunction with the 40
° Field Of View (FOV)  offered by the night vision device.

The
KNV-MICRO can be installed on an optional Dual-Carriage Head-Mount providing a dual eye configuration like the AN/PVS-15 (BNVS). Both the Headmount Swing Arm Assembly and Weapon-Mount Attachment can be attached to the at the same time, reducing the time needed to remove one to install the other. Critical in a combat situation.

These Monoculars are proudly Made in the USA



KNV-MM-14 Features:

*                  CCTV Objective for Camera Adaptation

*                  Small and Lightweight

*                  Single CR123 Battery Operation

*                  Submersible to 66 Feet (MILSPEC Rated)

*                  Weapons Mountable (Weapons Mount Included)

*                  40˚ FOV

*                  Can be combined in a Dual-Bridge Configuration

*                  Integrated Infrared Illuminator


    The included Weapons Mount and Head Mount can be attached to the KNV-MICRO AT THE SAME TIME for quick interchangeability as stated earlier, and you have the versatility to use either a single AA, or 3.5 volt lithium battery offering more flexibility and longer battery life. The integrated IR illuminator enhances the ability of the user to read maps, and operate in confined spaces. The KNV-MICRO is compatible with most all weapon mounted IR laser aiming and illuminating devices.





System Technical Specifications
Magnification
1x
f-number
1.2
Field of View
40 degrees
Diopter Adjustment
-4+6
Eye Relief
27mm
Weight
9.6 oz.
Voltage
3.0 VDC
Power Source
(1) AA or 3V Lithium
Continuous Operation
>40 hours
IR Illuminator Range
~20 meters
Dimensions
4.2 x 2.0 x 2.5
Optional Accessories
Dual Bridge Assembly
Flip-up Helmet Mount Assembly
Pelican Hard Case
Long Range IR Spotlight
Camera Adapter Assembly

Tube Specifications

MICRO
MIL GRADE P+

MICRO
Commercial P

MICRO
Commercial P-

Signal to Noise Ratio:

20.0 min.

18.0 min.

16.2 min.

Photocathode Response:

1750 min.

1500 min.

1350 min.

Halo:

n/a **

n/a **

n/a **

Electronic Background Input:

2.5 max.

2.5 max.

2.5 max.

Resolution:

64 lp/mm min.

64 lp/mm min.

64 lp/mm min.

Max Spots Allowed in Each Zone, Spot Size (in.)

ZONE

1 2 3

ZONE

1 2 3

ZONE

1 2 3

...............>.012-.015

0___0___0

0___0___0

0___0___0

...............>.009-.012

0___0___1

0___0___1

0___0___1

...............>.006-.009

0___2___2

0___2___2

0___2___2

...............>.003-.006

0___2___3

0___2___3

0___2___3

Tube Specifications

MICRO
MIL SPEC-ULT

MICRO
MIL SPEC-VG

MICRO
MIL SPEC-YG

Signal to Noise Ratio:

30.0 min.

28.0 min.

25.0 min.

Photocathode Response:

2400 min.

2200 min.

1800 min.

Halo:

n/a **

n/a **

n/a **

(EBI) Electronic Background Input:

1.0 max.

2.5 max.

2.5 max.

Resolution:

64 lp/mm min.

64 lp/mm min.

64 lp/mm min.

Max Spots Allowed in Each Zone, Spot Size (in.)

ZONE

1 2 3

ZONE

1 2 3

ZONE

1 2 3

...............>.012-.015

0___0___0

0___0___0

0___0___0

...............>.009-.012

0___0___0

0___0___0

0___0___0

...............>.006-.009

0___0___1

0___0___1

0___1___1

...............>.003-.006

0___0___2

0___0___2

0___2___2



    MINI MONOCULARS
GEN 2 Exportable^ ITT Micro Night Vision Monocular Kits  MSRP   Govt/LE   List
MICRO Kit: Soft Case, Rubber Eyecup, (2) 123 Batteries, Removable Wrist Strap Cap, Operators Card
KNV-MICRO-G2 1ea Micro-G2 NV Monocular, ITT GEN 2 Image Tube, Tube/System Data Sheet, MICRO Kit $2,195.00

Request Quote

$1,995.00
^ End User must be provided at time of order; Export Docs must be available prior to shipment

GEN 3 Pinnacle ITT Micro Night Vision Monocular Kits  MSRP   Govt/LE   List
MICRO Kit: Soft Case, Rubber Eyecup, (2) 123 Batteries, Operators Card
P+ Systems   PR = 1750 MIN, EBI = 2.5 MAX, SNR = 20.0:1, RES = 64 lp/mm MIN
KNV-MICRO-P+ 1ea ITT Micro-P+ NV Monocular, Tube/System Data Sheet, MICRO Kit $3,095.00

Request Quote

$2,960.00
P Systems   PR = 1500 MIN, EBI = 2.5 MAX, SNR = 18.0:1, RES = 57 lp/mm MIN
KNV-MICRO-P 1ea ITT Micro-P NV Monocular, Tube/System Data Sheet, MICRO Kit $2,995.00

Request Quote

$2,870.00
P- Systems   PR = 1350 MIN, EBI = 2.5 MAX, SNR = 16.2:1, RES = 57 lp/mm MIN
KNV-MICRO-P- 1ea ITT Micro-P- NV Monocular, Tube/System Data Sheet, MICRO Kit $2,895.00

Request Quote

$2,780.00

GEN 3 Pinnacle ITT *NEW* MIL-SPEC Night Vision Micro-Monocular Kits  MSRP   Govt/LE   List
MICRO Kit: Soft Case, Rubber Eyecup, (2) 123 Batteries, Removable Wrist Strap Cap, Operators Card
YG MIL-SPEC NEW PR = 1800 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN
KNV-MICRO-YG 1ea ITT MIL-SPEC-YG Tube, Micro NV Monocular, Tube/System Data Sheet, MICRO Kit $3,475.00

Request Quote

$3,230.00
VG MIL-SPEC NEW PR = 2000 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN
KNV-MICRO-VG 1ea ITT MIL-SPEC-VG Tube, Micro NV Monocular, Tube/System Data Sheet, MICRO Kit $3,749.00

Request Quote

$3,470.00
ULTRA MIL-SPEC NEW PR = 2400 MIN, EBI = 1.0 MAX, SNR = 28.0:1, RES = 64 lp/mm MIN
KNV-MICRO-ULT 1ea ITT MIL-SPEC-ULTRA Tube, Micro NV Monocular, Tube/System Data Sheet, MICRO Kit $3,995.00

Request Quote

$3,710.00

EXPORT LICENSE REQUIRED.
Export of the commodities herein described are strictly prohibited without a valid export license issued by the US Dept of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130

Night Vision Sights are restricted to domestic U.S. sales to U.S. Citizens only
Please be prepared to provide credentials when ordering.
