A.R.M.S.  01, 02, 05, 06, 07, 11, 17, 18, 19, 20, 22M68, 23, 38, 39, 40, 45, 46, 50, 51A1A2, 58, 59, M69, A3256348, NVEC#16,

ELC145MT ELCAN Torque Knob Optical Sight Mount

ELC556MT ELCAN Gen-4 SSL Optical Sight Mount (.223)

M69

Click Here to Order Online

* Picatinny Weapon Mount Adapter
* For AN/PVS-14
* Adjustable Height

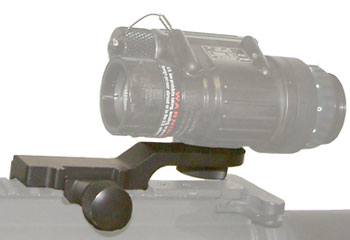

A3256348 Click Here to Order Online

* Picatinny Weapon Mount Adapter
* For AN/PVS-14
* Fixed Height


NVEC #16 Discontinued

* M-16 Weaver Barrel Mount
* Through Hand Guard

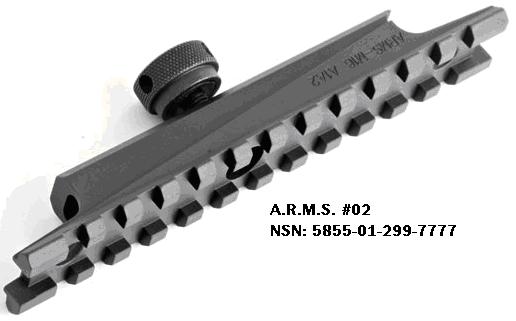

A.R.M.S.® #02

* M16A1A2/AR15 Mount
* Universal mounting platform
* Accepts A.R.M.S.® #21 STANAG Rings
* Accepts Standard #22 Dovetail Rings
* NATO STANAG, M1913 Military Standard and Weaver type scopes.

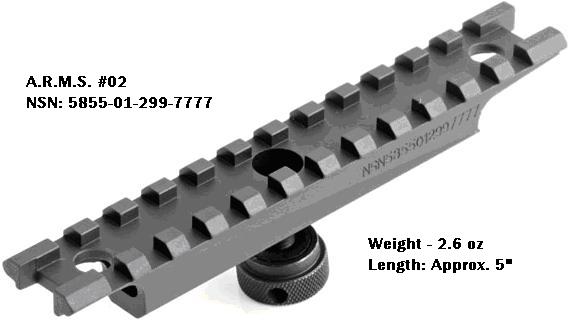

A.R.M.S.® #02™ M16 Scope Mount
NSN 5855-01-299-7777
The finest scope mount designed for the M16A1/A2 rifle.

This mount features the A.R.M.S.®/SWAN® Universal mounting platform, accepting NATO STANAG and Weaver type scopes and rings. It attaches via a unique self-locking thumbnut that fits snugly in the hole in the carry handle for continuous zero hold. The #02™ carry handle mount features a wide angle TV shaped see-thru channel for use with iron sights.
Also fits detachable carry handle models.
Weight - 2.6 oz
Length: Approx. 5"

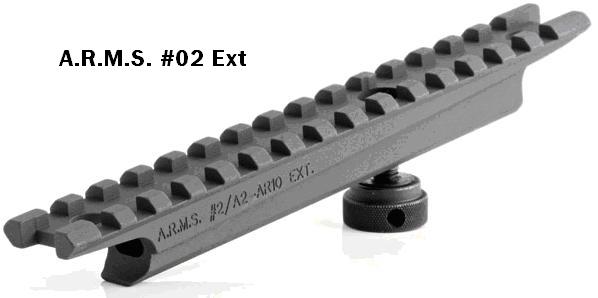

A.R.M.S.® #02 Extended

A.R.M.S.® #02™ Extended M16A1A2/AR-10 6.5" Scope Mount
Mount for the AR-10 Rifles carry handle. Will Also work with AR15/M16

This is a longer version of our widely used #02™ carry handle mount. It measures 6.5" long and attaches via a unique self-locking thumbnut that fits snugly in the hole in the carry handle for continuous zero hold. The #02™ extended carry handle mount features a wide angle TV shaped see-thru channel for use with iron sights.
Weight: 3 oz
Length: Approx. 6.5"

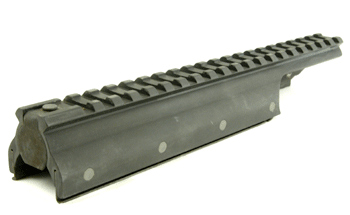

A.R.M.S.® #3 The A.R.M.S. FN FAL standard and paratrooper are precision machined to military specifications. This mount replaces the existing dust cover and offers the user a rigid mounting base with NATO standard weaver rail and Picatinny rails. This mount with fit L1A1 and FAL rifles. Manufactured from aluminum extrusions with steel attachment rails riveted in place. The exceptional rigid alloy body provides a rock solid platform for even the largest optics.

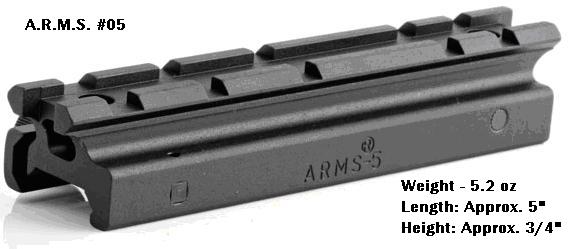

A.R.M.S.® #5

* Multibase 1913 Rail/universal NATO STANAG,

* Extruded Aluminum, MILSPEC Black Hardcoat,

* Self locking captivated thumb nuts.

* Attaches to Weaver type rail & flat-top receivers

* Accepts Standard #22 Dovetail Rings & A.R.M.S.® #21 STANAG rings.

One of the most versatile mounts on the market.
Made of extruded aluminum with a Mil-spec black hardcoat.

     The #5 Multi-base is a Quick detachable, multiple eye relief mounting base that attaches to weaver type rail and flat-top receivers.
     The Multi-base is compatible with both weaver style rings and NATO STANAG mounts. It raises your sight platform 3/4" and features a spring loaded clamping bar and self locking captivated thumbnuts for solid, zero movement mounting to your existing rail. The #5™ Multi-base also features a see through channel for use with iron sights.
Also available with Throw Levers® - see #63.

Weight - 5.2 oz
Length: Approx. 5"
Height: Approx. 3/4"

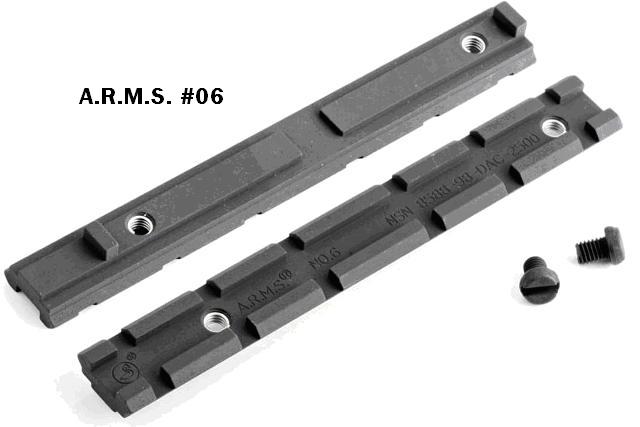

A.R.M.S.® #06 II Adapter

Converts NATO STANAG mounts to A.R.M.S.®/SWAN® (aka Mil-Std. 1913) rails. Mil-spec hard coat finish.

For additional eye relief considerations, the rail provides two positions of fastening, via two securing screws (included), which allows the rail to extend to the rear or front.

Length: Approx. 6"

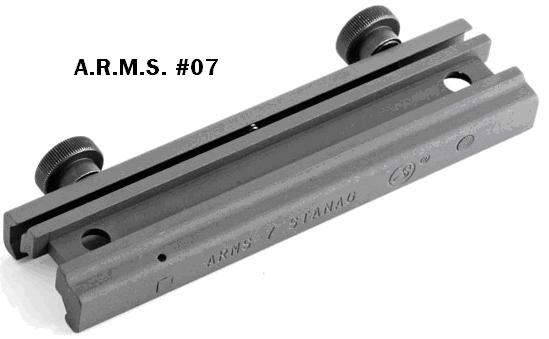

A.R.M.S.® #7 Converts NATO STANAG Scopes to Weaver type rail.

The #7™ is a quick detachable, multiple eye relief mounting base for optics using the NATO/STANAG mounting system. It features a spring loaded clamping bar and self locking captivated thumbnuts for solid, zero movement mounting to your existing rail. The #7™ base allows you to mount NATO STANAG scopes to weaver type rails and flat-top receivers.

* Weaver Base to STANAG top

* Self-locking captivated thumbnuts

* Multiple eye relief16A1A2 Scope Mount, M16 Universal mounting platform,
* Accepts NATO STANAG, M1913 Military Standard and Weaver type scopes.

* Accepts A.R.M.S.® #21 STANAG Rings

* Accepts #6 STANAG to Mil-Std. Dovetail

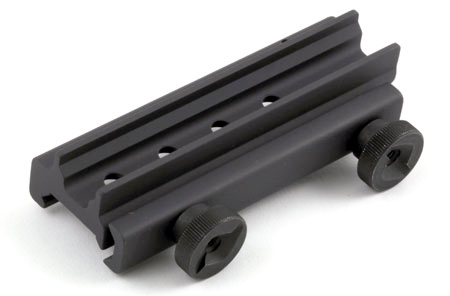

A.R.M.S.® #10 ACOG Channel Mount / Thumb Nuts
Multi-position channel mount with self-locking thumbnuts. The #10 mount is extremely rugged and versatile. The finish is MIL-SPEC black hardcoat, and provides the eye relief options needed for many weapons.

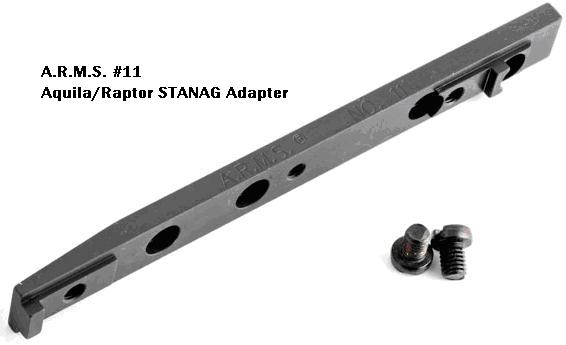

A.R.M.S.® #11 Fits the Aquila and Raptor N.V. optics.

A.R.M.S.® developed the #11™ Adapter at the same time it developed the housing interface used on the Aquila and Raptor Night Vision Optics. It fastens to the A.R.M.S.® #2™, #5™, #7™, and #19™ mounting brackets.


A.R.M.S.® #12 LEUPOLD CQ/T Mount- Throw Levers
Engineered to provide the optimum combination with the New Leupold Multi-Fastened CQ/T Optic. The fast action of the optic is enhanced by the quick on/off of the MIL-SPEC throw levers and provides a rugged no nonsense system of the future.

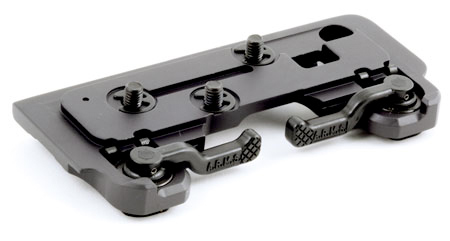

A.R.M.S.® #15 Trijicon Reflex Throw Lever Platform
A.R.M.S. has succeeded in developing an ultra low profile mounting platform for the Trijicon® reflex sight. The #15 platform is attached to the bottom of the sight by 3 screws that are supplied with the platform, and provides 2 positive locking throw levers with A.R.M.S.® patented no-mar buffer pads, no gunsmithing required. The #15 Reflex mount platform meets or exceeds all mil-spec requirements just like all other A.R.M.S.® standard mil-spec products.

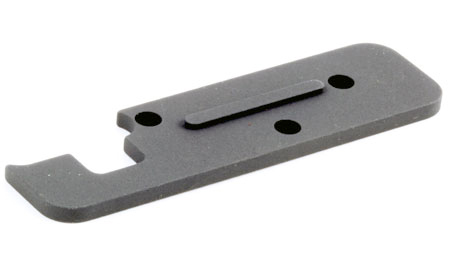

A.R.M.S.® #15S Spacer for 315 Mount
Reflex Mount Spacer - Adds a little height to the #15 mount.

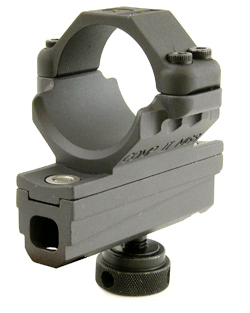

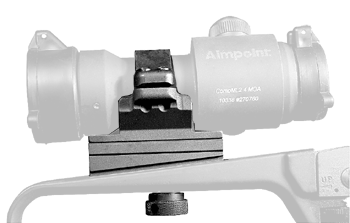

A.R.M.S.® #16  Carry Handle Mount for Aimpoint
The #16A allows for the mounting of the Aimpoint M2/ML2 & other Comp. sights to be mounted directly to the carry handle of the AR-15/M16/M16A1/M16A2/M4. 30mm ring mount. The see through design allows for use of iron sights with the mount in place.

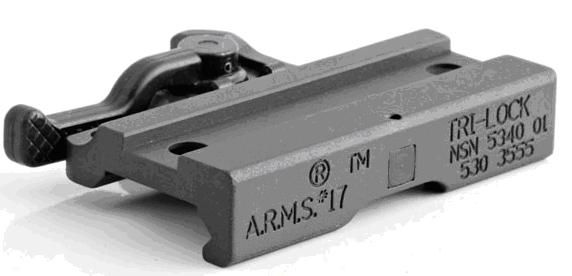

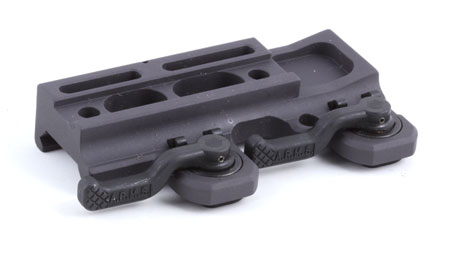

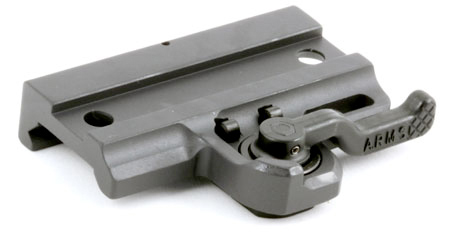

A.R.M.S.® #17
Single Lever Tri-Lock Mount.
NSN 5340-01-530-3555.
Single Lever Tri-Lock mount was developed by A.R.M.S.® as a small commercial compact universal platform.


Two (2) solid attachment feet on the right side are firmly held in place with the A.R.M.S.® steel locking foot and lever on the left side. Standard width channel, accepts rings, various dovetail rails, universal platforms and adapters in a modular fashion. Repeat Zero Hold with quick easy on and off. US Pat. No. 5276988, 7493721, D573443


* Single Lever Tri-Lock mount developed for small pocket scopes and laser attachments

* Two solid attachment feet on the right side

* Steel locking foot and lever on the left side.

* Standard STANAG width channel

* Secure LASER/Night Vision Optic attachment at 2 points.

* Repeat Zero Hold with easy on and off.

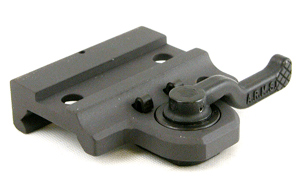

A.R.M.S.® #17S Same mounting platform as the #17 only shorter
Single Lever Tri-Lock mount developed for small pocket scopes and laser attachments

Steel locking foot and lever on the left side.

Standard STANAG width channel

Repeat Zero Hold with easy on and off

A.R.M.S.® #17DL Dual Throw Lever Mount
Dual Throw Lever® Mount attaches to the Surefire® Flashlight M900 series. The dual Throw Lever® mount for the Surefire® Flashlight M900 series to attach to a Mil-Spec 1913 rail, providing a more secure mounting option than a single Throw Lever®.

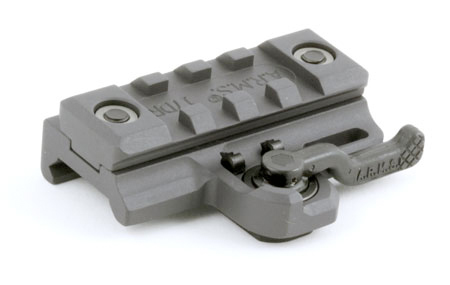

A.R.M.S.® #17DR Dovetail / Single Lever Platform Mount
Throw Lever Dove Tail Mount - This mount is perfect for converting accessories over to the Throw Lever System, such accessories include the Insight Technology, Inc.® M3 Tactical Illuminator or M6 Tactical Laser Illuminator. Repeat Zero Hold with easy on and off.

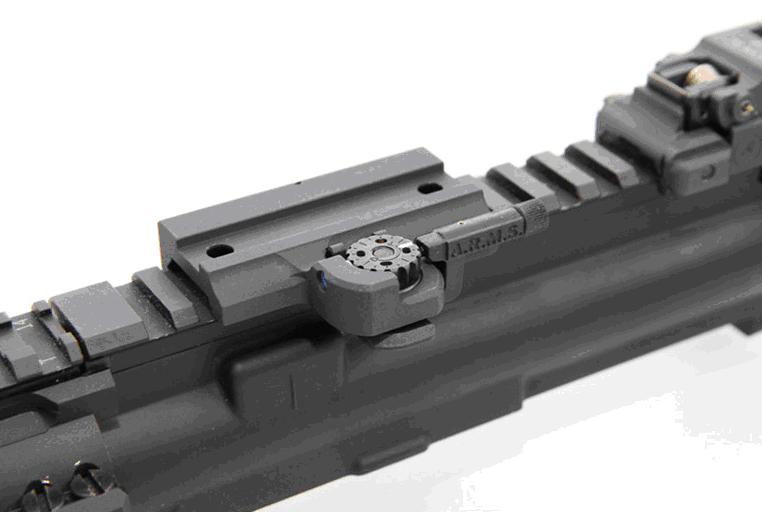

A.R.M.S.® #17MKII A.R.M.S.® #17® Single Lever Tri-Lock Mount with MK II Lever
Developed by A.R.M.S. ® as a small compact universal platform.

The new MK ll Levers featuring a built in precision adjustment wheel allowing finger tip (no tool) selection to desired tension to fit variations in 1913 mil-standard dimensions. The mounts adjustment wheel comes pre-gauged and locked to the center of the mil std. dovetail specs. The hash marks to the left or right of the adjustment wheels white marked indicator line, represent .002. Standard width channel, accepts rings, various dovetail rails, universal platforms and adapters in a modular fashion. Repeat Zero Hold with quick easy on and off. US Pat. No. 5276988, 7493721, D573443

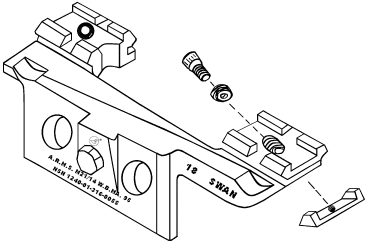

A.R.M.S.® #18

 * M14/21/25 Mount Foundation

 * Low profile throw lever bases

 * Accepts #21 STANAG Rings

 * 8620 Case Hardened Steel

 * Precision Machined

 * 2 Attachment + 1 Contact Point

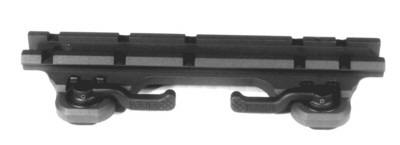

A.R.M.S.® #19

 * Weaver base to 1913 Rail/NATO STANAG (Throw lever)

 * Aluminum base

 * Secured by Steel Feet and Levers

 * No-mar patented Buffer pads

 * Interfaces to M16A1A2 and M4

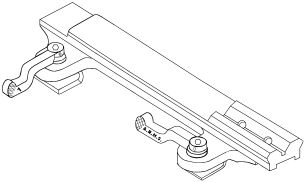

A.R.M.S.® #20

 * Night Vision Throw Lever Mount

 * Machined to fit AN/PVS4 Scope

 * Similar to #19 w/out STANAG or male Weaver capability on top

 * Fits all MILSPEC Dovetail rails

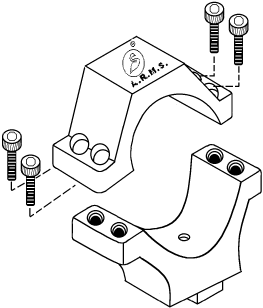

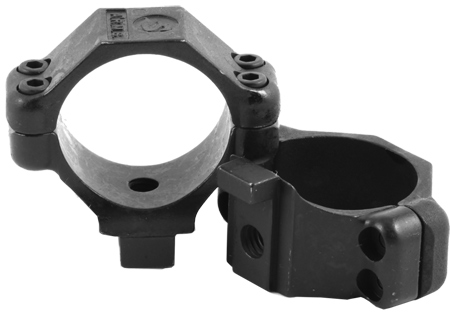

A.R.M.S.® #21 STANAG SCOPE RINGS
The #21 Rings are all steel with a Mil-spec phosphate finish for ultimate surface protection. Phosphate finished Pair).

Set screws and wrench included. Available in Low height

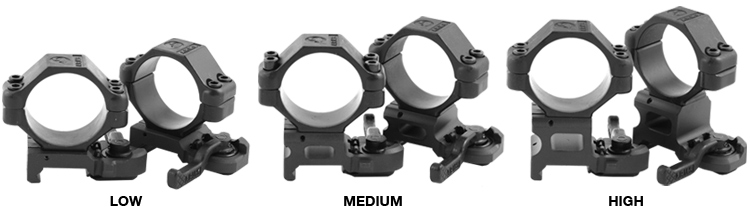

A.R.M.S.® #22 Throw Lever Rings - All Steel 30mm Ring, secured with A.R.M.S. dovetail system to an extruded aluminum platform. Build in no mar Patented Buffer Pads. Available in Low, Medium, and High heights.


ID#	Height	Height A	Height B
ARMS-22LOW	Low Rings	.925"	.30"
ARMS-22MEDIUM	Medium Rings	1.15"	.56"
ARMS-22HIGH	High Rings	1.45"	.81"

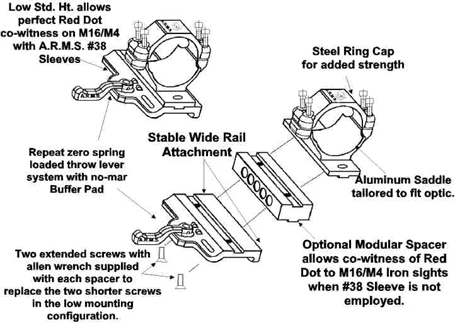

A.R.M.S.® #22M68

 * M1913 rail (Throw Lever)

 * Mounts to 30mm Aimpoint® Ring

 * Low Std. height, adjust w/spacers

 * A.R.M.S.® unique ring saddle allows for optimum stability

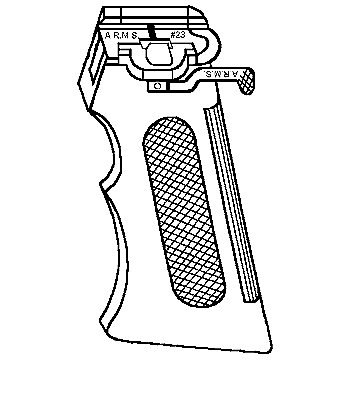

A.R.M.S.® #23

 * Quick Detach Throw Lever

 * Natural Pistol Grip

 * Stabilized forward position

 * Fits S.I.R.® Systems & M1913





A.R.M.S.® #38

 * SWAN sleeve w/flip-up rear sight

 * Positive Hold Release Lever

 * A2 Type Windage Adjust

         M16 5.56mm
         AR10/SR25 7.62mm

 * Std. Length

 * Ext Length 8.46"

 * S Ext Length 14"



A.R.M.S.® #39

* A2 Plus Mod Mount

* Handle Mount M16

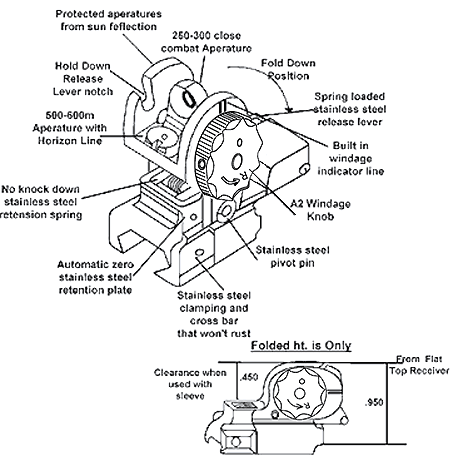

A.R.M.S.® #40

* Stand Alone Flip-Up Rear Sight

* Low Profile

* Spring Loaded

* Repeat Zero

* Quick Release Lever

* A2 Windage Knob

Modeled with the same well-mannered concept as the rear sight on the SWAN  Sleeve System.

The primary elevation zero utilizes the standard capitol M16/M4 front site bead. When the site is released into battery the 250-300 meter aperture is equipped. For longer ranges, the leaf site aperture is rotated to utilize the 500-600 meter w/built-in horizon line feature

A2

Low Profile

2 Apertures, Low Profile, Same Plane

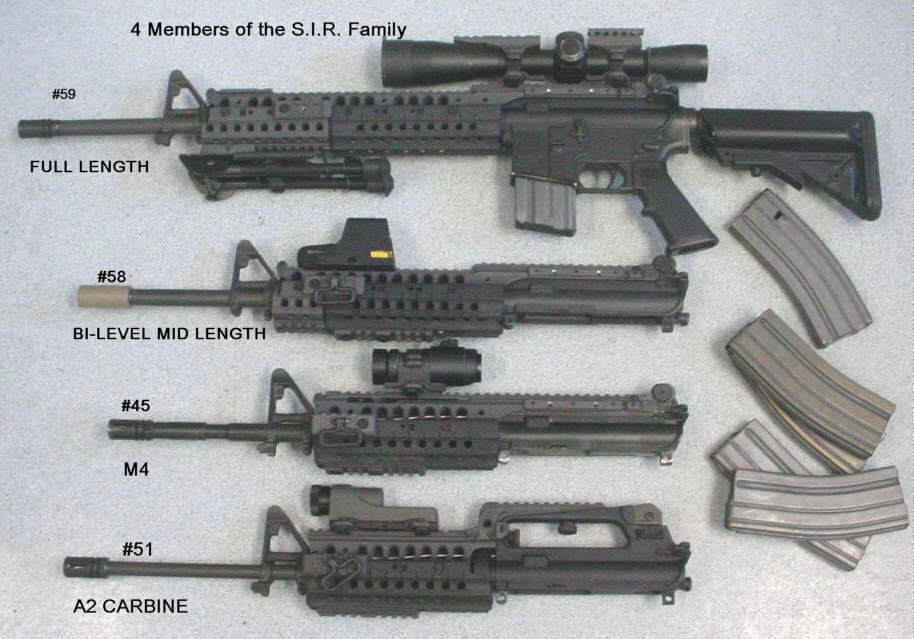

     The new A.R.M.S.® S.I.R.® System offers more features than any other. This System allows you to place Dovetail Rails where you want them, not where others decide. Tired of dealing with hot, uncomfortable Dovetail Rails? No other system keeps the weapon as cool during firing. A.R.M.S.® designed the only free float barrel that does not require the barrel to be removed for installation, like on-tube designs.

Neither model requires any modification to the carbine except removal of your current hand guards and the Delta ring on the military S.I.R.^(TM) model. The S.I.R.^(TM) works with any type front sight.

No special tools are needed to install.

A simple coin can be used.

* Free Floating Barrel

* Multiple Dovetail Rails

* Lightweight and Rugged

* Designed to fit Mil-Spec flat -top Receivers

* Colt, Armalite and Bushmaster in the 5.56 carbine lengths

* True Quick Change Lower Hand Guard

* Green, Brown and Tan Hand Guard Options

The S.I.R.^(TM) System accepts multiple accessories tailored to the needs of the user and was built to fit Mil-Spec flat top receivers from Colt, Armalite and Bushmaster in the 5.56 carbine lengths. Other flat top receivers may fit properly, but no guarantees or warrantees on any S.I.R.^(TM) on any flat top receivers other than those listed above.

     The modular receiver sleeving system is a hand guard universal mounting system that keeps the barrel completely uninhibited while offering a solid lightweight platform. This allows you mount virtually any accessory like Thermal Imagers, Lasers, Night Vision, Optical Sight, M203, etc.

A.R.M.S.® #45C S.I.R. (Selective Integrated Rail) Systems

	M4 Carbine
	(Commercial)
	S.I.R.

A.R.M.S.® #45M

	M4 Carbine (Military-No Delta Ring)
	S.I.R.

A.R.M.S.® #46SC (Slim)

	M4 Carbine (Commercial)
	S.I.R.

A.R.M.S.® #46SM (Slim)

	M4 Carbine (Military-No Delta Ring)
	S.I.R.

A.R.M.S.® #50C Bi-Level

	M4 Carbine (Commercial)
	S.I.R.

A.R.M.S.® #50M Bi-Level

	M4 Carbine (Military-No Delta Ring)
	S.I.R.

A.R.M.S.® #51A1/A2

	Carry Handle
	S.I.R.



A.R.M.S.® #58C Bi-Level

	Carry Handle Carbine M4
	(Commercial)
	S.I.R.

A.R.M.S.® #58M Bi-Level

	Mid Length
	(Military-No Delta Ring)
	S.I.R.

A.R.M.S.® #58MOD Bi-Level

	Mid Length Carbine M4
	(Military-No Delta Ring)
	S.I.R.

A.R.M.S.® #59C Bi-Level

	Full Length M16 (Commercial)
	S.I.R.

A.R.M.S.® #59M Bi-Level

	Full Length M16 (Mil-No Delta Ring)
	S.I.R.
