Non-Electric - Does NOT use Batteries
MIL-STD 810F Compliant
Quick-Disconnect Throw-Lever Mounting System, MIL-STD 1913 Rail
Simple Elevation/Bearing Adjustments
Conveniently Aligns to your Day Optics
Robust, Compact Design
Maintains Consistent Eye-Relief

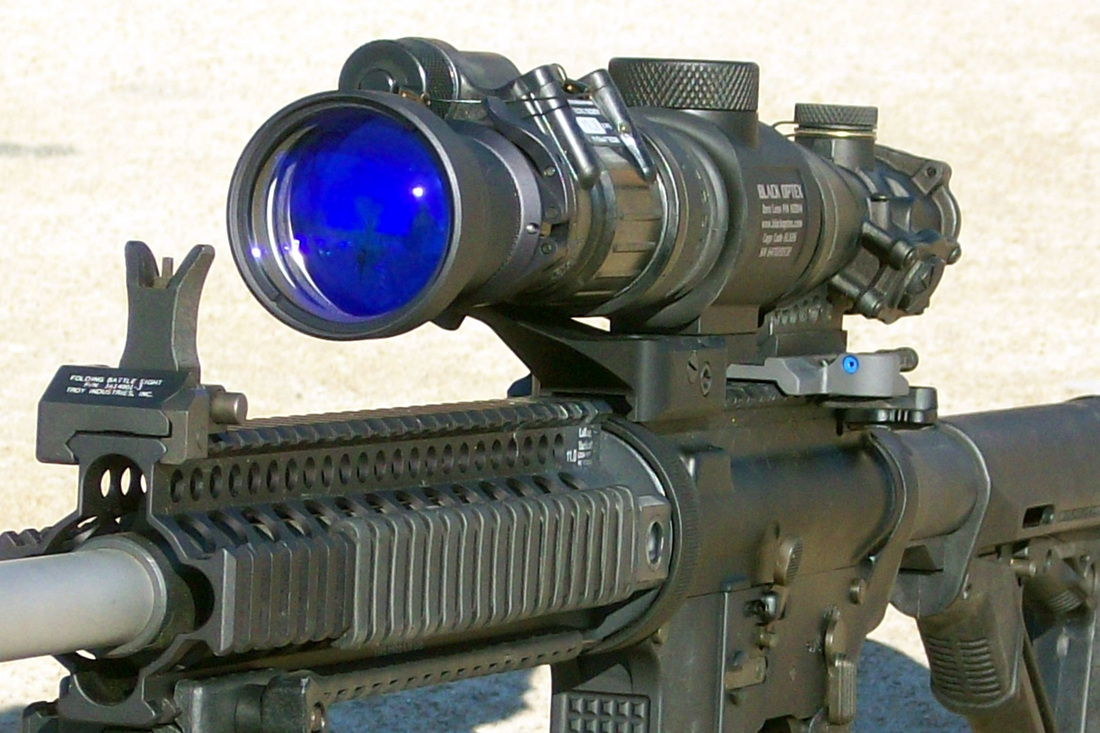

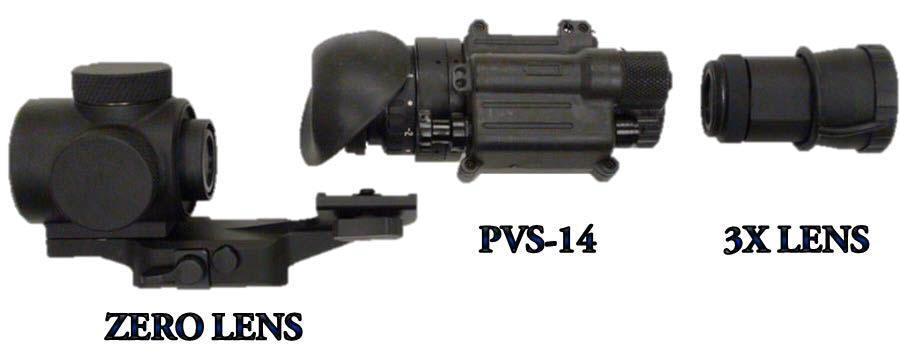

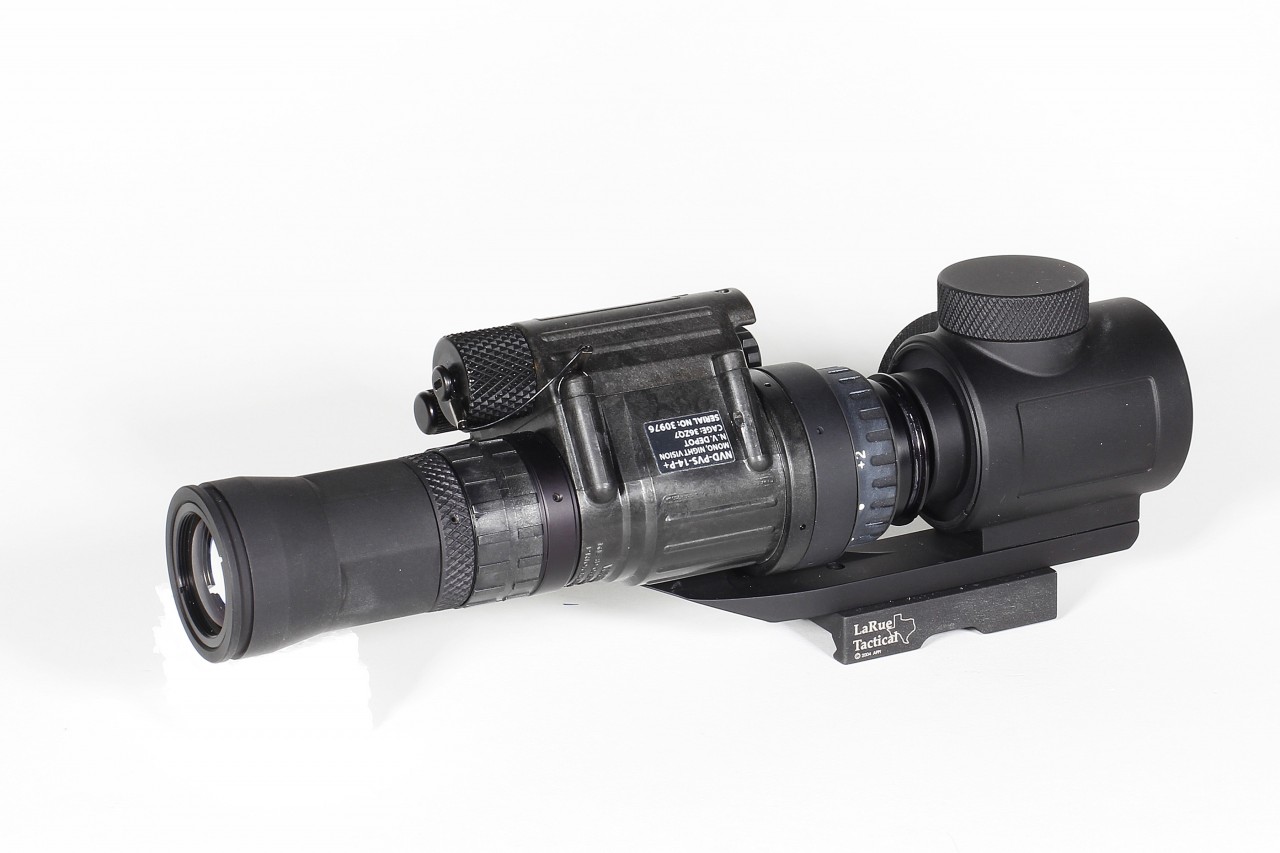

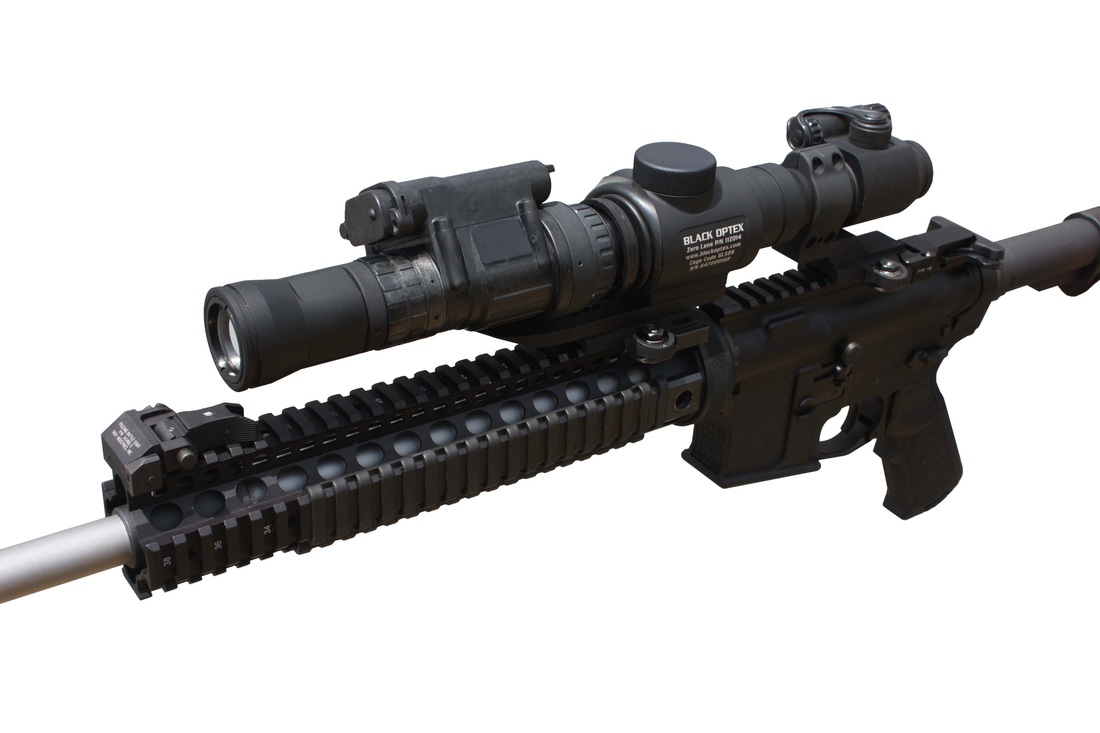

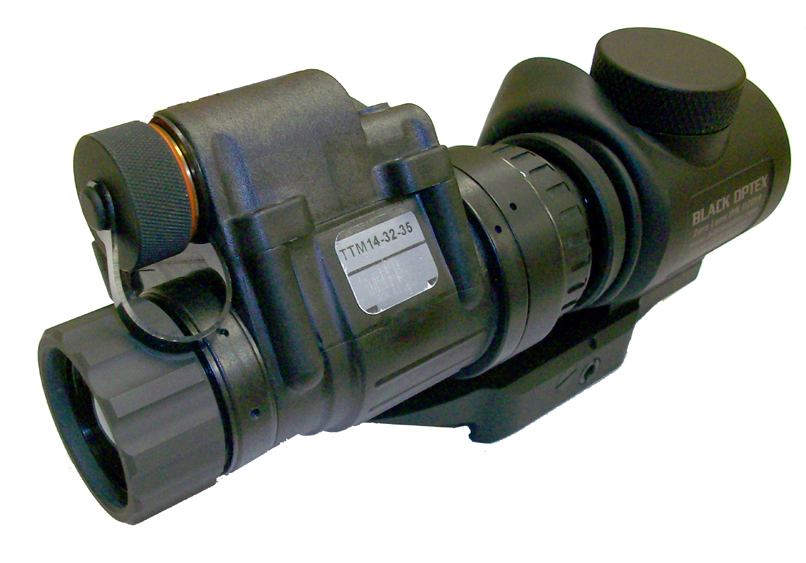

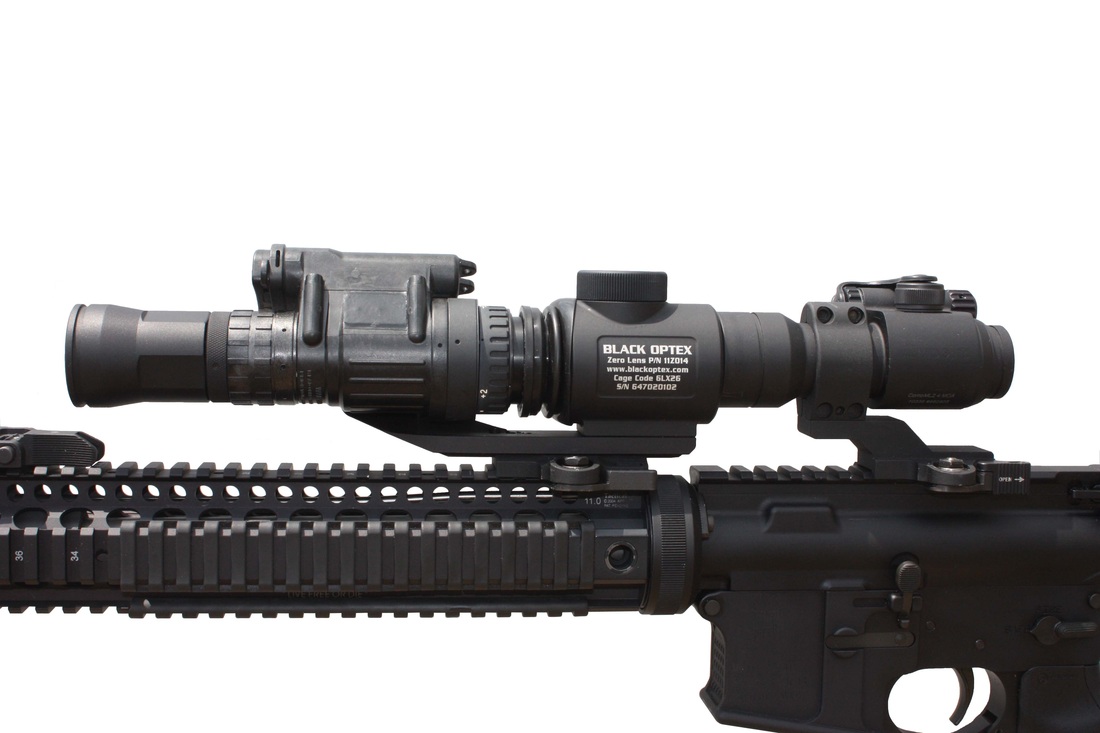

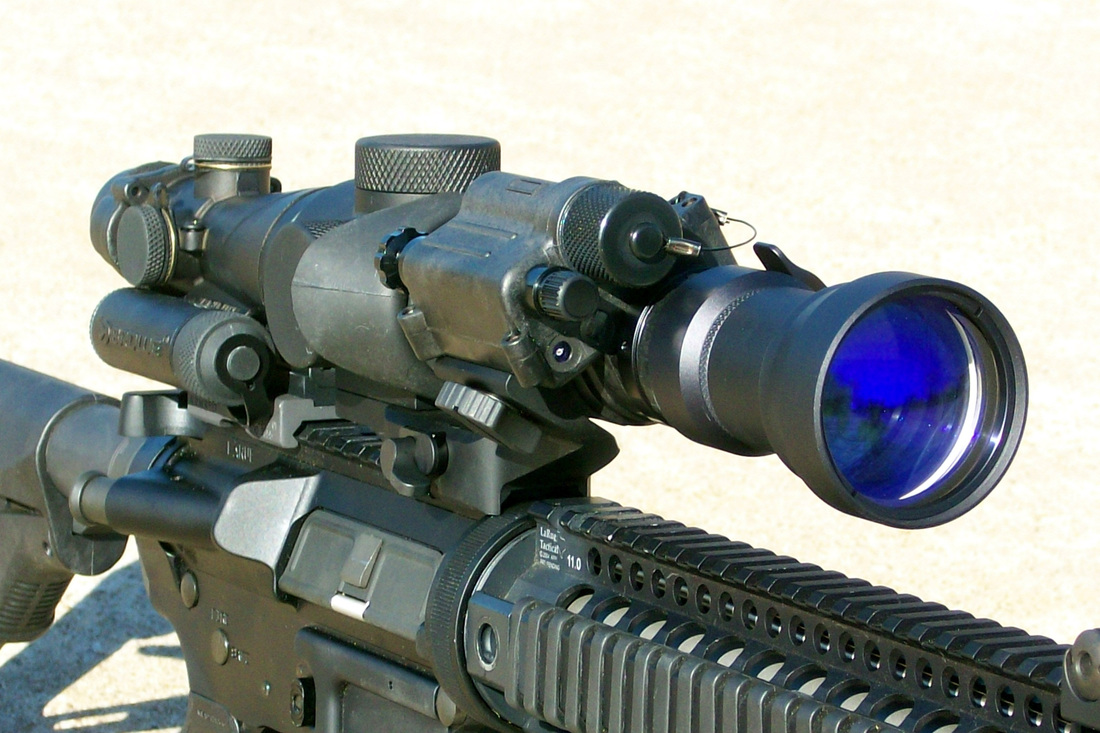

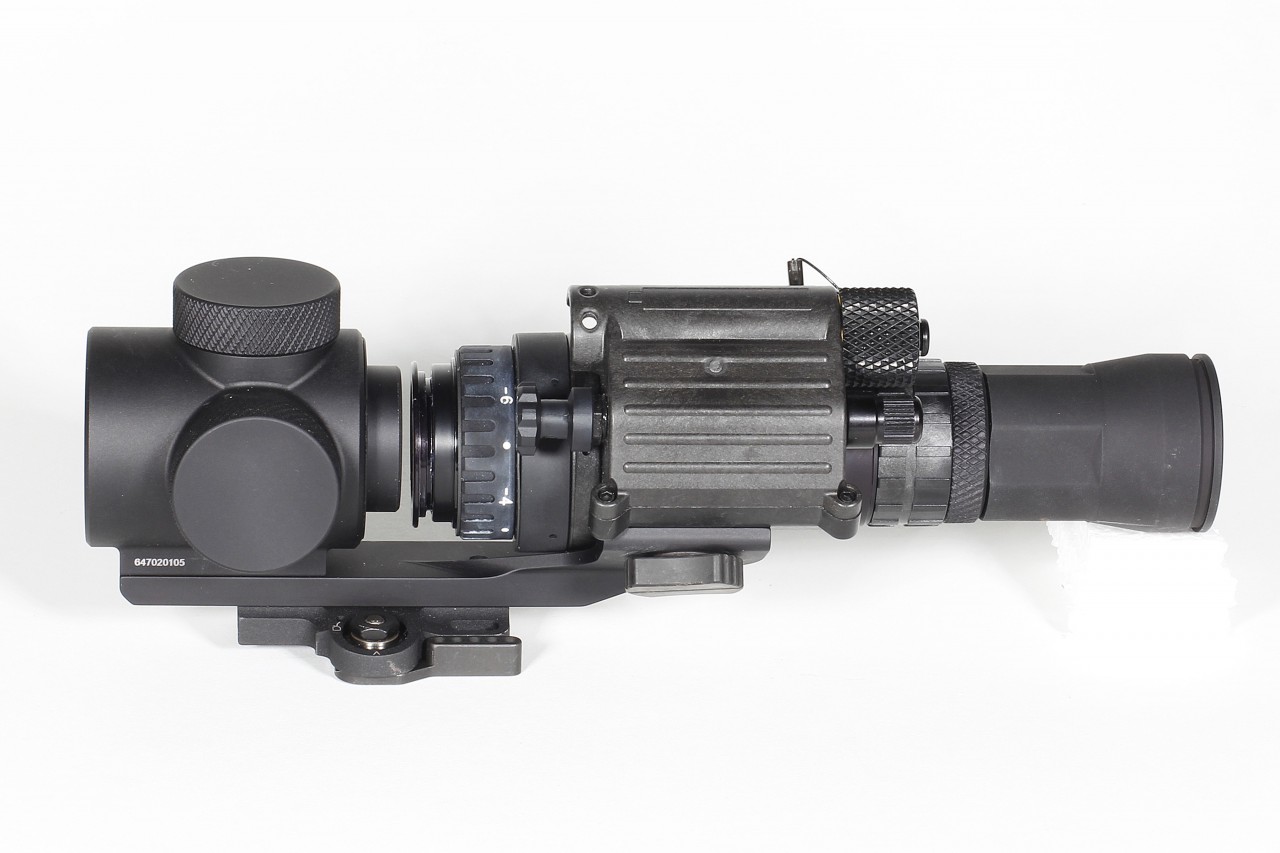

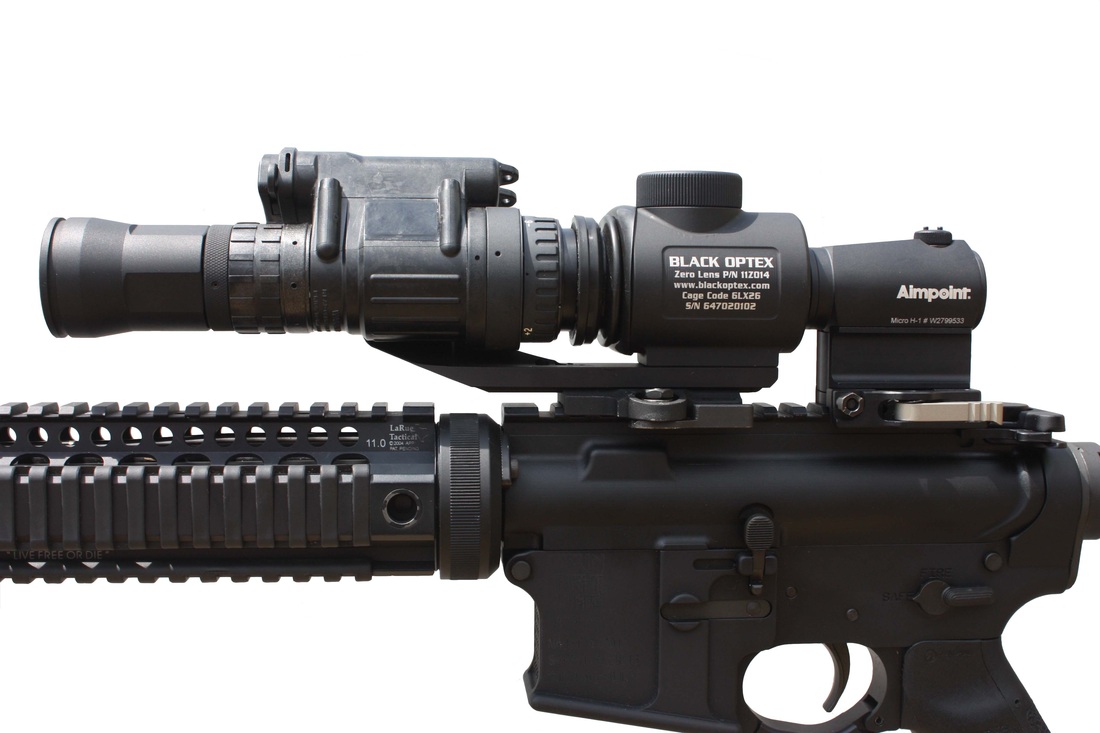

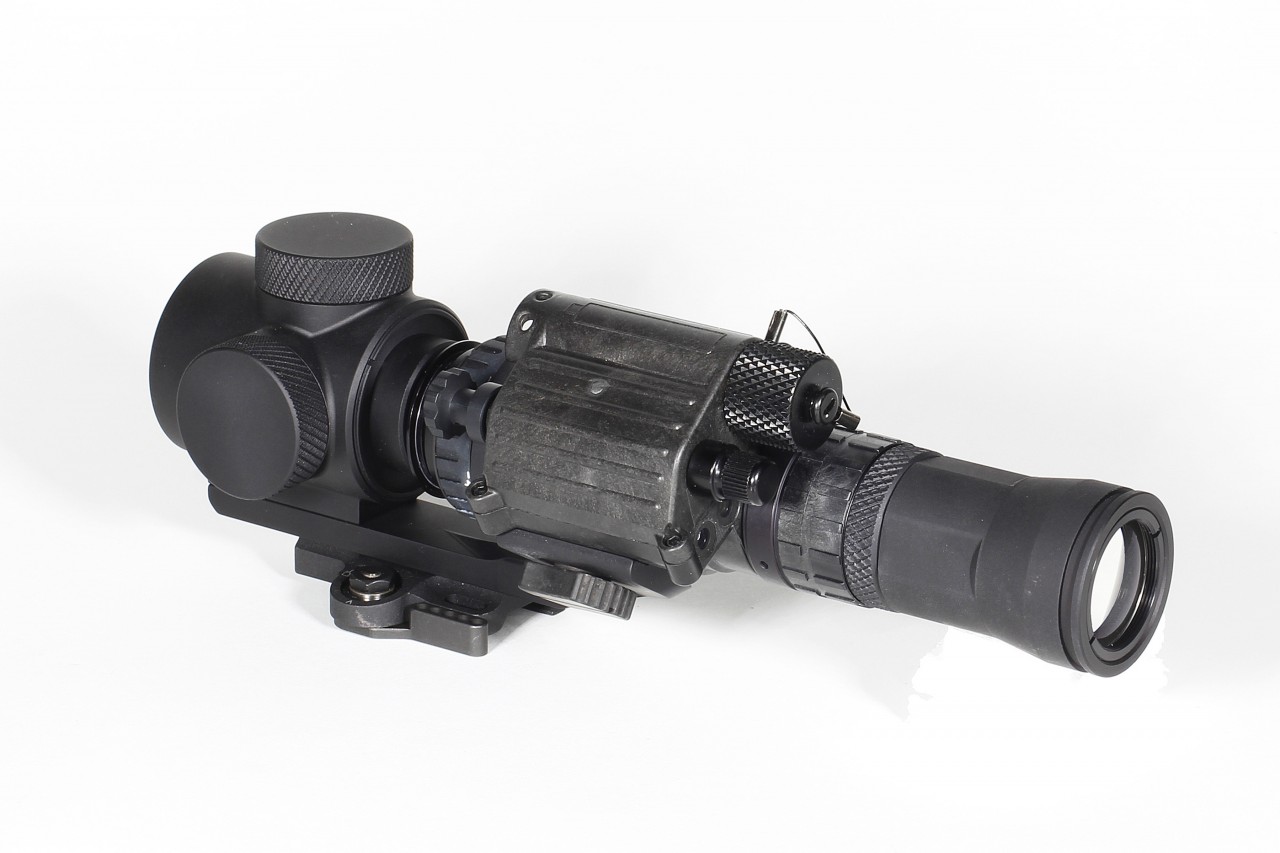

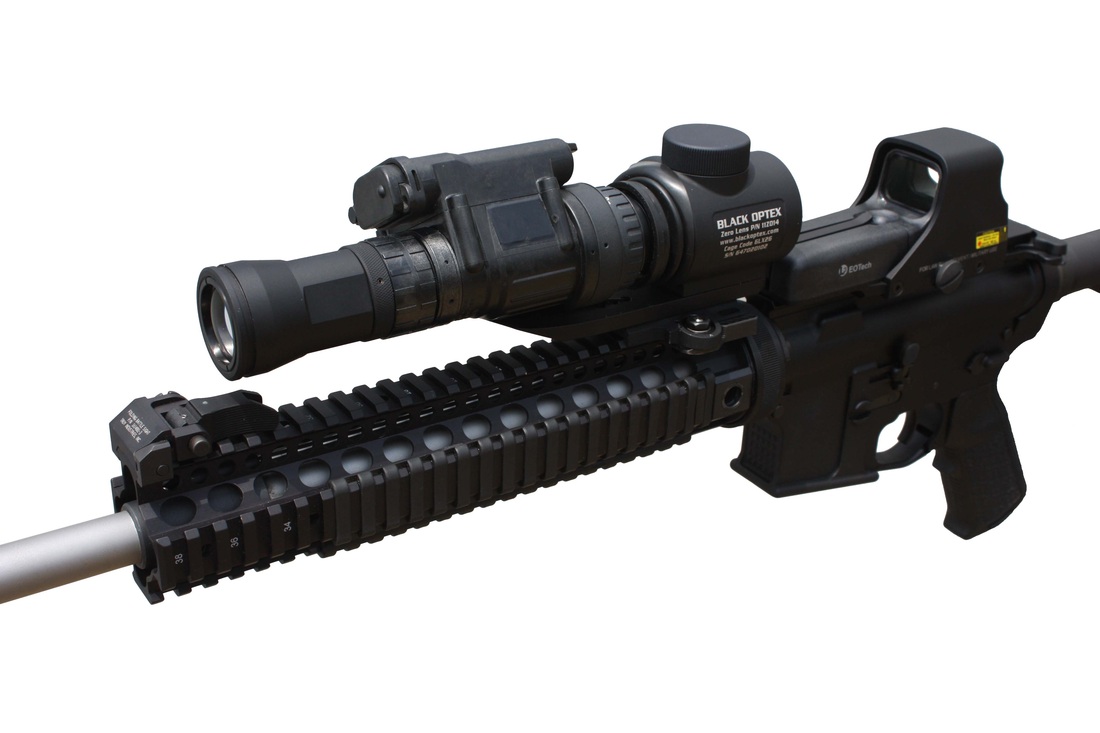

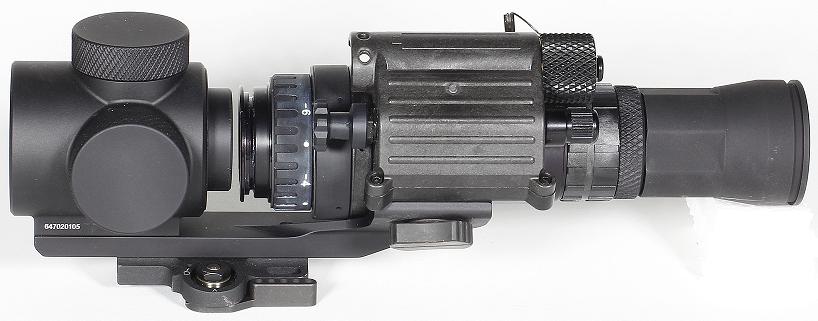

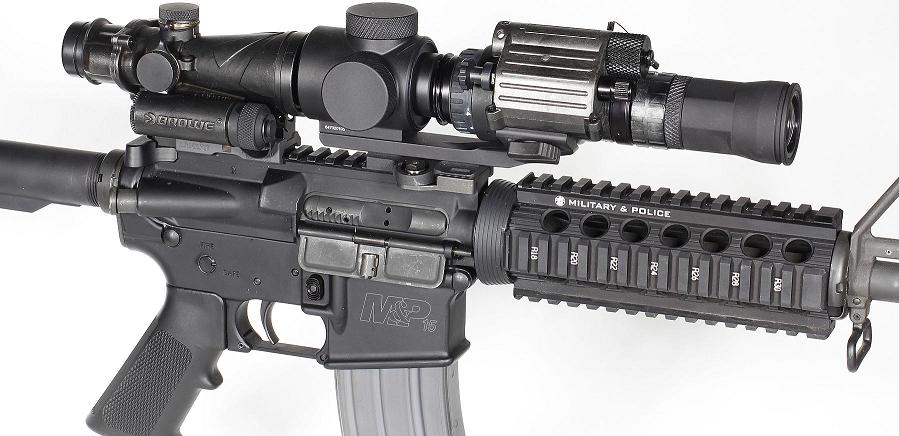

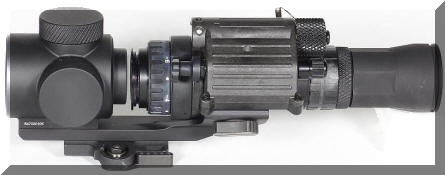

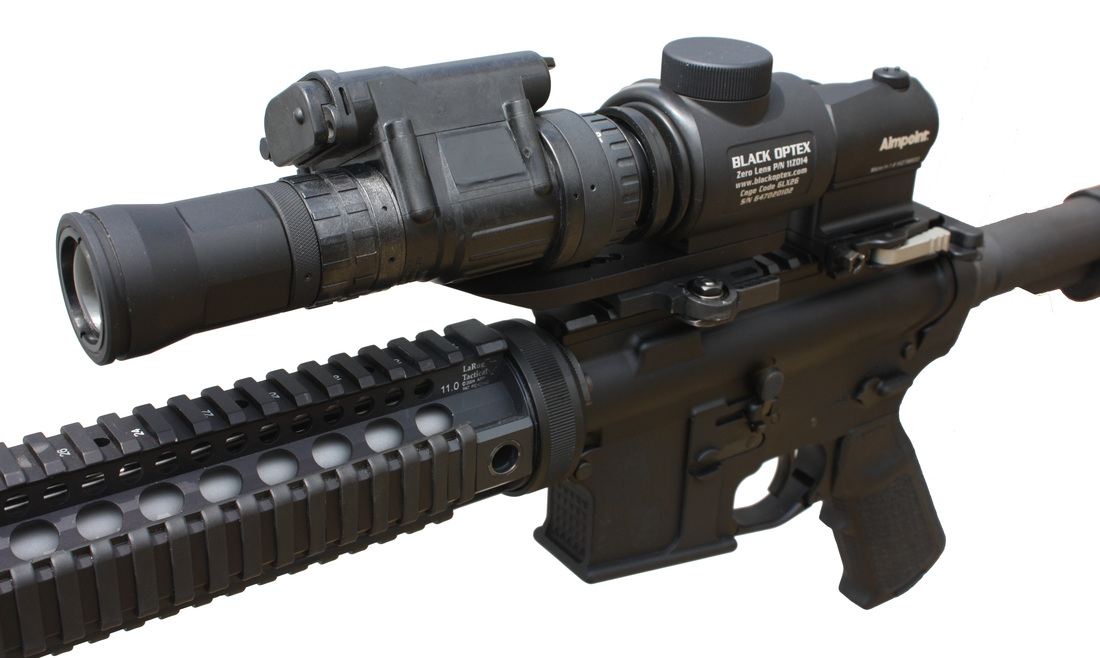

The Zero Lens is an optical alignment adapter that enables the use of PVS-14 Night Vision Monocular in front of day sights to add nighttime engagement capability with no zero shift. This configuration is more efficient and user friendly than when the PVS-14 is mounted behind the primary sight.
This passive system counters an enemy forces ability to detect active IR laser pointers and illuminators.
Image intensification efficiency of the PVS-14 is maintained by front mounting, and resolution of the produced image is improved as it passes through the Zero Lens. Front mounting also allows the operator to maintain the same shooting position, muscle memory, and eye relief with his primary sight.
The standard quick detach mounting system enables rapid installation and removal, allowing easy transition of the PVS-14 between handheld, helmet mounted, or weapon mounted use as needed during operations. Once set, the Zero Lens will maintain alignment between the Day Sight and the adjusted PVS-14 when it is re-installed.
The Zero Lens is a rugged, non-electronic, compact device that adds capability to your existing inventory of optics at a fraction of the cost of adding new stand alone systems.
Proudly manufactured in the USA
|Zero Lens Specifications|
|Optics FOV||14 Degrees (w/3X Lens)|
|Optical Axis above Rail||40mm (1.57")|
|Azimuth Adjustments||0.5 MOA/Click|
|Elevation Adjustments||0.5 MOA/Click|
|Size w/Mount||145 x 82 x 64 mm||
5.7 x 3.2 x 2.5 in
|Operating Temp||-51 Deg C to +49 Deg C||
-60 Deg F to +120 Deg F
|Storage Temp||-51 Deg C to +85 Deg C||
-60 Deg F to +185 Deg F
(702) 324-6463 / (702) 869-8451 FAX
