ELCAN Mount, Black

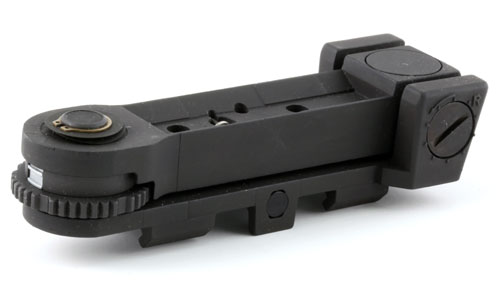

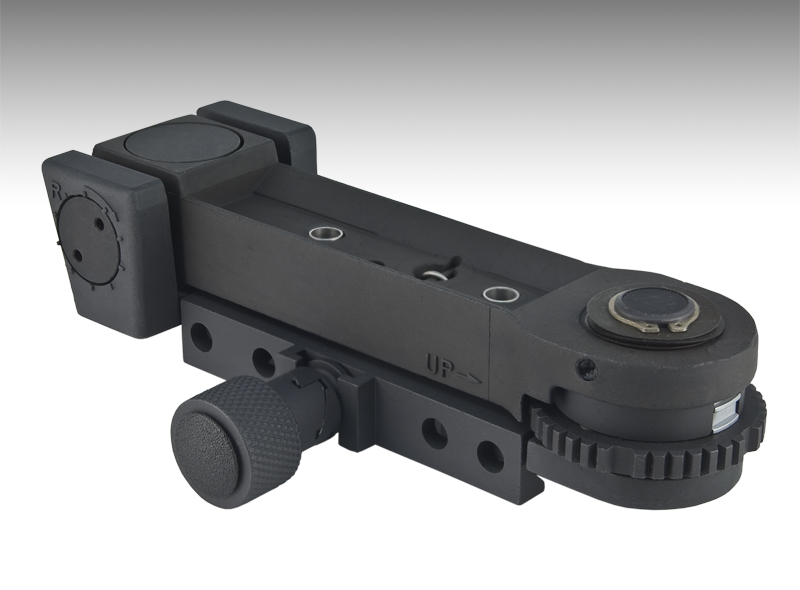

ELC145MT Elcan Torque Knob Optical Sight Mount
DISCONTINUED
| Specifications | |||
|---|---|---|---|
| Weight: ounces & grams: | 11oz., (300 grams) | ||
| Size inches & mm: | 5.16" x 1.93" x 1.38", (131 x 49 x 35) | ||
| Base Requirement: | MIL-STD-1913 "Picatinny Rail" | ||
| Base Attachment: | clamping foot with metal wing nuts | ||
| Windage and Elevation: | 0.25 mil detent zeroing adjustments | ||
| Elevation Adjustment Range: | 50 mils | ||
| Windage Adjustment Range: | 45 mils | ||
| Surface Finish: | Grey/Black hard anodized | ||
| Instrument Attachment: | 120° V-block with (2) M5x0.8mm pitch hold-down cap screws, 38mm spacing on long-axis centerline | ||
| Durability: | Designed to withstand a drop of 5 feet onto concrete while attached to an 17.6 lb weapon | ||
