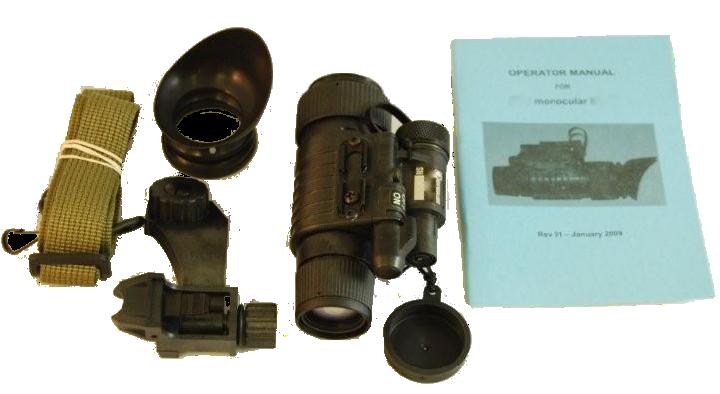

Kits Include: Headmount Assembly, MILSPEC 27mm Objective Lens, Rubber Eyecup, AA Batteries, Operator's Manual, Soft Carrying Case, Daylight Lens Cover, Integrated IR LED, Lens Cleaning Tissue, Demist Shield, Sacrificial Filter, Shoulder Strap

We accept Gov't Credit Cards and can submit WAWF invoices online.  CAGE Code: 36BD2
Dealers/Resellers Welcome

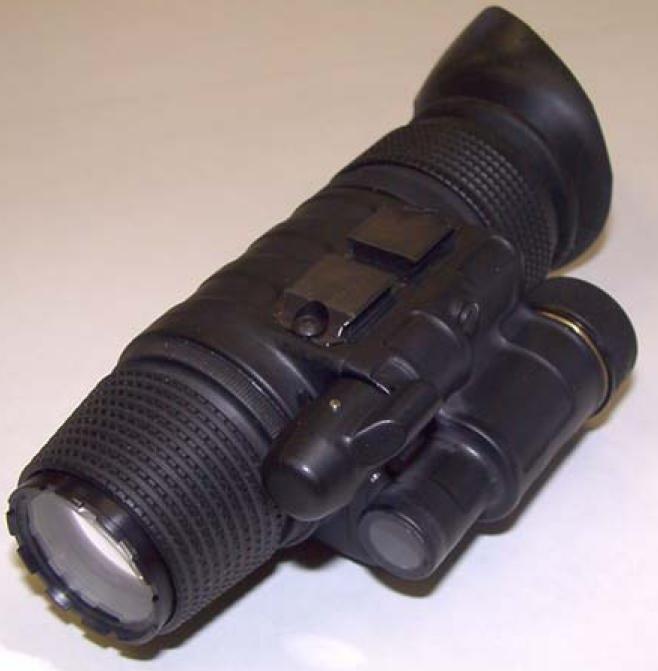

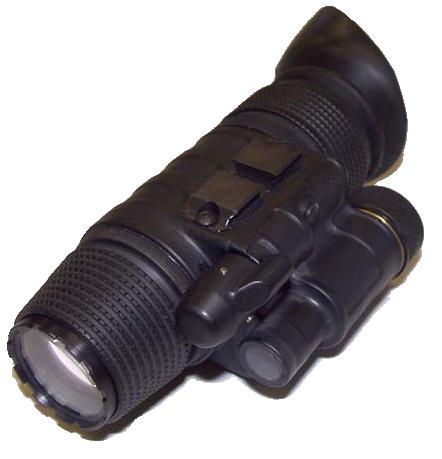

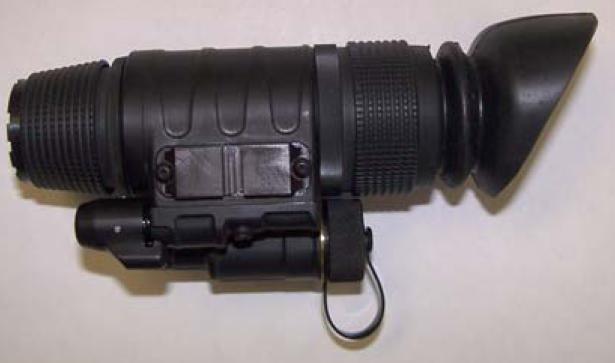

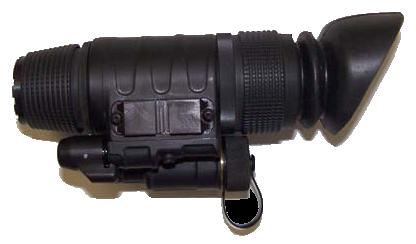

The SNVG-14 Mini-Monocular (MUM-14/ANV-20) utilizes a single L-3 or ITT Generation 3 (64+lp/mm) image intensifier tube to provide crisp, clear images under the darkest conditions. The same high quality tube as the AN/PVS-6015 but with higher resolution. Utilizing the most advanced MILSPEC housing, this system is built to handle the toughest of environments.



     The “single tube / single eyepiece” approach to night vision is based upon the proven concept that the independent use of each eye maximizes the ability of the user to operate under a wide range of low light conditions. This tactic tends to enhance the field of view, while reducing the risk of temporary night blindness typically associated with night vision goggles. The user retains his full peripheral vision in the unaided eye in conjunction with the 40
° Field Of View (FOV)  offered by the night vision device.

   This "Top-of-the-Line" SNVG-14 Monocular Kit from KERIF Night Vision uses only the highest quality L-3 or ITT Image Tubes, Optical Lenses, Housing Components and Electronics on the market today. Electro-Optical tools designed specifically to meet the diverse demands of our rugged Military and Law Enforcement Professionals. Like buying a car, you have many features like engine, transmission, and suspension that can make it a stock model or a high performance machine. With little differences on the outside to discern between the good, bad & the ugly, you have to read & understand the build sheet or take the salesman's word for it. We give you the Factory Data Sheet and in some instances, let you take a test drive.
     Differences like the clarity of the optical lenses versus just glass; whether the components used in the power supply & electronics package are made in the U.S. or overseas or if they are new or used; whether you want the housing made in the USA that meets MILSPEC standards with rubber seals that allows submersion  without worry, or something made overseas that you can't splash with water; you want to be sure that when using your Helmet Mount, the housing has brass screws (not plastic or other cheap metal) to automatically turn the unit On/Off, saving your batteries and reducing the step of turning it back on in an emergency.


     The
SNVG-14 (MUM-14/ANV-20)  can be Hand Held, Helmet Mounted, Head-Mounted  or Weapons Mounted. The greatest feature besides being smallerlighter than the PVS-14 and is fully submersible to a depth of 66 feet (20 Meters).

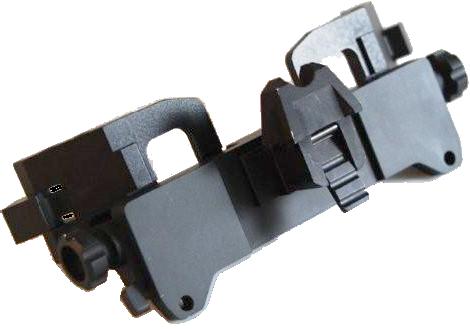

The SNVG-14 Mini-Monocular can be installed on an optional Dual-Carriage Head-Mount providing a dual eye configuration like the AN/PVS-15 (BNVIS).

    The included Weapons Mount and Head Mount can be attached to the SNVG-14 AT THE SAME TIME for quick interchangeability and uses either a single AA, or 3.5 volt lithium battery offering more flexibility and longer battery life. The integrated IR illuminator enhances the ability of the user to read maps, and operate in confined spaces. This Mini-Monocular is compatible with almost every weapon mounted IR laser aiming and illuminating device.

The SNVG-14B Dual-Mini-Monocular utilizes two US Made Generation 3 (64lp) image intensifier tubes to provide crisp, clear images under the darkest conditions. The same high quality tube as the AN/PVS-6015 but with  higher resolution. Utilizing the most advanced Mil. Spec. housing, this system is built to handle the toughest of environments.

     A dual tube binocular design offers greater performance than a single tube design because it improves your ability to gauge depth perception, which is an important benefit when it comes to operating vehicles or working on equipment at night. Perfect for any situation.

The
SNVG-14 Mini-Monocular can be hand held, or attached to a standard AN/PVS-14, AN/PVS-6015 or AN/PVS-7 head-mount or helmet mount. Because the SNVG-14B Dual-Mini-Monocular is built from two independent SNVG-14 Mini-Monocular, it can be easily separated to create two individual Night Vision Monoculars, or can be attached to a weapon to provide maximum flexibility. When used as a Monocular, the optional weapons mount and the included head mount can be attached AT THE SAME TIME! This allows for quick interchangeability between uses without removing or installing anything.

The SNVG-14B Dual-Mini-Monocular is smaller and lighter then the any other dual tube system available AND is fully submersible to a depth of 66 feet (20 Meters). Each SNVG-14 Mini-Monocular will work with either a single AA or 3.5 volt lithium battery offering more flexibility and longer battery life. The integrated IR illuminator enhances the ability of the user to read maps, and operate in confined spaces.




I2 Tube Specifications  MX-11769)  (Subject to change without notice)

Performance Parameters

FOM1400

FOM1600

Auto-Gated

FOM (Min/Max)

1152  / 1400

1344  / 1600

Unrestricted

Resolution

64 lp/mm Min

64 lp/mm Min

64 lp/mm Min

Signal-to-Noise

18.0:1 (min)

21.0:1 (min)

21.0:1 (min)

Halo mm (Min / Max)

.85 / 1.25

.85 / 1.25

1.0

Photocathode Sensitivity

1350 Min

1500 Min

1800 Min

EBI

5.0 Max

5.0 Max

2.5 Max

Luminance Gain

40000 – 70000

40000 – 70000

40000 - 70000

Output Brightness

2.0 Min to 4.0 Max

2.0 Min to 4.0 Max

1.4 Min to 4.2 Max

Reliability (Hours)

1000

10000

10000















Larger differences like the tubes (engines) can be selected to meet your needs, and with our access to virtually every system available, we will do our best to meet or exceed your expectations, without breaking your budget. Just like a car, even if you have a big block with ungodly horsepower, you still have to have other components designed to match its performance potential. You wouldn't put an Indy Car Race Engine in a Yugo, yet some manufacturers do just that to gain the competitive pricing edge and you are the one stuck wondering why you didn't call us.



       Let's talk about some of the uses of the SNVG-14 Mini-Monocular.
The most common use is as a hand-held pocket scope that easily fits inside a BDU (Battle Dress Uniform) Pocket, or jacket pocket and is used for walking around & area surveillance.

TIP: By maintaining one eye to the darkness, while using the monocular exclusively with other, will help prevent "Night Blindness" caused by molecules called "Rhodopsin". The Rod of your eye undergoes a change in shape as it absorbs light. Rhodopsin is the chemical that allows natural Night-Vision, and is extremely sensitive. When exposed to a spectrum of light, the pigment immediately bleaches and takes about 30 minutes to regenerate fully, although most of the adaptation occurs within the first five or ten minutes in the dark. Rhodopsin in the human rods is less sensitive to the longer red wavelengths of light, so many people use red light to help preserve night vision as it only slowly depletes the eye's Rhodopsin stores in the rods and instead is viewed by the cones. One of the best features of the PVS-14 style Monocular's is the Variable Gain Control Knob that works in conjunction with the Automatic Brightness Control to adjust the image for you to see it properly, without blasting your pupil into submission.

     These are a few of the main drawbacks of the PVS-7 Type Goggles, because both eyes are stimulated with a bright green image that can't be adjusted beyond what the Automatic Brightness Control offers, and when the goggles are removed, you may have difficulty seeing anything for several minutes. That could prove fatal if driving, flying, or engaged in CQB operations.

For prolonged use, a Headmount can be priceless. By using the chin straps and head straps, each unit allows for vertical & fore-and-aft adjustments for either left or right eye. For clear images, the objective lens and eyepiece (Diopter) focus for various levels of vision enhancement.
Automatic Brightness Control and Bright Source Protection are standard
.

     The
SNVG-14 Mini-Monocular also equipped with a built-in infrared light-emitting source and the variable gain control allows the user to increase or decrease image brightness for best possible contrast. Don't overlook the importance of having additional Infrared Lights to enhance the visibility of longer ranged targets, covertly light up dark overhangs and blind corners, and even mark positions, vehicles, personnel and other points of interest by using field programmable beacons.
Lights that are weapons Mountable, like the Surefire Vampire and others can be outfitted with IR Filters and pressure switches.





hand held

head mount

camera mount

1 eye

2 eyes

weapon mount

short range

medium range

long range

ENVIS

X



X

X





X





AN/PVS-7

X

X





X



X





AN/PVS-5



X





X



X





4X RAPTOR







X



X



X



6X RAPTOR







X



X





X

SNVG-14

X

X

X

X



X

X





5X BINOCULAR

X







X







X

PVS-7 w/ 3X

X

X





X





X



PVS-7 w/ 5X

X







X







X

     Range Tests showed significant clarity and sturdiness when mounted on Military 5.56 Rifles. This versatile Night Vision System  enables walking, driving, weapon firing, short-range surveillance and map reading in both moonlight or starlight conditions. When used as a Night Vision Weaponsight, you can use the standard Fixed Height Mount and the front iron sight to aim, but to increase accuracy and combat effectiveness, you'll still need something else to help you aim.

      The easiest, but typically the most expensive way is to use LASER's mounted to the top or side of your weapon and sighted in. KERIF Night Vision is proud to offer several variations of LASER Aiming Systems that are guaranteed to work for your setup. Please call for more details on what Laser systems may be available to you since some are Restricted to Federal Agencies only and require End User Agreements.

     If you need to increase your range capabilities periodically, and still want that CQB set-up for close range situations, the SpecterDR (Dual-Role) Optical Sights from ELCAN are designed to work with Night Vision and offers you the option of either 1X to 4X Magnification or 1.5 to 6X, in addition to a Red Dot Center Point, and Ballistic Ranged Reticle (in either 5.56 or 7.62* weapon types).

*Some ITT Pinnacle or Thin Filmed PVS-14's aren't recommended to use above 5.56 caliber weapon types unless you have a "Weapons Grade Tube" installed. When ordering, please tell us your set-up so we can install a tube designed specifically to handle the recoil of up to 7.62 caliber weapon types that sometimes create a "Blooming Effect" or Spots to appear, and may eventually render the tube inoperable, and void your warranty. Spending a little more now can save you thousands later.

     Another method that can pinpoint a target, using 1X (no magnification) is to combine the SNVG-14 Mini-Monocular with an Aimpoint Red Dot Sight or an EOTech Holographic Sight, either mounted directly behind the Sight or Head-Mounted for continual visual enhancement and approach the sight as necessary.

For Hand-Held use, you can attach a 3X Afocal Magnifier to increase your recognition and detection ranges. When you increase the magnification, you also decrease the available 40˚FOV (Field-of-View) down to a 13˚FOV, which understandably equates to 1/3 of the PVS-14's capabilities. The 5X Afocal Magnifier reduces the FOV to 7.7˚(1/5 of the image), so you have to have a steady hand, a resting spot or a Tripod to fix on an object.

TIP: 5X Magnifiers are NOT recommended for use with Head/Helmet Mount applications because of the Weight, and the narrow 7.7˚Field of View makes it difficult to maintain position on your intended target. If you plan to use a tripod for stabilization or use the system from a sitting or prone position, this would be preferable.

Magnifiers usually include a Slip-On Adapter for the SNVG-14 Mini-Monocular, AN/PVS-14, AN/PVS-6015 and AN/PVS-7, that allows you to quickly install them on the objective end and remove it instantly when necessary.
TIP: If you aren't going to be standing still or making moderate movements, we recommend you thread the magnifier into the objective lens aperture to prevent it from accidentally falling off and breaking.
Both magnifiers are interchangeable with the above mentioned NVD's.

SNVG--14 System Specifications

Magnification:

1X

Field of View (FOV):

40˚

Objective Lens:

27mm, (1.1")

Focus Range:

25 cm (9.8") min

Eye Relief:

25mm, (1")

Diopter Adj.

+2 to -6

Power Sources:

(1) AA Battery or (1) CR123

Battery Life:

≈ 50 Hours at Room Temperature

Warranty:

1 Year

Cathode Type

Gallium Arsenide

Phosphor

P43

Maximum spots allowed in each zone

Spot Size (inches)

Zone 1

Zone 2

Zone 3

Zone 1

Zone 2

Zone 3

Zone 1

Zone 2

Zone 3

>.009 or Larger

0

0

0

0

0

0

0

0

0

>.006 - .009

0

1

2

0

1

2

0

1

1

>.003 - .006

0

2

3

0

2

3

0

2

2

Bright Spots

0

0

0

0

0

0

0

0

0



PN: 245105-CS1400

PN:245105-CS1600

PN: 245140-CS001

Optional Accessories

Hard Case, Rubber Eyecup, (Killflash) Light Interference Filter, Sacrificial Lens, Demist Shield, Shuttered Eyeguard, Fixed or Adjustable Height Weapons Mnt, Helmet Mnt, 3X or 5X Afocal Lens, Camera Adapter, Operator's Manual

Export of the commodities herein described are strictly prohibited without a valid export license issued by the US State Dept, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130
































     You can trust KERIF Night Vision to give you the most for your money and to be there for you should something go wrong. We don't just sell you a product, then wish you well; we take the time to talk with you personally on the phone, before, during, and after the sale to make sure you are 100% satisfied, not 99.99%! Yes, we answer our phones and respond to emails almost immediately. Don't hesitate to draw on our real world Military, Federal SWAT, and Law Enforcement experience, coupled with Technical Engineering, Infrared Lighting and Night Vision backgrounds to figure out the best solution to your problem. If we don't have what you need, we will do our best to find you a company that does.

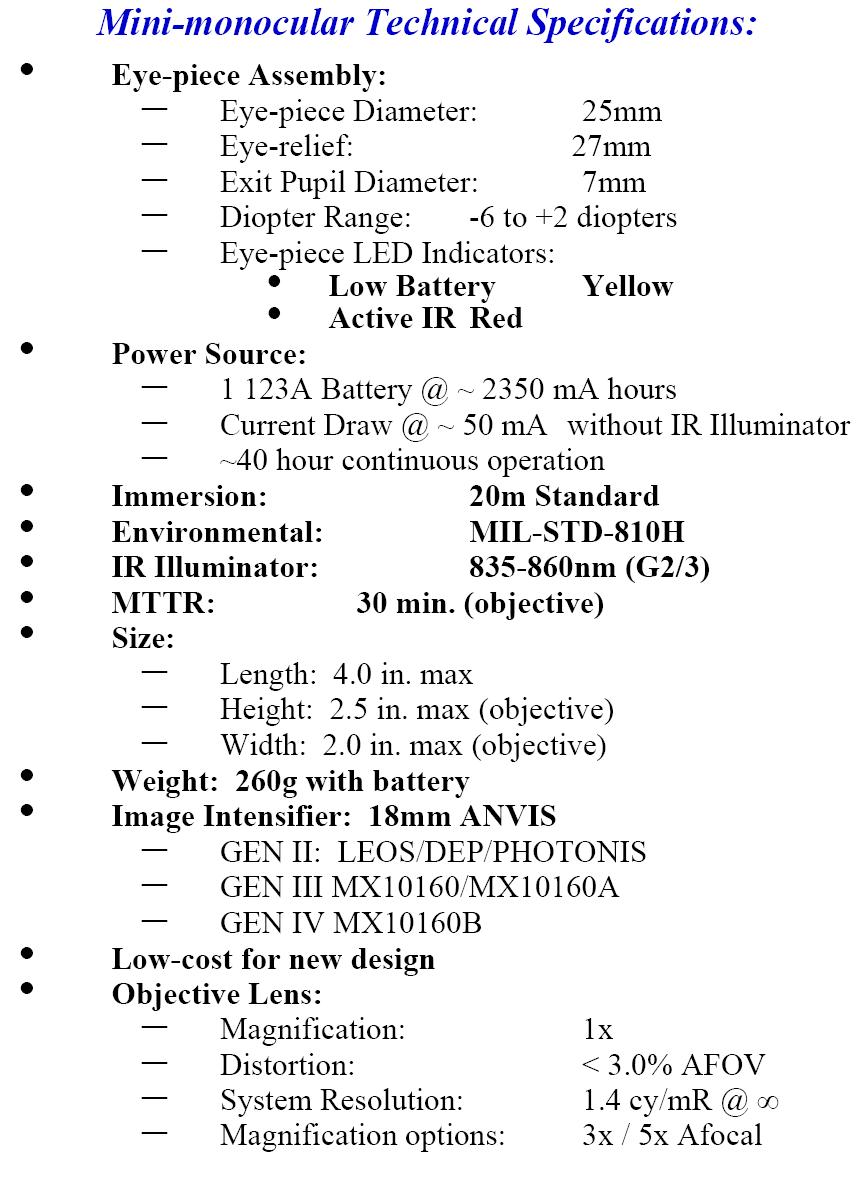

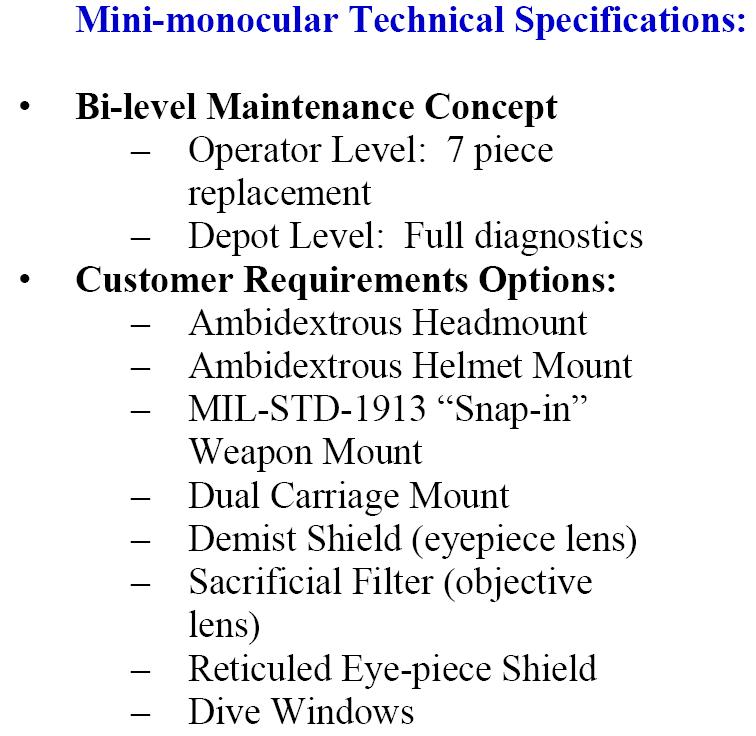

SNVG-14 Mini-Monocular System Technical Specifications
Tube Type
 MX-11769, 18mm F9815, Gen 3
Eye Relief
 25mm
FOV @ 1X
 40º (13° w/optional 3X Magnifier) (7.7° w/optional 5X Magnifier)
Magnification
 1X (Optional 3X and 5X Magnifiers)
Fixed Focus Range
 25cm to ∞ (infinity)
Weight
 14 oz.
Size in inches
 2.25" x 2.5" x 5"
Diopter Focus
 +2 to -6 Diopter's
Battery Source
 (1) AA
Battery Life
 40-50 hours typical
Integrated IR LED
 Yes
Auto Bright Control
 Yes
High Light Cutoff
 Yes
Low Battery Indicator
 Yes
Variable Gain
 Yes
Headmount Assembly
 Yes
Soft Case
 Yes
Operating Temp
 -51°C to +49°C
Storage Temp
 -51°C to +85°C
Illumination Required
 Overcast starlight to moonlight

MILITARY USES: The SNVG-14 is utilized by ground troops for situational awareness, detection of threats and targets. Also used in combination with 3X or 5X Magnifiers for short, medium, or long range surveillance at night. Users can operate covertly under the cover of darkness.
Law Enforcement Uses:
The SNVG-14 is utilized by officers or agents for situational awareness, detection of threats and targets or long range surveillance in ground and tactical operations.
Security Uses:
Security personnel use the SNVG-14 for general situational awareness, detection of approaching threats and targets. Also used in combination with 3X or 5X Magnifiers for short, medium, or long range surveillance at night.
