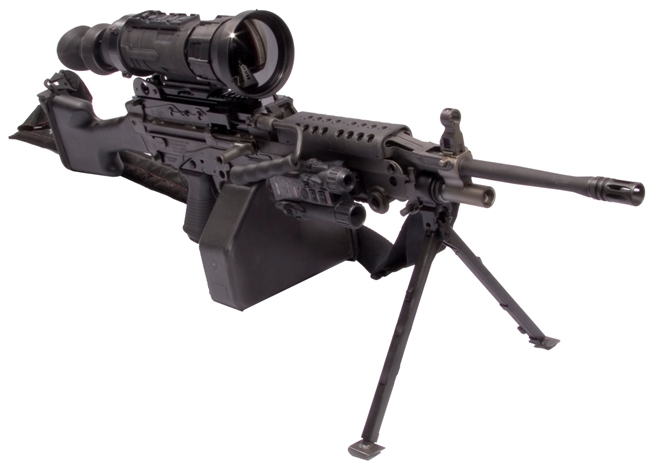

DRS Technologies: CS6000 AN/PAS-13D(V)3 Heavy Thermal Weapon Sight
CS6000 Crew Served Thermal Weapon Sight Law Enforcement/Military Only

Request a Quote MSRP:$30,294.00  Call for Pricing  NSN: 5855-01-538-8616

Kit Includes: Soft & Hard Case, OPMAN, ARMS #62 Quick Release Mount & Spacer, Quick Reference Card, (2) Battery Cassettes, (12) AA lithium Batteries, Lens Cleaning Kit
We accept Gov't Credit Cards and can submit invoices online


* 2200 meter Human Detection Range

* Identify Heat Signatures in Rain, Fog and Smoke

* Passive Infrared Weapon Sighting System

* Rugged, Reliable Performance

* Shock Protected Precision Optics

* Can be used in Complete Darkness to Broad Daylight

     The Crew Served Thermal Weapon Sight (CSTWS) or "Heavy TWS" utilizes market preferred Vanadium Oxide (VOx) Microbolometer thermal imaging technology, utilizing a hefty 103mm lens and boasts an impressive 640x480 resolution and 25 Micron Pitch.
     Menu-based, push-button controls allow you to select which reticle best suits your operation and offers several adjustment, including polarity and brightness to facilitate use in all conditions. The Heavy Thermal Weapon Sight weighs in at only 3 pounds 8 ounces and has a generous FOV (Field of View) of 9˚x 6.9˚ and a narrow FOV (Field of View) of 3˚ x 2.3˚in e-Zoom mode, which gives you 3X Digital Magnification with a simple push of a button.

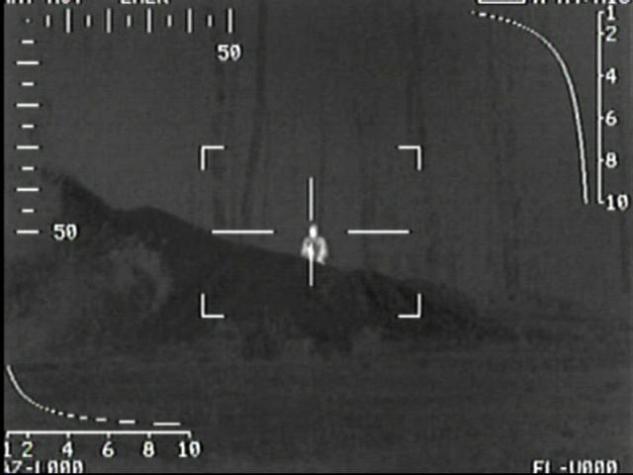

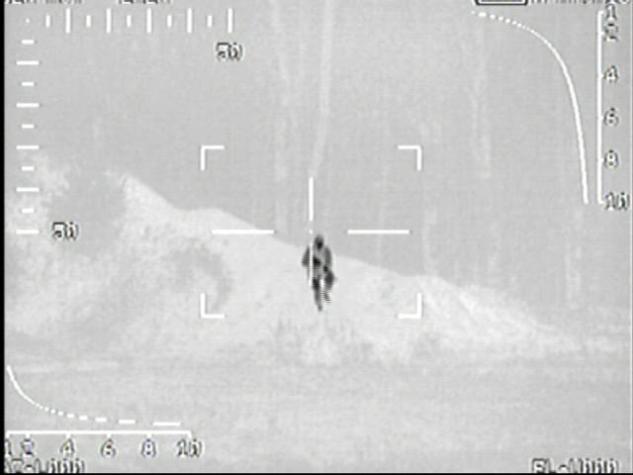

     When viewed through the CS6000, heat-emitting objects such as humans, animals and recently-operated vehicles stand out dramatically against their surroundings, defeating camouflage and other methods of visual concealment. Multiple reticle settings allow you to mount the CS6000 on just about any type of weapon, and with an adjustable objective focus lens capable of seeing objects from 10 feet to infinity, there isn't much you're going to miss.

      The CS6000 operates on (6) Standard Lithium AA batteries and has auxiliary power ports for optional external power sources (AC electrical outlets or vehicle cigarette lighters). To extend the battery life (about 1.5 hours), in the normal operating mode, the unit only turns on (4 seconds) when the shuttered eyeguard is depressed (when you put your eye up to the scope) and turns off when you pull away. In certain situations where immediate operation is required, the CS6000 can be set to "Emergency Mode" which will keep the unit turned on at all times. The NTSC compatible video output port allows the image, and reticle, to be displayed on an external video monitor or recorded by video recorder. When used solely as an observation device, the unit may be operated hand-held or tripod mounted.

These sights are proudly Made in the USA


System Technical Specifications

Focal Plane Array

Material & Structure:  VOx Microbolometer
Pixel Count  640 x 480, 25 Micron Pitch
Video Refresh Rate  30 Hz
Spectral Response   8 to 12 microns
Thermal Sensitivity  <50mK

Thermal Imaging Performance

Initial Start-up Time 4 Seconds
Detection Range (Humans) 2200 Meters
Polarity Control Selectable White Hot/Black Hot
Field of View (FOV) 9º(H) x 6.9°(V); e-zoom = 3º(H) x 2.3°
Gain/Level Automatic Control w/Enhanced Image Processing
Magnification 3X Digital eZoom

Reticles

Reticles

 M4/M16 Rifle, M2 .50 cal Machine Gun, M24 Sniper Rifle,  Mk19 40 mm Grenade Launcher, M107 50 cal Barrett

Physical Characteristics

Video Out Monochrome w/Reticle SMPTE-170M, NTSC
Viewfinder Display Gray-scale, Green-scale, Red-scale
Weight 3 lbs 8oz w/Batteries, Rail Grabber & Spacer
Size in inches 16 (L) x 4.25(W) x 5.5(H) w/Batteries, Rail Grabber & Spacer
Power Requirement (6) AA Lithium Batteries
Base Requirement MIL-STD-1913 "Picatinny Rail"
Attachment Quick Detach w/return to zero repeatability
Battery Life 8 Hours, Typical / 6.5 Hours (Emergency Mode)
Exterior Finish Shock and Water Resistant
Operating Temperatures -40°C to +49°C,   (-40°F to +120.2°F)

     Utilizing un-cooled Microbolometer technology, the CS6000 is a completely passive infrared weapon sighting system which allows users to identify the heat signatures of individuals over 1 mile away (2200m) or objects such as vehicles close to 2 miles away (3,000m); day or night and in rain, fog and smoke. As with previous models, no external light source is required, and the unit may be used in complete darkness or broad daylight.

EXPORT LICENSE REQUIRED.
This Thermal Weaponsight is restricted to Gov't & Law Enforcement agencies only.
Please be prepared to provide credentials when ordering.

Export of the commodities described herein is strictly prohibited without a valid export license issued by the U.S. Department of State Office of Defense Trade Controls prescribed in the International Traffic in Arms Regulation (ITAR), Title 22, Code of Federal Regulation, Parts 120-130

  In "High-Risk" security applications (Nuclear Plants, Oil Refineries and Pipelines, Water Treatment Plants, Port Authorities, Penitentiary Facilities), government law enforcement agencies can more effectively locate, identify and neutralize hostile threats with reduced risk.
