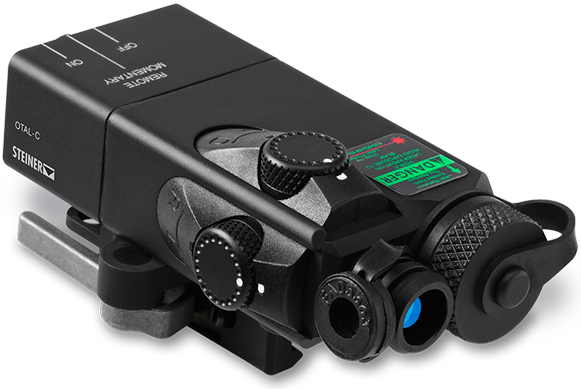

OTAL-C, PN: 9055 & 9056 LASER
|
|
|
******
MSRP: 9055 (Black)
DISCONTINUED ZERO STOCK Available
MSRP: 9056 (Black) (Infrared)
|
Supplied with:
Quick Release HT Mount, (1) 1.5-Volt AA Battery, 7" Right Angle Remote Cable Pressure Pad Switch |
|

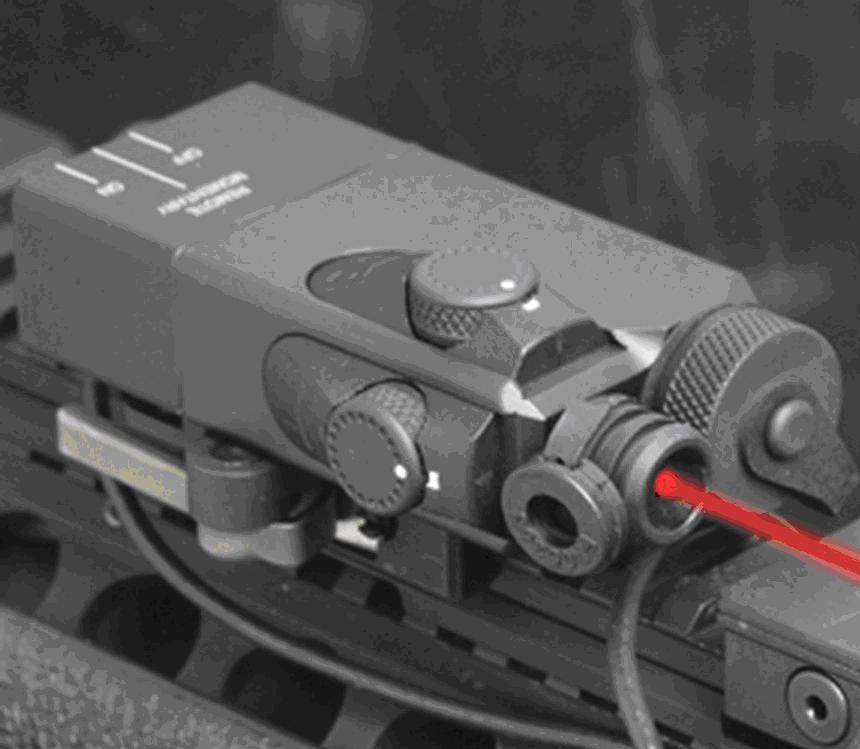

The rugged and compact OTAL-C (Classic) LASER is used by Military and Law Enforcement agencies worldwide. The OTAL-C is designed with the latest cutting edge technology that allows them to be mounted behind the front sight on M-4 style rifles and the LASER is offset to project around the front sight. These LASER\'s align with the center of the barrel.
Classic models are equipped with a RED (9055) Visible pointer or Infrared (9056) Pointer which used to be only available to Law Enforcement and Military agencies, but is now available commercially with the new "Eye Safe" model PN: 9056 (Old LDI Part # 19206 or 19217).
Since they are designed with a Low Profile housing, you can mount the OTAL-Classic in front of scopes, such as ELCAN\'s, EOTech HOLOgraphic sights or Night Vision Devices.
|
|
|
Manufactured in the USA using the finest quality materials, with a 3 Year Warranty. |
LICENSE REQUIRED TO EXPORT (KERIF NIGHT VISION DOES NOT EXPORT) |
Features * Compact design to minimize weight
* Low profile allows them to be mounted in front of scopes, HOLOgraphic sights or Night Vision Devices
* Rugged Aerospace Aluminum housing meets MIL-STD-810G standards, MIL-SPEC Type III Hardcoat Anodized
* Hi-Power & Lo-Power (Class I) modes of operation
* Fully adjustable for Windage & Elevation for Pin-Point Accuracy
* Mounts on all MIL-SPEC-1913 rails
* Waterproof to 5 Meters
|
|
|
|
|
OTAL-C Offset Tactical Aiming Laser |
|
Laser Specifications |
|
Laser Type: |
9055 Visible Pointer |
9056 IR Pointer |
|
|
<5mW: Laser Class IIIa |
|
|
Laser Type: |
|
Laser Class I
|
|
|
|
|
|
Hi/Lo-Power Output: |
<5mW/<1 mW |
<0.7mW
|
|
Wavelength: ± 30nm |
Red = 635nm |
Infrared = Eye-Safe = 850nm
|
|
Beam Diameter: |
8 mm at 25 m |
|
Beam Divergence: ± 3mrad |
0.8 mrad |
|
Range/Visibility: |
Night / Day |
Night |
|
Visible Red Pointer: |
250m / 5m |
|
|
IR Pointer: |
|
>250m
|
|
Battery Type / Life: |
(1) AA Lithium Battery / 5 hours (all models) |
|
Mechanical Specifications |
|
Material: |
Anodized Aircraft Aluminum 6061T-6 |
|
Dimension: in |
L: 2.8 " x W: 1.4" x H: .73" |
L: 3.8 " x W: 1.8" x H: 1.45" |
|
Dimension: cm |
L: 7.2 " x W: 3.6" x H: 1.9" |
L: 3.8 " x W: 1.8" x H: 1.45" |
|
Total Weight (oz./g) |
4.9 oz / 138.9 grams |
|
Environment: |
Waterproof to 5 Meters |
|
Temperature: |
-40˚C to +51˚C |
|
Typical Weapon Types: |
Long Guns, Rifles, Carbines or
Submachine Guns w/NATO 1913 Picatinny |
|
Warranty: |
3 Years |
|
NSN: |
1005-99-535-5506 |
|
|
|
|
|
|
