 AR-2A

 P/N: 10005, MSRP: $1,549.99
LE/Govt.: $Call

(LDI Old PN: 19241)

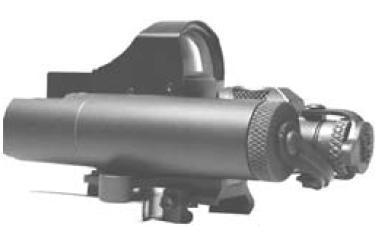

OTAL-A w/Visible Green Pointer (532nm) (<50mW)

Includes: QR Mount, mounting holes for sub-miniature Red Dot sight or MILSPEC 1913 Top Rail (Sold Separately), 7" Right Angle Remote Cable Switch (Specify length if different from STD), (1) 3V 123A Lithium Battery. Waterproof to 20 Meters

     The rugged and compact OTAL-A LASER's are designed with the latest cutting edge technology that allows them to be mounted behind the front sight on M-4 style rifles and the LASER is offset to project around the front sight. The "A-Series" includes a focusable IR LASER illuminator for use with Night Vision Devices, and a visible Green Ultra Power Point Aiming LASER pointer, which is five times more visible than traditional (discontinued) Red LASER's and the maximum allowed by law for unparalleled daytime visibility. With the ability to adjust the size of the LASER beam, the operator has a wider range of options to fulfill mission requirements.
     When focused, the LASER provides a continuous beam along the weapon's line of fire for precise aiming and when de-focused, the beam spreads to provide improved situational awareness and area illumination. The versatile ITAL-A is the right choice for any mission. Designed for maximum operational versatility while keeping the weight down and size to a minimum.

     The OTAL-A P/N: 10005 (Green) is a Gov't Restricted High-Power Model that offers an unbeatable advantage with the addition of a 200mW  IR pointer/illuminator. The rugged and compact OTAL-A LASER is also available in a commercial "Eye-Safe" model P/N: 9052. The OTAL-A series is the “advanced” generation of the OTAL-C that has served reliably in the harshest conditions.

The OTAL-A features an offset laser module that allows it to be mounted at the 12 o’clock position on an AR-15 weapon system with a standard front sight base. The laser is offset just enough to clear the front sight base. Equipped with visible green laser that will range out to 750 meters.

Manufactured in the USA using the finest quality materials, with a 1 Year Warranty.



EXPORT LICENSE REQUIRED.
Some models of the OTAL LASER's are restricted to Gov't & Law Enforcement.
Please be prepared to provide credentials when ordering.

SALE OF LASER PRODUCTS
HI-Power Visible & IR LASER's (Class IIIb) are restricted by the FDA to:
• Department of Defense
• Law Enforcement Agencies
• Federal Agencies
• Qualified Agents
Contact KERIF Night Vision for further information.

Features

  *  Compact design to minimize weight
  *  Low profile allows the OTAL to be mounted in front of scopes, HOLOgraphic sights or Night Vision Devices

*  Rugged Aerospace Aluminum housing meets MIL-STD-810G standards, MIL-SPEC Type III Hardcoat Anodized
  *  Hi-Power & Lo-Power (Class I) modes of operation
  *  Fully adjustable for Windage & Elevation for Pin-Point Accuracy
  *  Activation and Low Battery Indicator Light
  *  Mounts on all MIL-SPEC-1913 rails
  *  Positive On/Off Kill Switch prevents accidental activation
  *  <50mW Gov't Model or <5mW Commercial Eye-Safe Green LASER
  *  Waterproof to 20 Meters

Supplied with:
     Quick Release HT Mount, Mounting holes for Doctor Red Dot Sight or MIL-SPEC-1013 rail adapter plate (Sold Separately), (1) 3-Volt 123A Lithium Battery (Optional 1.5-Volt AA Battery available on some models), 7" Right Angle Remote Cable Pressure Pad Switch, Optical Pattern Generators, and Nylon Belt Pouch (Specify cable length if different from standard)


*  Integrated Momentary Remote Pressure Pad Switch & Activation Switch
*  Single-Tap - Enables momentary activation
*  Double-Tap - Instantly activates the LASER in a continuous "ON Mode".
*  Built-in safety returns the unit to momentary activation after 5 minutes.
  *  The Pressure Pad provides a tactile (silent) click that indicates when the switch has been activated



OTAL-A Inline Tactical Aiming Laser
Laser Specifications
Laser Type: Visible Pointer IR Pointer
<5mW: Laser Class IIIa

Laser Class IIIb

<30mW: Laser Class IIIb IR Pointer/Illuminator
<50mW: Laser Class IIIb

Laser Class IIIb

Hi/Lo-Power Output: Visible Red Pointer DISCONTINUED IR Pointer
<5mW/<1 mW

<5mW/<1 mW

Visible Green Pointer IR Pointer/Illuminator
<5 mW/<1mW (Model 9052)

<50 mW/<1mW

<50 mW/<5mW (Model 10005)
Wavelength: ± 30nm Green = 532nm/Red = 635nm

Infrared = 835nm

Beam Diameter: 8 mm at 25 m

8 mm at 25 m

Beam Divergence: ± 3mRad Visible Green Pointer IR Pointer/Illuminator
<0.8 mRad

0.3/0.5 - 75 mRad

Range/Visibility: Night Day
Visible Red Pointer: 500m

10m

Visible Green Pointer: <5mW = 7500m

15m

Visible Green Pointer: <30mW = 2500m

100m

Visible Green Pointer: <50mW = 3500m

150m

IR Pointer: 600m
IR Illuminator: <50mW = 2000m
Battery Type / Life: (1) 123A 3-Volt or AA Lithium Battery / 3 hours
Battery Type / Life: (1) 1.5-Volt AA Battery / 20 hours (models w/<5mW VIS or <50mW IR)
Mechanical Specifications
Material: Anodized Aircraft Aluminum 6061T-6
Dimension: in L: 3.8 " W: 1.8" H: 1.45"
Dimension: cm L: 9.7cm W: 4.6cm H: 3.7cm
Total Weight (oz./g) 5.5 ounces

138.9 grams

Environment: Waterproof to 20 Meters | 5 m for Model 9052
Temperature: Visible Red Pointer DISCONTINUED IR Pointer
-40˚C to +51˚C

-40˚C to +51˚C

Visible Green Pointer IR Pointer/Illuminator
0˚C to +45˚C

-40˚C to +51˚C

Typical Weapon Types:

For Flat Top Rifles, Carbines or Submachine Guns w/NATO 1913 Picatinny

Warranty: 3 Years
NSN:

Part#

Description

Sale Price

9102 Old LDI P/N: FA05779-01
UPC: 000381891020
NSN: 65340-01-601-1318
Exit Port Cover Black for IR Illuminator, Fits DBAL-A2, DBAL-A3, EOLAD-2, ITAL-A, ITAL-HP, OTAL-A, and OTAL-HP
$5.99

Part#

Description

Sale Price

9111
9112
Old LDI P/N: FA05805-01 (Black) / FA05805-03 (Tan)
UPC:
000381891112 / 000381891129
NSN:
5340-01-601-1329

CR123A Battery Cap, Fits CQBL-1, ITAL-A, OTAL-A, DBAL-D2, DBAL-I2, DBAL-A2 & DBAL-A3
$24.99



Part#

Description

Sale Price

9113
9114
Old LDI P/N: FA3693-01 (Black) / FA3693-03 (Tan)
UPC:
000381891136 / 000381891143
NSN: 5340-01-601-1323

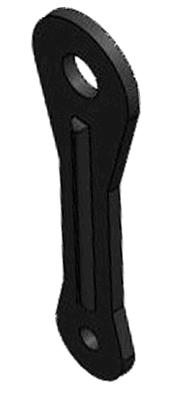

CR123A Battery Cap Strap, for 9111 (Black), 9112 (Tan)
$4.99

Part#

Description

Sale Price

9120 Old LDI P/N: FA05063-7
UPC: 000381891204
NSN: 6150-01-537-0495

7" Right Angle Remote Cable Pressure Pad Switch (Specify length if different from standard), Fits ITAL-A, ITAL-HP, OTAL-A, OTAL-HP, IWAL, CQBL-1, DBAL-A2, DBAL-I2 & LLM-01
$59.99

Part#

Description

Sale Price

9121 Old LDI P/N: FA05219-7
UPC: 000381891211
NSN:
6150-01-501-1328

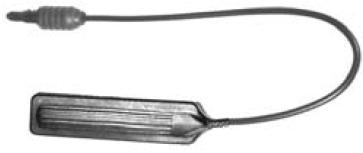

7" Straight Remote Cable Pressure Pad Switch (Specify length if different from standard), Fits ITAL-A, ITAL-HP, OTAL-A, OTAL-HP, IWAL, DBAL-A2, DBAL-I2 & DBAL-A3
$59.99

Part#

Description

Sale Price

9136 Old LDI P/N: FA05930-01
UPC: 000381891365
NSN:

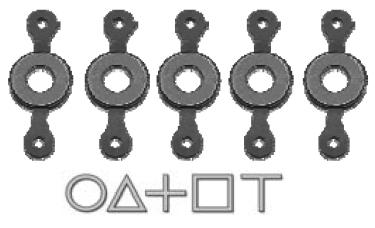

Optical Pattern Generator, Black, (Set of 5) for IR Illuminator, Fits DBAL-A2, DBAL-A3, DBAL-I2, EOLAD-2, ITAL-A, ITAL-HP, OTAL-A, OTAL-HP
$34.99

Part#

Description

Sale Price

9137 Old LDI P/N: FA05238-01
UPC: 000381891372
NSN: 6210-016-00-4846
80˚ Optical Diffuser, Black for IR Illuminator, Fits DBAL-A2, DBAL-A3, DBAL-I2, EOLAD-2, ITAL-A, ITAL-HP, OTAL-A, OTAL-HP
$14.99



Part#

Description

Sale Price

9139 Old LDI P/N: FA06147-01
UPC: 000381891396
NSN: 5855-01-600-2997
Neutral Density Filter, Black , for IR illuminator, Fits EOLAD, ITAL-A, ITAL-HP, OTAL-A, OTAL-HP, DBAL-I2, DBAL-A2 & DBAL-A3
$19.99



Part#

Description

Sale Price

9145 Old LDI P/N: FA06147-7
UPC: 000381891457
NSN:
6150-01-614-3203
Dual Remote Cable Pressure Pad Switch. Connects, OV-2, FML, MK4 to DBAL-A3, OTAL-A, OTAL-Classic, CQBL-1, DBAL-A2, DBAL-D2, and DBAL-I2
$59.99

Part#

Description

Sale Price

9146 Old LDI P/N: FA6095-1
UPC: 000381891464
NSN:

MIL-STD-1913 Top Rail, Black Fits DBAL-I2, ITAL-A and OTAL-A
$74.99
DISCONTINUED LDI MODELS - REFERENCE INFO ONLY
19044 OTAL-A - w/Visible Red Pointer (635nm)(<5mW) 3-Volt 123A Lithium Battery
19146 OTAL-A - w/Visible Green Pointer (532nm)(<5mW) 3-Volt 123A Lithium Battery
19240 OTAL-A - w/Visible Green Pointer (532nm)(<30mW) Modulation Mode (8Hz) and 4-Position Activation Switch, 3-Volt 123A Lithium Battery *Gov't/Law Enforcement Only
19241 OTAL-A - w/Visible Green Pointer (532nm)(<50mW) Modulation Mode (8Hz) and 4-Position Activation Switch,  3-Volt 123A Lithium Battery *Gov't/Law Enforcement Only
19242 OTAL-A - w/Visible Green Pointer (532nm)(<200mW) Modulation Mode (8Hz) and 4-Position Activation Switch,  3-Volt 123A Lithium Battery *Military Only
19045 OTAL-A - w/IR Pointer (835nm)(<5mW), 3-Volt 123A Lithium Battery
*Gov't/Law Enforcement Only
1904 OTAL-A - w/IR Pointer/illuminator (835nm) (<50mW), 3-Volt 123A Lithium Battery, *Gov't/Law Enforcement Only
19050 OTAL-A - w/IR Pointer/illuminator (835nm) (<200mW), 3-Volt 123A Lithium Battery, *Military Only

19215 OTAL-Classic - w/Visible Red Pointer (635nm)(<5mW), (1) 1.5-Volt AA Battery
19216 OTAL-Classic - w/IR Pointer (835nm)(<5mW), (1) 1.5-Volt AA Battery
*Gov't/Law Enforcement Only
19217 OTAL-Classic - w/Visible Infrared Pointer (850nm)(Eye-Safe), (1) 1.5-Volt AA Battery
