CQBL-1 PN: 9030 & 9031 LASER







***Call Today - Ship Today - Free S&H***

  9030 Discontinued

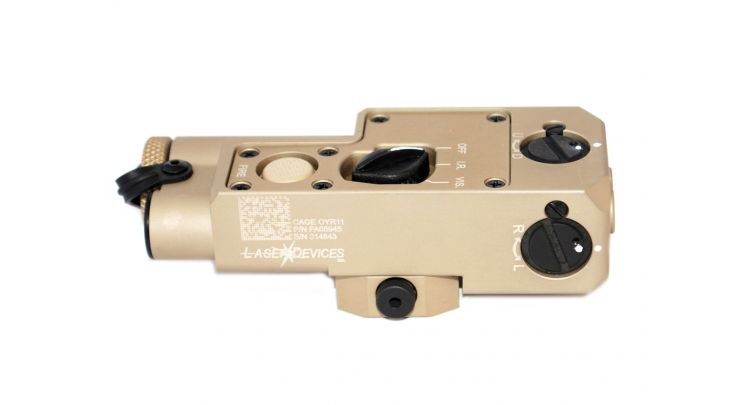

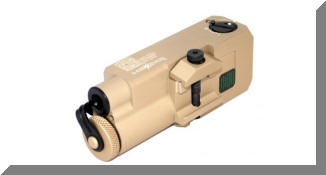

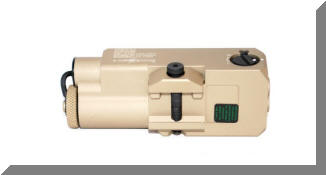

9031(TAN) Discontinued



To Order by Phone, please call:
(702) 324-6463 or email sales@nitevis.com

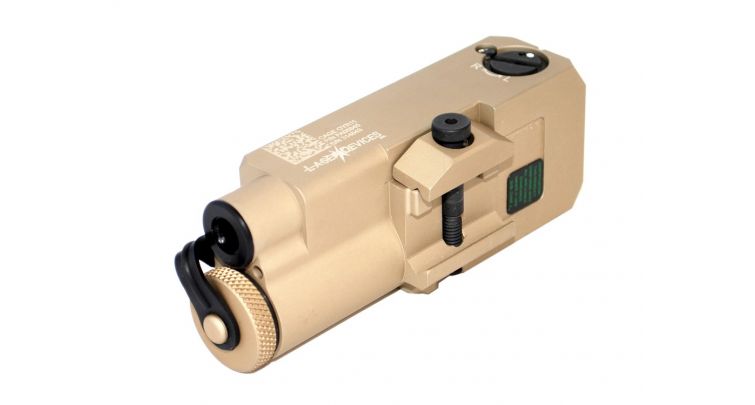

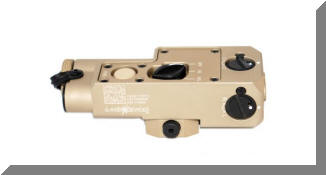

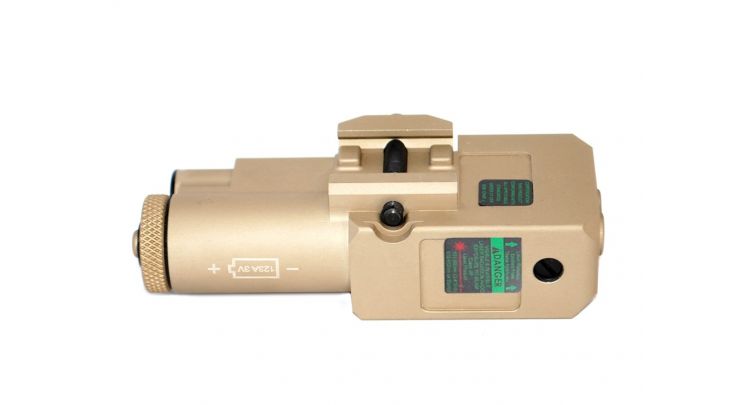

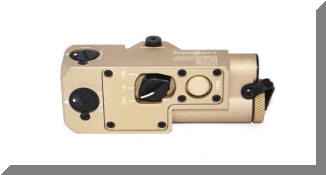

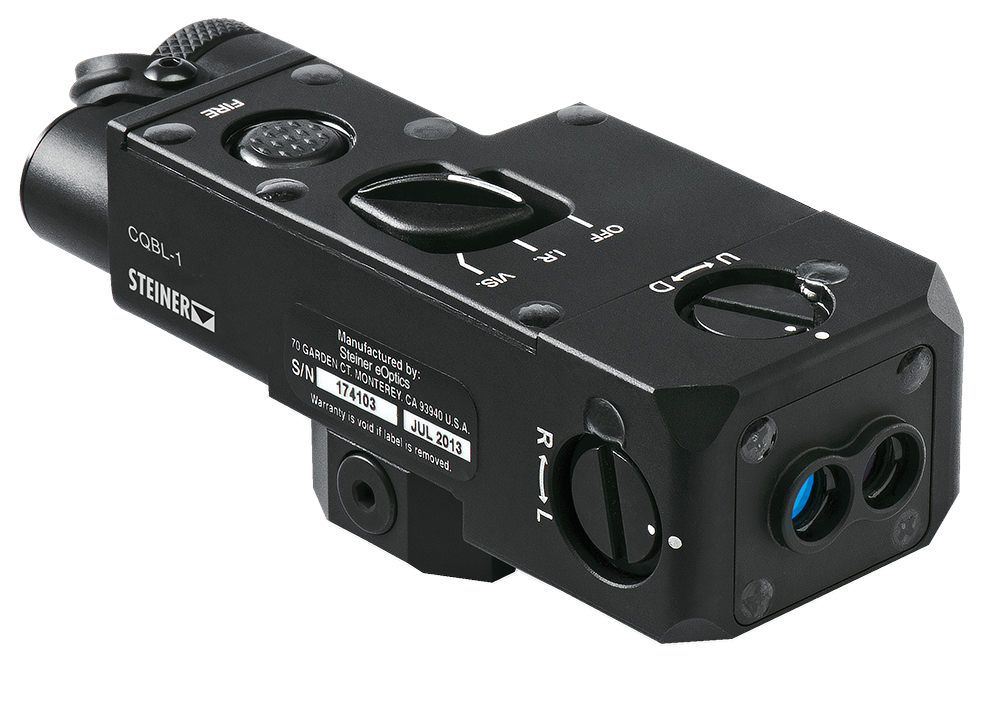

Close Quarters Battle LASER

The CQBL-1 has a Co-Aligned Visible & Infrared Aiming LASER.

Supplied with: Tape Fastener Loop, Tape Fastener Hook, 7” Remote Cable Switch, DL123 Battery, Foam Padded Shipping Case, Operator’s Manual

The CQBL-1 LASER provides the utmost flexibility in critical situations.

















One of the smallest and most rugged dual function lasers available, the CQBL-1 is compatible with virtually every submachine gun and short barrel rifle, and packs the output power needed for use on carbine, rifle and light machine gun systems. The extremely low profile features an integral rail grabber that requires an Allen Key to install.  The lack of a Quick-Disconnect Mount allows the CQBL-1 to sit closer to the bore.  The dual laser emitters are in line with the bore, so it cannot be mounted at the 12 O\\'clock position on weapons with a front sight base.  If you do not run a front Back Up Iron Sight or BUIS, then you can place it at the 12 O\\'clock position, otherwise it must be mounted at the 3 or 9 O\\'clock. Its low profile, lightweight housing was originally designed for a specific high profile VIP protective unit (Secret Service), who required a submachine gun laser solution which was concealable. The CQBL-1 has since proven itself as a valuable tool for law enforcement and self-defense carbines.



Manufactured in the USA using the finest quality materials, with a 3 Year Warranty.



Available for M-4, M-16, and AR-15 rifles.














Weighing in at only 6 ounces, the light weight and low profile of the Steiner CQBL-1 enables it to be an effective visible/IR laser combination unit on carbines, rifles, submachine guns, and more. Featuring a 635nm Red Visible LASER and an 850nm Infrared Aiming LASER, it\\'s compatibility with new advanced switching systems - the popularity and usage of the Steiner CQBL-1 has been increasing steadily since its release.

Features

  *  Rugged 6061T-6 aerospace aluminum housing

  *  MIL-SPEC Type III Hardcoat anodized

  *  Co-Aligned Visible & IR Aiming LASER\\'s

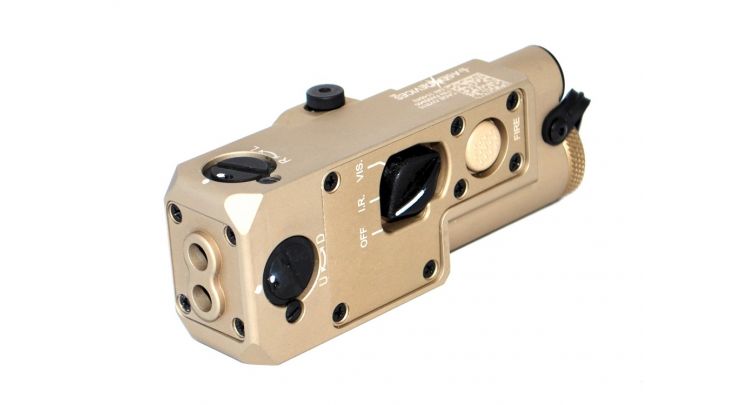

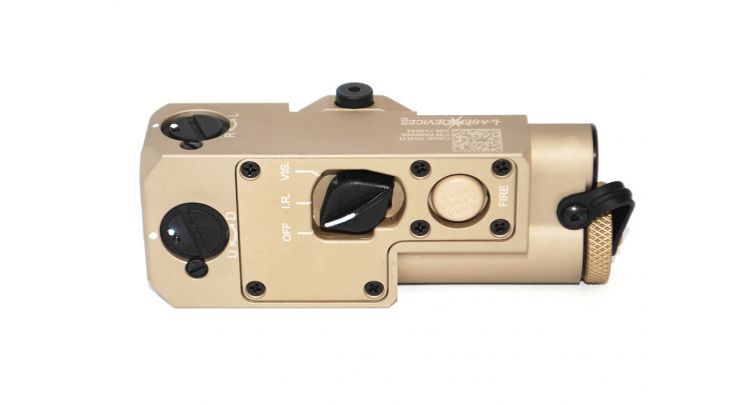

  *  Activation / Mode Selector Switch

  *  Integrated Activation Switch

  *  Fully adjustable for Windage and Elevation

  *  Remote Cable Port

  *  LASER doesn\\'t obscure iron sight

  *  Meets MIL-STD-810G for adverse environmental conditions

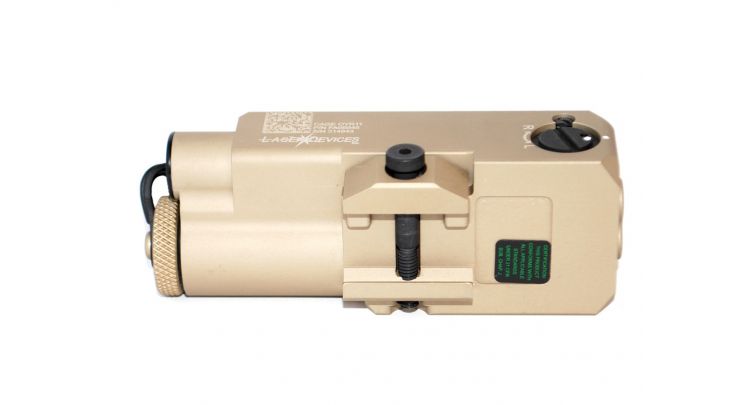

  *  Integrated Picatinny Mount

  *  Powered by One (1) CR123A Battery

  *  Waterproof to 5 Meters





Laser Specifications
	Visible LASER		IR Pointer	IR Illuminator
Type:	Class IIIa		Class I	Class I
Power Output:	<5 mW		<5 mW	0.7 mW LED
Wavelength: Red	635nm		850nm LED	850nm LED
Beam Diameter:	8 mm at 25 m (0.315" at 82\\')
Beam Divergence:	0.3 - 0.8 Millirads
Visibility Range: Night/Day	250m/5m		250m/825\\'
Temperature Range:	-40˚C to +51˚C
Battery Type / Life:	(1) CR123A Battery will typically last 3 hours continuous
Mechanical Specifications
Material:	Anodized Aircraft Aluminum 6061T-6
Dim: in (w/Mount)	Length: 4.0 "	W: 1.5"			Height: 1.1"
Dimension: cm	Length: 10.2cm	W: 13.8cm			Height: 2.8cm
Total Weight (oz./g)	6.0 ounces / 170 grams
Environment:	Submersible to 5 Meters (16.4 Feet)
Typical Weapon Types:	M-16, AR-15, and M-4 Rifles, Up to .50 Cal
Patent No.:	5,581,898
Warranty:	3 Years

Useful on a variety of platforms, the Steiner eOptics Class 1 IR Laser is designed specifically to help with your target acquisition. Steiner eOptics Class 1 Infrared Lasers were designed to meet the needs of civilian customers. The LASER\\'s are equipped with a <0.7mW eye-safe Class 1 IR laser and are available for anyone to purchase. It is perfect for engaging targets at distances greater than 250m when used in conjunction with Night Vision Devices such as PVS-14\\'s or Clip-On Weaponsights. These "Civilian Legal" models, Steiner eOptics Class I Lasers, are designed with the same cutting-edge technology and MIL-SPEC housings as their higher powered military counterparts.
