DBAL-I2 Green/IR LASER: PN: 9003 & 9005
DBAL-I2 Red/IR LASER: PN: 9004 & 9006
|
|
|
|
******
* Available with either a Visible Green or Red LASER (excludes 9007 model)
The NEW DBAL-I2 is the cutting-edge replacement for the AN/PEQ-2A combining an Infrared LASER Pointer and Visible (Red or Green) LASER Pointer in a lightweight, rugged metal housing.

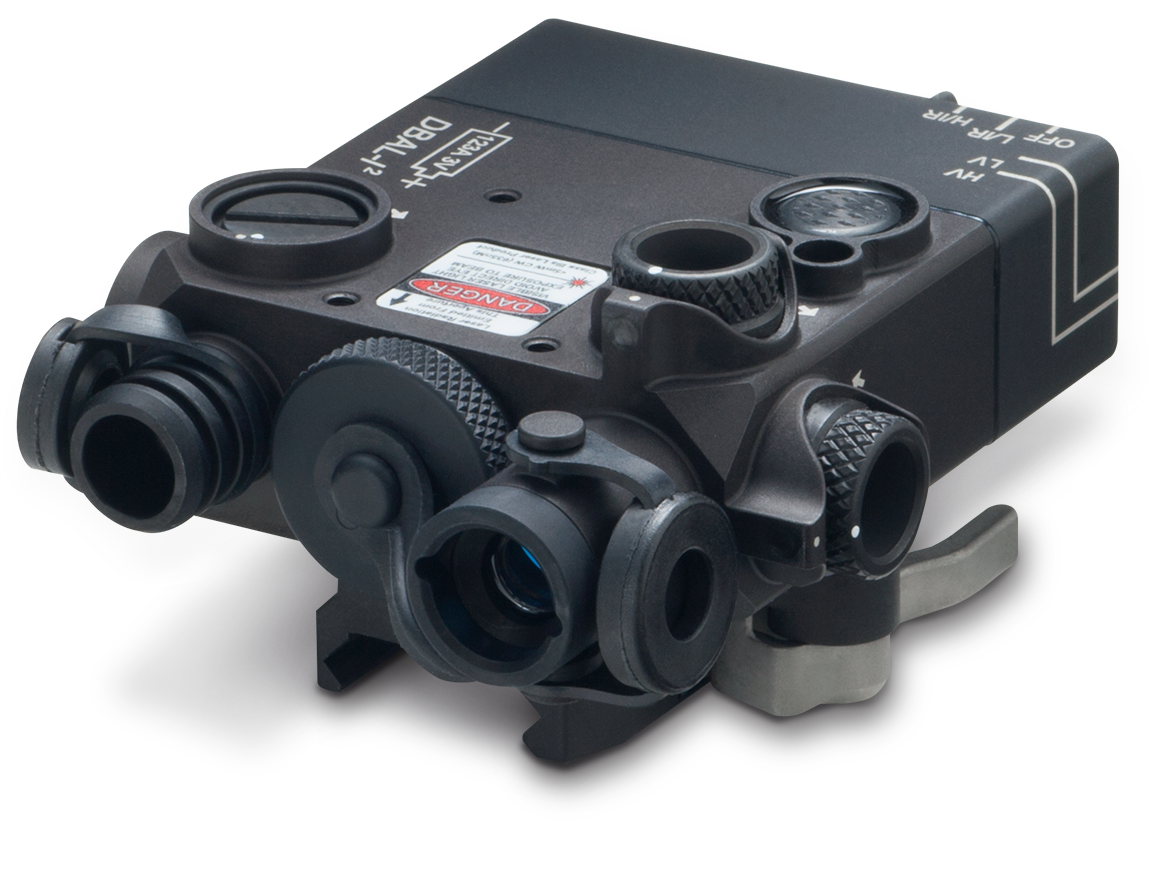

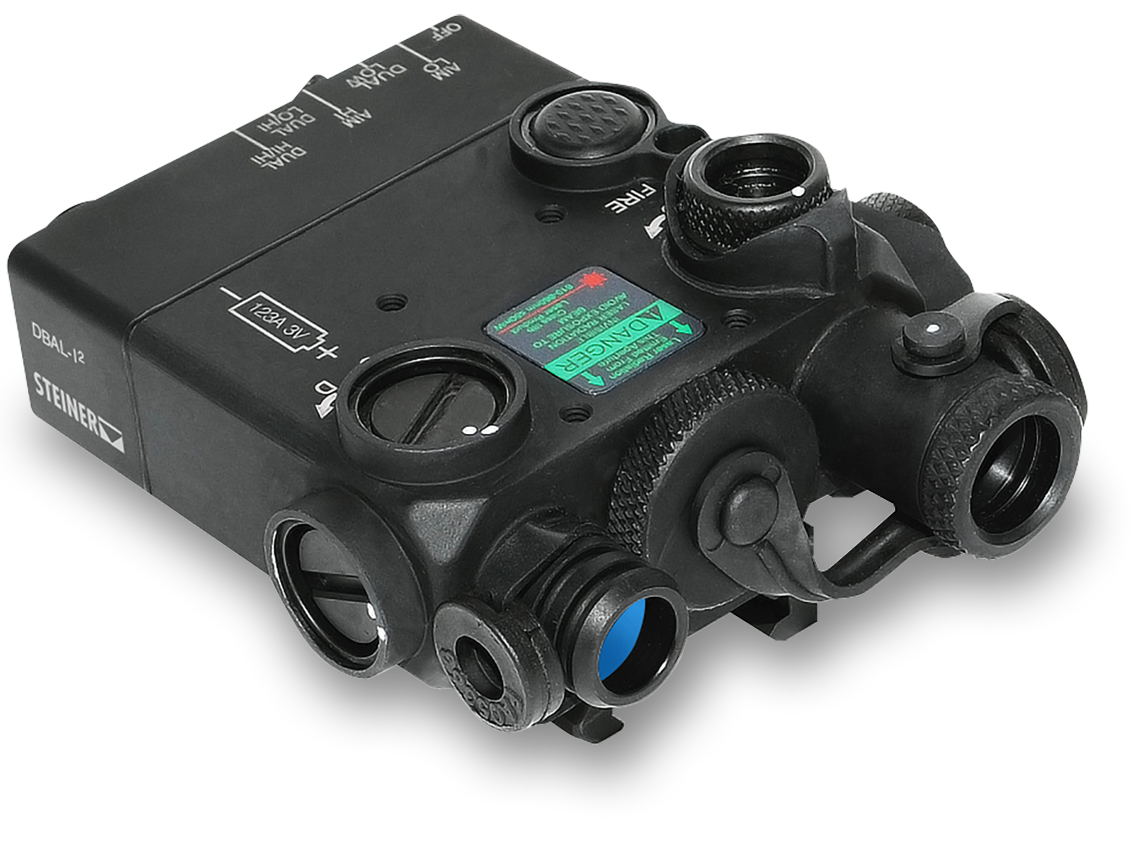

*PN: 9003 (Black) - Green Laser
*PN: 9004 (Black) - Red Laser

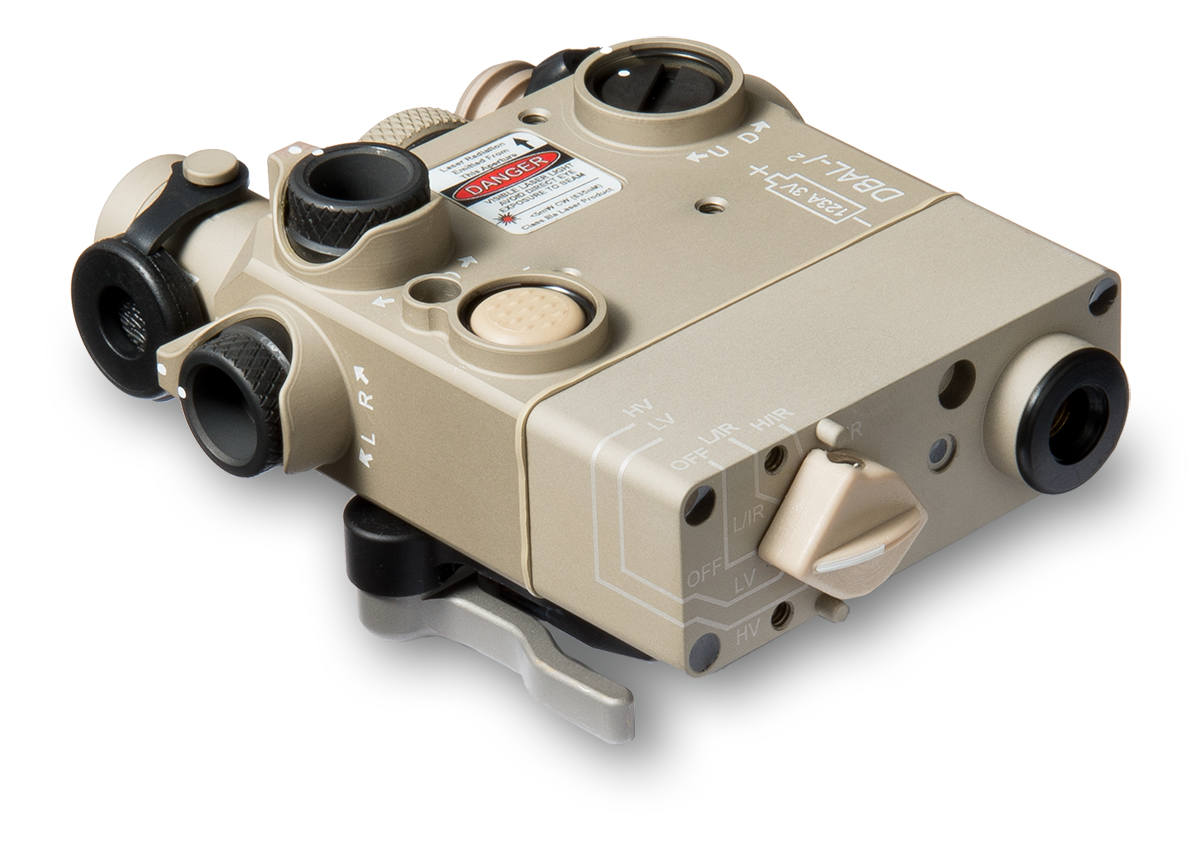

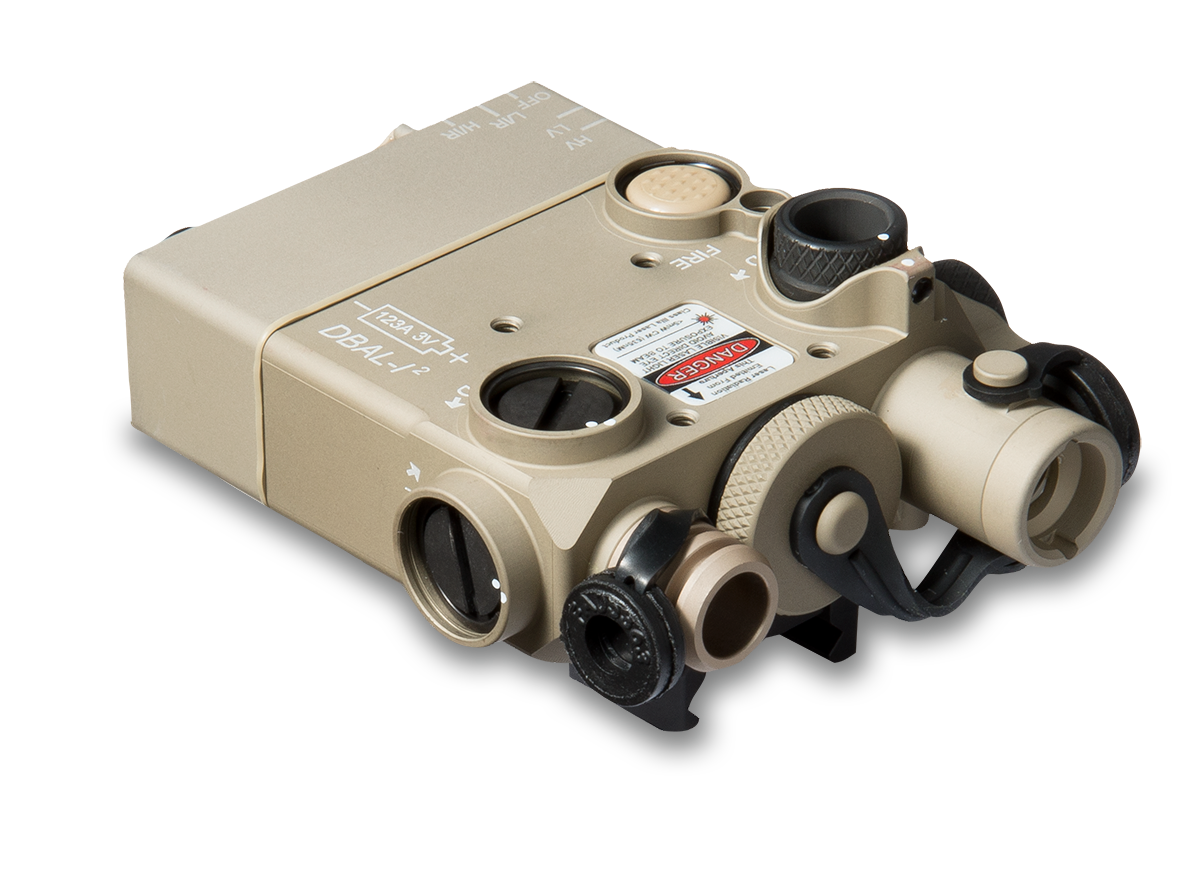

*PN: 9005 (Tan) - Red Laser
*PN: 9006 (Tan) - Green Laser
*PN: 9007 (Black) PEQ-2 IR LASER Pointer + IR LED Illuminator Only
Phone orders, please call: (702) 324-6463 or email sales@nitevis.com
|
|
|
Supplied with:
Quick Release HT Mount, Battery, (1) 3-Volt 123A Lithium Battery, 7" Remote Cable Pressure Pad Switch (Specify cable length if different from standard)
* Integrated Momentary Remote Pressure Pad Switch & Activation Switch
* Single-Tap - Enables momentary activation
* Double-Tap - Instantly activates the LASER in a 5 Minute continuous "ON Mode".
* Built-in safety returns the unit to momentary activation after 5 minutes.
* The Pressure Pad provides a tactile (silent) click that indicates when the switch has been activated
|
|
Manufactured in the USA using the finest quality materials, with a 3 Year Warranty. |
|
The NEW DBAL-I2 is the cutting-edge replacement for the AN/PEQ-2A combining an Infrared LASER Pointer and Visible (Red or green) LASER Pointer in a lightweight, rugged metal housing.
The DBAL-I2
Provides the same functionality
Is smaller and lighter
Is significantly shorter and leaves more rail space for other accessories
Mirrors the AN/PEQ-2A activation switch options
Built to perform under the most rigorous conditions and survive the harshest environments, the DBAL-I2 provides operators with a critical tool for use with night vision devices.
|
|
|
DBAL-D2 |
DBAL-I2 |
DBAL-A3 |
|
|
9001 |
9002 |
9003 |
9004 |
9005 |
9006 |
9008 |
9009 |
|
Housing Color |
Black |
Tan/Sand |
Black |
Black |
Tan/Sand |
Tan/Sand |
Black |
Tan/Sand |
|
LASER Type - Visible Red or Green |
Class IIIa |
Class IIIa |
Class IIIa |
Class IIIa |
|
LASER Type - IR LASER |
Class I LED |
Class I |
Class I |
Class I |
|
LASER Type - IR Illuminator |
Eye-Safe |
|
|
Class IIIr |
|
|
|
|
|
|
|
|
|
|
|
Visible Green Laser - Class IIIa |
532nm |
532nm |
532nm |
|
|
532nm |
532nm |
532nm |
|
Beam Divergence: |
<0.8 mRAD |
|
|
<0.8 mRAD |
|
High Output: |
<5mW |
<5mW |
<5mW |
|
|
<5mW |
<5mW |
<5mW |
|
Low Output: |
1mW |
1mW |
1mW |
|
|
1mW |
1mW |
1mW |
|
Range/Visibility (Day) |
15m (16yds) |
|
15m (16yds) |
|
Range/Visibility (Night) |
750m (820yds) |
|
750m (820yds) |
|
|
|
|
|
|
|
|
|
|
|
Visible Red Laser - Class IIIa |
|
|
|
635nm |
635nm |
|
|
|
|
Beam Divergence: |
|
|
|
<0.8 mRAD |
|
|
|
|
High/Low Output: <5mW/1mW |
|
|
|
|
|
|
|
|
|
Range/Visibility (Day) |
|
5m (5.4yds) |
|
|
Range/Visibility (Night) |
|
>250m (274yds) |
|
|
|
|
|
|
|
|
|
|
|
|
Power Output: IR Laser Pointer |
<0.7mW LED |
0.7mW |
<0.7mW (non LED) |
|
Beam Divergence: |
<0.8 mRAD |
<0.8 mRAD |
<0.8 mRAD |
|
Wavelength: |
850nm |
850nm |
835nm |
|
Range/Visibility (Night) |
>250m (274yds) |
>250m (274yds) |
>250m (274yds) |
|
|
|
|
|
|
|
|
|
|
|
Power Output: IR Illuminator |
<600mW LED |
No IR Illuminator |
<4mW (non LED) |
|
Beam Divergence: |
2 to 30 Deg |
No IR Illuminator |
95 - 195 mRad |
|
Wavelength: |
850nm LED |
No IR Illuminator |
835nm |
|
Range/Visibility (Night) |
1000m (1100yds) |
No IR Illuminator |
175m (191yds) |
|
850nm Low Output: <300mW |
|
|
|
|
|
|
|
|
|
|
|
|
|
High/Low Operation |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Includes Pressure Pad Switch |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Pushbutton Activation |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
RemoteCable Activation (Pressure Pad Switch) |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Momentary On |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Constant On |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Windage/Elevation Adjustable |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Quick Detachable HT Mount |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Mounts to MIL-STD 1913 Picatinny |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
(1) CR123A Battery Operation |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
AA Battery Operation |
|
|
|
|
|
|
|
|
|
|
|
|
|
Battery Life |
>3 Hrs |
>3 Hrs |
>3 Hrs |
>3 Hrs |
>3 Hrs |
>3 Hrs |
>3 Hrs |
>3 Hrs |
|
|
|
|
|
Waterproof: Submersion in Meters |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
|
|
|
|
|
Weight in ounces: |
12.5oz |
12.5oz |
8oz |
8oz |
8oz |
8oz |
8oz |
8oz |
|
Weight in grams: |
354g |
354g |
227g |
227g |
227g |
227g |
227g |
227g |
|
|
|
|
|
Aircraft Aluminum 6061-T6 w/Class III Hard Anodized Housing |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Temperature Range: 40°C(-40°F) to +65°C(149°F) |
* |
* |
* |
* |
* |
* |
* |
* |
|
|
|
|
|
Warranty in Years |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
|
Product Features:
Green or Red Visible Aiming Laser IR Laser (excludes 9007 model)
Fully Adjustable Windage / Elevation
Powered By: One CR 123A Battery
Integrated Activation Switch
Quick Release HT Mount
Activation / Mode Selector Switch
Remote Cable Port
The Steiner eOptics Dual Beam Aiming Laser, or DBAL series, is the choice of military units worldwide.
|
|
Item No. |
Visible Light |
IR Pointer |
IR Illuminator |
Laser Color |
Case Color |
|
9003 |
Class Illa |
< 5 mW |
0.7 mW |
Green |
Black |
|
Wavelength - Visible Green Laser
Wavelength - IR Laser
Beam Divergence - Visible Red or Green Laser
Beam Divergence - IR Laser
Range/Visibility (Night/Day)* - Visible Green Laser
Range/Visibility (Night/Day)* - IR Laser
Temperature
Battery
Battery Life (mode dependent)
Material
Color
Weight (with battery)
Dimensions
Waterproof
Mount
Windage and Elevation Adjustment
Activation Switch
Remote Cable Pressure Pad
Warranty
Special Features
|
532 nm
850 nm
< 0.8 mRad
< 0.8 mRad
750 m / 15 m
> 250 m
-40 C to +65 C
CR 123A
> 3 hours
Aircraft Aluminum
Black
8.0 oz.
3.5 (L) x 2.75 (W) x 1.59 (H)
Submersible to 5 m
QD (Quick-Disconnect) HT Mount
Yes
Integrated Push Button
Yes
3 Year
Pre-drilled for optional MRD sight or MIL-STD 1913 top rail
|
|
9004 |
Class Illa |
< 5 mW |
0.7 mW |
Red |
Black |
|
Wavelength - Visible Red Laser
Beam Divergence - Visible Red or Green Laser
Beam Divergence - IR Laser
Range/Visibility (Night/Day)* - Visible Red Laser
Range/Visibility (Night/Day)* - IR Laser
Temperature
Battery
Battery Life (mode dependent)
Material
Color
Weight (with battery)
Dimensions
Waterproof
Mount
Windage and Elevation Adjustment
Activation Switch
Remote Cable Pressure Pad
Warranty
Special Features
|
635 nm
< 0.8 mRad
< 0.8 mRad
250 m / 5 m
> 250 m
-40 C to +65 C
CR 123A
> 3 hours
Aircraft Aluminum
Black
8.0 oz.
3.5 (L) x 2.75 (W) x 1.59 (H)
Submersible to 5 m
QD (Quick-Disconnect) HT Mount
Yes
Integrated Push Button
Yes
3 Year
Pre-drilled mounting for optional red dot sight or MIL-STD 1913 top rail
|
|
9005 |
Class Illa |
< 5 mW |
0.7 mW |
Red |
Desert Sand |
|
Laser Color
Wavelength - Visible Red Laser
Wavelength - IR Laser
Beam Divergence - Visible Red or Green Laser
Beam Divergence - IR Laser
Range/Visibility (Night/Day)* - Visible Red Laser
Range/Visibility (Night/Day)* - IR Laser
Temperature
Battery
Battery Life (mode dependent)
Material
Color
Weight (with battery)
Dimensions
Waterproof
Mount
Windage and Elevation Adjustment
Activation Switch
Remote Cable Pressure Pad
Warranty
Special Features
|
Red
635 nm
850 nm
< 0.8 mRad
< 0.8 mRad
250 m / 5 m
> 250 m
-40 C to +65 C
CR 123A
> 3 hours
Aircraft Aluminum
Desert Tan
8.0 oz.
3.5 (L) x 2.75 (W) x 1.59 (H)
Submersible to 5 m
QD (Quick-Disconnect) HT Mount
Yes
Integrated Push Button
Yes
3 Year
Pre-drilled for optional MRD sight or MIL-STD 1913 top rail
|
|
9006 |
Class Illa |
< 5 mW |
0.7 mW |
Green |
Desert Sand |
|
Laser Color
Wavelength - Visible Green Laser
Beam Divergence - Visible Red or Green Laser
Beam Divergence - IR Laser
Range/Visibility (Night/Day)* - Visible Green Laser
Range/Visibility (Night/Day)* - IR Laser
Temperature
Battery
Battery Life (mode dependent)
Material
Color
Weight (with battery)
Dimensions
Waterproof
Mount
Windage and Elevation Adjustment
Activation Switch
Remote Cable Pressure Pad
Warranty
Special Features
|
Green
532 nm
< 0.8 mRad
< 0.8 mRad
750 m / 15 m
> 250 m
-40 C to +65 C
CR 123A
> 3 hours
Aircraft Aluminum
Desert Tan
8.0 oz.
3.5 (L) x 2.75 (W) x 1.59 (H)
Submersible to 5 m
QD (Quick-Disconnect) HT Mount
Yes
Integrated Push Button
Yes
3 Year
Pre-drilled for optional MRD sight or MIL-STD 1913 top rail
|
|
9007 |
Class Illa |
< 5 mW |
0.7 mW |
N/A |
Black |
|
Wavelength: No Visible LASER
Wavelength: IR LASER: 850nm
Wavelength: IR Illuminator: 835nm
Beam Divergence: IR LASER: < 0.8 mRad
Beam Divergence: IR Illuminator: 95 - 195 mrad
Range (Night/Day): IR LASER: > 300 m
Range (Night/Day): IR Illuminator: > 175 m
Operating Temperature: -40 C to +65 C
Battery Type: CR123A
Battery Life (mode dependent): > 3 Hours
Housing Material: Aircraft Aluminum
Housing Color: Black
Weight (w/Battery): 8 oz
Dimensions: 3.5" (L) x 2.75" (W) x 1.59" (H)
Waterproof: Submersible to 5m
Mount Type: Quick-Disconnect HT Mount
Bearing/Elevation Adjust: Yes
Activation Switch: Integrated Push Button
Remote Cable Pressure Pad Included: Yes
Warranty: 3 Years
Special Features: IR ONLY
|
|
|
