x 480 Sensor Resolution, ThOR HD 640
P/N: TIWSTH641A, 19mm, ThOR HD
1 - 10X = $3,899.00
TIWSTH642A, 25mm, ThOR HD 1.5 -
15X = $4,399.00
P/N: TIWSTH643A, 50mm, ThOR HD 2.5 -
P/N: TIWSTH645A, 100mm, ThOR HD
5 - 40X =
We're required to adhere to a Minimum Advertised Price (MAP) by the
manufacturer, and anyone not listing this minimum price is breaking the
rules, so if you find a better price advertised anywhere, please let us
know and we will try to
meet or beat
technologically advanced line of thermal rifle scopes on the market bar none!
The all new Obsidian “T” II Thermal core beats at the heart of our systems.
More power, more features, smaller packaging, and lower cost have allowed ATN
to make the biggest update to its award winning thermal product line. Record
videos and photos onto a Micro SD card. Never again forget to record that
perfect shot with ATN’s patented RAV (Recoil Activated Video). Use ATN’s Smart
Range Finder to quickly range in on your target and allow the ballistic
calculator to make instantaneous corrections to your POI on the fly. Smooth
Zoom, built in Wi-Fi, Bluetooth, 3D Gyroscope, 3D Accelerometer, 3D
Magnetometer are but a few of the features and sensors packed into these

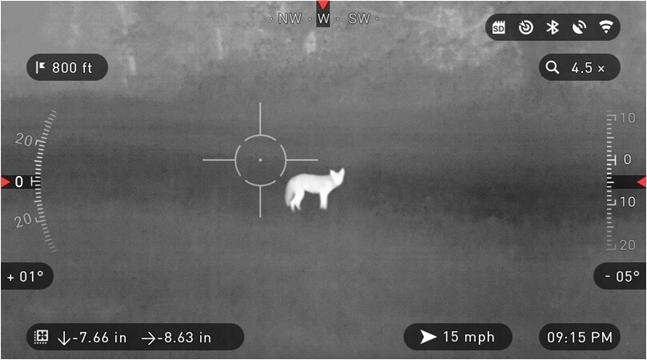

First screen you’ll see after switching on the device is Home
Screen. It consist of Scales, Status Bar icons and different Information
E-Compass Scale shows
yaw angle based on e-Magnetometer data.
Roll Scale shows rifle
cant based on internal 3D Gyroscope.
Pitch Scale shows
rifle inclination based on internal 3D Gyroscope.
Its job is to display
information about the current state of the system.
icons become invisible, so you may see only the important
information at the
• Battery — appears
when energy level is low;
• SD Card — shows the
presence or absence (red icon) of memory card;
• Shooting Solution,
Bluetooth, GPS and WiFi — shows enable or disable the function.
They are interface
elements which provide quick access to useful information.
There are several
types of widgets:
• icons without value
— is used for mode displaying (Photo and Video Modes);
• only numerical value
(Detailed Roll and Pitch Values);
• icons with a
• Photo Preview
(appears in the bottom of the home-screen, after the photo was taken).
ZOOM LEVEL By pressing and holding
the UP or DOWN button on keypad you will be able to Zoom IN and OUT.
Current Zoom Level is displayed at the Zoom widget on the Home-screen.
When the device is
launched for the first time you'll need to configure the lens option in the
pop-up window before zooming.
While using Smart Shooting Solution
your reticle can be displaced from the center point of the screen. Then during
Zoom In action it will move to a center.
TAKING PHOTOS Press the LEFT button
to TAKE A PHOTO.
Depending on the
selected mode you will make one or several photos. You can
choose from various photo modes in
the System Menu.
VIDEO RECORDING By pressing the RIGHT
button you will be able to RECORD VIDEO (if you use Normal Mode) or START
RAV (if Recoil Activated Video mode is on). You can switch the
video recording modes in the System Menu.
Your recording will
automatically stop when the memory card is full.
The CENTER button opens the menu and close it down when pressed again.
Detect your prey with the power of thermal. Take your shot with
confidence using the help of Smart Shooting Solutions. Record
everything thing with the press of a button. Share with your friends
& RECOGNITION RANGES
Detection: 1.5 pixels / 0.75m = 2 pixels per meter
625 meters/2,051 feet/683.8 yards - 19mm
800 meters/2,625 feet/874.9 yards - 25mm
1500 meters/4,921 feet/1,640 yards - 50mm
2500 meters/8,202 feet/2,734 yards -
Recognition: 6 pixels / 0.75m = 8 pixels per meter
280 meters/918.6 feet/306.2 yards - 19mm
400 meters/1,312 feet/437.4 yards - 25mm
600 meters/1,969 feet/656.2 yards - 50mm
1100 meters/3,609 feet/1,203 yards
Identification: 12 pixels / 0.75m = 16 pixels per meter
170 meters/557.7 feet/185.9 yards - 19mm
250 meters/820.2 feet/273.4 yards - 25mm
360 meters/1,181 feet/393.7 yards - 50mm
600 meters/1,969 feet/656.2 yards
At billion cycles' per second, the ATN Core pushes
optics into the 21st century!
Utilizing high-resolution sensor with distinct night
The Obsidian Core is a highly specialized computer that
is designed to run a suite of sensors and crunch huge files in a blink of an
easy as setting up your Smartphone and like your phone, the ATN ThOR
offers plenty of customization to make your ATN X-HD
640 x 480
1.5X - 15X
2.5X - 25X
5X - 50X
32 x 25
24 x 19
12.5 x 9.7
6 x 4.7
|Human Detection Range
|Human Recognition Range
|Human Identification Range
||ATN Obsidian "T"
|Video Record Resolution
||1280 x 960 at 30
||From 4 to 64 GB
|WiFi (Streaming, Gallery &
||iOS & Android
|GPS (Geo-tagging, Elevation,
||Yes - GS7
|Smart range finder
|Smart Shooting Solution
|RAV (Recoil Activated Video)
& Color Options
#17® (single lever)
A.R.M.S.® #35® (double lever)
|Battery Life (Li-ion)
||4 AA (Lithium
||6.85" x 3.16" x 3.14"/174 mm x 80 mm x 80 mm
|Dimensions - 25mm
||6.85" x 3.16" x 3.14"/174 mm x 80 mm x 80 mm
|Dimensions - 50mm
8.81" x 3.16" x 3.14"/224 mm x 80 mm x 80 mm
|Dimensions - 100mm
10.67" x 3.97" x 3.47"/271 mm x 101 mm x 88 mm
(3) Three Years
Save all the Ballistic and Zeroing-in data in the profile Manager for
every weapon that you plan to use the Thor-HD on. No worries about
setting everything up every time. Just create a new profile and you
are ready to go.
traditional optics, the silky smooth zoom helps you get up close
and personal with everything you're looking at.

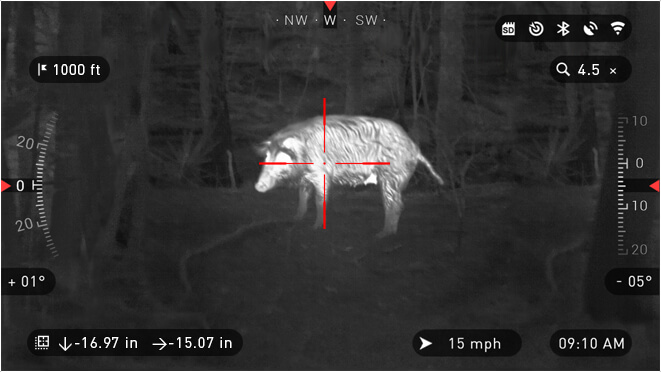

SMART SHOOTING SOLUTION
Ballistic calculators were never this easy. No more charts,
complex reticles, and calculators. The ATN Obsidian Shooting
Solution does it all. Range in with your Smart Range Finder, enter
your wind readings and let the Obsidian Core do the rest. Turn
through the wind, change your incline angle, adjust distance and
instantaneously your point of impact will shift to have the
perfect shot every time.

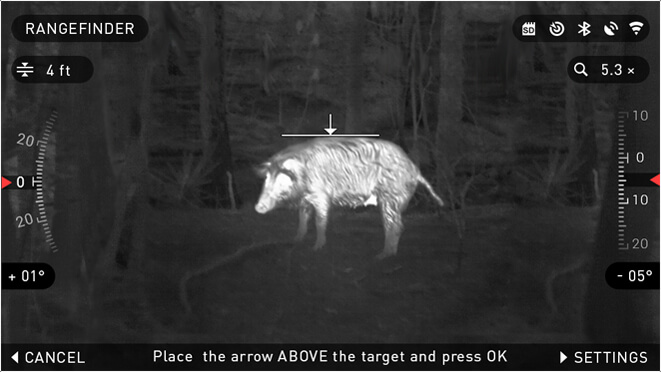

ATN's Patent Pending Smart Range Finder will make your life easier than
ever. With only two clicks and a simple shift of the scope you will be
able to range your target. Once ranged in your reticle will
automatically adjust its point of impact. No more guessing, chart
memorization or complex calculations.

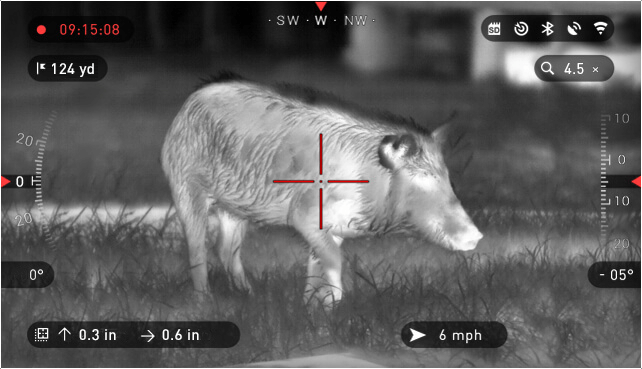

RECOIL ACTIVATED VIDEO
Recoil Activated Video
(patent pending) offers a unique approach to taking videos with your Smart
Sight. RAV offers you an ability to take a video of before, during and after
your shot has been fired. Perfect for those hunting moments when getting your
target far outweighs the importance of remembering to turn on your video
record. Simply set your RAV to ON, set your parameters and anytime your Pull
the Trigger (RAV is activated from the recoil of your weapon) the sight will
record a number of seconds before your shot, and a number of seconds after.
All conveniently organized as one continuous video. Press the RIGHT button to
Start Video recording. Press RIGHT button again to stop Video recording.
You have more important things to worry about then remembering to press
the record button before each kill shot. But boy wouldn’t it be nice to
have that video afterwards? Recoil Activated Video (RAV) takes care of
all your worries. Just relax and focus on your game and let the Obsidian
Core do the heavy lifting.
When you set your video record to RAV, the system buffers everything
your scope sees. As the trigger is pulled you are left with a full video
of what you saw before the shot was taken, the moment of, and as much
video after as you care for.
Make capturing your experiences in stunning HD a regular part of your
No more missed opportunities for that once in a lifetime moment.

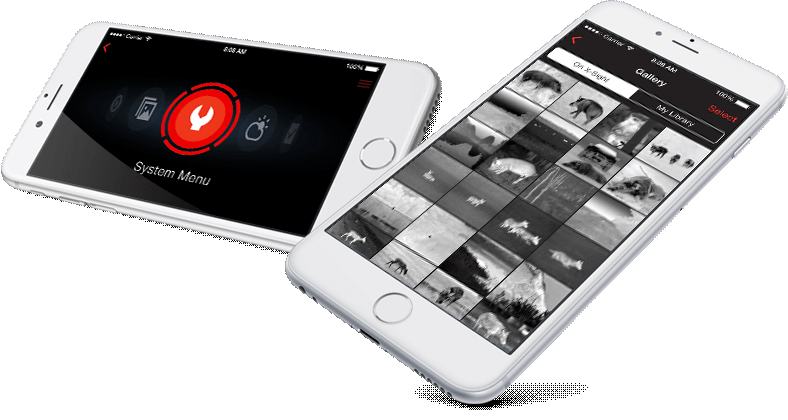

When you're ready to show off your
hunt, ATN makes it easier than ever to capture and share your videos with
your friends and family back home and online by providing a Smart HD
Channel. Simply download your video and share your experience.
next-gen barometer gives you
precise accurate data so you can make sure everything is
Improve ability to
smoothly spot game by activating the built-in
gyroscope & image stabilization!
Steady your view and make the experience a lot of more fun!
The E-Compass let you
know exactly what direction you need to head so you can move
a little closer and get a better shot at that monster buck
Installation of Batteries
The Thor-HD will operate on four
Lithium AA-type batteries.
We highly recommend using the ATN Power Weapon Kit. With it you do need
any batteries and will have an average of 16hrs of running time. You
will also be able to mount your scope on higher caliber systems since
strong recoil will no longer be able to dislodge internal batteries and
thereby potentially power down the scope.
Use only 1.5 V batteries.
Install batteries as follows:
Remove the battery cap by unscrewing it counter clockwise
Insert batteries as shown
Return the battery cap into the housing (screw clockwise until finger
Power Weapon Kit:
P/N: ACMUBAT160 UPC:
20,000 mAh Battery Pack
USB to Micro USB w/ L Shape
Water Resistant Rubber Seal
Adjustable Buttstock Pouch
KERIF Price: $99.00
The ATN Extended Power Kit
gives you plenty of juice whenever and wherever you need it.
Up to 22 hrs of continuous use.
Easy to recharge and can power other devices.
Connect via Bluetooth to your ATN Smart Device and
control all the features and functions without touching the scope.
Using your Ballistic Calculator, Smart Range Finder, Environmental
Adjustments and other cool features on your Smart HD Scopes
just got easier!
