Aimpoint red dot sights are manufactured with the greatest care and precision from the best materials and components available. They are designed for use in the real world, and can handle rough treatment and all imaginable weather conditions. With the variety of models available, there is an Aimpoint sight for virtually every type of firearm.

For a sight and a gun to function as a reliable unit year after year, it is important that the mounting is done professionally and the mounting rings and bases are of high quality. An important detail that is often overlooked is the fact that the mounts and rings must be precisely aligned for best performance with any optical sight. The new generation of Aimpoint sights incorporates a very generous range of adjustment, which allows the user to compensate for any misalignment between the barrel, action and mounting hardware.

Application Areas
Hunters	Secondary Use
IPSC Shooters	Secondary Use
Law Enforcement	Primary Use
Armed Forces	Primary Use
Application Firearms
Pistol, Revolver	Primary Use
Bow	Secondary Use
Magnum Handgun	Secondary Use
Semi-Automatic Rifle	Secondary Use
Short Action Rifle	Secondary Use
Standard Length Rifle	Secondary Use
Scout Rifle	Secondary Use
Carbine	Primary Use
Personal Weapon	Primary Use
Submachine Gun	Primary Use
OPTICAL DATA
System	Parallax Free, Reflex Collimator System
Magnification	1X
Eye relief	Unlimited, No centering required
Reticle, size	Red dot, diameter 4 MOA*, LED totally Eye Safe
Optical coating	Anti Reflex coating on all surfaces. Multi-layer coating for reflection of red light.
ELECTRONIC DATA

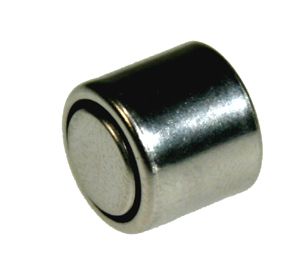

Battery Type	(1) 3V Lithium, 2L76 or DL1/3N
Battery Life, typical**	1,000 - 10,000 hrs avg., Night Vision (NV) Position up to 100,000 hours
Dot Brightness	10 positions, (4) Night Vision, (5) Daylight, (1) X-Bright, Mechanical Switch
MECHANICAL DATA
Material housing	Extruded Aircraft Aluminum
Surface finish	Hard Anodized, Matte, Carbon Black

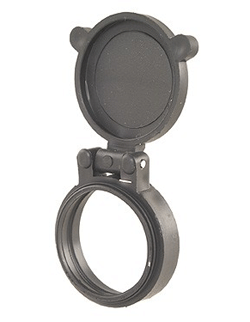

Lens covers	Thermoplastic Elastomer, Blk, Non-glare
Adjustment	1 click = 10 mm at 80 meters = 13 mm at 100 meters = .5" at 100 yds
Mounting	1 ring, 30 mm or Aimpoint QR
DIMENSIONS
Length	130 mm (5.1")
Width/height	55 mm (2.2")
Ring width	Max 30 mm (1.2")
Weight	220 grams (7.8 oz)
ENVIRONMENTAL DATA
Temperature Range	-45 deg C to +70 deg C (-50 deg F to +160 deg F)
Water resistance	Submersible to 25 m (80ft) water depth
*MOA (Minute Of Angle) 1 MOA = 30 mm @ 100 meters = 1" @ 100 yards **CET: All models beside Aimpoint CompC SM have the new CETechnology Dimensions and weights for CompML2 and CompM2 are given with Flip-Up Lens Covers All Aimpoint Accessories, Rings, Mounts & Bases            The Wilcox Aimpoint Comp-M Mount is a unique mount that allows an operator to affix a Comp-M Sight to any weapon that has a Picatinny Rail System. For an added nighttime advantage, the Wilcox AN/PVS-14/18 NVG Weapon Mount, (sold separately, see TDS061) allows the operator to mount an AN/PVS-14 or 18 NVG in series, which can position the dot of the Aimpoint Comp-M Sight in the view of the NVG. 3X Magnifier Unique features Part#: 11324     Mountable on a rail system behind Aimpoint® sights Extremely fast and ingenious mounting solution Can also be mounted with a regular 30 mm ring Provides extended range to the operator Combines the best of two worlds – CQB & semi-sniping Increases confidence, performance and flexibility No influence on point of impact –– No need for re-zeroing Doubles as handheld magnifying monocular Export license/End-user certificate is required for this product. The Aimpoint® LPI, IR Laser Aiming Device is an active aiming device or target designator for Military and Law Enforcement applications in darkness or poor light conditions. It is a development based on long experience in engineering and manufacturing of lasers ranging from pistol to military infantry rifle applications. The Aimpoint LPI is intended as a complement to the passive aiming systems from Aimpoint. It is designed to fit directly on an Aimpoint red dot sight, which means that no special rail system is required. The 3X Magnifying module is specially designed for compatibility with Aimpoint® sights and for maximum flexibility and increased performance in the field. The 3X Mag is a revolutionary tool for military personnel, law enforcement, sport shooters and hunters. When combined with Aimpoint’s patented Twist Mount, the 3X Mag gives the user something never before possible – the ability to switch in a split second from CQB (Close Quarters Battle) to semi-sniping and vice versa. Hunters can rapidly switch from non-magnifying to magnifying while still being able to keep their Aimpoint® sight on their firearm. The versatile 3X Mag also can be used as a handheld magnifying glass monocular for discrete observation and identification.   3X Twist Mount (Old PN:11355) Part#12234  The recommended mount for the 3X Magnifier, which allows for quick attachment and detachment. The Aimpoint Twist Mount fits any MIL-Std 1913 Picatinny Rail.     Lens Cover, Flip-Up, Front, 30mm CET sights (not 2X) Part#12224         Killflash ARD, all CET/ACET sights (Not for 2X) Part#12239       Double Battery Module, Sleeve, Cap and Strap, Part#12247   Lithium DL 1/3N, 3V Battery Part#10315
