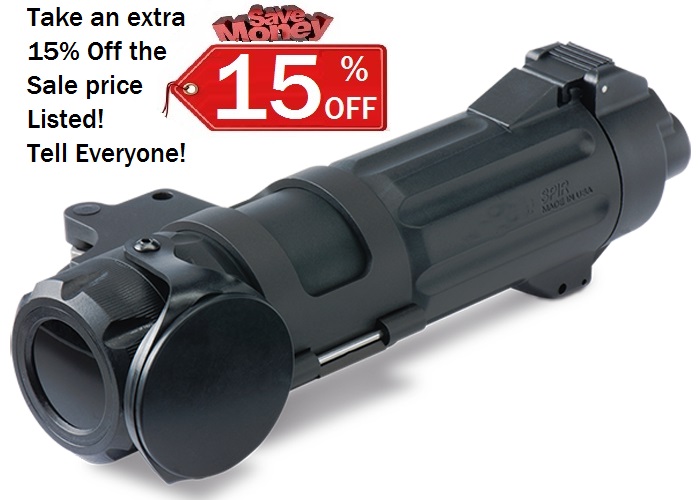

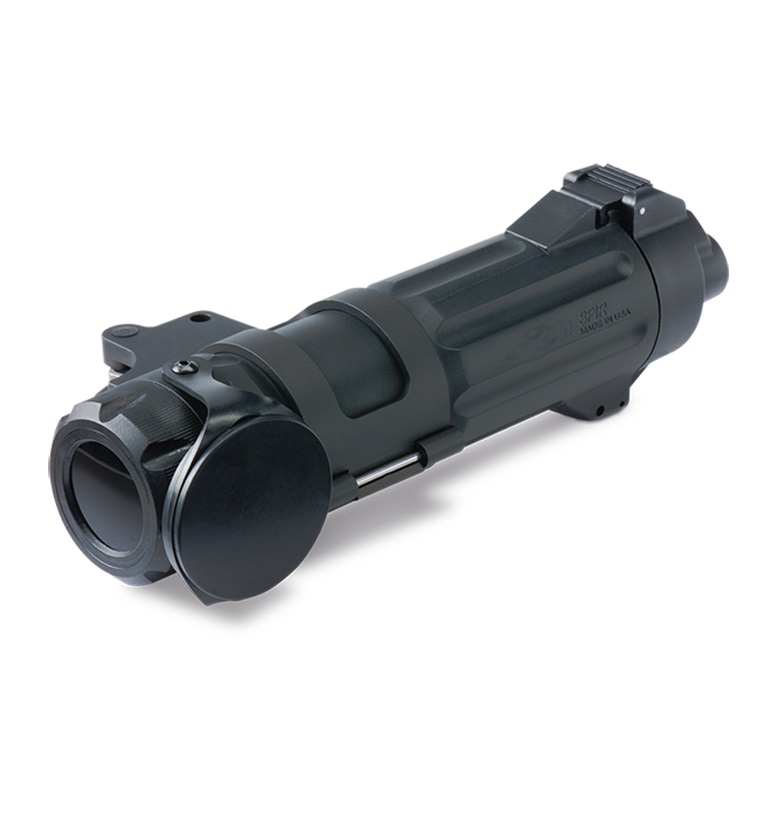

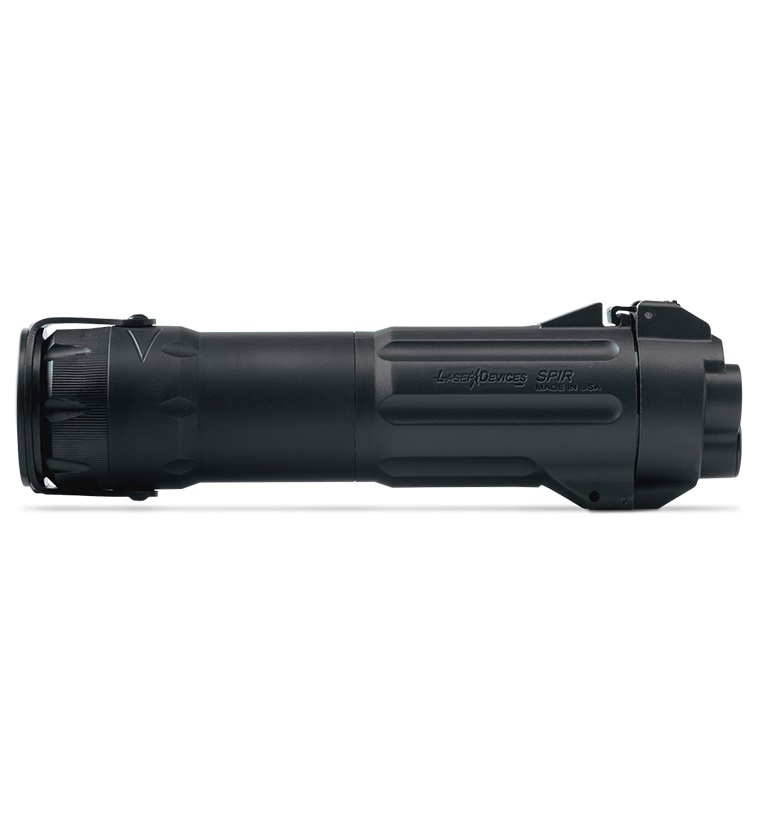

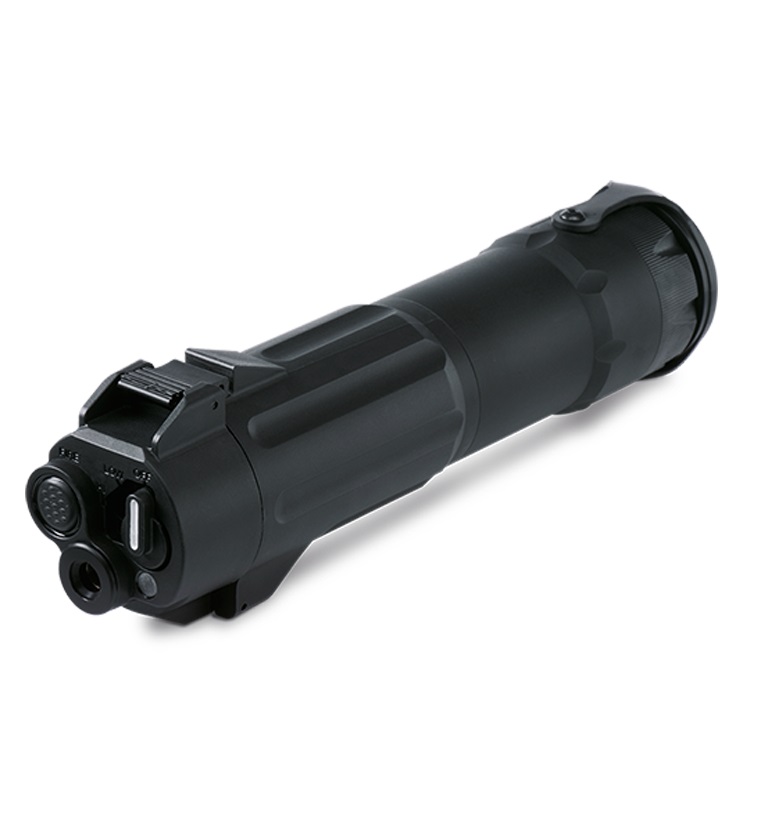

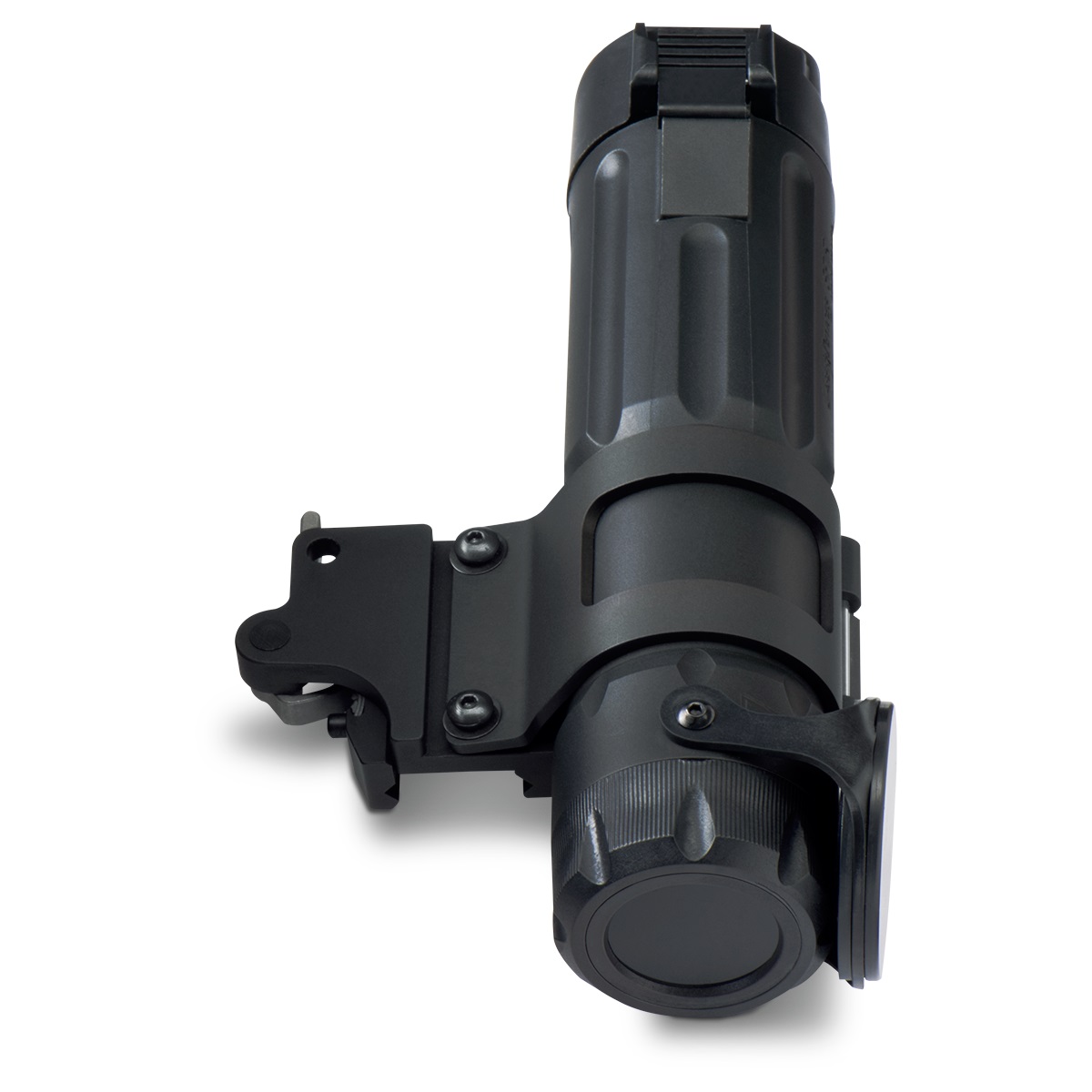

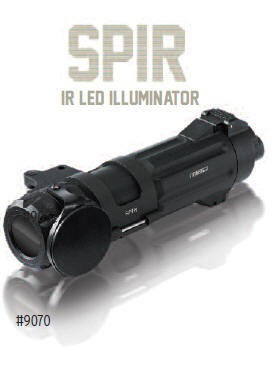

9070 Special Purpose IR Battle Light
Part Number: 9070 (Black)

The Special Purpose IR LED illuminator (SPIR) is equipped with a High-Definition, Aspherical, Telescopic LED illuminator. This eye-safe infrared device outperforms all other tactical IR illumination tools for brightness and range.

Ideal for sniper, designated marksman, over-watch, counter-sniper and free protection operations, the SPIR allows the operator to take advantage of clip-on night vision technology by providing powerful IR illumination to the maximum range of the night vision device.

The SPIR can also be used in conjunction with night vision equipped spotting scopes, making low light and no light surveillance and reconnaissance much more precise and accurate.

The SPIR can be deployed as a handheld or weapon-mounted IR illuminator

Features

Quick-Release HT Mount

Virtually indestructible LED emitter regulated to maximize output and runtime

MILSPEC Hard-Anodized High-Strength Aerospace Aluminum, Impact-Resistant Polymer, Optically Coated Tempered Window, and O-Ring seals make for a rugged WeaponLight

Handheld or Weapon Mounted

High Definition, Aspherical, Telescopic LED Illuminator

Weatherproof O-ring and gasket sealing

Uses (2) High-Energy CR123A Lithium Batteries

3 Year Warranty

Wavelength	850 nm
FDA Class	Eye-Safe
Beam Divergence	2 - 30 Degrees
*Range	1,000 m
Battery	CR 123A (2)
Battery Life (mode dependent)	2 Hours
Warranty	3-Year
Material	High-Impact Polymer
Color	Black
Weight (w/Battery & Mount)	6.5 oz.
Dimensions	6.75 (L) x 1.55 (D) x 1.95 (H)
Temperature Range	-40 to +65 degrees F
Waterproof	Submersible to 5 m
Mount	MIL-STD-1913/Picatinny rail
Activation Switch	Integrated Push Button
Remote Cable Pressure Pad	Included

^{Note 1}Light Emitting Diodes (LED's)

An LED is a semiconductor chip that converts electrical energy directly into light. An LED is classified as a solid-state light source because it has no gas or liquid components, as do other light sources. The LED's in the MK3 Battle Light consists of an emitter chip mounted on a solid base; the chip is attached to electrical leads that conduct power to it, and its encased in a clear polymer that is shaped to focus or disperse the LED's light in the desired manner.

LED's generally emit light within a narrow spectral band. In order to produce white light, which consists of nearly the entire visible spectrum combined, LED's that emit near-ultraviolet blue light that strikes an upper layer of phosphors are used. These phosphors absorb the blue light and re-emit white light, in much the same manner that fluorescent light tubes produce white light.

LED's possess tremendous advantages over incandescent lamps. First, LED's can last thousands of hours versus less than fifty hours for high-output incandescent lamps. Second, because LED's are very robust in construction, and have no delicate parts such as glass bulbs or filaments, they are extremely resistant to vibration and shock, making them well suited for the combat environment or for mounting on firearms. Third, white-light LED's produce virtually no invisible infrared radiation, as opposed to incandescent lamps, which emit over 85% of their output as infrared, and therefore LED's are much more efficient in producing light than incandescent lamps an important factor for battery-operated flashlights. And fourth, they will emit light over a wide range of power input, making LED's the natural choice for variable-output light sources.

Most LED's emit from a flat surface, necessitating complex reflectors and lenses to produce desirable beam characteristics. Because LED's are susceptible to potential damage from overheating, they have certain thermal design requirements that dictate the maximum output possible from a given LED, and affect the overall configuration of the specific illumination tool. LED's are difficult to manufacture without some variance in lumen output and color. For this reason, they are tested and sorted by the manufacturer.

Specifications
Name:		SPIR "Special Purpose IR" Battle Light
Ordering Part Number:		9070
UPC:		000381890702
Mounting Capabilities:		MIL-STD 1913 Picatinny Rail
Operation:		Constant-On
IR High/Low Output:		600mW/300mW
Operational Range (IR):		1,000 Meters
IR Spectrum:		850nm
Battery Life:		>2 Hours
Housing:		High-Impact, Glass-Filled Polymer
Waterproof:		+5 Meters
Activation:		Push-button or remote cable pressure pad
Weight w/Batteries:		6.5 oz
Batteries:		(2) 123A 6-Volt Operation
Body Color:		Black
LED Color:		IR (Infrared)
Fits:		Handguns/Long Guns w/Picatinny or Universal Rails
Warranty:		3 Year Warranty
