MSRP: No Price Listed
LE/Govt.: $Call
for Discount
* Weapon Sight w/Collimator Hood
* CR123 Lithium Battery
* Operator Manual (OPMAN)
* Soft Carry Case
* Quick-Disconnect Single Throw Lever Mount
* Lens Cleaning Kit
* Adjustment Wrenches
KERIF Night Vision now carries two of the best Clip On Night Vision Devices (CNVD) available anywhere. These 2 Models, the CNVD™ and the CNVD-LR™ (Long Range) from L-3 Electro-Optical Systems stand head and shoulders above the crowd when it comes to clarity, versatility, and function. Look at the latest test results listed below for your review, and see how unbelievably far you can achieve when all the right components are used.

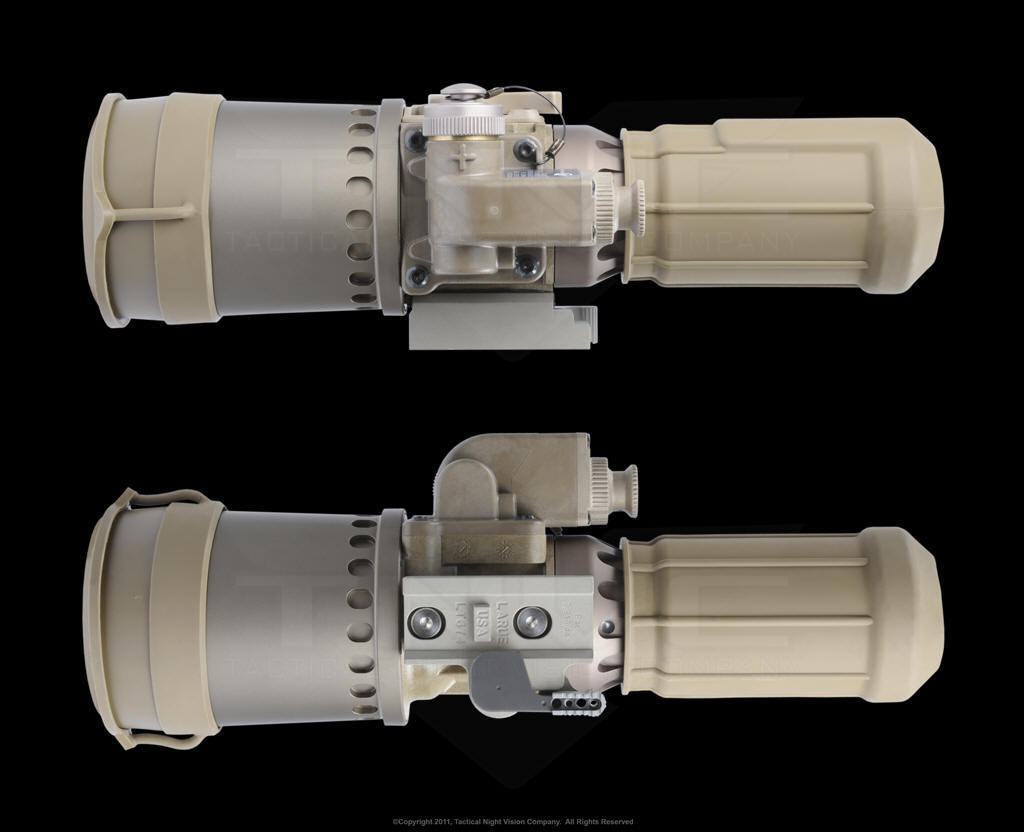

The advanced design of the M2124 eliminates the typical requirement of removing a primary (day) sighting system since the CNVD-LR mounts in line with a standard day optical sight. Combining day and night vision sights eliminates the need to re-zero, since the primary sight remains undisturbed. Additional advantages to supplementing a primary sighting system with the M2124 include maintaining a user’s consistent eye relief and shooting position as well as retaining user muscle memory. By operating the locking quick-disconnect, single-throw lever mounting system provided, the M2124 easily attaches to a MIL-STD-1913 rail interface system. The unit may also be used as a hand-held observation device.
The M2124 Generation III Clip-On Night Vision Weaponsight is one of our favorite new products in our ever growing list of "Top-of-the-Line" products, because everything about them screams performance. These sights are manufactured to the highest quality standards required from our U.S. Military, utilizing the latest proprietary technology, State of the Art manufacturing facilities, and an engineering team that worked hand in hand with our Military & Special Forces Groups to produce the absolute best SOCOM Night Vision Weaponsight that works with your existing Day Scopes.
Fast Facts:
* Converts existing optics to Night
Vision with "Zero Shift
* Quick-Disconnect Single Throw Lever Mount for MIL-STD-1913 Rail Systems
* Maintains shooting position and eye relief time after time
* L-3 Electro-Optical Systems Gen 3 Image Intensifier (I) Tube
* Optimized for 4X - 12X Magnified Rifle Scopes
These NVG's are built in the USA and have ergonomically designed interface controls that comprise of Manual Gain and Focus Adjustments, Low Battery Indicator and Reverse Polarity Protection, and a Single Throw Lever Quick-Disconnect Mount.
The SpecterDR and a CNVD-LR (M2124-LR) Clip-on are a perfect combination for day and night operations. In addition to the day operation benefits, the SpecterDR™ dual role combat sight has also allowed SOCOM to achieve the full benefits of its Clip-On Night Vision Device (CNVD) strategy.
Operators are vulnerable when they are switching between optics and the act of
switching also always carries the risk of impairing bore sight accuracy.
Using a CNVD eliminates the need to switch between a day optic and a night
vision sight since the CNVD simply “Clips-On” in front of the day optic.
For
Thermal Imaging Kits, look at the ELCAN with the CNVD-T & LTWS AN/PAS-13
Significant L-3 EOS design improvements will show itself the first time you use it, as the M2124 Long Range is based on the military style AN/PVS-27 extensively used by US Special Operations Forces to gain the advantage at night without sacrificing their existing Day Scopes. No more having to remove your expensive dedicated day scope, that you spent time zeroing in, just because the sun goes down. Now, you simply Clip-On this 1X (Unity) Night Vision Scope in front of your Day Scope to keep getting the ranges required by our Special Forces Groups to "Reach Out And Touch Someone".
EXPORT LICENSE REQUIRED.
Export of the commodities herein described are strictly
prohibited without a valid export license issued by the US Dept of State, Office
of Defense Trade Controls, prescribed in the International Traffic in Arms
Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130
Night
Vision Sights
are restricted to domestic U.S. sales to U.S. Citizens only
Please be prepared to provide credentials when ordering.
Vehicle Recognition Ranges (Subject to change without notice) | |||
Illumination Conditions |
CNVD-LR 1400 FOM |
CNVD-LR 1600 FOM |
CNVD-LR Auto-Gated |
Full Moon |
3100m | 3250m | 3350m |
Qtr. Moon |
1800m | 1900m | 2000m |
Clear Starlight | 800m | 900m | 1000m |
Overcast | <25m | 80m | 150m |
Man Sized target Recognition Ranges (Subject to change without notice) | |||
Illumination Conditions |
CNVD-LR 1400 FOM |
CNVD-LR 1600 FOM |
CNVD-LR Auto-Gated |
Full Moon |
1700m | 1750m | 1800m |
Qtr. Moon |
930m | 970m | 1000m |
Clear Starlight | 400m | 450m | 500m |
Overcast | <25m | 60m | 90m |
Facial Identification Ranges (Subject to change without notice) | |||
Illumination Conditions |
CNVD-LR 1400 FOM |
CNVD-LR 1600 FOM |
CNVD-LR Auto-Gated |
Full Moon |
220m | 230m | 245m |
Qtr. Moon |
110m | 120m | 130m |
Clear Starlight | 50m | 55m | 60m |
Overcast | <25m | <25m | <25m |
* Eliminates requirements to remove a
primary daytime sighting system when converting to Night Vision
* Supplements existing primary sighting system
* Maintains consistent eye relief and shooting position, as well as retaining
user muscle memory
* Optional AA Battery Conversion Cap
* Manual Gain and Focus Adjustments for custom image optimization
* Can be used with Spotting Scopes and as a Handheld Observation Device
* Optimized for 7.62, .338 LaPua and other common "Sniper-Grade" Weapon Systems
CNVD-LR™ Technical Specifications | ||||
Image Tube Performance Parameters by Model |
CNVD-LR 1400
FOM P/N: 245105-1400 |
CNVD-LR 1600
FOM P/N: 245105-1600 |
CNVD-LR Auto-Gated P/N: 245105-S100 | |
Figure of Merit (FOM) FOM = SNR x Resolution |
1152 FOM (Min)
1400 FOM (Max) |
1344 FOM (Min)
1600 FOM (Max) |
1344 FOM (Min)
No Maximum Limit |
|
Resolution (Line Pairs) | 64 lp/mm (Min) | 64 lp/mm (Min) | 64 lp/mm (Min) | |
Signal-to-Noise Ratio (SNR) | 18:1 (Min) | 21:1 (Min) | 21:1 (Min) | |
HALO (mm) | .85 to 1.25 | .85 to 1.25 | 1.0 (Max) | |
Resolution (cy/mr) | 3.86, 4.86 Typical | 3.86, 4.86 Typical | 3.86, 4.86 Typical | |
Photocathode Sensitivity 2856˚K (µA/lm) | 1350 (Min) | 1500 (Min) | 1800 (Min) | |
Photocathode Sensitivity at 830nm (mA/W) |
135 (Min) | 155 (Min) | 190 (Min) | |
EBI (x10-11 phot) | 5.0 (Max) | 5.0 (Max) | 2.5 (Max) | |
Luminance Gain @2x10-6fc (fL/fc) |
40000 - 70000 | 40000 - 70000 | 40000 - 70000 | |
Luminance Gain @2x10-4fc (fL/fc) |
10000 - 20000 | 10000 - 20000 | 10000 - 20000 | |
Brightness@1 and 20 fc (fl) | 2.0 - 4.0 | 2.0 - 4.0 | 1.4 - 4.2 | |
Reliability (Hours) | 10000 | 10000 | 10000 | |
Warranty Tube/System | 1 Year / 1 Year | 1 Year / 1 Year | 1 Year / 1 Year | |
CNVD-LR™ Physical Specifications | ||||
Magnification: | 1X (Unity) | |||
Field of View (FOV): | 8˚ Degrees (CNVD = 13˚ Degrees) | |||
Focal Length | 110 mm (4.3") | |||
Minimum Focus Distance | 25 m, (27.3 yards) | |||
Lens | Fast f/1.85 Catadioptric | |||
CNVD-LR™ Boresight Characteristics | ||||
Output Optic: | 28 mm, (1.1") | |||
Accuracy | Aligned to .4 MOA or Better | |||
Repeatability | Within .5 MOA | |||
Retention | Permanent to 1 MOA or Better | |||
Adjustments | None Required | |||
CNVD-LR™ Environmental & Mechanical Characteristics | ||||
Power Sources: | 1 CR123 Lithium Battery or (Optional AA Conversion Cap) | |||
Battery Type / Life: | 16+ Hours at Room Temp | |||
Dimension: in | L: 9.9 " | W: 3.8" | H: 3.4" | |
Dimension: cm | L: 25.1 cm | W: 9.7cm | H: 8.6 cm | |
Total Weight (oz./lbs/g) | 875.4g w/Battery (1.9 lbs) | |||
Color: | Taupe | |||
Total Weight (oz./lbs/g) | 875.4g w/Battery (1.9 lbs) | |||
Operating Temperature | -40˚C to +51˚C (-40˚F to +124˚F) | |||
Storage Temperature | -51˚C to +71˚C (-60˚F to +160˚F) | |||
Mounts: | Single-Throw Lever Quick-Disconnect for Picatinny MIL-STD-1913/STANAG 2324 | |||
Optional Accessories and Spare Parts | ||||
Spare Battery (CR123, AA) | ||||
AA Battery Conversion Cap | ||||
Soft Case, Carrying Commercial | ||||
Hard Case Shipping & Storage | ||||
Hex Wrench | ||||
Adjustment Wrench | ||||
Collimator Hood | ||||
LaRue "S.T.O.M.P." Mount | ||||
Lens Cleaning Kit | ||||
Specialty Mounts and Rails | ||||
Training & Operator's Manual | ||||
