SUPERIOR VISION
High resolution thermal vision with e-zoom and
InstAlert
High resolution display with ergonomic eyepiece
Sharp thermal imaging with InstAlert hot object
notifications
Up to 5X magnification
Analog video output
SIMPLE
OPERATION
Starts in seconds, intuitive controls, designed
for single-hand use
Multiple InstAlert levels call attention to hot
objects
Single hand design
Red Laser pointer
PORTABLE AND RUGGED
Handheld, fits in most pockets, rugged design
Fits in packs, pockets or included MOLLE bag
Less than $6000 price point makes it affordable
Functions after dropped on hard surface or in
shallow water
Thermal is
one of the most effective night vision tools for
detecting possible threats because it can see
through smoke, dust, light fog, snow falling,
and rain. It causes heat-producing objects to
stand out against cooler backgrounds, giving bad
guys less places to hide.
*Guide and See at Night
*Track and Stay Safe
*Search as a Volunteer
*Explore the Wild
*Identify Uninvited Guests
*Locate the Herd
*Navigate with Confidence
*Guard Your Safety
The
LS-X Series uses an internal, rechargeable
battery that requires the unit to be plugged
into a power source for charging. The FLIR
LS-Series is a great option for law enforcement
officers and civilians who want a
highly-portable, lightweight, yet powerful
thermal imaging device

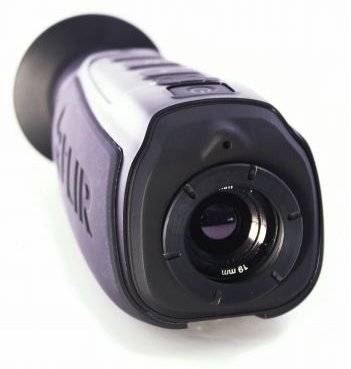

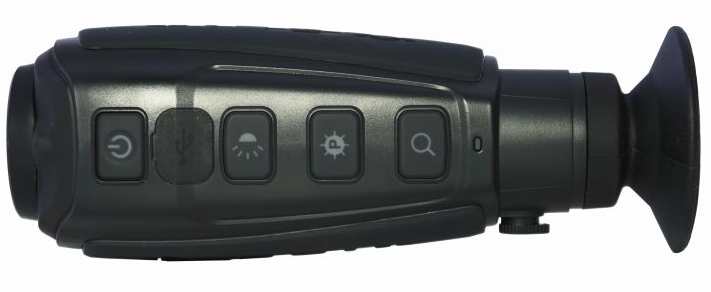

Small, rugged, and ergonomic, Scout
LS
provides direct push-button access to all of its
controls, and weighs less than a pound and a
half. Built around FLIR's cutting-edge thermal
night vision technology, creates video images
from heat, not light, and displays this video on
its built in LCD eyepiece so you can experience
the world as it happens, day or night.
Available in
different resolutions and with a variety of
image and video capture and storage options
*Multiple Lens Options – Choose
from a model with a 19 mm lens and optional 2×
optical extender or the longer range model
equipped with a 65 mm lens
*Shuttered Eyepiece – Keeps
light from coming out of the viewfinder and
avoids alarming animals or other target subjects
*Rugged All-Weather Design –
Built to withstand the demands of day-in,
day-out rugged outdoor use
*Ready to Go When You Are –
Battery operation with field-swappable AA common
batteries plus Power In/Charging, RCA video out
via standard Hot Shoe attachment
*Three Selectable Palettes –
White Hot, Black Hot, and the powerful InstAlert™
detection palettes provide excellent image
detail in different environments
FLIR
LS-X & LS-XR Series
The LS-Series is a
higher-performing
version of the
Commercial Scout
PS-Series, designed for
professionals, but that
doesn't mean you can't
get one as a civilian.
The units feature a
higher resolution than
the commercial models
and they come with an
integrated LASER
pointer. Since the
spectrums are different
between Thermal and the
built-in LASER, and you
wouldn't be able to see
the LASER in the
viewfinder, the LASER
was designed to point
out suspects to other
officers, with or
without the aid of Night
Vision. Lightweight and
rugged, the LS units are
small enough
6.70″(L) x 2.31″(W) x
2.44″(H)
to fit in the palm of
your hand.
