Light Weight, Rugged and Versatile

Sensor		Microbolometer
Type		Uncooled 160 x 120
Detector		Amorphous Silicon Solid State
Spectral Response		7 - 14 um
Thermal Sensitivity		<100mK
Output Image Resolution		320 x 240 w/2D Interpolation
Magnification		25mm - 1.5X f/1.0
Lens Type		25mm Germanium
Display		OLED 640 x 480 format
Diopter Adjust		+6 to -4
Field Of View		17°x 12°
Eye Relief		27mm
Weight		(400g)
Size in cm		13.75 x 7.25 x 6.5
Battery		2 ea CR123 3v Lithium

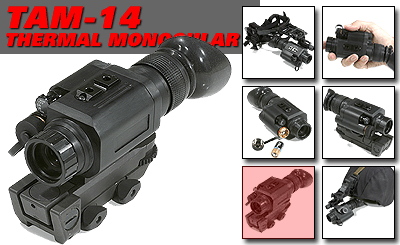

TAM-14® MOD 6 *NEW* MOD 7
 Thermal Acquisition Monocular
     Designed to meet the needs of the individual user to aid in ground based night operations, this system is setting the pace for future Thermal Devices.

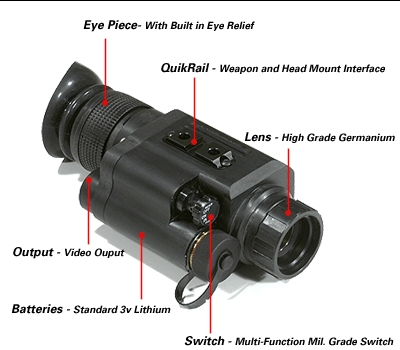

     The TAM-14® is a Multi-Purpose System using the latest Thermal Sensor Technology combined with the new OLED Display (Organic Light Emitting Diode) to provide a superior stable image in the smallest package available.

    The system incorporates Nivisys's new T3 Tactical Thermal Technology with its versatility to quickly adapt to weapons, head gear, helmets, video output and more. All built into a system that is smaller, lighter, and simple to operate.
     Price and performance, the TAM-14® Thermal Monocular offers our highest performing system at a low price. These systems are complete self contained Thermal units that  require 2 standard Lithium battery to function.


     Head or Helmet mount as a standard PVS-14 goggle. Pick up the TAM-14® and you have the smallest thermal viewer available today, attach the Helmet Mount adapter and now you are using a head mounted thermal monocular, or slide it onto the weapon mount and point the reticle at your target.
     Made using the latest in ultra lightweight materials this monocular is small and comfortable. The TAM-14® helps keep your edge, whether it be the battlefield or the streets.

The TAM-14 delivers immediate IR imagery and operates continuously up to six hours on two standard 3V lithium batteries. It can be quickly adapted to head gear, helmets, weapons, video output, extender lenses and other equipment. The basic system delivers 1.5X magnification over a 17° FOV. Options include a 3X lens.



Optional Accessories

Digital Zoom - Magnifies to 2X

P/N: 1400-000 TLAM Laser System

3' NTSC Video Output Cable (Surveillance)

Dual Bridge Assembly

P/N: A3256368 PASGT Helmet Mount Assy w/Chin Strap, Flip-Up

P/N: 7B268-A2 Headmount Assembly

P/N: NVM-042 Swing Arm Adapter for Head/Helmet Mount

Shuttered Eye Guard

P/N: 3000-000 3X Magnifier

P/N: 1400-505 Weapon Mount

Hard Carry Case

ELCAN Weapon Mount Adapter P/N: 1400-505
Elcan Mount Integrated Adjustable Base
Picatinny Rail Ready, Quick Attach/Detach





Swing Arm Adapter P/N: NVM-042
Interface Attaches to Headgear and Helmet
Swings to Either Eye Quick Attach/Detach





Helmet Mount Adapter P/N: A3256368
Flip-Up Attaches to Standard PASGT Helmets
Durable Construction, Built-In Slide for Eye Relief




Standard Head Gear: P/N: 7B268-A2
NVG Type Fully Adjustable
Lightweight, Built-In Slide for Eye Relief

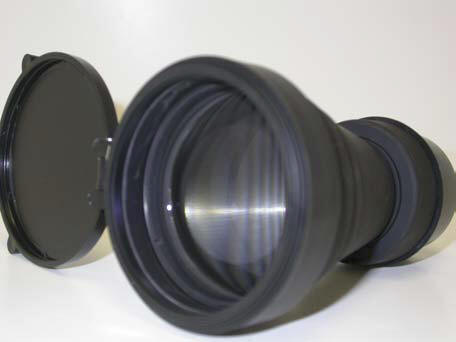

MAGNIFICATION SPECS for 3X and 5X Magnifiers

Part #: NIV-46-0099-10 / NIV-47-2998-02

FOV: 13.3° / 7.7°

Min Focus Range: 10m / 25m

Focal Length: 75mm / 130mm

F-Number: 1.5 / 2.4

T-Number: 1.8 / 2.7

Operating Temp: -51° to +45° C

Storage Temp: -51° to +85° C

Humidity: 90% up to +65°C for 20 days

Immersion: 1 meter for 30 minutes

Stray Light: Less than 2.5% for A-Focal

Case: Standard soft carrying case
