NVG Head Mounting Systems
The Wilcox NVG Head Mounting System allows an operator to quickly mount or dismount an AN/PVS–7A, 7C, 15, or 18 NVG for use in night operations. The NVG Head Mounting System is the operator’s choice when wearing a helmet is not an option. This system is unique in that it provides two modes of operation. The first mode allows the Universal NVG Mount to “break away” from the base under a stressed condition, such as when prompted by interference during fast roping, maritime operations, hard impact or when entering or exiting mobility platforms. Without the Wilcox breakaway feature, the potential to induce neck injury is increased. The second mode allows the Universal NVG Mount to securely lock the mount to the base.
The Wilcox NVG Mounting Systems Product Line is featured with a wide range of adjustments to customize the position of the Night Vision Goggle for proper eye position and relief.

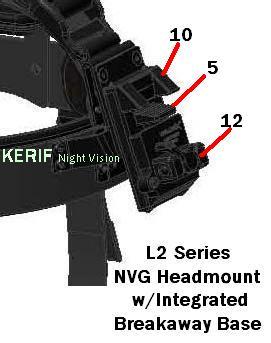

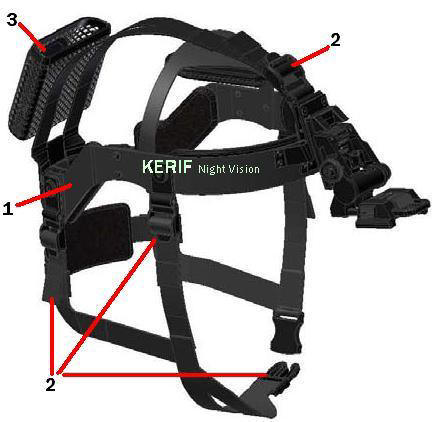

L2 G01 Series NVG Head Mount Components (See Above):
1) Secured to the head with an easily adjustable strap system.
2)Seven points provide quick adjustment to operator fit and comfort
3) A Weight Storage Basket stores a shot bag to provide NVG weight distribution
4) Compatible with the Wilcox Helmet Track System.
5)A unique Vertical Height Adjustment Button easily facilitates positioning NVG height up or down with a simple push of the button. No longer is it necessary to manually rotate a thumb screw to perform this function.

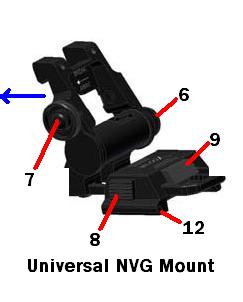

L2 Series NVG Interface Mount Components (See Above):
6)An ergonomically placed Flip Button allows the Mount to “flip up” to a very low profile when stowed. This pivot mechanism is simple and robust by design and will not loosen over time.
7)A sleek, low profile Tilt Adjustment Knob allows for finite tilt adjustment of the NVG by the operator, then lock the position in place with a simple turn of the knob.
8)Two coinciding Fore/Aft Travel Release Buttons provide Fore/Aft NVG travel.
9)An ergonomically placed NVG Release Button allows for one handed release of the NVG.
A NVG Mount Alignment Guide assists the operator in directing the Universal
NVG Mount into place while wearing the
L2 Series NVG Head Mount.
11) A Magnet Switch is featured to facilitate the “Automatic Function” of the NVG.
12) The Breakaway Switch allows the operator to easily set which mode (breakaway or locked) is desirable, depending upon operating conditions.
|Weight||10.8 oz (290g) / 16.03 oz (450g) Total System|
Weight Aerospace Grade Metal Mount with
Nylon Webbing and High Strength Polymer
|Accommodates NVG Suite||AN/PVS-7A, AN/PVS-7C, AN/PVS-15 & AN/PVS-18|
|Vertical Height Adjustment||.900" Total Travel|
|Viewing to Stowed Position||117˚ of Travel|
|Finite Tilt Adjustment||0˚ to 20˚ Tilt|
|Fore/Aft Travel||1.100" Total Travel|
|Auto On-Off Feature||Applicable w/Wilcox AN/PVS Metal Interface Shoes|
• Ergonomically Correct Design Provides Outstanding Control, Support, and Comfort
• High Degree of Goggle Stability While on the Move
• Excellent Option when not Wearing a Helmet
• Can be Used with the
Wilcox NVG Lanyard (see TDS078) for Secure Attachment to an Array of NVG
Devices Preventing Loss of the NVG and Breakaway of the Wilcox Universal NVG
Mount from the Helmet Mount Base
• Each Mechanical
Adjustment is Durable and Ergonomically Positioned for Easy One-Handed
Operation While Handling a Weapon
• Maintains a Very Low
Profile Stance on the Helmet
• Flat Matte Finish
for Covertness in Combat Conditions
• Thousands of Mounts
of this Type Fielded to Date
• Combat Proven by the
US Special Operations Community and Domestic Law Enforcement Personnel
• Breakaway Universal
NVG Mount Interfaces with the Entire L2 Series of NVG Mounting Systems to
Include the NVG Three Hole MICH Helmet Bracket and NVG Skull/Head Mounting
• Design Approach Cuts Down on Logistics and Overall System Cost
26002G01 L2 Series NVG Head Mount with Integrated Breakaway Base Only
26002G01M L2 Series NVG Head Mount with Integrated Breakaway Base and Universal NVG Mount
28300G01Universal NVG Mount for the AN/PVS-7A, AN/PVS-7C, AN/PVS-15, and AN/PVS-18 only
