L2 G08 & G10
Ratchet Strap Bracket NVG Mounting Systems
The Wilcox L2 Ratchet Strap Bracket with Integrated Breakaway Base allows
attachment to a variety of ballistic and non-ballistic helmet models, to
include PRO-TEC full and half shell.
The Front Hook Bracket and Rear Hook with patented Ratchet Cinch Mechanism firmly secures the two together with a non-stretch strap. This NVG Mounting System is unique in that it provides two modes of operation.
The L2 G08 Ratchet Strap Bracket with Integrated Breakaway Base and Universal NVG Mount for the MICH/NBH Helmet and AN/PVS-7B/D
The first mode allows the Mount to “break away” from the base under a stressed
condition, such as when prompted by interference during fast roping, maritime
operations, hard impact or when entering or exiting mobility platforms.
Without the Wilcox breakaway feature, the potential to induce neck injury is
The second mode allows the Universal NVG Mount to securely lock the mount to the base.
These Mounts are proudly Made in the USA!
The Wilcox NVG Mounting Systems Product Line is featured with a wide range of adjustments to customize the position of the Night Vision Goggle for proper eye position and relief.
L2 G08 and G10 Ratchet Strap Bracket Components (See Above):

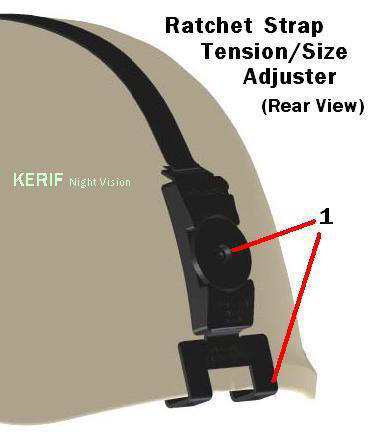

1) The Ratchet Strap is secured to the MICH Helmet by a Front Hook and Rear Hook Ratchet Cinch Mechanism.
2)A unique Vertical Height Adjustment Button easily facilitates positioning NVG height up or down with a simple push of the button. No longer is it necessary to manually rotate a thumb screw to perform this function.
3)The Breakaway Switch allows the operator to easily set which mode (breakaway or locked) is desirable, depending upon operating conditions.

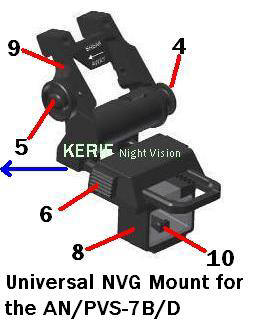

L2 Series NVG Interface Mount Components (See Above):
4)An ergonomically placed Flip Button allows the Mount to “flip up” to a very low profile when stowed. This pivot mechanism is simple and robust by design and will not loosen over time.
5)A sleek, low profile Tilt Adjustment Knob allows for finite tilt adjustment of the NVG by the operator, then lock the position in place with a simple turn of the knob.
6)Two coinciding Fore/Aft Travel Release Buttons provide Fore/Aft NVG travel.
7)An ergonomically placed NVG Release Button allows for one handed release of the NVG.
8) A Magnet Switch is featured to facilitate the “Automatic Function” of the NVG.
9) A Mounting interface allows the universal NVG Mount for the AN/PVS-7B/D to easily accept the mounting horn of the AN/PVS-7B/D.
10)A breakaway interface allows the universal NVG Mount for the AN/PVS-7B/D to easily integrate with the L2 line of Helmet Mounting Systems.
|Weight||5.33 oz (160g)|
|Material Construction||Light Weight Aerospace Grade Metal|
|Accommodates NVG Suite||AN/PVS-7B & 7D|
|Vertical Height Adjustment||.900" Total Travel|
|Viewing to Stowed Position||117˚ of Travel|
|Finite Tilt Adjustment||0˚ to 20˚ Tilt|
|Fore/Aft Travel||1.100" Total Travel|
|Auto On-Off Feature||Applicable w/Wilcox AN/PVS Metal Interface Shoes|
• Breakaway Feature
allows Mount to Break Away under Stress, or to Securely Lock in Place by Means
of a Breakaway Switch
• Can be Used with the
Wilcox NVG Lanyard (see TDS078) for Secure Attachment to an Array of NVG
Devices Preventing Loss of the NVG and Breakaway of the Wilcox Universal NVG
Mount from the Helmet Mount Base
• Each Mechanical
Adjustment is Durable and Ergonomically Positioned for Easy One-Handed
Operation While Handling a Weapon
• Maintains a Very Low
Profile Stance on the Helmet
• Flat Matte Finish
for Covertness in Combat Conditions
• Thousands of Mounts
of this Type Fielded to Date
• Combat Proven by the
US Special Operations Community and Domestic Law Enforcement Personnel
• Breakaway Universal
NVG Mount Interfaces with the Entire L2 Series of NVG Mounting Systems to
Include the NVG Three Hole MICH Helmet Bracket and NVG Skull/Head Mounting
• Design Approach Cuts Down on Logistics and Overall System Cost
28300G08 L2 G08 Ratchet Strap Bracket with Integrated Breakaway Base and Universal NVG Mount for the MICH/NBH Helmet and AN/PVS-7B/D
28300G10Universal NVG Mount for the AN/PVS-7B/D only
