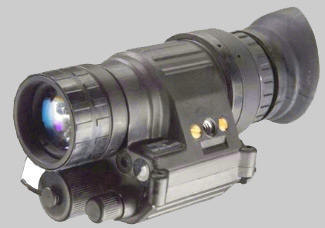

AN/PVS-6015 MILSPEC or Commercial Night Vision Monocular

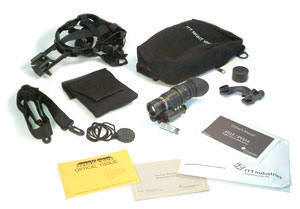

Kits Include: Headmount Assembly, MILSPEC 27mm Objective Lens, Rubber Eyecup, AA Batteries, Operator's Manual, Soft Carrying Case, Daylight Lens Cover, Integrated IR LED, Lens Cleaning Tissue, Demist Shield, Sacrificial Filter, Shoulder Strap, and Tube Data Sheet

We accept Gov't Credit Cards and can submit WAWF invoices online.  CCR and ORCA Registered
CAGE Code: 36BD2
          Dealers/Resellers Welcome

This is the commercial variant of the Military PVS-14 system. Ships with 6015, Soft Carry Case, Headmount Assembly, Swing Arm (J-Bar), Operator's Manual, Lens Cleaning Tissue, and Batteries.

    The AN/PVS-6015 is a Gen 3 Military style tactical monocular that is identical to the PVS-14 in every way except for no variable gain function. Designed to be hand-held, head-worn, weapon-mounted or camera-adaptable using optional  accessories.
     The small, lightweight AN/PVS-6015 features a low battery indicator and built-in infrared illumination for situations with little or no ambient light. You will not be disappointed with the usefulness of this night vision device. The included Headmount assembly allows for hours of comfortable hands-free use while leaving the user with one eye still trained for night time viewing.

These NVG's are built in the USA and have ergonomically designed interface controls that comprise of Diopter and Focus Adjustments, Low Battery Indicator and Reverse Polarity Protection.
EXPORT LICENSE REQUIRED.
Export of the commodities herein described are strictly prohibited without a valid export license issued by the US Dept of State, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130

Night Vision Sights are restricted to domestic U.S. sales to U.S. Citizens only
KERIF Night Vision DOES NOT EXPORT but in some cases can point you in the right direction Please be prepared to provide State Dept Export paperwork when ordering.

     This "Top-of-the-Line" AN/PVS-6015 Monocular Kit from KERIF Night Vision uses only the highest quality L-3 or ITT Image Tubes, Optical Lenses, Housing Components and Electronics on the market today. Electro-Optical tools designed specifically to meet the diverse demands of our rugged Military and Law Enforcement Professionals. Like buying a car, you have many features like engine, transmission, and suspension that can make it a stock model or a high performance machine. With little differences on the outside to discern between the good, bad & the ugly, you have to read & understand the build sheet or take the salesman's word for it, so we give you the Factory Data Sheet.
     Differences like the clarity of the optical lenses versus just glass; whether the components used in the power supply & electronics package are made in the U.S. or overseas or if they are new or used; whether you want the housing made in the USA that meets MILSPEC standards with rubber seals that allows submersion  without worry, or something made overseas that you can't splash with water; you want to be sure that when using your Helmet Mount, the housing has brass screws (not plastic or other cheap metal) to automatically turn the unit On/Off, saving your batteries and reducing the step of turning it back on in an emergency.

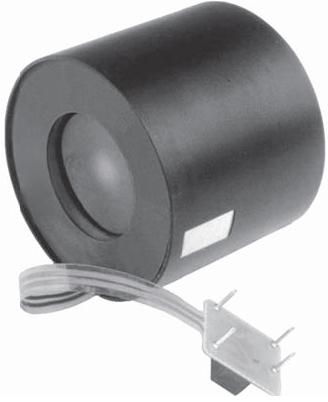

I2 Tube Specifications L-3 M814-CS™  (ITT MX-11769)  (Subject to change without notice)

Performance Parameters

M814-CS1400™

M814-CS1600™

M814-CS001™

FOM (Min/Max)

1152  / 1400

1344  / 1600

Unrestricted

Resolution

64 lp/mm Min

64 lp/mm Min

64 lp/mm Min

Signal-to-Noise

18.0:1 (min)

21.0:1 (min)

21.0:1 (min)

Halo mm (Min / Max)

.85 / 1.25

.85 / 1.25

1.0

Photocathode Sensitivity

1350 Min

1500 Min

1800 Min

EBI

5.0 Max

5.0 Max

2.5 Max

Luminance Gain

40000 – 70000

40000 – 70000

40000 - 70000

Output Brightness

2.0 Min to 4.0 Max

2.0 Min to 4.0 Max

1.4 Min to 4.2 Max

Reliability (Hours)

1000

10000

10000

Larger differences like the tubes (engines) can be selected to meet your needs, and with our access to virtually every system available, we will do our best to meet or exceed your expectations, without breaking your budget. Just like a car, even if you have a big block with ungodly horsepower, you still have to have other components designed to match its performance potential. You wouldn't put a Volkswagen Engine in an Indy Race Car, yet some manufacturers do just that to gain the competitive pricing edge and you are the one stuck wondering why you didn't call us.



     Let's talk about some of the uses of the AN/PVS-6015 Monocular.
The most common use is as a hand-held pocket scope that easily fits inside a BDU (Battle Dress Uniform) Pocket, or jacket pocket and is used for walking around & area surveillance.

     You can trust KERIF Night Vision to give you the most for your money and to be there for you should something go wrong. We don't just sell you a product, then wish you well; we take the time to talk with you personally on the phone, before, during, and after the sale to make sure you are 100% satisfied, not 99.99%! Yes, we answer our phones and respond to emails almost immediately. Don't believe me? Call me during normal working hours M-F 9AM-5PM PST and see how long it takes to get in touch with a REAL person!
     Don't hesitate to draw on our real world Military, Federal SWAT, and Law Enforcement experience, coupled with Technical Engineering, Infrared Lighting and Night Vision backgrounds to figure out the best solution to your problem. If we don't have what you need, we will do our best to find you a company that does.


TIP: By maintaining one eye to the darkness, while using the monocular exclusively will help prevent "Night Blindness" caused by molecules called "Rhodopsin". The Rod of your eye undergoes a change in shape as it absorbs light. Rhodopsin is the chemical that allows natural Night-Vision, and is extremely sensitive. When exposed to a spectrum of light, the pigment immediately bleaches and takes about 30 minutes to regenerate fully, although most of the adaptation occurs within the first five or ten minutes in the dark. Rhodopsin in the human rods is less sensitive to the longer red wavelengths of light, so many people use red light to help preserve night vision as it only slowly depletes the eye's Rhodopsin stores in the rods and instead is viewed by the cones. One of the best features of the PVS-14 style Monocular's is the Variable Gain Control Knob that works in conjunction with the Automatic Brightness Control to adjust the image for you to see it properly, without blasting your pupil into submission.

     These are a few of the main drawbacks of the PVS-7 Type Goggles, because both eyes are stimulated with a bright green image that can't be adjusted beyond what the Automatic Brightness Control offers, and when the goggles are removed, you may have difficulty seeing anything for several minutes. That could prove fatal if driving, flying, or engaged in CQB operations.

For prolonged use, a Headmount can be priceless. By using the chin straps and head straps, each unit allows for vertical & fore-and-aft adjustments for either left or right eye. For clear images, the objective lens and eyepiece (Diopter) focus for various levels of vision enhancement.
Although a Manual Brightness Control knob is not equipped on the PVS-6015, Automatic Brightness Control and Bright Source Protection are standard
.

     The PVS-6015 is also equipped with a built-in infrared light-emitting source. Don't overlook the importance of having additional Infrared Lights to enhance the visibility of longer ranged targets, covertly light up dark overhangs and blind corners, and even mark positions, vehicles, personnel and other points of interest by using field programmable beacons.
Lights & Illuminators that are Weapons Mountable, like the Burris SPIR or DBAL's and others can be outfitted with IR Filters and pressure switches.



hand held

head mount

camera mount

1 eye

2 eyes

weapon mount

short range

medium range

long range

ENVIS

X



X

X





X





AN/PVS-7

X

X





X



X





AN/PVS-5



X





X



X





4X RAPTOR







X



X



X



6X RAPTOR







X



X





X

AN/PVS-6015

X

X

X

X



X

X





5X BINOCULAR

X







X







X

PVS-7 w/ 3X

X

X





X





X



PVS-7 w/ 5X

X







X







X

MILITARY USES: The AN/PVS-6015 is utilized by ground troops for situational awareness, detection of threats and targets. Also used in combination w/3X or 5X Magnifiers for short, medium, or long range surveillance at night. Users can operate covertly.
Law Enforcement Uses:
The AN/PVS-6015 is utilized by officers or agents for situational awareness, detection of threats and targets or long range surveillance in ground and tactical operations.
Security Uses:
Security personnel use the AN/PVS-6015 for general situational awareness, detection of approaching threats and targets.

Range Tests showed significant clarity and sturdiness when mounted on Military 5.56 Rifles. This versatile Night Vision System  enables walking, driving, weapon firing, short-range surveillance and map reading in both moonlight or starlight conditions. When used as a Night Vision Weaponsight, you can use the standard Fixed Height Mount and the front iron sight to aim, but to increase accuracy and combat effectiveness, you'll still need something else to help you aim.
*Some Pinnacle or Thin Filmed PVS-6015's aren't recommended to use above 5.56 caliber weapon types unless you have a "Weapons Grade Tube" installed. When ordering, please tell us your set-up so we can install a tube designed specifically to handle the recoil of higher caliber weapon types that sometimes create a "Blooming Effect" or Spots to appear, and may eventually render the tube inoperable, and void your warranty. Spending a little more now can save you thousands later.

PVS-6015 System Technical Specifications
Tube Type
 MX-11769, 18mm F9815, Gen 3
Eye Relief
 25mm
FOV @ 1X
 40º (13° w/optional 3X Magnifier) (7.7° w/optional 5X Magnifier)
Magnification
 1X (Optional 3X and 5X Magnifiers)
Fixed Focus Range
 25cm to ∞ (infinity)
Weight
 14 oz.
Size in inches
 2.25" x 2.5" x 5"
Diopter Focus
 +2 to -6 Diopters
Battery Source
 (1) AA
Battery Life
 40-50 hours typical
Integrated IR LED
 Yes
Auto Bright Control
 Yes
High Light Cutoff
 Yes
Low Battery Indicator
 Yes
Variable Gain
 Yes
Headmount Assembly
 Yes
Soft Case
 Yes
Operating Temp
 -51°C to +49°C
Storage Temp
 -51°C to +85°C
Illumination Required
 Overcast starlight to moonlight

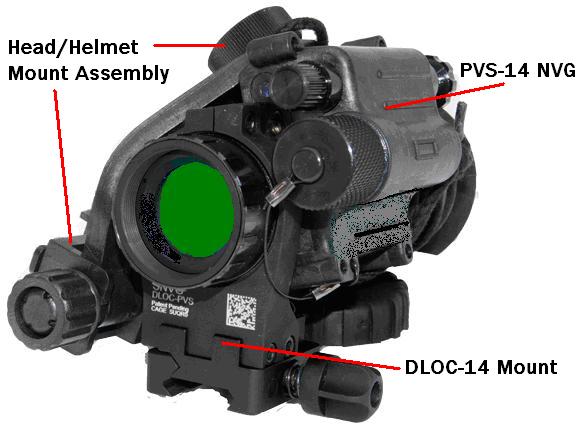

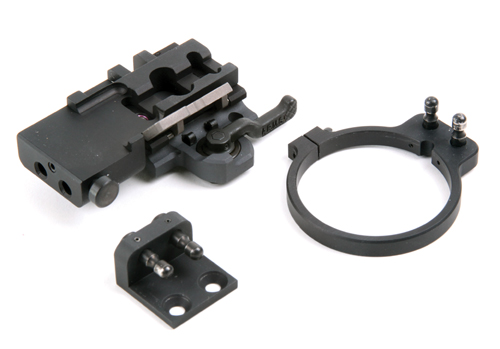

There are several types of Weapons Mounts we carry for the PVS-14’s, but the Fixed Height Mount A3256348 is the most common.

See full list of accessories at bottom of page.

A3256348

1ea

Weapons Mount, Fixed Height (Included in SFK)





     The easiest to obtain an aiming point is to use LASER's mounted to the top or side of your weapon and sighted in. KERIF Night Vision carries several variations of LASER Aiming Systems that are guaranteed to work for your setup. Please call for more details on what Laser systems may be available to you since some are Restricted to Federal Agencies only and require End User Agreements.

     If you need to increase your range capabilities periodically, and still want that CQB set-up for close range situations, the SpecterDR (Dual-Role) Optical Sights from ELCAN are designed to work with Night Vision and offers you the option of either 1X to 4X Magnification or 1.5 to 6X, in addition to a Red Dot Center Point, and Ballistic Ranged Reticle (in either 5.56 or 7.62* weapon types).
Shown above with a Zero Lens Adapter.

     Another method that can pinpoint a target, using 1X (no magnification) is to combine the PVS-6015 Night Vision Monocular with an EOTech Holographic Sight, either mounted directly behind the Sight or Head-Mounted for continual visual enhancement and approach the sight as necessary.



And yet another method, again a using 1X Red Dot Sight is to combine the PVS-6015 Night Vision Monocular with an Aimpoint Red Dot Sight, either mounted directly behind the Sight or Head-Mounted for continual visual enhancement and approach the sight as necessary.

For Hand-Held use, you can attach a 3X Afocal Magnifier to increase your recognition and detection ranges. When you increase the magnification, you also decrease the available 40˚FOV (Field-of-View) down to a 13˚FOV, which understandably equates to 1/3 of the PVS-6015's capabilities. The 5X Afocal Magnifier reduces the FOV to 7.7˚(1/5 of the image), so you have to have a steady hand, a resting spot or a Tripod to fix on an object.


TIP: 5X Magnifiers are NOT recommended for use with Head/Helmet Mount applications because of the Weight, and the narrow 7.7˚Field of View makes it difficult to maintain position on your intended target. If you plan to use a tripod for stabilization or use the system from a sitting or prone position, then the 5X Magnifier will work fine.

Magnifiers usually include a Slip-On Adapter for the PVS-14, PVS-6015 and PVS-7, that allows you to quickly install them on the objective end and remove it instantly when necessary.
TIP: If you aren't going to be standing still or making moderate movements, we recommend you thread the magnifier into the objective lens aperture to prevent it from accidentally falling off and breaking.
Both magnifiers are interchangeable with PVS-7 Goggles.

PVS-14 System Specifications

Magnification:

1X

Field of View (FOV):

40˚

Objective Lens:

27mm, (1.1")

Focus Range:

25 cm (9.8") min

Eye Relief:

25mm, (1")

Diopter Adj.

+2 to -6

Power Sources:

1 AA Battery

Battery Life:

≈ 50 Hours at Room Temperature

Warranty:

1 Year

Cathode Type

Gallium Arsenide

Phosphor

P43

Maximum spots allowed in each zone

Spot Size (inches)

Zone 1

Zone 2

Zone 3

Zone 1

Zone 2

Zone 3

Zone 1

Zone 2

Zone 3

>.009 or Larger

0

0

0

0

0

0

0

0

0

>.006 - .009

0

1

2

0

1

2

0

1

1

>.003 - .006

0

2

3

0

2

3

0

2

2

Bright Spots

0

0

0

0

0

0

0

0

0



PN: 245105-CS1400

PN:245105-CS1600

PN: 245140-CS001

Optional Accessories

Hard Case, Rubber Eyecup, (Killflash) Light Interference Filter, Sacrificial Lens, Demist Shield, Shuttered Eyeguard, Fixed or Adjustable Height Weapons Mount, Helmet Mount, 3X or 5X Afocal Lens, Camera Adapter, Operator's Manual

Export of the commodities herein described are strictly prohibited without a valid export license issued by the US State Dept, Office of Defense Trade Controls, prescribed in the International Traffic in Arms Regulation ITAR, Title 22, Code of Federal Regulations, Parts 120-130

Tube Model F9815J F9815P F9815L F9815UG
Part # 207117-2 270609 A3256337-5 A3256337-8
MILSPEC OMNI Rating OMNI-III OMNI-IV OMNI-V OMNI-VII
Photocathode Material GaAs GaAs GaAs GaAs
Resolution, lp/mm min. 57 64 64 64
Bright-Light Resolution @20 fc(min) lp/mm 12 12 12 36
Photocathode Sensitivity
@ 2856° K, μA/lm 1350 1500 1500 1800
@ 880 nm, mA/W 135 155 77 80
Signal/Noise Ratio 18 19.2 19.2 25
FOM (Max) 1250 1600
Halo, mm (max)     1.25 1.1
EBI, X10-11 lm/cm2 (max) 2.5 2.5 2.5 2.5
Luminous Gain, fL/fc
@ 2X10-6 fc 40000 - 70000* 40000 - 70000* N/A 40000
@ 2X10-4 fc 10000 - 20000* 10000 - 20000* N/A 10000
Output Brightness, (OB) fl@1 and 20 Fc 2.0 - 4.0* 2.0 - 4.0* 2.0 - 4.0 2.0 - 4.0*
OB Uniformity (max)
@ 2856° K 3.1 3.1
@ 880 nm 3.1 3.1
MTF @ 2.5 lp/mm 90% 92% Info Only Info Only
@ 7.5 lp/mm 70% 80% Info Only Info Only
@ 15 lp/mm 54% 61% 61% 61%
@ 25 lp/mm 27% 38% 38% 38%
Photocathode Dia., mm 17.5 17.5 17.5 17.5
Max Spots Allowed, (in) Zone 1/2/3 Zone 1/2/3 Zone 1/2/3 Zone 1/2/3
>.015 or Larger 0/0/0 0/0/0 0/0/0 0/0/0
>.012 - .015 0/0/0 0/0/0 0/0/0 0/0/0
>.009 - .012 0/0/0 0/0/0 0/0/0 0/0/0
>.006 - .009 0/1/2 0/1/2 0/1/2 0/1/1
>.003 - .006 0/2/3 0/2/3 0/2/3 0/2/2
Reliability, Hrs, min. 10000 10000 10000
Phosphor P-43 P-43 P-43 P-43


GEN 3 Pinnacle PVS-14 WHITE PHOSPHOR Night Vision Monocular Kits  MSRP   Gov't/LE   List
PVS14-Kit-1: Tube/System Data Sheet, Headmount Assy, Swing Arm, Soft Case, Neck Cord, Lens Paper, (2) AA Batteries, Sacrificial Filter, Demist Shield, Rubber Eyecup, Lens Cap, OPMAN, 10 Year Warranty
HP+ Tube Specs PR = 2200 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN
SFK14-WPHP Special Forces Kit High Performance White Phosphor PVS-14 Monocular, PVS14-Kit-1 Add SFK-KIT-1 $4,995.00 $4,604.38 $4,808.13
PVS14-WPHPM High Performance White Phosphor PVS-14 Monocular, PVS14-Kit-1 $4,195.00 $3,929.38 $4,103.13
P Tube Specs PR = 1350 MIN, EBI = 2.5 MAX, SNR = 16.2:1, RES = 57 lp/mm MIN
SFK14-WP Special Forces Kit PVS-14 Standard Performance White Phosphor Monocular, PVS14-Kit-1 Add SFK-KIT-1 $4,770.00 $4,373.75 $4,567.25
PVS14-WPM Std Performance White Phosphor PVS-14 Monocular, PVS14-Kit-1 $3,995.00 $3,704.38 $3,868.13
GEN 3 Pinnacle PVS-14 Night Vision Monocular Kits  MSRP   Gov't/LE   List
A3256337-8 ITT AN/PVS-14D, OMNI-VII, PVS14-Kit-1

Call

Call

NEPVS14-17 ITT Night Enforcer PVS-14, Data Sheets, PVS-14-Kit-1 $3,495.00 $3,276.88 $3,421.63
HP+ Tube Specs PR = 2200 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN
SFK14-HP+ Special Forces Kit High Performance PVS-14 Monocular, PVS14-Kit-1, Add SFK14-Kit-1 $3,995.00 $3,614.38 $3,774.13
PVS14-HP+ High Performance PVS-14 Monocular, Weapon Mount, Shuttered Eyeguard, PVS14-Kit-1 $3,795.00 $3,085.63 $3,221.88
PVS14-HPM+ High Performance PVS-14 Monocular, Tube Data Sheets, PVS14-Kit-1 $3,395.00 $3,001.25 $3,133.75
P+ Tube Specs PR = 1750 MIN, EBI = 2.5 MAX, SNR = 20.0:1, RES = 64 lp/mm MIN
SFK14-P+ Special Forces Kit PVS-14-P+ Monocular, PVS14-Kit-1, Add SFK14-Kit-1 $3,895.00 $3,389.38 $3,539.13
PVS14-P+ Enhanced Performance PVS-14 Monocular, Weapon Mnt, Shuttered Eyeguard, PVS14-Kit-1 $3,395.00 $3,023.75 $3,157.25
PVS14-PM+ Enhanced Performance PVS-14 Monocular, PVS14-Kit-1 $3,295.00 $2,939.38 $3,069.13
P Tube Specs PR = 1350 MIN, EBI = 2.5 MAX, SNR = 16.2:1, RES = 57 lp/mm MIN
PVS14-P Std Performance PVS-14 Monocular, Weapon Mount, Shuttered Eyeguard, PVS14-Kit-1 $3,195.00 $2,973.13 $3,104.38
PVS14-PM Std Performance PVS-14 Monocular, PVS14-Kit-1 $3,195.00 $2,888.75 $3,016.25
GEN 3 Non-Gated PVS-14 Night Vision Monocular Kits  MSRP   Gov't/LE   List
PVS14-Kit-2: Soft Case, Neck Cord, Lens Paper, (2) AA Batteries, Rubber Eyecup, Lens Cap, OPMAN, 5 Year Warranty
Non-Gated PR = 1350 MIN, EBI = 2.5 MAX, SNR = 16.2:1, RES = 57 lp/mm MIN
PVS-14-XLS-1 Non-Gated Pinnacle PVS-14 Monocular, Clean Tube, PVS14-Kit-2 $2,695.00 $2,438.75 $2,546.25
PVS-14-XLS-2 Non-Gated Pinnacle PVS-14 Monocular, Small Spot in Zone 1, PVS14-Kit-2 $2,595.00 $2,354.38 $2,458.13
PVS-14-XLS-3 Non-Gated Pinnacle PVS-14 Monocular, Small Spot in Zone 1, Dual Battery Housing, PVS14-Kit-2 $2,495.00 $2,264.38 $2,364.13
GEN 3 Non-Gated PVS-6015 Style Night Vision Monocular Kits, NO VARIABLE GAIN  MSRP   Gov't/LE   List
PVS14-Kit-2: Soft Case, Neck Cord, Lens Paper, (2) AA Batteries, Rubber Eyecup, Lens Cap, OPMAN, 5 Year Warranty
Non-Gated PR = 1350 MIN, EBI = 2.5 MAX, SNR = 16.2:1, RES = 57 lp/mm MIN
PVS-6015-XLS-4 Non-Gated Pinnacle PVS-6015 (PVS-14) Monocular, Clean Tube, PVS14-Kit-2 $2,795.00 $2,376.88 $2,481.63
PVS-6015-XLS-5 Non-Gated Pinnacle PVS-6015 (PVS-14) Monocular, Small Spot in Zone 1, PVS14-Kit-2 $2,595.00 $2,241.88 $2,340.63
PVS-6015-XLS-6 Non-Gated Pinnacle PVS-6015 (PVS-14) Monocular, Small Spot in Zone 1, Dual Battery Housing, PVS14-Kit-2 $2,395.00 $2,101.25 $2,193.75

GEN 3 Pinnacle PVS-14 MIL-SPEC NV Monocular Kits
10 Year Warranty
 MSRP   Gov't/LE   List
PVS14-Kit-M1: Tube/System Data Sheet, Weaponmount, Headmount Kit, Swing Arm, Soft Case, Neck Cord, Lens Paper, (2) AA Batteries, Sacrificial Filter, Demist Shield, Rubber Eyecup, Shuttered Eyecup, Lens Cap, Military OPMAN
SFK14-Kit-M1: Adds Hard Case, Magnetic Compass, MICH Helmet Mount, Glow Tape, IR Beacon LE/Gov't  $   465.58  $ 485.82
F6015YGA OMNI-VII MIL-SPEC
A3256337-20 F6015YGA MIL-SPEC OMNI-7 AN/PVS-14 DOD, Tube/System Data Sheets, PVS14-Kit-M1 $4,295.00 $3,594.38 $3,774.13
ULTRA MILSPEC PR = 2200 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN
SFK14-ULT Special Forces Kit MIL-SPEC PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1, SFK14-Kit-M1  $4,695.00 $4,176.88 $4,361.63
PVS14-ULT MIL-SPEC PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1 $4,195.00 $3,614.38 $3,774.13
VG MILSPEC PR = 2000 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN
SFK14-VG Special Forces Kit MILSPEC PVS-14 Monocular, PVS14-Kit-M1, SFK14-Kit-M1  $4,495.00 $3,951.88 $4,126.63
PVS14-VG MIL-SPEC PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1 $3,895.00 $3,389.38 $3,539.13
YG MILSPEC PR = 1800 MIN, EBI = 2.5 MAX, SNR = 25.0:1, RES = 64 lp/mm MIN
SFK14-YG Special Forces Kit MIL-SPEC PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1, SFK14-Kit-M1  $4,195.00 $3,726.88 $3,891.63
PVS14-YG MIL-SPEC PVS-14 Monocular, Tube/System Data Sheets, PVS14-Kit-M1 $3,795.00 $3,276.88 $3,421.63
GEN 3 Insight M914 AN/PVS-14 Night Vision Monocular  MSRP   Gov't/LE   List
M914 Kit: Headmount Assembly, Soft Case, Rubber Eyecup, Lens Cap, Demist Shield, Sacrificial Filter, AA Battery, Neckcord, OPMAN
2455620-005 M914 (AN/PVS-14) NV Monocular OMEGA Tube FOM 1344 Min, M914 Kit

Call

Call

Call

Customize Your Own Kit
  Mix and Match a custom kit to fit your needs. You tells us what you want and we'll create the kit.
Aimpoint Red Dot Sights
Clip-On Night Vision Devices
EOTech Holographic Sights
ELCAN Optical Sights

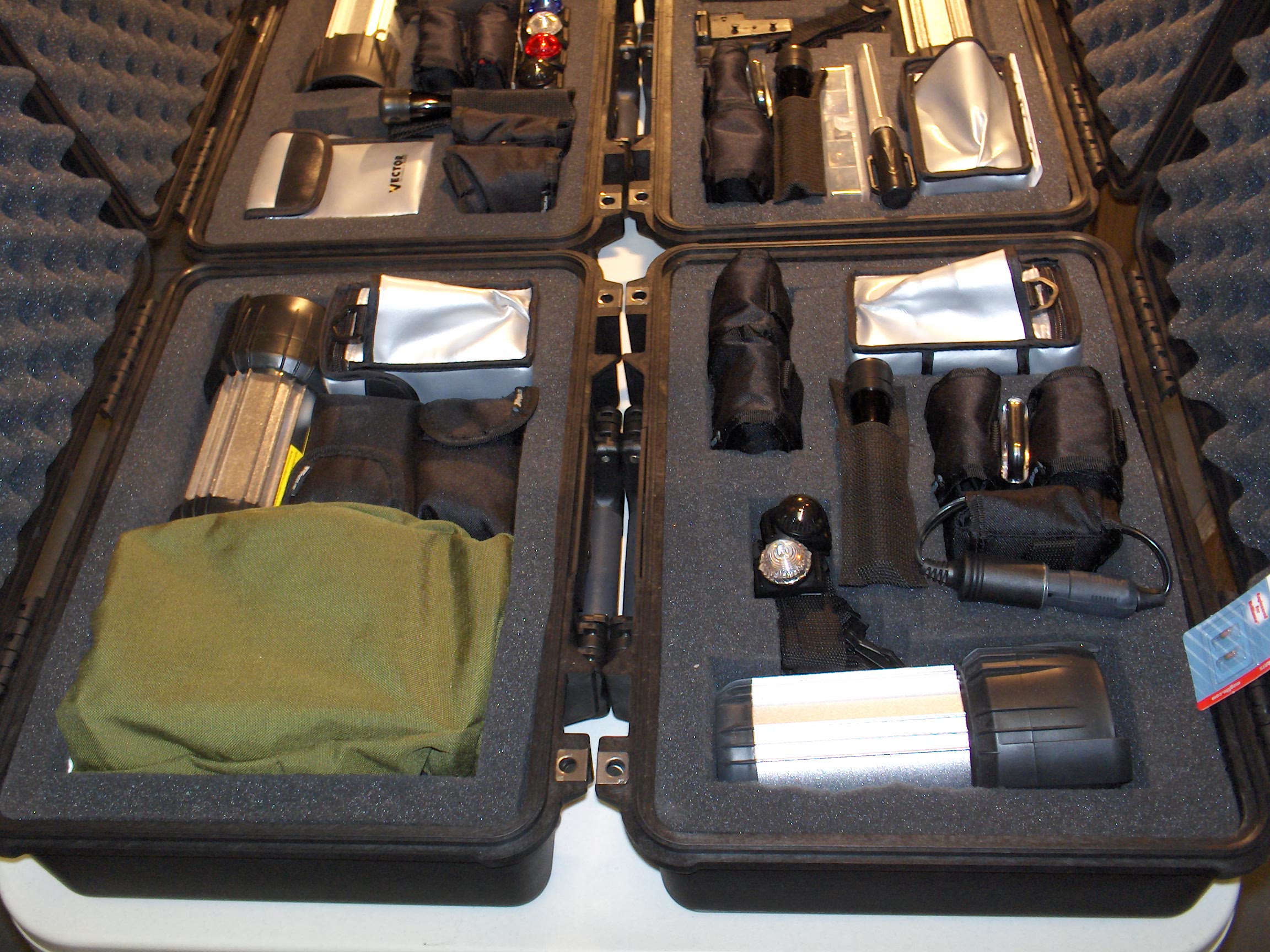

Infrared Beacons, Flashlights and Spotlights
Laser Aiming Systems
Standard Kit Includes: A3144268 Headmount Assembly w/(S,M,L) Brow Pads, A3256347 Swing Arm, A3144264 Sacrificial Filter, A3256353 Demist Shield, A3187392 Soft Case, A3144318 Lens Cap, A3144267 Shoulder Strap, A3144422 Rubber Eyecup, (2) AA Batteries, Operator Manual & Lens Cleaning Tissue



Accessories

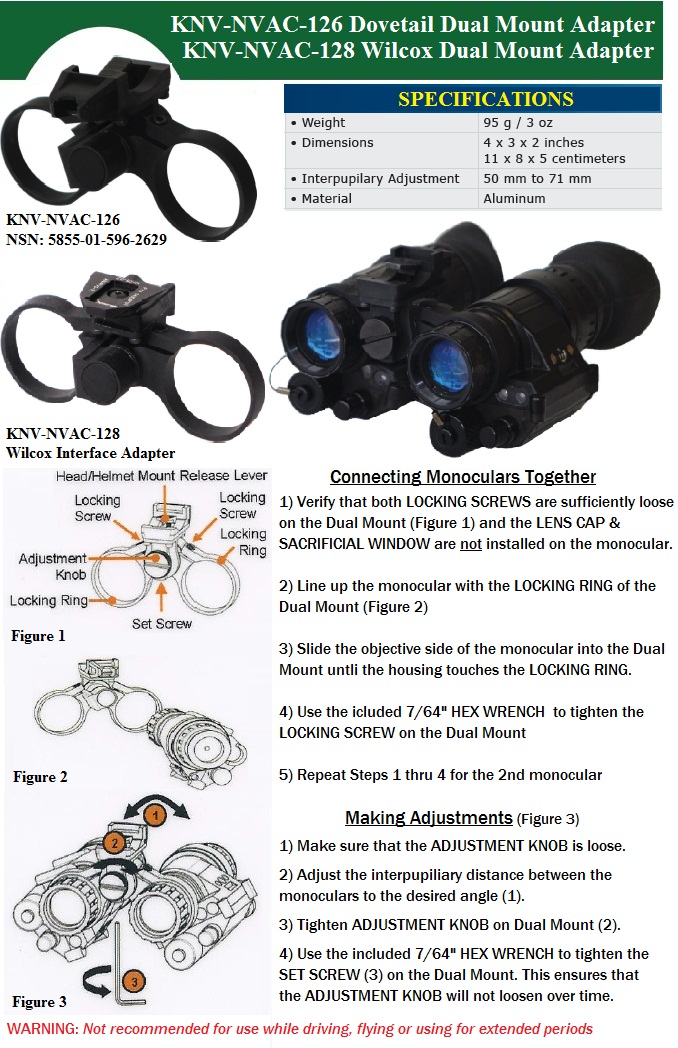

KNV-NVAC-126 PVS-14 Dual Mount Adapter, Dovetail
$358.80 / Gov't: $351.33

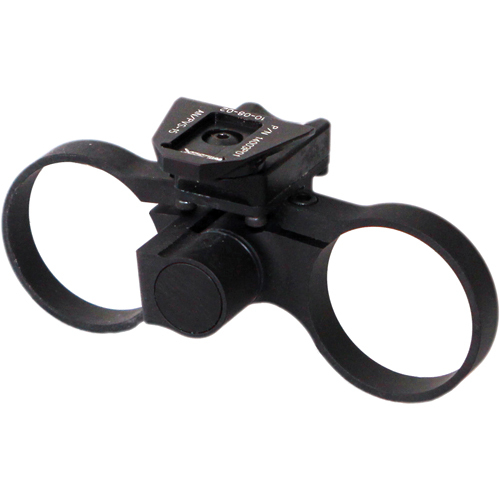

KNV-NVAC-128 PVS-14 Dual Mount Adapter, Wilcox Interface
$456.00 / Gov't: $446.50
Combines 2 PVS-14 Monoculars together to create a Binocular.
A3256345 Shuttered Rubber Eyeguard (Compress w/Star Opening)
$39.00 / Gov't: $37.50
NSN: 6650-01-444-1229
Prevents "Green Glow" from illuminating the shooters face for covert operations.
A3144422 Rubber Eyecup $12.75 / Gov't: $11.99
NSN: 5855-01-246-8273
Provides a comfortable platform for your eye. Flexible rubber
A3144318 Daylight Lens Cover (Objective Cover) $15.99 / Gov't: $14.99
NSN: 5340-01-397-6608
Prevents objective lens from getting damaged and a small pinhole in the center allows you to check the system during daylight conditions
A3256353 Demist Shield (Eyepiece) $17.50 / Gov't: $16.50
NSN: 5340-01-293-8675
Prevents eyepiece from fogging up

5009737 "LIF" (Light Interference Filter) Federal Gov't Only $109.00
NSN: 5855-01-379-1410
Prevents IR Pointing & Aiming LASER's from damaging the NVG's. Screws into the objective lens and can be used with all other accessories. The 3X and 5X Magnifiers can be attached using Slip-On Adapters.

34000G03 (Old PN: 341000G01) Filter Cover Assy (Eyepiece)
MSRP: $60.87 KERIF: $56.72 / Gov't: $55.51


Filter Cover Assembly for the AN/PVS-14/PVS-15/PVS-18

The Wilcox Filter Cover assemblies feature an amber lens that quickly attaches and detaches to a variety of Night Vision Goggles and Scopes. The unique padded rubber eye cup protects the eye socket from impact injury and the amber filter greatly reduces green eye splash common to all NVG devices.

56400G04 Threaded Protective Objective Lens Cover
MSRP: $30.90 KERIF: $29.30 / Gov't: $28.69

The Wilcox Protective Cover for the AN/PVS-14 Front Objective Lens is a unique cost effective ring assembly that fastens to the interior threaded diameter of the AN/PVS-14 NVG, providing an anti-reflective and scratch resistant protective cover to the front objective lens. The cover securely covers the entire NVG lens and features O-ring’s that prevent moisture from building up on the lens. A threaded interface separates allowing for the easy replacement of lens inserts extending the life of the NVG.


A3144264 Sacrificial Filter $32.00 / Gov't: $29.00
NSN: 5855-01-240-8271
Slip-On cover protects the Objective Lens from dirt and debris
A3187430 Magnetic Compass $104.00 / Gov't: $99.00
NSN: 5855-01-381-6052
Gives a directional display superimposed within the Night Vision Image
274049-1 Camera Adapter Assembly
46mm to PVS14 Eyepiece
$65.75 / Gov't: $64.25
NSN: 4310-01-096-1353

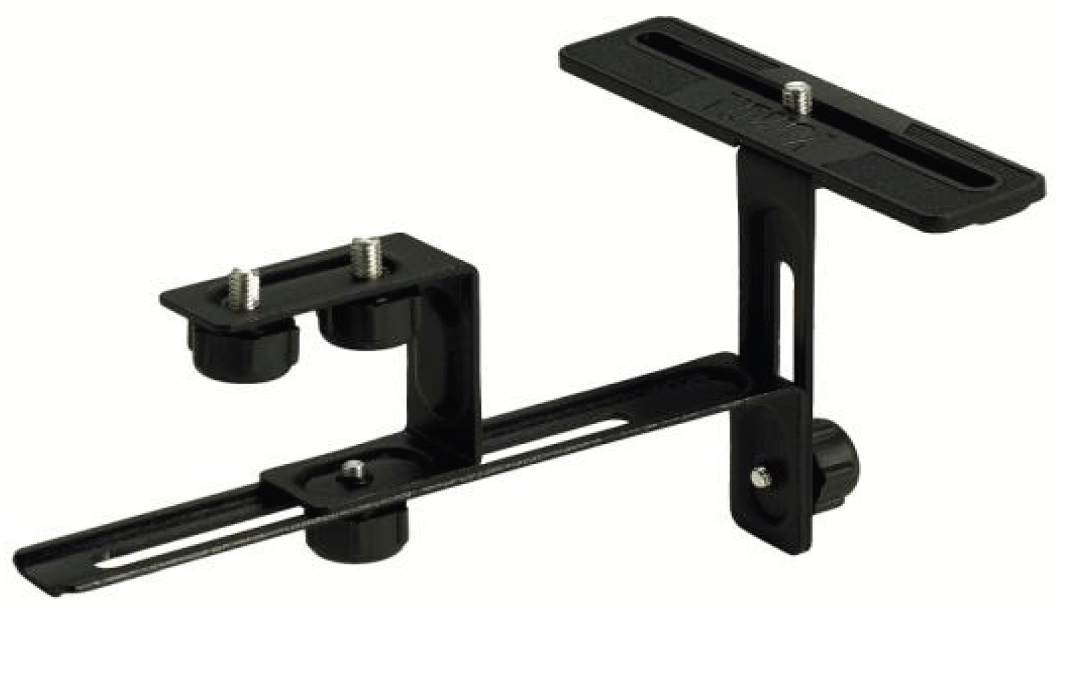

KNV-NVAC-1161 Digital Camera Adapter Assembly $43.72 / Gov't: $41.89
Attaches the PVS-14 and Digital Camera together for proper alignment
A3256347 Swing Arm or "J-Bar" $79.00 / Gov't: $75.00 NSN: 5965-01-444-1216
Head Mount & Helmet Mount Adapter. Attaches to the NVG and interfaces w/the Head Mount/Helmet Mount.

Wilcox Skull Lock™ Head Mount $432.56 / Gov't: $423.38

     The Skull Lock™ Head Mount features Team Wendy's Cam Fit™ Suspension System along with Wilcox’s Breakaway feature. This allows the mount to break away from the head mount under a stressed conditions or the operator can choose to lock the mount into place when the breakaway mode is not required. The Skull Lock™ Head Mount fully integrates with the complete L4 line of NVG Mounts. The system offers seven points of quick adjustment points  Read More...

A3144268 Headmount & Browpads $83.00 / Gov't: $79.00
NSN: 5855-01-246-8266
Allows you to wear your NVG comfortably on your head. Chin strap can be adjusted with 4 different cinch straps and comes w/Small, Medium, and Large Brow Pads for optimal fit.
A3144280 (3) Browpads, Small $9.50 5855-01-355-8599
A3144435 (3) Browpads, Medium $9.50 5855-01-355-8600
A3144436 (3) Browpads, Large $9.50 5855-01-297-7847

A3256368-1 PASGT Flip-up Helmet Mount $215.00 / Gov't: $207.50
NSN: 5855-01-457-2953
A3256368-2 MICH Flip-up Helmet Mount $215.00 / Gov't: $207.50
NSN: 5855-01-551-4525
Wilcox Helmet Mounts The Wilcox NVG Mounting Systems Product Line is featured with a wide range of adjustments to customize the position of the Night Vision Goggle for proper eye position and relief.
26300G01 Wilcox NVG Interface for AN/PVS-14
MSRP: $214.37
KERIF: $206.46 / Gov't: $202.20
NSN: TBD
The Wilcox AN/PVS-14 Arm with NVG Interface Shoe provides a durable connection for mounting an AN/PVS–14 goggle to a Wilcox Combat Helmet Interface Mount. It can be easily mounted and dismounted from the AN/PVS-14 goggle by means of a thumb screw, and allows the operator to select the height and angle for comfort with the ability to make fine adjustments to the Arm to customize the position of the Night Vision Goggle for proper eye position and relief.

26300G02 Wilcox PVS-14 Arm w/NVG Interface w/ON/OFF Switch
MSRP: $222.80 KERIF: $214.17 / Gov't: $209.74
The Wilcox AN/PVS-14 Arm with NVG Interface Shoe provides a durable connection for mounting an AN/PVS–14 goggle to a Wilcox Combat Helmet Interface Mount. This version of the PVS-14 Arm features a one-handed, On/Off push button that the operator can easily access without the need of taking the NVG off the mount or helmet. It can be easily mounted and dismounted from the AN/PVS-14 goggle by means of a thumb screw, and allows the operator to select the height and angle for comfort with the ability to make fine adjustments to the Arm to customize the position of the Night Vision Goggle for proper eye position and relief.

275121-2 Facemask Assembly $822.25 / Gov't: $804.38
NSN: 5855-01-515-2102

1728010-2 Facemask Assembly $395.53 / Gov't: $395.53
Allows you to wear your NVG comfortably on your head.

A3264350 Padded Hard Case, OD Green $88.40 / Gov't: $85.00

A3144257 Padded Hard Case, Military, OD Green $109.00
NSN: 5855-01-246-6805
A3187392 Soft Carry/Storage Case, Military, OD Green $29.95 / Gov't: $21.95
NSN: 5855-01-246-8269 or 5855-01-398-4284
A3256391 MILSPEC 3X Magnifier f/1.5, FOV:13º
$461.25
/ Gov't: $443.00
NSN: 5855-01-461-2741 or 5855-01-423-0817
NVAC-107-3X Commercial 3X Lens f/1.5, FOV:13º
$239.00
/ Gov't: $223.35
Commercial variant of the A3256391 3X Magnifier
275095 MILSPEC 5X Magnifier f/2.4, FOV:7.7º
$1,188.00
/ Gov't: $1,163.25
NSN: 5855-01-391-7026 or 5855-01-511-8594

NVAC-110-5X Commercial 5X Lens f/2.4, FOV:7.7º
$439.00
/ Gov't: $411.25
Commercial variant of the 275095 5X Magnifier

DLOC-P14 Quick-Disconnect Weapons Mount
$173.00 / Gov't: $167.00
Allows the Swing Arm Assembly and the DLOC-P14 to remain attached without wasting time switching them. Left or Right Hand Operation can be achieved simply by turning the locking ring 180°on the base. Aligns perfectly with the Aimpoint (ARMS#22 w/Spacer) or EOTech Holographic Sights.

M69-PRI-PVS14 Picatinny Weapons Mount Adapter (adj. height) $259.00
Available for the AN/PVS-14 and Litton 983. Locators prevent slippage Horizontally and Vertically during firing and a Calibrated Scale assists the user in returning the carrier to a favored sweet spot. Two Thumb Screws with Integral Self-Locking System and slots for easy removal. Only the toughest State-of-the-Art coatings and Solid Stainless Steel parts with Non-Reflective Matte Finishes are used to prevent rust and corrosion. Positive locating surfaces hold and locate the PVS-14. Quick Detachable Patented A.R.M.S. Throw Lever Mounting System with Guaranteed On and Off repeatability. NSN# 5855-01-482-6164

(Click images to enlarge)






KNV-NVAC-109 PVS-14 Weapon Mount, for Aimpoint Twist Mount $51.00 / Gov't: $49.94
KNV-NVAC-115
PVS-14 Weapon Mount, for Aimpoint Twist Mount, Back-up Iron Sight $75.00 / Gov't: $73.44

Enables users to switch between the Aimpoint® 3XMag or Concealed Engagement Unit (CEU) and the AN/PVS-14 night vision monocular with no tools required. This Adapter allows for the AN/PVS-14 night vision monocular (or compatible) to snap on directly to the Aimpoint®TwistMount™ Base in place of the 3XMag or CEU. The KNV-NVAC-109 correctly aligns AN/PVS-14 with the Aimpoint® night vision compatible sights (Comp-series) when sights are mounted in the Aimpoint®QRP Ring with Spacer. The adapters will also co-align the AN/PVS-14 with most night vision compatible EOTech sights when they are mounted directly to the upper receiver.

Latest PVS-14 mount converts to a magnifier mount with the push of a button.
Works for both Aimpoint and EOTech magnifiers. The Quick Flip feature is functional for all three devices. PVS mount price includes the price for either the Aimpoint or EOTech magnifier mount. Specify magnifier when ordering:

SAM-QF-PVS14 Samson Quick Flip PVS-14 Mount Temporarily Unavailable
Latest PVS-14 mount converts to a magnifier mount with the push of a button. Works for both Aimpoint and EOTech magnifiers. The Quick Flip feature is functional for all three devices. PVS mount price includes the price for either the Aimpoint or EOTech magnifier mount. Specify magnifier when ordering:
#SAM-QF-PVS14-EO PVS-14 & EOTech 3X
#SAM-QF-PVS14-AIM PVS-14 & Aimpoint 3X

A3256348 Fixed Height Weapons Mount
$92.00
/ Gov't: $89.00
NSN: 5340-01-446-8588








PVS-14-Build-Kit-1:
PVS-14 Body (NO TUBE), Lens Cap, Neck Cord, Rubber Eyecup
PVS-14-Build-Kit-2:
PVS-14 Body (NO TUBE), Lens Cap, Neck Cord, Rubber EyecupSoft Case, Headmount Kit, Batteries, OPMAN, Sacrificial Window, Demist Shield


PVS-14-Build-Kit-3:
PVS-14 Body (NO TUBE), Lens Cap, Neck Cord, Rubber Eyecup, Soft Case, Headmount Kit,  Batteries, OPMAN, Sacrificial Window, Demist ShieldShuttered Eyeguard, A3256348 Weapon Mount, Lens Paper

PVS-14-Build-Kit-4:
PVS-14 Body (NO TUBE), Lens Cap, Neck Cord, Rubber Eyecup, Soft Case, Batteries, OPMAN, Sac. Window, Demist Shield,  Lens Paper, Shoulder Strap



HFK-14-Kit-1 (Hunter's Field Kit): Padded Hard Case, Shuttered Eyeguard, Fixed Height Weapon Mount, Guardian IR Beacon
SFK-14-Kit-1
(Soldier's Field Kit): Padded Hard Case, Shuttered Eyeguard, PASGT or MICH Helmet Mount, Fixed Height Weapon Mount, Guardian IR Beacon
SFK-14-Kit-2
: Padded Hard Case, Magnetic Compass, Shuttered Eyeguard, PASGT or MICH Helmet Mount, Fixed Height Weapon Mount, IFF GloTape Squares, Phoenix Jr. or Guardian IR Beacon





Home | Contact Us | About KERIF Export Regulations | How to Order

KERIF Night Vision
(702) 324-6463  /  (702) 869-8451 FAX

sales@nitevis.com or kerifnightvision@earthlink.net
