11830 Micro T-1 (4 MOA)
Aimpoint Rings, Mounts & Accessories

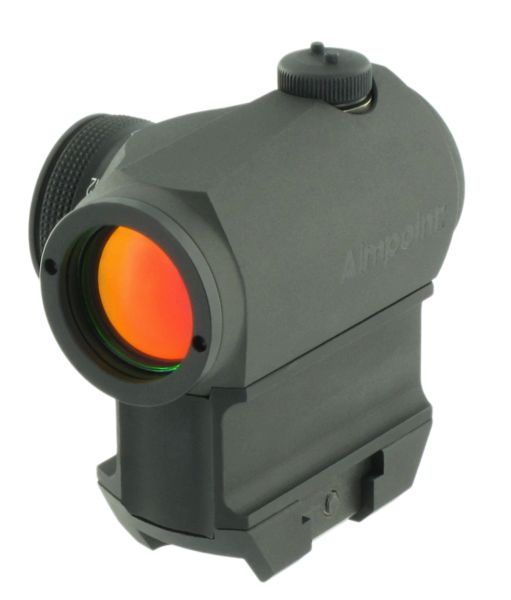

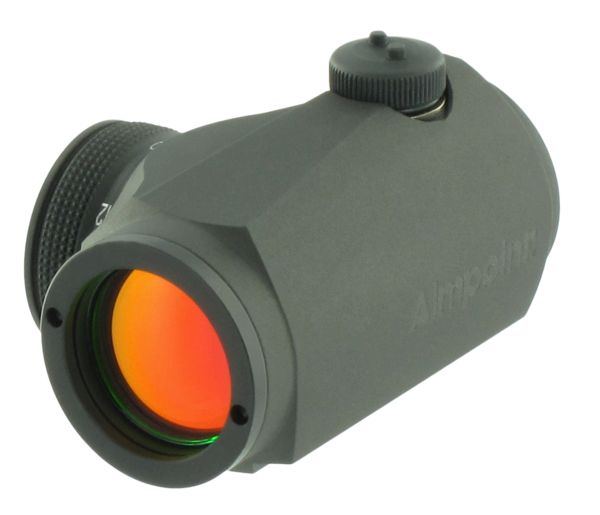

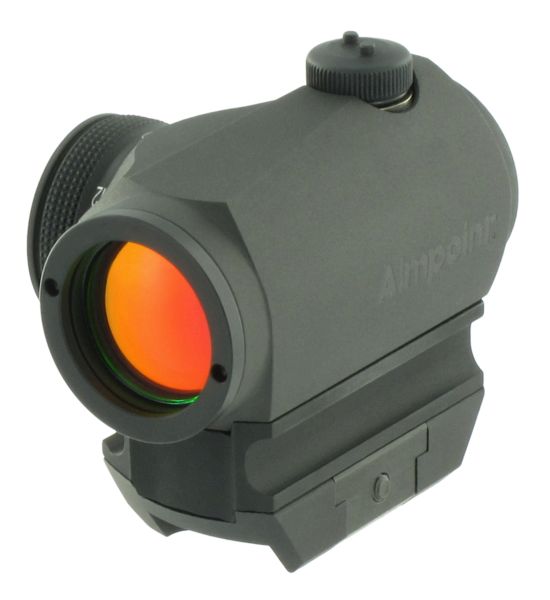

      Aimpoint Micro T-1 - No matter what your mission, the size and weight of your equipment is a critical factor. With the Micro T-1, Aimpoint has introduced an aiming system that provides the performance of their full-sized sights in the smallest package possible.

Built to offer the same battle proven ruggedness as other Aimpoint products, the Micro T-1 is able to perform under extreme conditions while adding negligible weight to your weapon. Suitable for use on Rifles, Carbines, Shotguns, Sub-Machine Guns and Handguns, the Aimpoint Micro T-1 is ideal as a stand-alone sight, and can also be “piggybacked” on top of larger magnifying scopes, Night Vision, or thermal imaging optics. The Micro T-1 can also be used by hunters and sport shooters that need Night Vision compatibility.

The performance of the Micro T-1 is optimized for use with all generations of Night Vision Devices (NVDs), but is especially suited for 3rd generation Night Vision technology. Aimpoint’s unique band-pass coating on the reflective lens reflects select frequencies of red light at near 100% efficiency in order to give the highest possible dot brightness, while transmitting nearly 100% of light in the Infrared and near-infrared part of the spectrum to provide the clearest, brightest image possible when used with a 3rd generation NVD. With 6 NVD-compatible brightness settings and 7 daylight settings including one extra-bright setting, the Micro T-1 is ready for use around the clock.






* Ideal for Rifles, Carbines, Shotguns, Submachine Guns, and Handguns

* Weighs only 3.7 oz with mount

* Unlimited Field Of View (FOV), Parallax Free, Unlimited Eye Relief

* 4 MOA Dot for Close Combat and Long Distance Engagement

* Four Night Vision Settings, Eight Daylight Settings

* Increased Aiming Confidence/Reduced Training Time & Ammunition

* Mount Base screws directly into the sight - No Rings Needed

* Mount Base is "Keyed" into the body to absorb recoil

* Improved Keyed Adjustment Caps require no tools or coin

* Submersible to 45 meters (150ft) and unaffected by extreme weather conditions


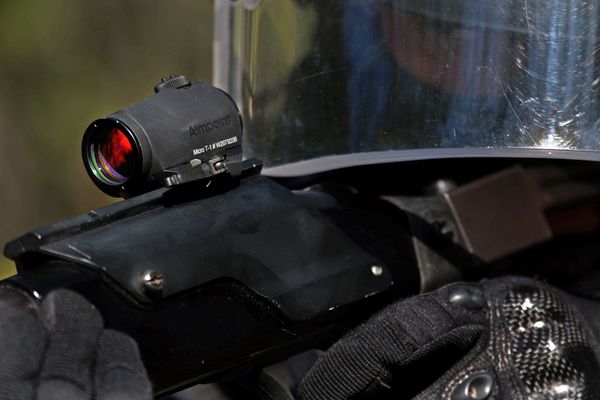

    Designed with Military and law Enforcement in mind, the Micro T-1 sights are the lightest Red Dot sights tough enough to bear the Aimpoint name. Small enough to be used anywhere that you cold put iron sights, these sights can be used on any type of firearm or archery equipment.
A lightweight rifle with a T-1 Micro mounted on it remains a lightweight rifle!
A hunting revolver with a T-1 Micro installed remains as easy to carry as with iron sights and is much quicker to aim.

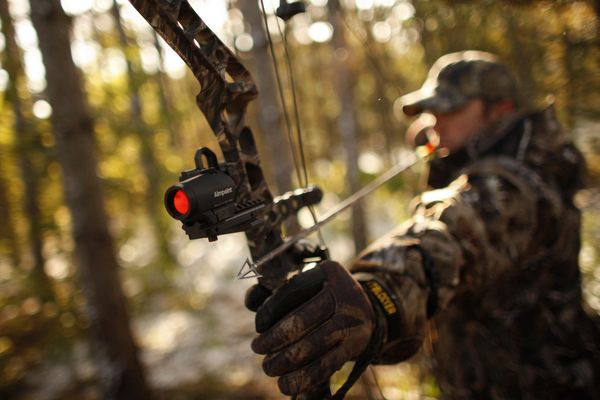

On a bow, the parallax-free T-1 Micro eliminates the need for a peep, allowing you to shoot accurately in lower light. No matter what your mission, the size and weight of your equipment is a critical factor. With the Micro T-1, Aimpoint has introduced an aiming system that provides the performance of their full-sized sights in the smallest package possible.



     Aimpoint Micro-series sights are small, light and rugged Red Dot Sights developed for hunting, sport shooting, military and law enforcement applications. Aimpoint Red Dot sights are designed for the ”two eyes open” method of sighting, which greatly enhances situational awareness and target acquisition speed. Thanks to the parallax free design, the dot follows the movement of the user’s eye while remaining fixed on the target, eliminating any need for centering. Further, the Aimpoint sights allow for unlimited eye-relief. The Micro T-1 is compatible with 1st, 2nd and 3rd generation Night Vision devices, while the Micro H-1 and Micro R-1 are optimized for applications, which do not require Night Vision compatibility.


OPTICAL DATA
System	Passive Red Dot, Reflex, Collimator System
Magnification	1X
Eye relief	Unlimited
Reticle, size	Red Dot, Diameter 4 MOA (1.2 mRad)
Clear Aperture	20 mm
Optical coating	Anti Reflex coating all surfaces. Multi-layer coating for reflection of red light (650nm) Band Pass coating for NVD compatibility
Optical signature	No forward optical from the dot beyond 10 meters
ELECTRONIC DATA
Battery Type	One 3V Lithium CR2032
Battery Life, typical**	Over 5 Years of continuous use at pos 5 thru 8, 10 months at pos 9 thru 12, Up to 500,000 hrs at NVD positions. Storage battery 10 years
M4 Dot Brightness	13 positions, 1 Off, 4 NVD, 7 Day, 1 Extra Bright
MECHANICAL DATA
Material housing	Extruded high strength aluminum
Surface finish	Hard anodized, Black to Dark Gray, Non-Glare
Material lens covers	Rubber, Black, Non-Glare
Adjustment	Range ± 1m at 100m, (± 1 yd at 100yds), in Windage and Elevation, 1 Click = 10 mm at 80m, = 13 mm at 100m, = ½" at 100yds
Mounting	Keyed surface Patent pending mount keyed to the sight body to absorb recoil. MIL-Std 1913 Picatinny Rail included
DIMENSIONS
Length Width Height Height of Optical Axis	62 mm (2.4") 41 mm (1.6") 36 mm (1.4") 18 mm (0.7") over top surface of Rail
Ring width	N/A
Weight Weight w/Mount	84 grams (3 oz) Sight Only 105 grams (3.7 oz) w/Mount
ENVIRONMENTAL DATA
Temperature Range	-45ºC to +71ºC (-50ºF to +160ºF)
Water resistance	Submersible to 45 m (150 ft) water depth
Humidity	95% at 20°C (68°F) to 50°C (122°F), cycling
Vibration XYZ:	10 - 30 Hz 3mm; 30 - 150 HZ 5.75 G for 30 mins.
Mean Time to Repair	< 0.5 hrs at field level (MTTR)
Chemical Resistance	Not affected by weapons cleaners, lubricants, oil or insect repellants
Optional Accessories
12905	Mount LRP Micro - Lever Release Picatinny Mount for Micro sights. Return to zero after dismounting. Screws, Micro tool and thread sealer included.
12215	Micro 11mm Dovetail Mount - Fits most of the 11 mm Dovetail. Bases ranging from 10-12,5 mm. Screws and Micro Tool included.
12437	Micro Glock Mount - Fits Glock pistols. Screws, Micro Tool and Allen key included.
12357	Micro Spacer Low - Only for Micro T-1. Raises height of optical axis to 30 mm. Four screws (torx), Micro Tool and thread sealer included.
12462	Micro Spacer High - Only for Micro T-1. Raises height of optical axis to 39 mm for co-witness with AR-15. Four screws (torx), Micro Tool and thread sealer included.
12204	Rubber Bikini Lens Cover Fits Micro T-1, R-1 & H-1 sights
12207	Micro Tool For Micro sights only. The tool\'s functions: For windage and elevation adjustment of the sight. For tightening/removing the sight from its integrated mount. For tightening/removing the battery cap.
12211	Lithium Battery CR2032 For Micro & Hunter Sights
*MOA (Minute Of Angle) 1 MOA = 30mm at 100m = 1" at 100 yds BATTERY FOR AIMPOINT® SIGHTS The following battery types should be used in the different Aimpoint® Sight models. There are 5 groups of products using different battery types. Please look for your product in one of the groups listed below: NOTE Lithium type of battery is preferred in cold weather conditions. Zinc-Air batteries cannot be used due to the limited amount of air in the battery compartment!  GROUP 1 Aimpoint® Sights Models CompM4; MPS3 Battery type Any good quality AA battery available on the market GROUP 2 Aimpoint® Sights Model 9000 series and all its 2X; CompC3; CompC3 2X; CompC SM; CompM3; CompML3; CompM2; CompML2; Laser aiming device LPI Discontinued products: 7000 series and all its 2X; CompC; CompC 2X; 5000 XD; Comp XD and all their 2X; CompM XD; CompML XD; 5000, Comp and all their 2X; CompM;  CompML; 1000; 3000 and Bow Battery alternative: Note! The following alternative is only valid for the following models: 5000 XD; Comp XD and all their 2X; CompM XD; CompML XD; 5000; Comp and all their 2X; CompM; CompML; 1000; 3000 and Bow. The alternative is: 2 pcs of a 1.5-volt alkaline battery. Each battery has a size of Ø11.6 x 5.4-mm. Manufacturer of Alkaline Silver Oxide GROUP 3 Aimpoint Sights Model Micro H-1; Micro R-1; Micro T-1 Battery One 3V Lithium battery, Type CR2032 GROUP 4 Aimpoint® Sights Model Discontinued products MPSII; Mark III; 2000; MPS; and Laserdot LSR-2 Battery 123 or DL 123A (Duracell), BR2/3A (Panasonic) CR 123A (Varta), Ø16.9x34.5 mm, 1pc, 3V, Lithium or PC1A 2 pcs, 1.5-volt each, Alkaline (See note below) * GROUP 5 Aimpoint® Sights Model Discontinued products Electronic ElectronicG2 Battery PC1A*(GP Sylva), Ø15.8x16.5 mm, 2 pcs, 1.5-volt each, Alkaline * Note! The PC1A battery has recently been discontinued, but you might still find them on the market for a while. After that, there will not be any replacement battery available for these sights.

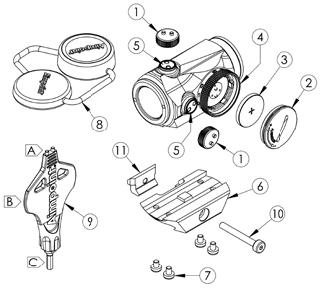

1. Adjustment Cap (2 pcs)
2. Battery Cap
3. Battery (type CR2032)
4. Rotary Switch
5. Adjustment Screw
6. Base
7. Screws (4 pcs) for Base
8. Lens Cover, rubber
9. Tool (3 Functions)
10. Locking bar
11. Shaft (for Base)




ASSEMBLY AND PREPARATION FOR USE

WARNING: Insure the weapon is unloaded and the safety selector is in the ”safe” position before attempting to install, remove

or perform maintenance on the sight.

Installing Battery

a) Remove Battery Cap (2) by turning it counter clockwise.

b) Insert a battery (type CR2032) with positive (+) end toward Cap.

Caution while replacing battery (not necessary when the sight is new) Before installing Battery Cap (2), inspect that the O-ring is present and not damaged. Failure to do so could result in water leakage into the battery compartment.

c) Install Battery Cap (2) by turning clockwise until snug. Tighten with the provided Tool (9B) only.

d) Verify that red dot is present by turning the Rotary Switch (4) clockwise.


Installing Sight on the weapon

The Micro Sight is designed for installation on most types of weapons, which have a MIL-Std 1913 Picatinny Rail or Weaver Rail. If your weapon does not have or support an appropriate base(s), please consult your dealer, gunsmith or other qualified source.


Installing Sight on a Picatinny/Weaver Rail

a) Loosen the Shaft (11) by means of the Tool (9C), so that the Locking Bar (10) can clamp around the Picatinny/Weaver Rail.

b) Install the Sight to the weapon Rail by tightening the Shaft (11). First, ensure that the Sight is correctly positioned and that the Shaft (11) (=recoil stop) fits into a groove on the Picatinny/Weaver Rail.

To make sure that the Shaft is firmly tightened, screw the Shaft (11) clockwise until a light resistance can be encountered.

After that, screw another 1/4 to 1/2 turn. WARNING! Do not over tighten.

c) When using Lens Covers (8), ensure that they are correctly positioned and can easily be opened.

d) Finally, make sure that the Shaft (11) with Locking Bar (10) is firmly tightened around the weapon Rail.

e) Complete zeroing according to OPMAN instructions.


Lens Covers

In order to preclude the loss of the lens covers when removed from the optical path of the Sight, the lens covers should be removed downwards. The rubber string will then grab around the Sight and Base.



OPERATING PROCEDURES

Zeroing

The Micro Sight is delivered with the red dot in a centered position. Normally this means that only small adjustments are necessary, providing that the weapon rail (Picatinny/Weaver Rail) is properly aligned.

CAUTION: Do not continue to adjust windage and elevation mechanisms if you encounter resistance.

The Elevation Adjustment Screw (5) is located on top of the sight, while the Windage Adjustment Screw (5) is located on the right side.

a) Open (remove) Lens Covers (8).

b) Turn the Rotary Switch (4) clockwise until the red dot has a sufficient intensity to contrast against the target.

c) Remove the Adjustment Cap (1) for windage and elevation adjustment, one at a time. Either the two knobs incorporated on top of the Adjustment Cap (1) or the Tool (9A) shall be used for adjusting the Adjustment Screw (5). Reverse the Adjustment Cap (1) and the knobs will fit into the two recesses on the Adjustment Screw (5).

NOTE: Each click of the Adjustment Screw (5) corresponds to a 13 mm movement of the point of impact at 100 meters, (3 mm at 25 meters and 26 mm at 200 meters or 1/2” at 100 yards).

d) Insert either the two knobs on top of the Adjustment Cap (1) or the two knobs on the Tool (9A) in the two holes on the Adjustment Screw (5) and turn as follows:

- To move the point of impact to the right, turn windage adjustment screw counter clockwise

- To move the point of impact to the left, turn windage adjustment screw clockwise

- To move the point of impact up, turn elevation adjustment screw counter clockwise.

- To move the point of impact down, turn elevation adjustment screw clockwise.

e) Confirm zeroing by firing at least three shots at a zeroing target. Check points of impact on zeroing target to confirm accuracy and repeat above procedure if required.

f) After initial firing, ensure that the sight is secure.

g) Turn Rotary Switch (4) to position 0 (counter clockwise).

h) Close front and rear Lens Covers (8).



OPERATION UNDER EXTREME CONDITIONS

a) Extreme heat (moist or dry). No special procedures required.

b) Extreme cold might shorten battery life. It could also make the Rotary Switch (4) a little harder to turn than at normal temperatures.

c) Salt air. No special procedures required.

d) Sea spray, water, mud and snow. Ensure that Battery Cap (2) and the two Adjustment Caps (1) are tightened before exposing the Sight to sea spray, mud, snow or before immersing the sight in water. Tighten the 2 Adjustment Caps (1) by hand, and use the Tool (9B) to tighten the Battery Cap (2). Keep Lens Covers (8) closed when sight is not being used. Clean lenses with lens paper/cloth and wipe the sight dry as soon as possible after exposure to water, sea spray, mud or snow.

e) Dust storms and sand storms. Keep Lens Covers (8) closed when sight is not being used.

f) High altitudes. No special procedures required.

CAUTION: The lenses shall never be cleaned with fingers but with lens paper/cloth. If no lens paper/cloth available :

- To clear away debris (sand, grass etc): blow away the dirt.

- To clean lenses: mist up the lenses and clean them with a soft piece of cloth.

Aimpoint Micro-series sights are small, light and rugged Red Dot Sights developed for hunting, sport shooting, military and law enforcement applications. Aimpoint Red Dot sights are designed for the ”two eyes open” method of sighting, which greatly enhances situational awareness and target acquisition speed. Thanks to the parallax free design, the dot follows the movement of the user’s eye while remaining fixed on the target, eliminating any need for centering. Further, the Aimpoint sights allow for unlimited eye-relief. The Micro T-1 is compatible with 1st , 2nd and 3rd generation Night Vision devices, while the Micro H-1 and Micro R-1 are optimized for applications, which do not require Night Vision compatibility.

The new Micro-series sights are using the new Advanced Circuit Efficiency Technology, called ACET, which combines Aimpoint’s superior accuracy and ease of use with significantly lower power usage. With the Micro-series sights Aimpoint has introduced an aiming system that gives the performance of their full-sized sights in the smallest package possible.

The Micro Sight is designed for installation on most types of weapons, which have a MIL-Std 1913 Picatinny Rail or Weaver Rail.

Aimpoint red dot sights are manufactured with the greatest care and precision from the best materials and components available. They are designed for use in the real world, and can handle rough treatment and all imaginable weather conditions. With the variety of models available, there is an Aimpoint sight for virtually every type of firearm.

For a sight and a gun to function as a reliable unit year after year, it is important that the mounting is done professionally and the mounting rings and bases are of high quality. An important detail that is often overlooked is the fact that the mounts and rings must be precisely aligned for best performance with any optical sight. The new generation of Aimpoint sights incorporates a very generous range of adjustment, which allows the user to compensate for any misalignment between the barrel, action and mounting hardware.
