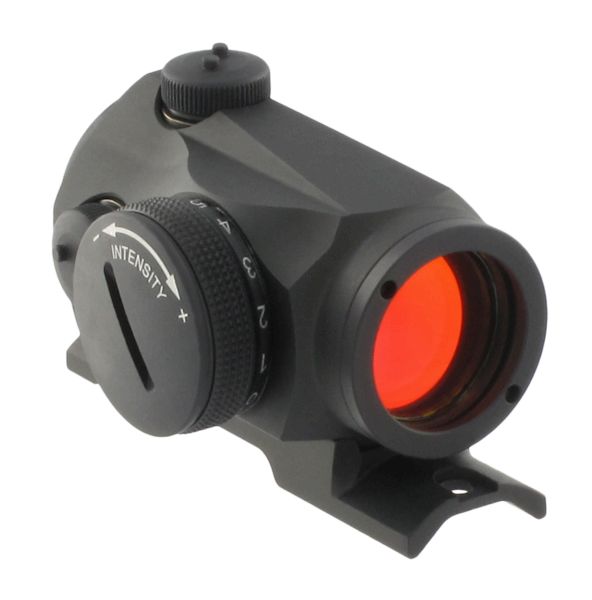

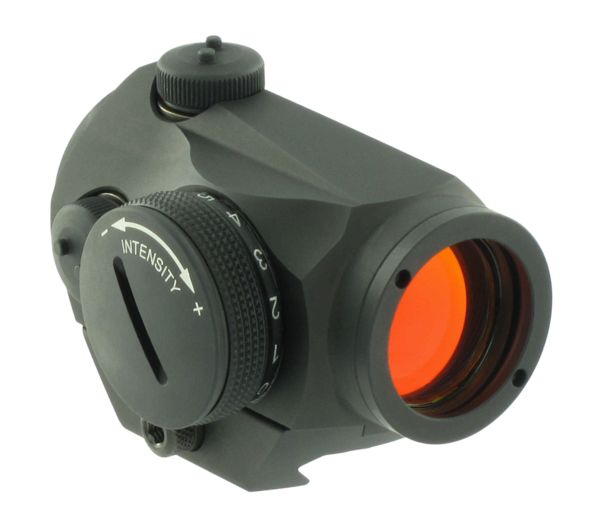

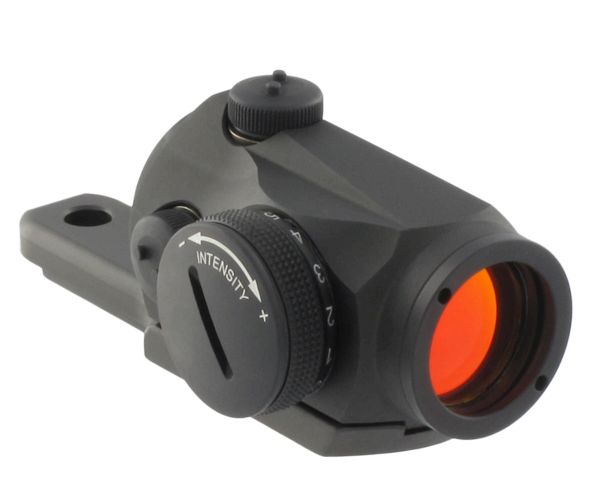

Aimpoint Micro H-1 and R-1 -
Micro H-1 & Micro R-1 the only difference is the color!
Designed with the hunter in mind, these sights are the lightest red dot sights tough enough to bear the Aimpoint name. Small enough to be used anywhere that you cold put iron sights, these sights can be used on any type of firearm or archery equipment.
A lightweight rifle with an R-1 Micro mounted on it remains a lightweight rifle!
A hunting revolver with an R-1 Micro installed remains as easy to carry as with iron sights and is much quicker to aim.
On a bow, the parallax-free R-1 Micro eliminates the need for a peep, allowing you to shoot accurately in lower light. No matter what your mission, the size and weight of your equipment is a critical factor. With the Micro R-1, Aimpoint has introduced an aiming system that provides the performance of their full-sized sights in the smallest package possible.
Unique features of the Micro R-1
* Lightweight – 84 g without mount and 105 g with mount
* Integral Weaver-style base allows easy attachment
* ACET technology allows 50,000 hours of operation on one battery
* Available in 4 MOA (minutes of angle)
* Fully waterproof
* Patent pending mount is keyed to the sight body to absorb recoil
* Precision adjustment for windage and elevation: top of protective caps fits into holes on adjustment screws – no other tool required
* 12 settings for use in daylight and low light conditions
Aimpoint Micro-series sights are small, light and rugged red dot sights developed for hunting, sport shooting, military and law enforcement applications. Aimpoint red dot sights are designed for the ”two eyes open” method of sighting, which greatly enhances situational awareness and target acquisition speed. Thanks to the parallax free design, the dot follows the movement of the user’s eye while remaining fixed on the target, eliminating any need for centering.
Further, the Aimpoint sights allow for unlimited eye-relief. The Micro T-1 is compatible with 1st , 2nd and 3rd generation night vision devices, while the Micro H-1 and Micro R-1 are optimized for applications, which do not require night vision compatibility.
The new Micro-series sights are using the new Advanced Circuit Efficiency Technology, called ACET, which combines Aimpoint’s superior accuracy and ease of use with significantly lower power usage. With the Micro-series sights Aimpoint has introduced an aiming system that gives the performance of our full-sized sights in the smallest package possible.
* Ideal for Rifles, Carbines, Shotguns, Submachine Guns, and Handguns
* Weighs only 3.7 oz with mount
* Unlimited Field Of View (FOV), Parallax Free, Unlimited Eye Relief
* 4 MOA Dot for Close Combat and Long Distance Engagement
* Four Night Vision Settings, Eight Daylight Settings
* Increased Aiming Confidence/Reduced Training Time & Ammunition
* Mount Base screws directly into the sight - No Rings Needed
* Mount Base is "Keyed" into the body to absorb recoil
* Improved Keyed Adjustment Caps require no tools or coin
* Submersible to 5 meters (15ft) and unaffected by extreme weather conditions
* Unequalled light transmission
* No hazardous materials used
* Mechanical Switch for speed and reliability
* No laser emission that could be harmful to your eyes or alert your position
* ACET Technology giving 50,000 hrs use on one battery
|System||Passive Red Dot, Reflex, Collimator System|
|Reticle, size||Red Dot, Diameter 4 MOA (1.2 mRad)|
|Clear Aperture||20 mm|
|Optical coating||Anti Reflex coating all surfaces.|
|Optical signature||No forward optical from the dot beyond 10 meters|
|Battery Type||One 3V Lithium CR2032|
|Battery Life, typical**||Over 5 Years of continuous use at pos 5 thru 8, 10 months at pos 9 thru 12, Up to 500,000 hrs at NVD positions. Storage battery 10 years|
|M4 Dot Brightness||12 positions, 4 NVD, 8 Day (1 Extra Bright)|
|Material housing||Extruded high strength aluminum|
|Surface finish||Hard anodized, Black to Dark Gray, Non-Glare|
|Material lens covers||Rubber, Black, Non-Glare|
|Adjustment||Range ± 1m at 100m, (± 1 yd at 100yds), in Windage and Elevation, 1 Click = 10 mm at 80m, = 13 mm at 100m, = ½" at 100yds|
|Mounting||Keyed surface Patent pending mount keyed to the sight body to absorb recoil. MIL-Std 1913 Picatinny Rail included|
41 mm (1.6")
36 mm (1.4")
grams (3 oz) Sight Only
105 grams (3.7 oz) w/Mount
|Temperature Range||-45ºC to +71ºC (-50ºF to +160ºF)|
|Water resistance||Submersible to 5 m (15 ft) water depth|
|Humidity||95% at 20°C (68°F) to 50°C (122°F), cycling|
|Vibration XYZ:||10 - 30 Hz 3mm; 30 - 150 HZ 5.75 G for 30 minutes|
|Mean Time to Repair||< 0.5 hrs at field level (MTTR)|
|Chemical Resistance||Not affected by weapons cleaners, lubricants, oil or insect repellants|

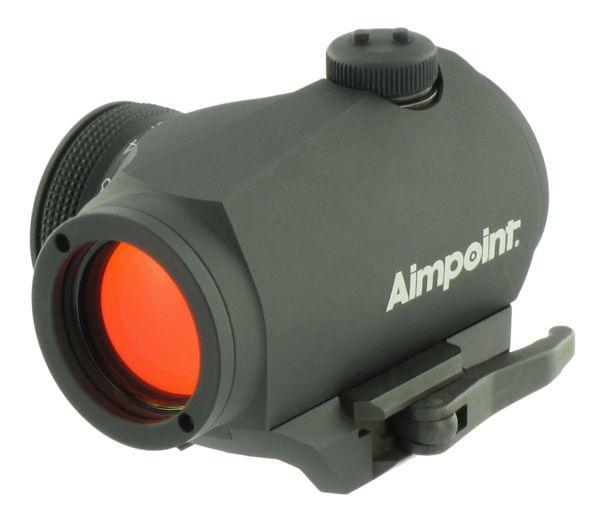

Mount LRP Micro Kit - Kit to convert Micro Mount to Lever Release Picatinny. Quick Release Mount returns to zero after dismounting.

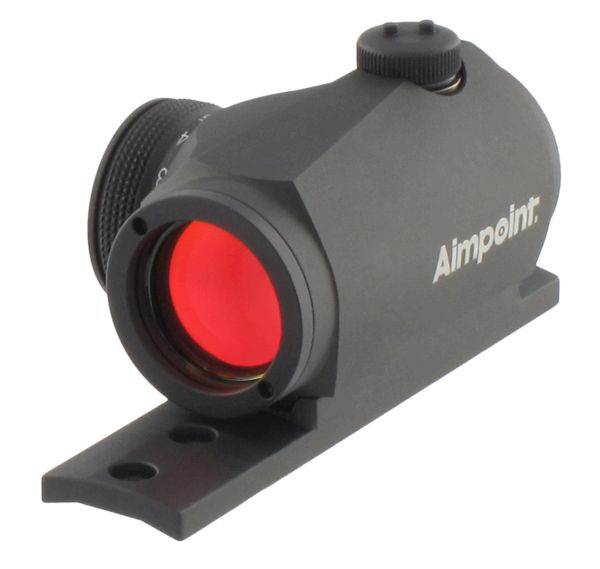

Dovetail Mount -
Fits most of the 11 mm
Bases ranging from 10-12,5 mm. Screws and Micro Tool included.
Mount - Fits Glock
Screws, Micro Tool and Allen key included.
Fits most of the
Screws and Micro Tool included.
most of the Merkel
Screws and Micro Tool included.
Micro Mount Kit
for Ruger 10/22, Black -
Black finish, fits Ruger
Screws, Allen Key and Micro Tool included.
Micro Mount Kit
for Ruger MK III, Black
finish, fits Ruger MK III.
Screws, Allen Key and Micro Tool included.
|12204||Rubber Bikini Lens Cover Fits Micro T-1, R-1 & H-1 sights|
For Micro sights only. The
For windage and elevation adjustment of the sight.
For tightening/removing the sight from its integrated mount.
For tightening/removing the battery cap.
|12211||Lithium Battery CR2032 For Micro & Hunter Sights|
(Minute Of Angle) 1 MOA = 30mm at 100m = 1" at 100 yds
BATTERY FOR AIMPOINT® SIGHTS
following battery types should be used in the different Aimpoint®
Sight models. There are 5 groups of products using different battery
1. Adjustment Cap (2 pcs)
2. Battery Cap
3. Battery (type CR2032)
4. Rotary Switch
5. Adjustment Screw
7. Screws (4 pcs) for Base
8. Lens Cover, rubber
9. Tool (3 Functions)
10. Locking bar
11. Shaft (for Base)
ASSEMBLY AND PREPARATION FOR USE
WARNING: Insure the weapon is unloaded and the safety selector is in the ”safe” position before attempting to install, remove
or perform maintenance on the sight.
a) Remove Battery Cap (2) by turning it counter clockwise.
b) Insert a battery (type CR2032) with positive (+) end toward Cap.
Caution while replacing battery (not necessary when the sight is new) Before installing Battery Cap (2), inspect that the O-ring is present and not damaged. Failure to do so could result in water leakage into the battery compartment.
c) Install Battery Cap (2) by turning clockwise until snug. Tighten with the provided Tool (9B) only.
d) Verify that red dot
is present by turning the Rotary Switch (4) clockwise.
Installing Sight on the weapon
The Micro Sight is
designed for installation on most types of weapons, which have a MIL-Std 1913
Picatinny Rail or Weaver Rail. If your weapon does not have or support an
appropriate base(s), please consult your dealer, gunsmith or other qualified
Installing Sight on a Picatinny/Weaver Rail
a) Loosen the Shaft (11) by means of the Tool (9C), so that the Locking Bar (10) can clamp around the Picatinny/Weaver Rail.
b) Install the Sight to the weapon Rail by tightening the Shaft (11). First, ensure that the Sight is correctly positioned and that the Shaft (11) (=recoil stop) fits into a groove on the Picatinny/Weaver Rail.
To make sure that the Shaft is firmly tightened, screw the Shaft (11) clockwise until a light resistance can be encountered.
After that, screw another 1/4 to 1/2 turn. WARNING! Do not over tighten.
c) When using Lens Covers (8), ensure that they are correctly positioned and can easily be opened.
d) Finally, make sure that the Shaft (11) with Locking Bar (10) is firmly tightened around the weapon Rail.
e) Complete zeroing
according to OPMAN instructions.
In order to preclude the loss of the lens covers when removed from the optical path of the Sight, the lens covers should be removed downwards. The rubber string will then grab around the Sight and Base.
The Micro Sight is delivered with the red dot in a centered position. Normally this means that only small adjustments are necessary, providing that the weapon rail (Picatinny/Weaver Rail) is properly aligned.
CAUTION: Do not continue to adjust windage and elevation mechanisms if you encounter resistance.
The Elevation Adjustment Screw (5) is located on top of the sight, while the Windage Adjustment Screw (5) is located on the right side.
a) Open (remove) Lens Covers (8).
b) Turn the Rotary Switch (4) clockwise until the red dot has a sufficient intensity to contrast against the target.
c) Remove the Adjustment Cap (1) for windage and elevation adjustment, one at a time. Either the two knobs incorporated on top of the Adjustment Cap (1) or the Tool (9A) shall be used for adjusting the Adjustment Screw (5). Reverse the Adjustment Cap (1) and the knobs will fit into the two recesses on the Adjustment Screw (5).
NOTE: Each click of the Adjustment Screw (5) corresponds to a 13 mm movement of the point of impact at 100 meters, (3 mm at 25 meters and 26 mm at 200 meters or 1/2” at 100 yards).
d) Insert either the two knobs on top of the Adjustment Cap (1) or the two knobs on the Tool (9A) in the two holes on the Adjustment Screw (5) and turn as follows:
- To move the point of impact to the right, turn windage adjustment screw counter clockwise
- To move the point of impact to the left, turn windage adjustment screw clockwise
- To move the point of impact up, turn elevation adjustment screw counter clockwise.
- To move the point of impact down, turn elevation adjustment screw clockwise.
e) Confirm zeroing by firing at least three shots at a zeroing target. Check points of impact on zeroing target to confirm accuracy and repeat above procedure if required.
f) After initial firing, ensure that the sight is secure.
g) Turn Rotary Switch (4) to position 0 (counter clockwise).
h) Close front and rear Lens Covers (8).
OPERATION UNDER EXTREME CONDITIONS
a) Extreme heat (moist or dry). No special procedures required.
b) Extreme cold might shorten battery life. It could also make the Rotary Switch (4) a little harder to turn than at normal temperatures.
c) Salt air. No special procedures required.
d) Sea spray, water, mud and snow. Ensure that Battery Cap (2) and the two Adjustment Caps (1) are tightened before exposing the Sight to sea spray, mud, snow or before immersing the sight in water. Tighten the 2 Adjustment Caps (1) by hand, and use the Tool (9B) to tighten the Battery Cap (2). Keep Lens Covers (8) closed when sight is not being used. Clean lenses with lens paper/cloth and wipe the sight dry as soon as possible after exposure to water, sea spray, mud or snow.
e) Dust storms and sand storms. Keep Lens Covers (8) closed when sight is not being used.
f) High altitudes. No special procedures required.
CAUTION: The lenses shall never be cleaned with fingers but with lens paper/cloth. If no lens paper/cloth available :
- To clear away debris (sand, grass etc): blow away the dirt.
- To clean lenses: mist up the lenses and clean them with a soft piece of cloth.
Aimpoint Micro-series sights are small, light and rugged Red Dot Sights developed for hunting, sport shooting, military and law enforcement applications. Aimpoint Red Dot sights are designed for the ”two eyes open” method of sighting, which greatly enhances situational awareness and target acquisition speed. Thanks to the parallax free design, the dot follows the movement of the user’s eye while remaining fixed on the target, eliminating any need for centering. Further, the Aimpoint sights allow for unlimited eye-relief. The Micro T-1 is compatible with 1st , 2nd and 3rd generation Night Vision devices, while the Micro H-1 and Micro R-1 are optimized for applications, which do not require Night Vision compatibility.
The new Micro-series sights are using the new Advanced Circuit Efficiency Technology, called ACET, which combines Aimpoint’s superior accuracy and ease of use with significantly lower power usage. With the Micro-series sights Aimpoint has introduced an aiming system that gives the performance of their full-sized sights in the smallest package possible.
The Micro Sight is designed for installation on most types of weapons, which have a MIL-Std 1913 Picatinny Rail or Weaver Rail.
Aimpoint red dot sights are manufactured with the greatest care and
precision from the best materials and components available. They are
designed for use in the real world, and can handle rough treatment and
all imaginable weather conditions. With the variety of models available,
there is an Aimpoint sight for virtually every type of firearm.
For a sight and a gun to function as a reliable unit year after year, it is important that the mounting is done professionally and the mounting rings and bases are of high quality. An important detail that is often overlooked is the fact that the mounts and rings must be precisely aligned for best performance with any optical sight. The new generation of Aimpoint sights incorporates a very generous range of adjustment, which allows the user to compensate for any misalignment between the barrel, action and mounting hardware.
