Where "Top-of-the-Line" is always on "Top-of -our-Shelves"!

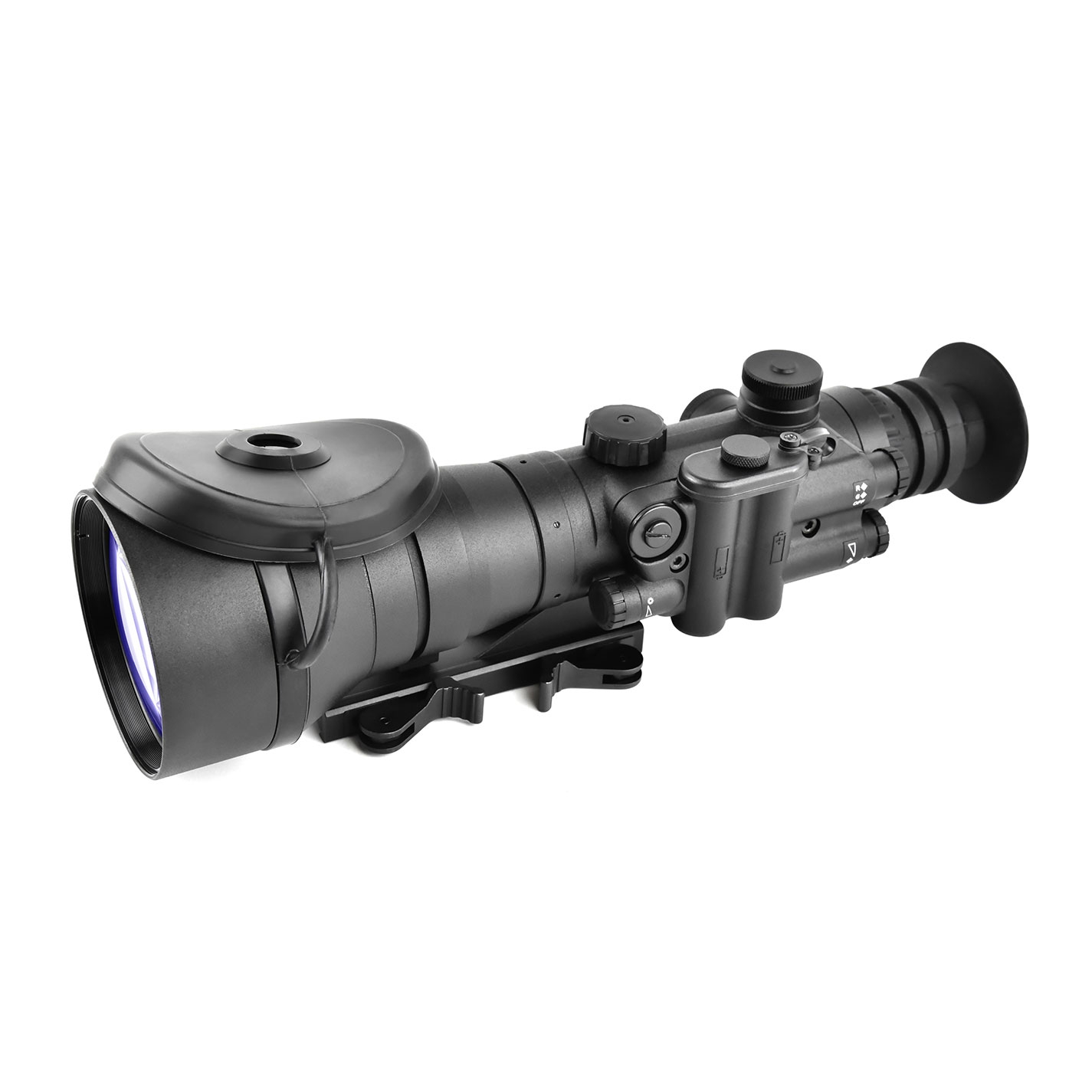

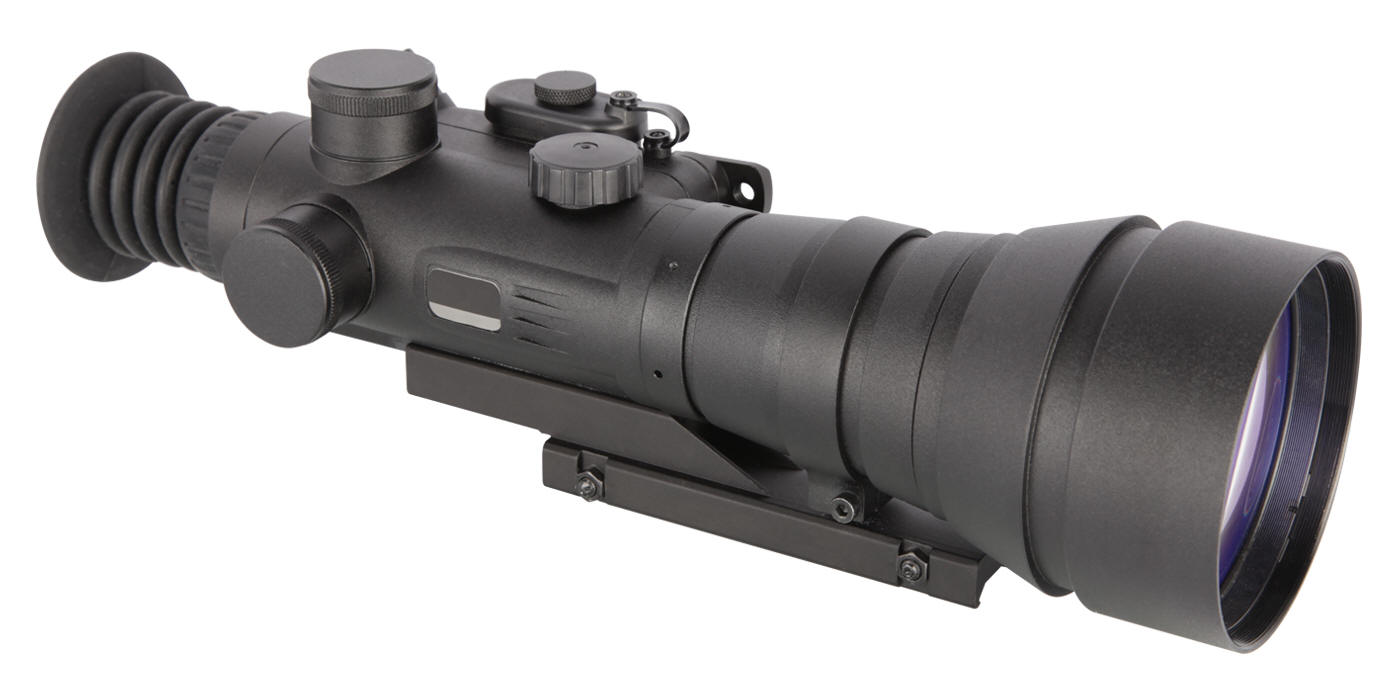

     The D790 is the new and improved upgrade to the very popular D760 6X Night Vision scope. The incorporation of state-of-the-art optics and coating technologies improve range, contrast, clarity, and light transference by more than 20% over the D760. The new ergonomically designed power-supply and control system enables easy on-the-fly adjustments to device power, reticle color, reticle brightness and gain (image brightness) without taking eyes off target.

D790 6X Features:

*     6X Magnification, 6.3˚FOV

*     Common AA Battery Operation

*     New HD Multi-Coated Optics

*     Hand Select Image Tubes

*     Common AA Battery Operation

*     12.2" x 3.85" x 3.5" and Weighs only 33.8oz

*     High Resolution 57 - 64lp/mm Minimum

*     Shock Protected Optics that are Combat Proven

*     Choice of Image Tubes including White Phosphor

*     2 Year Warranty

KIT INCLUDES: Padded Hard Case, Day Light Lens Cover, 2 AA Batteries, Operator's Manual, Lens Cleaning Paper, Shuttered Eyeguard, Weapons Mount

These Night Vision sights are proudly manufactured in the USA

Standard features include new and improved 6X optics; Shockproof Housing; Dual Color Mil-Dot reticle w/Brightness Control; Precise Optical Focus; Manual Gain Control; Windage & Elevation Adjustments and impressive battery life. The D790 6X Night Vision riflescope is currently available in Gen 3 Autogated w/manual gain (Optional Hand-Select).

     The D790 is the latest iteration, GEN 3 Night Vision Weapon sight, utilizing 21st Century technology. Available with your choice of ITT/Exelis Pinnacle Auto Gated Gen 3 tubes from Low Cost Commercial, to High Spec MIL Grade or even 3 grades of Top-Of-The-Line MILSPEC intensifiers.  Rugged yet lightweight construction makes the D790 very reliable and is the most accurate imaging device designed to withstand the rigors of combat use. The product line was designed to compete with the now discontinued 4X & 6X Raptors, the D740, D750, D760, and now the D790 Night Vision Weaponsights will astound you with what they have to offer.

     The D790 is a rugged 6X Night Vision Weapon Sight featuring state of the art electronics and optics, and a highly durable aircraft grade aluminum body for reduced weight and improved recoil resistance. The D790 has a detection range of 2000 feet.

     The D790 is nitrogen purged and waterproof, and features high quality multi coated optics, as well as an illuminated Red/Amber Mil-Dot reticle, and a quick release Picatinny/Weaver rail weapon mount.

     The D790 uses two AA batteries for a continuous run time of up to 60+ hours and is guaranteed with maintaining a zero boresight retention on weapons up to 7.62/.308 caliber. Available with Gen 3 Commercial, MIL GRADE or MIL SPEC Pinnacle Auto Gated image intensifiers, including the latest White Phosphor Tubes. Gen 3 systems are available with gain control.

     Like the D760, that was designed for military and professional demands for extreme long range accuracy, the D790 can also be easily mounted on almost any weapon system. Optional mount adapters are available for specific mounting needs.

      Sighting is accomplished with a variable illuminated Red or Amber Mil-Dot crosshair ballistic reticle. The reticle is fully adjustable for bore sighting and has a separate control for optimal reticle brightness and contrast for all lighting conditions. The reticle offers 0.25 Mil Elevation and Windage adjustments.

Originally designed for military and professional demands for extreme long range accuracy, the D790 can easily be mounted on almost any weapon system. Optional mount adapters are available for specific mounting needs.

      Sighting is accomplished with a variable illuminated Green or Amber Mil-Dot crosshair ballistic reticle. The reticle is fully adjustable for bore sighting and has a separate control for optimal reticle brightness and contrast for all lighting conditions. The reticle offers 0.2 Mil Elevation and Windage adjustments.

D790 6X Applications:

*                  Snipers and Professional Shooters

*                  Corn Farmers with Feral Hog Problems

*                  Ranchers with Coyotes and Varmint Problems

     A daylight cover protects the objective lens, as well as the image tube, against accidental exposure to bright light. This daylight cover can be utilized for training and bore sighting during low-light conditions such as dawn, dusk or overcast days. A pressure operated rubber eye guard provides operator protection from recoil and prevents light scatter from the image tube.

System Technical Specifications
Generation
3
Resolution      From 57lp/mm to 64lp/mm
Objective Lens      26mm f/1.2
Lens System      165mm f/2
Photoresponse
  From 1350 to 2400
Signal To Noise Ratio
From 16.2:1 to 30.0:1
Magnification
6X
Field of View
6.3° FOV
Windage/Elevation Adj.   1/4 MOA @ 100 Yards
Weather Resistance
Waterproof
Reticle Type
MIL DOT (Red/Amber)
IR Illuminator
Optional
Focus Range
10m to ∞ (infinity)
Diopter Adjust
+3 to -4 Diopters
Weight
33.8 oz (958grams) w/o Batteries
Power Source Lithium
(2) AA  Batteries
Battery Life
60+ Hours
Detection Range      2000' (610meters)
Dimensions
12.2" x 3.85" x 3.5"
Warranty
2 Years

Model # SYSTEMS WITH GAIN CONTROL
D790G-ULT 6X Night Vision Weapon Sight w/Pinnacle Ultra MIL Spec Tube
D790G-VG 6X Night Vision Weapon Sight w/Pinnacle VG MIL Spec Tube
D790G-YG 6X Night Vision Weapon Sight w/Pinnacle YG MIL Spec Tube
D790G-HP+ 6X Night Vision Weapon Sight w/Pinnacle High Performance Tube
D790G-P+ 6X Night Vision Weapon Sight w/Pinnacle P+ Spec Tube
D790G-P 6X Night Vision Weapon Sight w/Pinnacle P Spec Tube
D790G-WP 6X Night Vision Weapon Sight w/Pinnacle White Phosphor
D790G-WHP 6X Night Vision Weapon Sight w/Pinnacle High Performance White Phosphor
D790G-XLS-1 6X Night Vision Weapon Sight w/Non Gated Tube
D790G-XLS-2 6X Night Vision Weapon Sight w/Non Gated Tube, Small Spot in Zone 1

GEN III Tube Specifications for Systems with Gain Control

GEN III Tube Specifications MIL SPEC-ULT MIL SPEC-VG MIL SPEC-YG
Power Supply: Pinnacle Pinnacle Pinnacle
Signal to Noise Ratio: 25.0 min. 25.0 min. 25.0 min.
Photo Response: 2200 min. 2000 min. 1800 min.
Halo: n/a ** n/a ** n/a **
EBI: 2.5 max. 2.5 max. 2.5 max.
Resolution: 64 lp/mm min. 64 lp/mm min. 64 lp/mm min.
Max Spots Allowed in Each Zone
Spot Size (in.)
ZONE
1___2___3
ZONE
1___2___3
ZONE
1___2___3
...........>.012 - .015 0___0___0 0___0___0 0___0___0
...........>.009 - .012 0___0___0 0___0___0 0___0___0
...........>.006 - .009 0___0___1 0___0___1 0___1___1
...........>.003 - .006 0___0___2 0___0___2 0___2___2
GEN III Tube Specifications MIL GRADE HP+ MIL GRADE P+ COMMERCIAL P
Power Supply: Pinnacle Pinnacle Pinnacle
Signal to Noise Ratio: 25.0 min. 20.0 min. 16.2 min.
Photo Response: 2200 min. 1750 min. 1350 min.
Halo: n/a ** n/a ** n/a **
EBI: 2.5 max. 2.5 max. 2.5 max.
Resolution: 64 lp/mm min. 64 lp/mm min. 57 lp/mm min.
Max Spots Allowed in Each Zone
Spot Size (in.)
ZONE
1___2___3
ZONE
1___2___3
ZONE
1___2___3
...........>.012 - .015 0___0___0 0___0___0 0___0___0
...........>.009 - .012 0___0___0 0___0___0 0___0___1
...........>.006 - .009 0___0___1 0___1___1 0___2___2
...........>.003 - .006 0___0___2 0___2___2 0___2___3

WHITE PHOSPHOR

    These Night Vision Devices Products are available with Gen 3 White Phosphor Image Intensifiers manufactured by Exelis, now a part of Harris Corporation. Traditional image intensifier tubes use a P-43 phosphor screen output, resulting in the yellow-green that has become the signature view through most Gen 3 night vision systems. White Phosphor tubes use a P-45 phosphor screen, which yields an alternate coloration closer to black and white imagery. This change in color has been reported to enhance overall object recognition while providing contrast sensitivity equivalent to or better than traditional green phosphor image tubes. These White Phosphor tubes are available for system upgrades and can be Hand-Select for higher performance.

WHITE PHOSPHOR Tube Specifications WHP WP
Power Supply: Pinnacle Pinnacle
Signal to Noise Ratio: 25.0 min. 16.2 min.
Photo Response 2200 min. 1350 min.
Halo: n/a ** n/a **
EBI: 2.5 max. 2.5 max.
Resolution: 64 lp/mm min. 57 lp/mm min.
Max Spots Allowed in Each Zone
Spot Size (in.)
ZONE
1___2___3
ZONE
1___2___3
...........>.012 - .015 0___0___0 0___0___0
...........>.009 - .012 0___0___0 0___0___1
...........>.006 - .009 0___1___1 0___2___2
...........>.003 - .006 0___2___2 0___2___3

 XLS

   These Night Vision Devices systems are also available with Gen 3 "XLS" Image Intensifiers manufactured by Exelis, now a part of Harris Corporation. These XLS tubes are available for customer applications within law enforcement and commercial applications. The Gen 3 photocathode is very sensitive to low-radiation levels of visible light and, even more so to near infrared light. The 6µ (micron) channel spacing provides exceptional resolution and extended detection ranges in low-light conditions. The tube lifespan is an astounding 12,000+ hours. The XLS systems are available with or without a small spot in Zone 1.

XLS Tube Specifications XLS-1 XLS-2
Power Supply: Non Gated Non Gated
Signal to Noise Ratio: 16.2 min. 16.2 min.
Photo Response 1350 min. 1350 min.
Halo: n/a ** n/a **
EBI: 2.5 max. 2.5 max.
Resolution: 57 lp/mm min. 57 lp/mm min.
Max Spots Allowed in Each Zone
Spot Size (in.)
ZONE
1___2___3
ZONE
1___2___3
...........>.012 - .015 0___0___0 0___0___0
...........>.009 - .012 0___1___1 0___1___1
...........>.006 - .009 0___2___2 0___2___2
...........>.003 - .006 0___2___3 1___2___3

Application Comparison of Night Vision Devices

  Hand Held Head Mount Camera Mountable 1 Eye 2 Eyes Weapon Mountable Short Range Medium Range Long Range
ENVIS X   X X     X
PVS-5   X     X   X
PVS-7 X X     X   X
PVS-7 w/3X X X     X     X
PVS-7 w/5X X       X       X
5X Binocular X
PVS-14 X X X X   X X
D740 4X       X   X   X X
D750 4X       X   X   X X
D760 6X       X   X     X
D790 6X Weaponsight       X   X     X


Also available w/4X Magnification
