*This Holographic Weapon Sight must be exported from the United States in accordance with Export Administration Regulations ECCN 0A987. Diversion contrary to U.S. law is prohibited. In accordance with U.S. law (Title 15 CFR part 746 and Supplement No. 1 to Part 774; and Title 31 CFR) resale/re-export or transfer of Holographic Weapon Sight Models 552, 551, 512, 511, 4X magnifier and 3X magnifier to certain designated countries is prohibited without prior written consent of the U.S. Department of Commerce. The Holographic Weapon Sight Models 553, 557 and 555 are controlled under U.S. International Traffic in Arms Regulations (ITAR) and may not be exported without proper authorization by the U.S. Department of State.

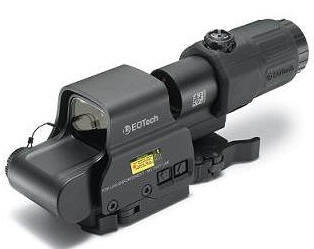

HHSI Kit: EXPS3-4 + G33 Magnifier
UPC: 672294570295


Take advantage of the EOTech HWS' ability to incorporate fixed and flip-up magnifiers.

* Vastly improved accuracy at medium range distances
* Increased target recognition and identification at greater distances
* Achieves extremely rapid transition from Close Quarters Battle to medium range targeting - and back again
* Retro-fits to all current HWS models - providing an instant upgrade path
* The unique Holographic technology allows the center dot to remain 1 MOA in size, while the angular size of the target is magnified
* Zero is maintained in the HWS and not in the magnifier - you never lose zero, no matter if you are targeting through the magnifier or only through the HWS

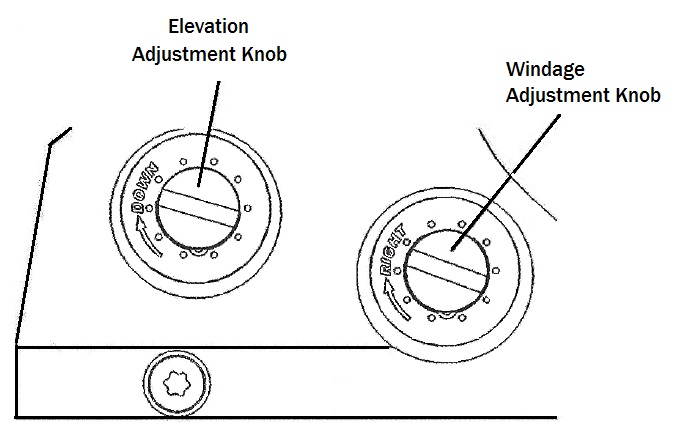

* The magnifier mount provides elevation and azimuth adjustment to allow the reticle to be centered in the FOV of the magnifier

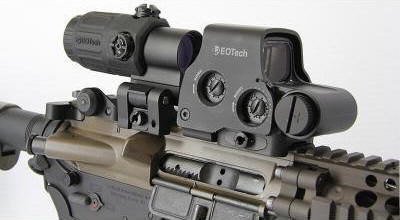

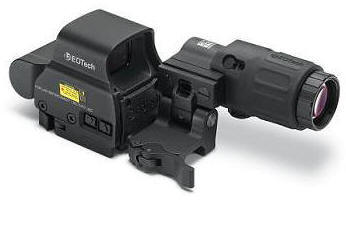

HHSI Holographic Hybrid Sight

     For the infantryman, target ranges vary in ever-changing battlefield conditions. The HHSI provides a solution for engaging threats in CQB situations, then quickly transitioning to a 500m targeting or surveillance situation, and then quickly back to a 25m room clearing exercise. Instant transition is achieved through a quick Switch-to Side (STS) mount that offers a simple, quick disconnect feature to remove the magnifier and base. This durable, night vision compatible system offers wide field optical performance with superior light transmission for visibility in extreme low light conditions.

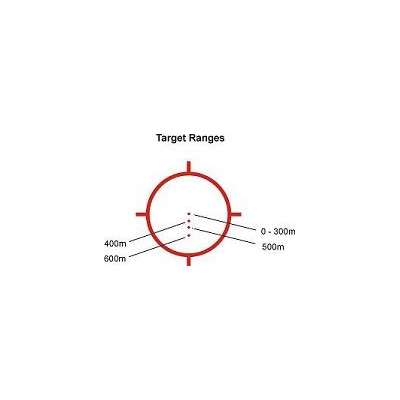

     The EXPS3-4 is configured with a new ballistic matching reticle image for the M4 carbine. The battle tested circle/dot reticle will be offered along with a series of 1 MOA aiming dots that are vertically aligned and calibrated specifically for the ballistic drop of .223 caliber ammunition. The reticle provides 4 aiming dots for target distances of 0-300m, 400m, 500m, and 600m. The use of a magnifier is strongly recommended.

*Aiming dots may not be distinguishable from each other without magnification.
*Single transverse 123 battery to reduce sight length
*Ballistic reticle specific to .223 caliber munitions

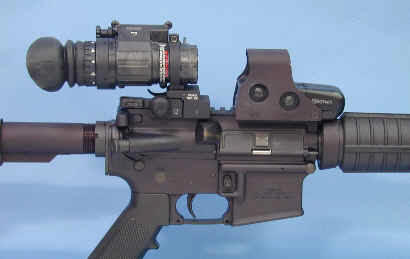

*Compatible with Gen I-III+ Night Vision Systems (tandem operation)
*Shortened base only requires at most 2 3/4 inch of rail space
*Battery cap and latch are eliminated and replaced with a simple O-ring, tethered cap; better sealing is achieved
*Average battery life at brightness level 12 is roughly 600 hours

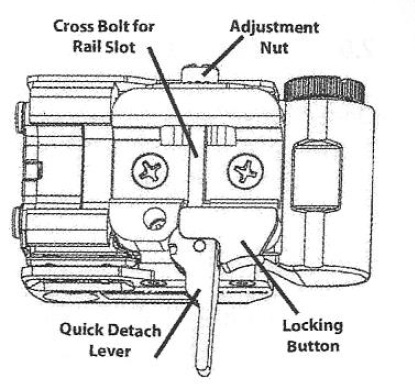

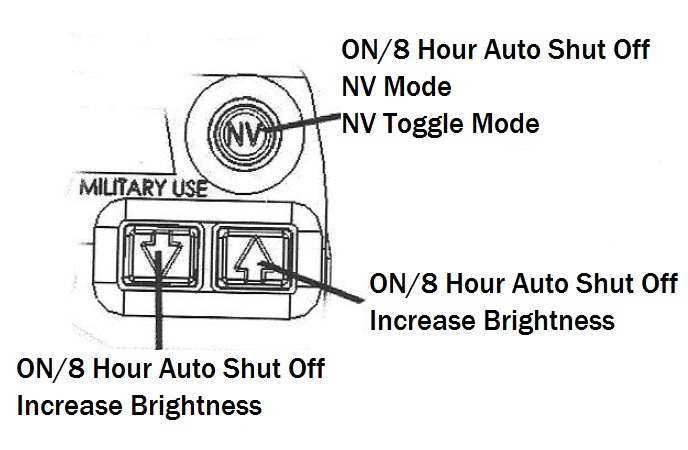

*Side buttons, NV compatible with an adjustable, locking, quick detach lever for easy attachment and removal

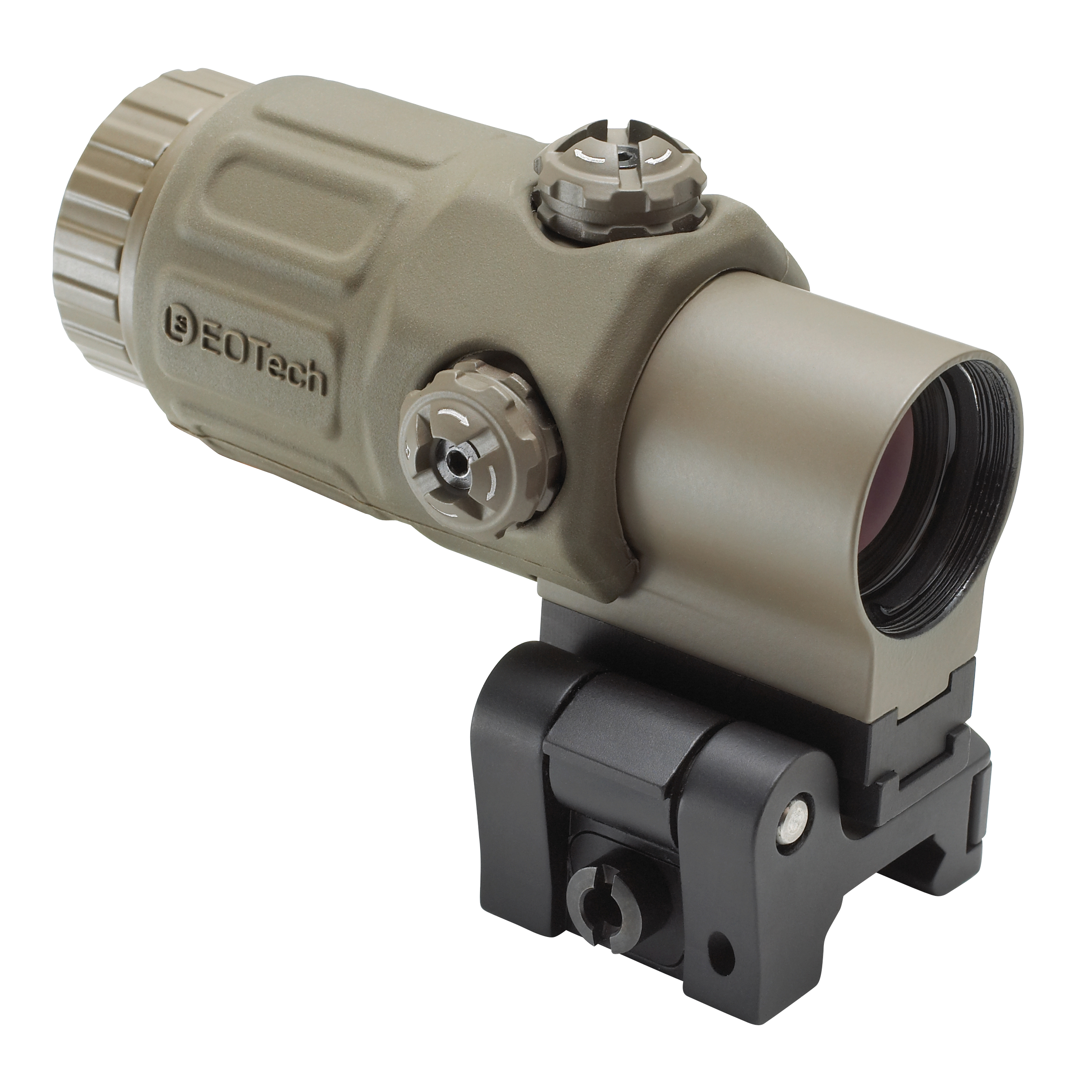

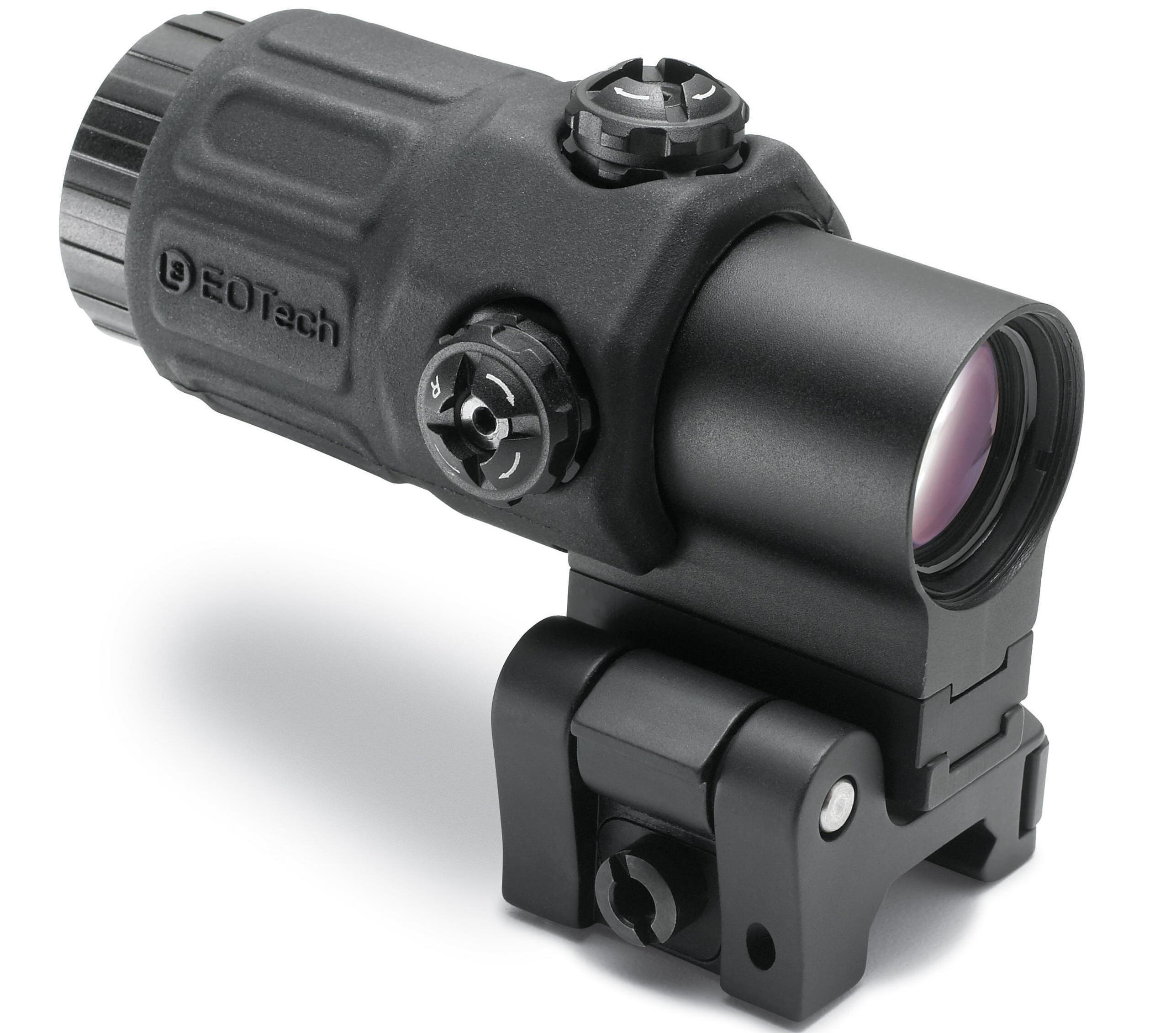

G33.STS (Switch to Side) Magnifier

G33.STS Magnifier
UPC: 672294300380

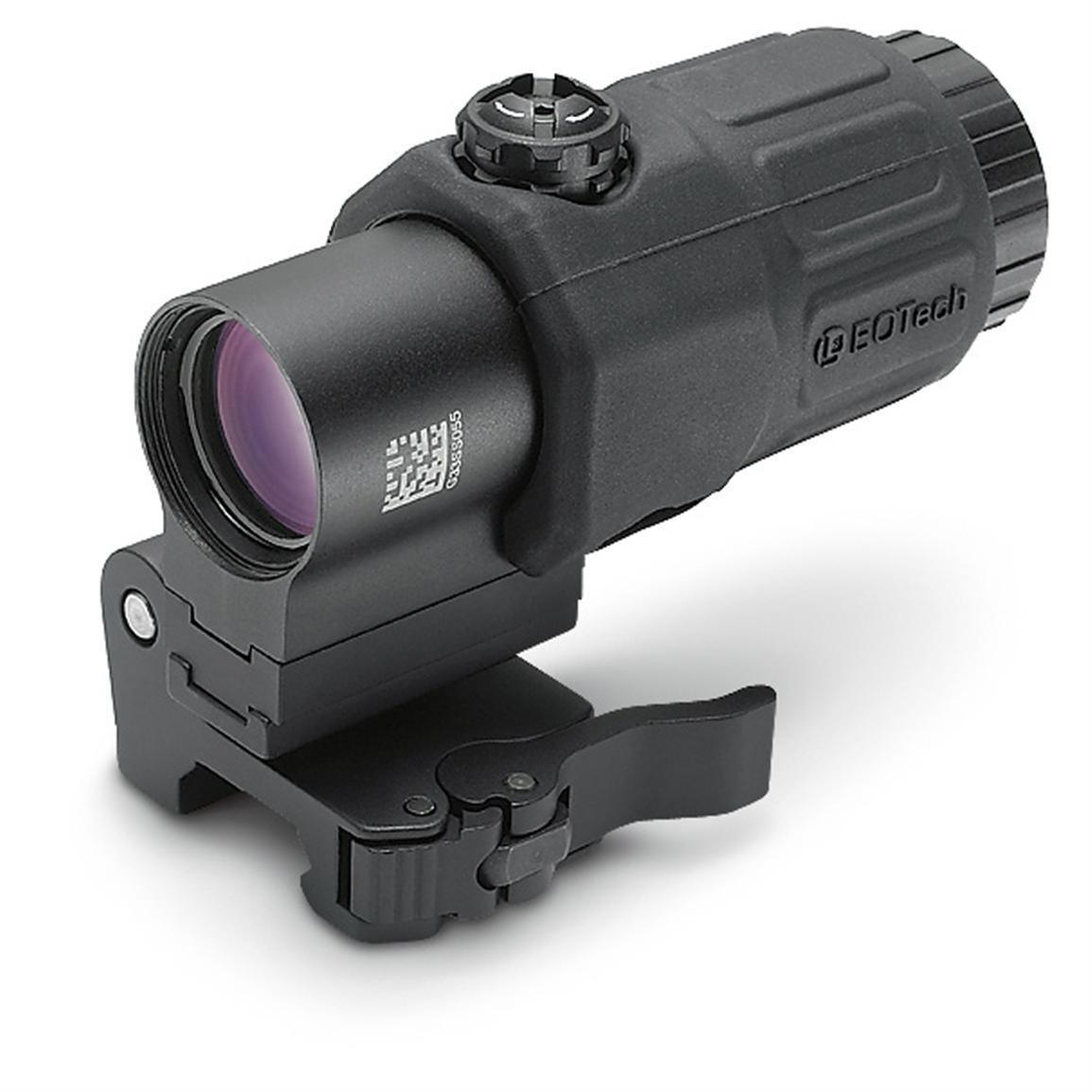

EOTech G33 Magnifier
G33.STS BLACK - 672294300380
G33.STS TAN - 672294300397


Description

     The new G33.STS (Switch-To-Side) 3X Magnifier is shorter and lighter than previous models. The improved mount provides faster transitioning from 3X to 1X.   The G33.STS offers tool free azimuth adjustment, a larger FOV (Field-of-View) and an adjustable Diopter for improved, precise focusing.



Product Details

Compatible w/all EOTech HWS Sights

L/W/H: 3.9” x 2.2” x 3.3” (99 x 55.9 x 83.9 mm)

Weight: 11.2 oz (317.5 g)

Fixed Magnification: 3X

Eye Relief: 2.2” (55.8 mm)

Field of View: 7.3°

Mount: MIL-STD-1913 rail / 1" Weaver

Sealing: Fog resistant internal optics

Water Resistant: Submersible to 33 ft (10 m) depth

Features

	Lightweight and compact magnifier by EOTech
	Compatible with a wide range of red dot sights and Night Vision Devices
	Magnifies any weapon optic by 3X
	Improved Switch to Side (STS) mount allows rapid switching between 3x Magnification & 1x sight
	Tool-free azimuth adjustment
	Improved FOV (Field of View) over the previous G32 model
	Adjustable Diopter for precise focusing adjustment
	Fog proof internal optics
	Waterproof up to 33 feet

    The EOTech G33 Red Dot Sight Magnifier is a fast and convenient way to get more range out of your professional-grade red dot sight. Known as the first choice of America's Elite Special Operation Forces, this Magnifier from EOTech uses powerful optics to enhance the magnification rate of your red dot of choice by 3x, greatly extending the range and accuracy of your firearm. The EOTech G33 Red Dot Sight 3x Magnifier features a new and improved mount over its predecessor, a Switch-to-Side (STS) mount that allows you to quickly engage and disengage the magnifier by flipping it to the side of your firearm. The EOTech G-33 3x Magnifier is shorter and lighter than its previous incarnation, the G23, and features a tool-free azimuth adjustment and an extremely wide field of view, allowing you to achieve improved magnification without compromising target acquisition. Magnify the potency of your holographic sight by augmenting it with the EOTech G33 Magnifier w/ Adjustable Diopter.

EOTech's Frequently Asked Questions Page

HWS Features

Electronic Features

     The HWS uses state-of-the-art digital electronics design. Twenty brightness levels (plus 10 additional NV settings) ensure proper brightness control in either low light or very bright sunlight. An on-board microprocessor provides automatic battery check indicator, up/down brightness scrolling and programmable auto shutdown features. All electronics are fully encapsulated in shock absorbing resin compound.



The HOLOgraphic Advantage

The holographic patterns have been designed to be instantly visible in any light, instinctive to center regardless of shooting angle, and to remain in view while sweeping the engagement zone. Reticles are designed as large, see-through patterns to achieve lightning quick reticle to target acquisition without covering or obscuring the point of aim.

Heads Up, Full View

     The HWS employs a true Heads-Up Display that eliminates blind spots, constricted vision, or the tunnel vision associated with tube sights. All user controls are flush to the HWS's streamline housing with no protruding knobs, battery compartments or mounting rings blocking vision at the target area. True, 2 eyes open shooting is realized. Instant threat identification is achieved by maximizing the operator's peripheral vision and ultimately gaining greater control of the engagement zone.

The Magic of Holography

     In holography, all the information required to reconstruct the reticle image is recorded everywhere in the Heads-Up display window. If the window is obstructed by mud, snow, rain, etc., the HWS remains fully operational, with point of aim/impact being maintained. Even in such extreme cases where the laminated window is shattered, the HWS is fully functional! As long as the operator can see through any portion of the window, the entire reticle pattern is visible on target...the operator can still engage with confidence.

HWS Benefits

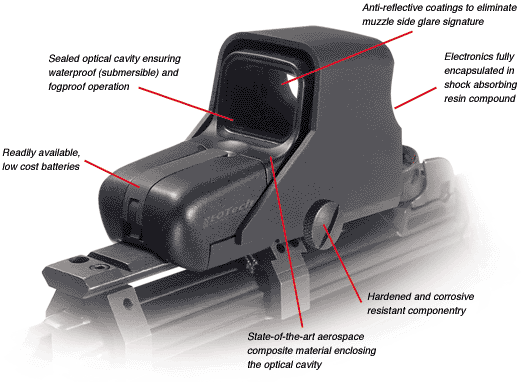

Extreme Durability

     The HWS has been designed and tested to provide consistent, reliable performance even in the most hostile operational environment. It is waterproof, fog proof, shockproof, and temperature proof. The HWS is designed to withstand Mil-Spec drop tests and still remain fully operational and hold zero. The HWS has been extensively tested in a punishing recoil simulator generating 3,500 G's of acceleration in less than 0.5 milliseconds (the recoil of a .454 Casull revolver) as well as various environmental chambers).

     The Heads Up Display is constructed with a 3 layer, shatterproof laminate glass that is 3/16" thick for added durability. Additional protection of the Heads Up Display is provided with a "roll bar" ruggedized hood.

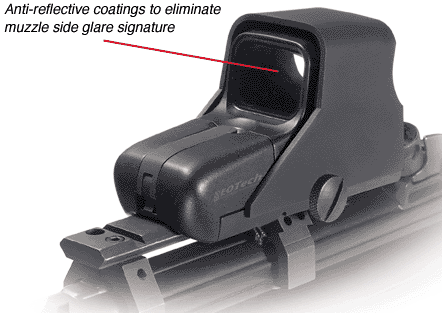

No Revealing Signature

     The HWS does not emit any muzzle side (position revealing) light signature. The projected reticle pattern is visible only to the operator. Even Gen III NV equipment cannot detect muzzle side signature of the operator's position.  All optical surfaces are flat and treated with anti-reflective coatings eliminating additional muzzle side signature due to reflective glare. No need for costly glare elimination filters that reduce the effective light transmission and further dim the target area.

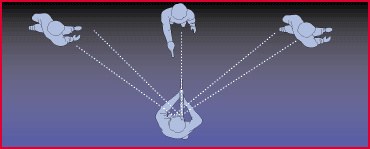

Field of View: Aimpoint Comp and EOTech HWS

     The EOTech advantage is clear to see. EOTech's HWS's field of view is nearly 4 times as wide as the Aimpoint Comp M2's. The greater field of view means improved situational awareness and faster threat identification. The HWS offers 10 Night Vision reticle settings compared to the Aimpoint Comp's four settings.

Aimpoint Comp vs EOTech        * These photographs are not altered. Both images were taken through an ITT AN/PVS-14 Monocular mounted 2" behind the optic. The camera was an equal distance from the PVS-14.

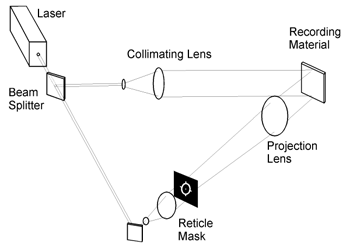

How to make a Hologram

     Holography is described scientifically as a wave front reconstruction process. Unlike a camera which forms and records the two-dimensional image of an object on film, a hologram records and reconstructs the light field propagating from a three-dimensional object to the viewer. A good analogy is the recording and play back of sound. The sound waves (e.g. music) are encoded and recorded on a disk. Upon proper decoding, the original sound waves are reconstructed. With holography, the field is encoded in the form of an interference pattern and recorded as refractive index variations on a clear window. The decoding is achieved by illuminating the hologram with laser light and the light field that was propagating from the object scene to the hologram window is reconstructed. Thus, a viewer cannot tell if the three-dimensional image he sees is "live" or a holographic reconstruction.

     The Holographic sight makes use of the capability of a hologram to construct a three-dimensional image to produce a reticle that is projected out to the target plane. This is achieved by using a large, high quality aberration free lens to project the pattern as illustrated. The reticle image could be of any light pattern, any geometric shape or size, and produced in either 2 dimensional or 3 dimensional form. The holographic reticle is uniformly bright and distortion-free regardless of image size. A parallax free image is created with a large and bright aiming pattern allowing quick target acquisition, particularly in close quarter combat situations. At the same time, the HWS can produce an aim point as small as the human eye can resolve to achieve the highest aiming accuracy possible without magnification.

EOTech Limited Warranty

     All EOTech products are created with pride in the USA. More importantly, they are manufactured with our customer's satisfaction in mind. EOTech warrants every product to be free from defects in materials and workmanship for a period of 2 years from the original date of purchase.

     EOTech will promptly repair or replace, at its option, any product which is defective in material or workmanship, without charge. All of the costs that are associated with the product shipment will be incurred by the owner. EOTech products, to be repaired under the warranty service, must have a valid return authorization number, which purchasers may obtain by clicking Return Authorization Request Form or calling EOTech's Repair & Service Department at (734) 572-2176 during normal business hours. All products must be sent to:

L-3 EOTech Repair & Service Department
1201 E. Ellsworth Road
Ann Arbor, Michigan 48108
Reference: RA#

    The warranty does not cover defects caused by improper handling, installation or maintenance, abnormal use or unapproved alterations. EOTech shall not, in any event, be liable for any damages, including any lost profits, lost savings or any other incidental or consequential damages arising out of the use or inability to use such products. This warranty gives the owner certain legal rights, and possibly other rights, which vary from state to state.

Troubleshooting

     In this section you will find troubleshooting techniques.
If these solutions do not solve the problem, please contact KERIF Customer Service Department at customerservice@nitevis.com or by calling (702) 324-6463.

The sight will not power up:

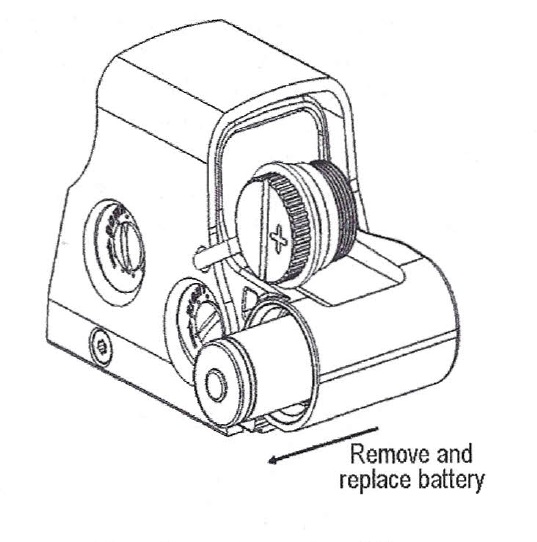

1. Ensure the batteries are inserted properly according to the diagram on the bottom of the battery cap.

2. Replace the batteries with new, unused batteries that contain a full charge.

3. Inspect the battery contact points in both the battery cap and on the sight itself. These contact points are spring loaded and surrounded by a rubber gasket that may catch the spring. Move the contact points around and ensure they are at or above the surface of the rubber gasket.

4. Reset the electronics by removing any source of power for approximately two minutes. This will allow a capacitor in the electronics housing to drain of power, resetting the electronics. Reconnect the batteries and operate the sight as normal.

5. Check the battery contacts for corrosion or wear. Clean the contacts.

The reticle is fuzzy/ has a 'halo' effect/ has more than one reticle:

The reticle is naturally pixilated and the outer circle will appear to be made up of many small dots. The center circle will still be distinguishable as one dot.

1. Lower the brightness level of the reticle. This fault is generally caused by the reticle brightness being too high. The reticle is not designed to be so bright as to block the target.

2. The reticle is projected onto your target plane. You must focus on it like you would any other object at that distance. Do NOT focus on the sight housing like other reflex sights; focus on your target. The outer ring is designed to be a reference to center, similar to a ghost ring.

3. If you wear corrective lenses for nearsightedness, you will require them to see the reticle in focus as it is projected onto the target plane. If you wear bifocals or have astigmatism, you may see a distorted reticle.

4. Check with others who have used the sight, and compare what you see to ensure it is not your focal acuity prior to turning the sight in for repair.

The reticle is flashing/ flashing on and off/ unit turns off during recoil:

1. This is the low battery indicator. Replace the batteries.

2. If the batteries are low, the weapon platform may still cause the reticle to flash on and off, even before the low battery indicator takes effect. Replace the batteries.

3. Replace the battery with Energizer brand batteries. These have proven to be the most effective to withstanding a consistent amount of recoil. Many brands of batteries deteriorate faster than others and can result in these failures.

There is a streak in the reticle/ the reticle is dim/ the reticle fades in parts of the window:

1. Replace the batteries.

2. Check with others who have used the sight, and compare what you see to ensure it is not your focal acuity prior to turning the sight in for repair.

3. Contact Customer Service.

I am missing a bolt/ have broken a bolt/ have broken a latch:

1. Contact KERIF Customer Service Department at customerservice@nitevis.com or by calling (702) 324-6463
