SpecterOS 3.0 3X Combat Optical Sight ATOS3 w/"Rapid Aiming Feature" Reticle
|
|
******
ADDITIONAL INCENTIVES AVAILABLE FOR MILITARY/LE
|
|
|
|
ATOS3.0A2 5.56 Ballistic RAF Reticle w/Picatinny "Flat Top" Mount
**DISCONTINUED* 1 Available in stock
|
|
ATOS3.0B2
5.56 Ext. Ballistic Adj. RAF Reticle w/Picatinny "Flat Top" Mount
*DISCONTINUED*
|
|
Eye relief (Cheekweld) and bore sighting remain constant
Large, low light exit pupil remains constant
High efficiency coatings for extended low light performance
Integrated lever-lock mount for optimum weight reduction
Rugged, Reliable Performance
Shock Protected Precision Optics
One Year Warranty
|
|

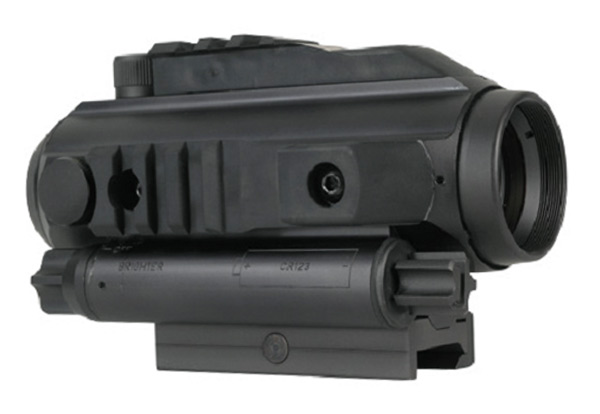

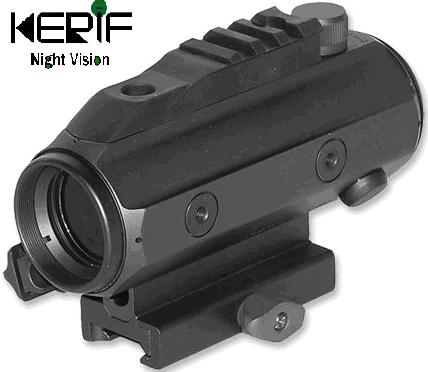

The SpecterOS3.0 family of 3X Optical Combat Rifle Sights is also marketed as ATOS3.0 in certain markets. Designed as a lighter and more compact replacement for the 3.4x series of rifle sights, the SpecterOS features internal zeroing adjustment (in the optical assembly, rather than in the mount assembly) and models are supplied with a Picatinny "Flat Top" Mount.
|
|

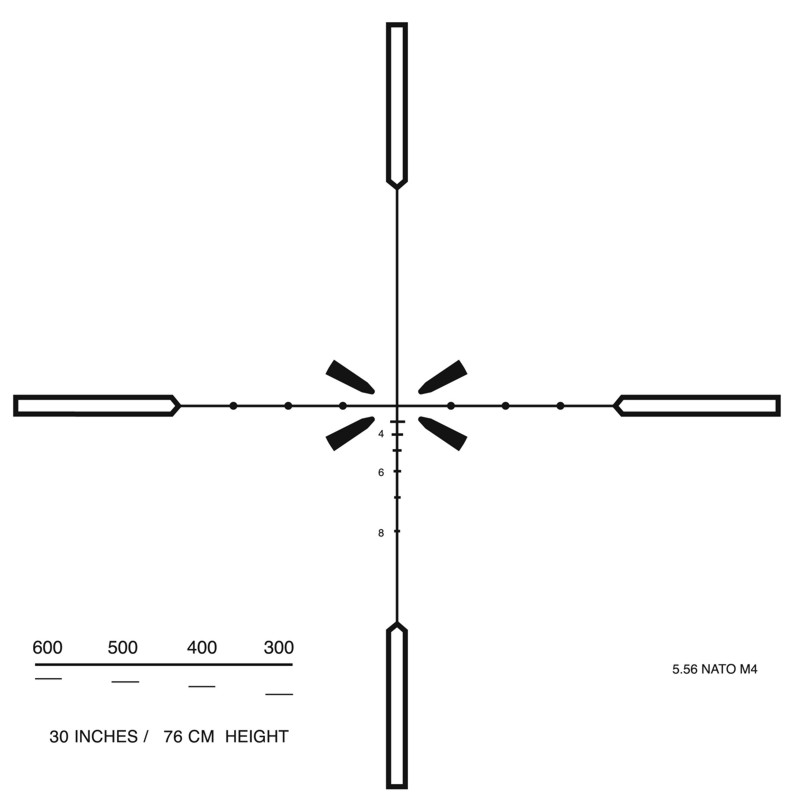

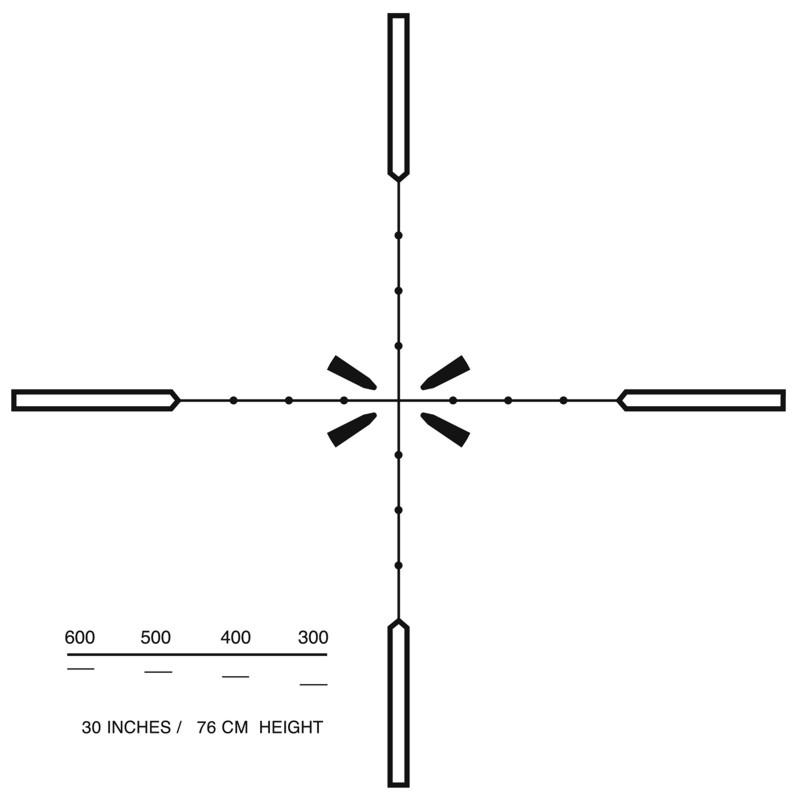

All ATOS3.0 sights feature rubber bumpers as well as the proprietary RAF Rapid Aiming Feature Ballistic Reticle that provides ideal accommodation for both long range and CQB applications. Reticles are illuminated with a battery-powered LED and may be user adjusted through a broad range of visible and Night Vision compatible settings.

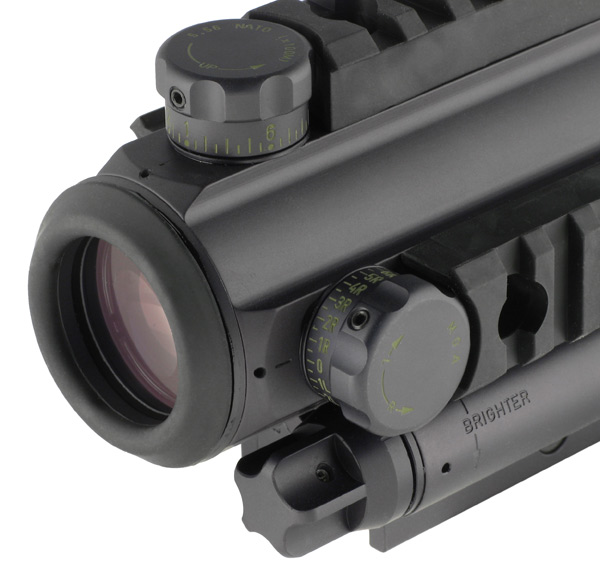

The 'B' series features 'Marksman' Elevation and Windage adjustments calibrated for popular NATO 5.56 military cartridges. Please be sure to ask for the optional Anti-Reflection Device (ARD) or Killflash.
|
|
The SpecterOS 3.0 is a lightweight and rugged 3x Optical Sight designed for modern military and security applications. Incorporating an illuminated reticle with a range finder, the SpecterOS 3.0 has the unique ability to offer rapid engagement in CQB applications while providing precise aiming at distant targets.
A one-piece aluminum housing coupled with shock-absorbing rubber bumpers enable the sight to withstand the severe stresses of modern combat operations. Supplied with either a Ballistically Calibrated Reticle or External Elevation & Windage adjustments, and mounts directly to flat-top receivers.
|
|
Once sighted-in to a particular weapon, the sight may be interchanged with other ELCAN® optical and electro-optical sights zeroed for the same weapon in a matter of seconds and without noticeable change in point of impact.
The SpecterOS 3.0 is built to stringent quality assurance standards in the most advanced optical manufacturing facility and is specifically designed for use by the most demanding customers.
|
|
|
System Technical Specifications |
|
Optics
|
|
Eye Relief
|
● |
66mm |
|
FOV
|
● |
6º |
|
Exit Pupil |
● |
8mm |
|
Fixed Focus Range
|
● |
20m to infinity (≈ 21 yards) |
|
Adjustment Range
|
● |
120 Minutes of Angle |
|
Adj. Resolution
|
● |
0.5 MOA (Minute of Angle) |
|
Magnification
|
● |
3.1X Nominal |
|
Reticle
|
|
Weapon Types: 5.56
|
● |
M4, M16, MK46, M249 |
|
Ballistic Calibration
|
● |
200 to 600m for 5.56 NATO (in reticle) |
|
Model A2
|
● |
5.56 NATO (in Reticle) |
|
Model B2
|
● |
100m-600m external adjustment for 5.56 or 7.62 |
|
Reticle
|
● |
Dual-Thickness crosshair w/RAF Rapid Aiming Feature |
|
Illumination Source
|
● |
Battery Powered LED |
|
Illumination Settings
|
● |
11 Visible, 3 Night Vision |
|
Physical Characteristics
|
|
Weight
|
● |
lbs. (415g), oz. |
|
Size in mm
|
● |
135mm x 65mm w/bumpers x 77mm w/bumpers |
|
Size in inches
|
● |
L=5.3" x W=2.56" x H=3.03" |
|
Internal Battery
|
● |
CR123, 3V Lithium |
|
Base Requirement
|
● |
MIL-STD-1913 "Picatinny Rail" |
|
Attachment
|
● |
Single wing nut w/return to zero repeatability |
|
Battery Life
|
● |
3.1 Years, typical |
|
Exterior Finish
|
● |
Black Anodized Aluminum |
|
Operating Temp
|
● |
-50°F to +120°F |
|
Waterproof
|
● |
66' for 2 hours |
|
Shockproof
|
● |
450 g's |
|
Options
|
● |
Rubber Bumpers, MIL-STD-1913 Rails, Lens Covers, ARD |
|
|
|
|
|
|
ELCAN SpecterOS4 Combat Optical Sight, 4X DISCONTINUED
SFOV4-A1 5.56 (CX5755 Dual Illuminated Ballistic Chevron)
SFOV4-C1 5.56 (CX5855 Dual Illuminated Ballistic Crosshair)
INCLUDES ARD (KILLFLASH) & Scopecoat
|
|
|
ELCAN Tri-Field of View 1X-3X-9X SpecterTR, Black
TFOV139-C1 5.56 Ballistic Reticle
TFOV139-C2 7.62 Ballistic Reticle
INCLUDES FLIP-COVER SET
To Order call (702) 324-6463 or email
**
ADDITIONAL INCENTIVES AVAILABLE FOR MILITARY/LE
|
|
|
|
ELCAN M145 3.4X Combat Optical Sight DISCONTINUED
ELCM145C M240/M249 Reticle, Torque Knob Mount
NSN: 1240-01-411-6350
ELCM145M4 M4 Reticle, Torque Knob Mount
ELCM145M4W M4 Reticle, 5.56 NATO Wingnut Mount
ELCM145M4W2 M4 Reticle, 7.62 NATO Wingnut Mount
|
|
|
|
Black Optex Zero Lens Day/Night Alignment Adapter, Black
BOZL Day/Night Optical Sight Alignment Kit, Black
The Zero Lens is an optical alignment adapter that enables the use of PVS-14 Night Vision Monocular in front of day sights to add nighttime engagement capability with no zero shift. This configuration is more efficient and user friendly than when the PVS-14 is mounted behind the primary sight. Read More...
|
|
|
ELCAN Mount, Black
ELC145MT Elcan Torque Knob Optical Sight Mount
DISCONTINUED
|
|
ELCAN Mount, Black
ELC556MT GEN-4 SSL Optical Sight Mount (.223)
Buy On line
To Order, please call (702) 324-6463 or email
******
*HUGE DISCOUNTS AVAILABLE FOR MILITARY & LE*
|
|
ELCAN is proud of its reputation as a one-stop solution provider to defense and homeland security customers. In addition to the SpecterOS, SpecterIR, SpecterRD, SpecterDR, SpecterCT, and PhantomIR products listed on our site, ELCAN is also able to design and manufacture custom rifle sights and next-generation fire control systems for our military and commercial customers. Their experience in merging the best minds with the latest technologies makes ELCAN the best mission partner for developing advanced, cost-effective sighting systems.
Specter sighting systems by ELCAN employ the highest precision optics, rugged mechanical designs and battle-tested electronics to provide the modern soldier with rapid target acquisition and engagement for "first sight/first action" capabilities. Professionals entrusted with the security of industrial and nuclear facilities, border patrol, or base security can also count of Specter sights for a superior advantage in protecting homeland security.
NOTE: Specter and PhantomIR sighting systems are advanced technologies that are subject to export licensing and International Traffic in Arms Regulations (ITAR). Please contact your ELCAN Sales Manager for further information on technology restrictions and product availability.
As an integrated component of the next generation of advanced observation and civil defense requirements, the SpecterOS exemplifies the commitment to ongoing product development and optical excellence at ELCAN Optical Technologies. ELCAN is part of the Raytheon Commercial Electronics group of companies.
In "High-Risk" security applications (Nuclear Plants, Oil Refineries and Pipelines, Water Treatment Plants, Port Authorities, Penitentiary Facilities), government law enforcement agencies can more effectively locate, identify and neutralize hostile threats with reduced risk.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
