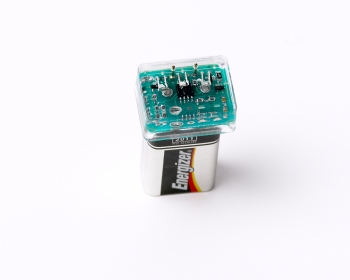

(IR-15) Phoenix 1.5 Encodable Beacon NSN: 5855-01-396-8734 MPN: 902212IR
Simple, ultra rugged personnel, equipment and/or area marker

Phoenix Features:

                  User Installed Coded Flash

                  Common 9V Battery operation

                  Small, Lightweight, Waterproof and Durable

                  Field Programmable 6 Second Memory

                  Covert Marker for use with Night Vision

                  240 Degrees x 360 Degrees Coverage

                  Available in Red, Green, or Infrared

                  Weighs only 8.5 grams (0.3oz)

An internal six (6) second memory will accept a field installed flash (Morse Code-like) signal that the operator programs via the two programming pins. Miniature indicator lights within the device will flash the pattern as it is being recorded by the user to confirm the code being stored. During operation, the user can reactivate the miniature indicator lights at anytime allowing the operator to confirm the broadcast code in situations where their own night vision equipment has become lost or damaged.

SPECIAL FORCES OFTEN RENDEZVOUS WITH INDIGENOUS FORCES AT NIGHT. These rendezvous are generally preplanned and usually done without benefit of radio or voice communications. Preplanned codes, transmitted by the covert  Phoenix 1.5 Beacon allow for precise identification of the friendly forces.

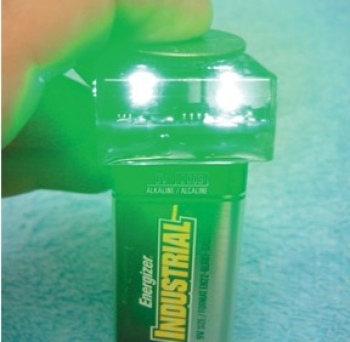

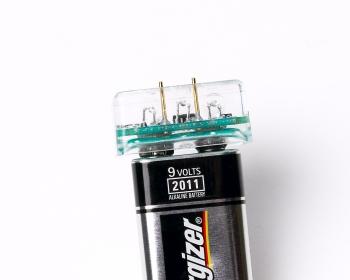

The PHOENIX 1.5 IS A USER PROGRAMMABLE BEACON. With a coin or similar metallic device, the user can tap in a Morse Code-like signal up to six-seconds in length. Subminiature light emitting diodes (LED) inside the beacon indicate the code as it is installed and  tell when the memory is full. These same LED's provide confirmation of both operation and the installed code. To confirm operation, short and hold the two pins while observing the LED's. They will repeat the operating code.


These Beacons are proudly manufactured in the USA

 EXPORT LICENSE REQUIRED.
Infrared Beacons are ITAR Controlled and cannot be exported without written authorization from the US State Department

OPERATING TIPS
For a steady beam output, hold the shorting device for six seconds.
For maximum duration cache marking, quick tap the pins only once.
The beacon will emit a single flash every six seconds for weeks.

SPECIFICATIONS
Weight: 1 Ounce | 28 Grams
Size: 1.24 x 0.9 x 0.574" | 31mm x 22.5mm x 14.6mm
Flash Repeat Cycle: 6 Seconds
Flash Duration: Programmable
Battery: Common 9 volt
Configuration: 3 Light Emitting Diodes (LED), 880nm
Coverage: 240 Degrees x 360 Degrees

Operating depth: The Poseidon Mounting Clip (902801) provides a water tight casing for the beacon and battery assembly. If immersed without the Poseidon case, the unit will continue to operate until the contacts fail due to water and electrolytic corrosion. Given these conditions the depth limitation is solely determined by the batterys ability to withstand depth.

Ordering Information
Phoenix Infrared Beacon (902212IR) 880nm NSN: 5855-01-396-8734
Phoenix 1.5 NV Green Training Model (902212NV) 565nm
Phoenix 1.5 Red Training Model (902212R) 640nm NSN: 5855-01-396-8732
Vehicle Auxiliary Power Supply (902611)
Poseidon - Phoenix / Pegasus Mounting Clip (902801)

Alternate frequencies available on request

The Phoenix 1.5 has been utilized by United States Military in a variety of operational theatres such as Kosovo, Bosnia, Somalia, Afghanistan and Iraq.
