Restricted to Gov't orders only


NSN: 5855-01-451-9877
IR-25 (PN:902311IR):  Infrared - 880 nm

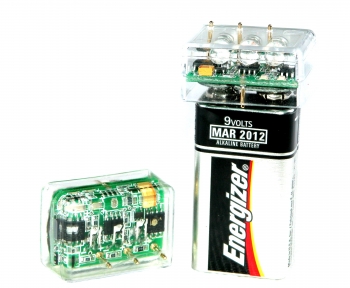

IR-25 Phoenix 2.5 Encodable 2-Channel Emergency Beacon

   The PHOENIX 2.5 IS A TWO CHANNEL CODED BEACON and is built using the same rugged construction as the other beacons in the Phoenix family. The 2.5 is an enhancement of the IR-15 Phoenix Beacon with two additional features; a pre-installed constant fixed flash rate and two channels for programming. The first channel code is stored in a nonvolatile memory; it activates as soon as the battery attached. The second code is installed as needed by the user in the field. A coin or similar metallic device is used to tap in a Morse Code-like signal. All channels have a six-second memory.

IN SOME SCENARIOS IT MAY NOT BE POSSIBLE TO TAP IN AN EMERGENCY CODE. In these instances, the preplanned emergency signal may be used with little effort. The only action required to transmit the preplanned signal is to attach the battery. To change from the preplanned code to the second channel the user need only tap the pins on top of the beacon, before entering a personal code.

* Small, Lightweight, Waterproof and Durable

* (2) Two channels

* Preplanned code channel

* User installed code channel

* Six second memory on all channels

* Common 9V battery operation

The PHOENIX 2.5 IS A TWO-CHANNEL PREPLANNED AND USER PROGRAMMED BEACON. Channel 1, the default channel contains a code preprogrammed in a nonvolatile memory. It activates as soon as a battery is attached. In the field, the user can select Channel 2 using a coin or similar metallic device, then tap in a Morse Code-like signal. Subminiature light emitting diodes (LED), inside the beacon, signal the code as it is installed and tell when the memory is full. These same LED's provide confirmation of both operation and the installed code. To confirm operation short and hold the two pins, while observing the LED's. They will repeat the operating code.

SPECIFICATIONS
Weight: 1 ounce
Size: 1.125" x 0.875" x 0.625"
Battery: Common 9 volt
Channels: Two
Channel 1 Factory Program: S – O – S or fixed flash rate or customer defined code
Channel 2 User Program: 6 second memory
Configuration: 3 Light Emitting Diodes (LED)
Coverage: 180 degrees x 180 degrees
Activation: Attach battery
Switching: Input code.
Operating depth: The battery contact is exposed however if immersed the unit will continue to operate until the battery contacts fail due to water and electrolytic corrosion. Given these conditions the depth limitation is solely determined by the battery’s ability to withstand depth

OPTIONAL ITEM

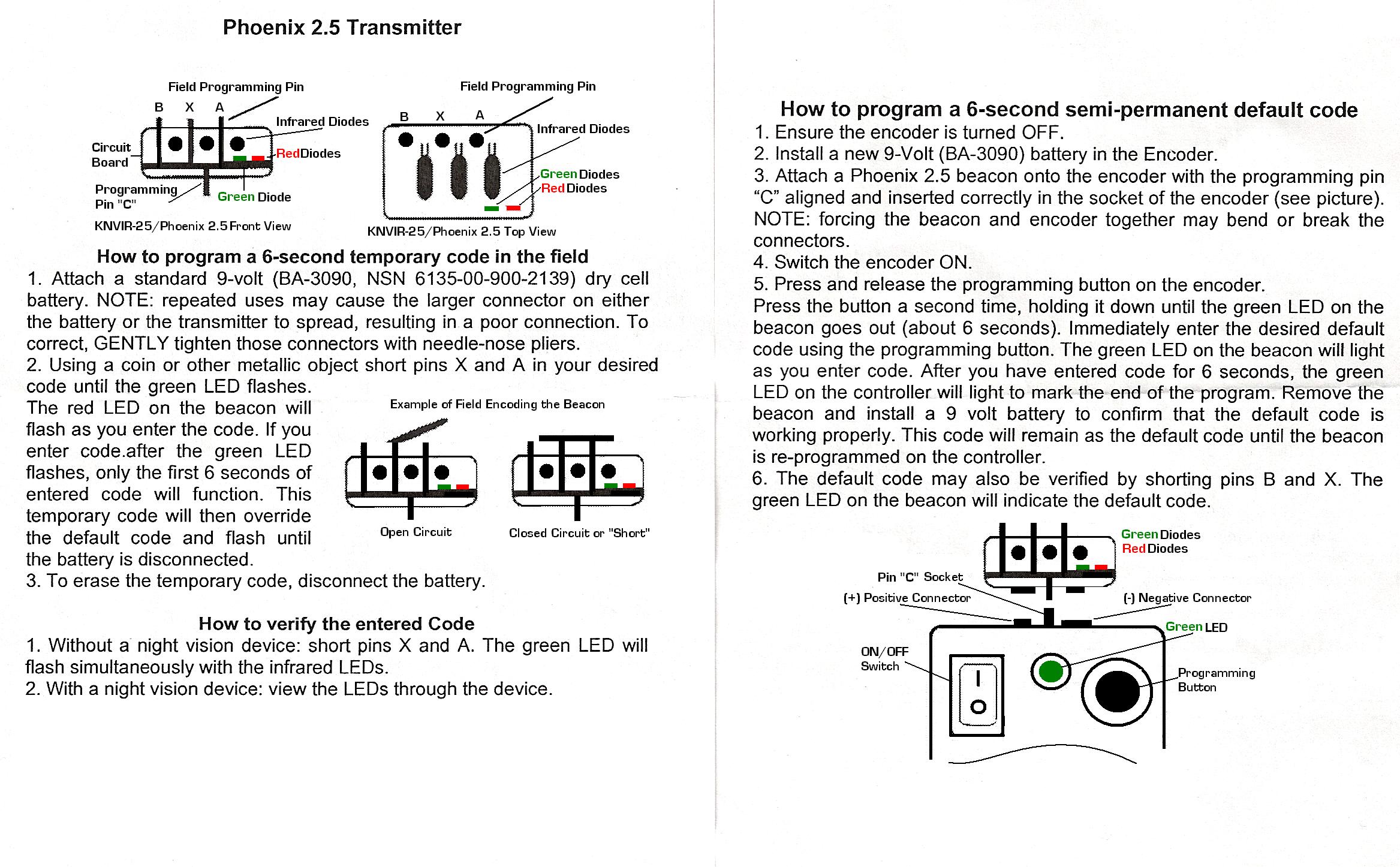

CERE-25 Remote Control Programmer
Alternate wavelengths on request

Light Output Frequency :
KNVIR-25R (PN:902311R): Visible Red - 640 nm (Training or Visible Applications)
KNVIR-25 (PN:902311IR):  Infrared - 880 nm
KNVIR-25V (PN:902311G): Visible NV Green - 565nm  (Training or Visible Applications)
Alternate frequencies available on request

*****  ALL PRICES SUBJECT TO CHANGE WITHOUT NOTICE  *****
Phoenix/Pegasus Beacons & Accessories, Battery (Not Included)		LE/Gov't
902111IR	Phoenix Jr. (Firefly) IR-14 (880nm Infrared), 5855-01-438-4588	Click To Order
902111NVG	Phoenix Jr. (530nm Green) Training,  5855-01-396-8732	Click To Order
902111R	Phoenix Jr. (640nm Red) - Training, 5855-01-396-8734	Click To Order
902124IR	Phoenix Jr.123 - CR123 Battery Operation (880nm Infrared) 5854-01-618-0930	Click To Order
902124NVG	Phoenix Jr.123 - CR123 Battery Operation (530nm Green) Training	Click To Order
902124R	Phoenix Jr.123 - CR123 Battery Operation (640nm Red) - Training	Click To Order
902121IR	Pegasus™10 Dimmable Phoenix Jr. (880nm Infrared)	Call or email
902121NVG	Pegasus™10 Dimmable Phoenix Jr. (530nm Green) Training	Call or email
902121R	Pegasus™10 Dimmable Phoenix Jr. (640nm Red) Training	Call or email
902123IR	Pegasus™12 3-Channel (Phoenix Jr., Constant-On, Standby) (880nm Infrared)	Call or email
902123NVG	Pegasus™12 3-Channel (Phoenix Jr., Constant-On, Standby) (530nm Green)	Call or email
902123R	Pegasus™12 3-Channel (Phoenix Jr., Constant-On, Standby) (640nm Red)	Call or email
902212IR	Phoenix 1.5 6 sec Encodable (880nm Infrared)	Click To Order
902212NVG	Phoenix 1.5 6 sec Encodable (530nm Green) Training	Click To Order
902212R	Phoenix 1.5 6 sec Encodable (640nm Red) Training	Click To Order
902215IR	Pegasus™2 3-Channel Encodable (880nm Infrared) 5855-01-587-4822	Call or email
902215NVG	Pegasus™2 3-Channel Encodable (530nm Green) Training*	Call or email
902215R	Pegasus™2 3-Channel Encodable (640nm Red) Training*	Call or email
	*(25 Piece - Minimum Order Quantity)
902218IR	Pegasus™2AA 3-Channel Encodable (880nm Infrared)	Call or email
902218NVG	Pegasus™2AA 3-Channel Encodable (530nm Green) Training*	Call or email
902218R	Pegasus™2AA 3-Channel Encodable (640nm Red) Training*	Call or email
	*(25 Piece - Minimum Order Quantity)
902311IR	Phoenix 2.5 Encodable Beacon (880nm Infrared) 5855-01-452-9877	Click To Order
902311NVG	Phoenix 2.5 Encodable (530nm Green) Training	Click To Order
902311R	Phoenix 2.5 Encodable (640nm Red) Training	Click To Order
902411	Phoenix 2.5 Program Controller/Encoder MK1 (CERE) 5855-01-452-0079	Click To Order
902413	Pegasus 7 Synchro (880nm Infrared) 2 Ch Programmable 5855-01-540-1898	Call or email
902511	Phoenix Jr. Intruder Trip Wire IR-14IB (880nm Infrared)	Click To Order
902511NVG	Phoenix Jr. Intruder (530nm Green) Training*	Click To Order
902511R	Phoenix Jr. Intruder (640nm Red) Training*	Click To Order
902611	Vehicle Auxiliary Power Supply (VAPS/VPAK) 6150-01-547-0581	Click To Order
902801	Poseidon-Phoenix Mounting Clip (Black, OD, Tan)	Click To Order
903400	Hero™ Jr Beacon	Call or email
903410	Hero™ Sr Beacon	Call or email
902900	Neptune™ (NSN: 6230-01-618-0393) Blue, White and Infrared (BIRW)	Call or email
902901	Neptune™ (NSN: 6230-01-643-3127) Red, White and Infrared (RIRW)	Call or email
	Velux1 IR 950 nm Programmable Beacon	Call or email
	Velux1 IR 1050 nm Programmable Beacon	Call or email
	Velux1 IR 1200 nm Programmable Beacon	Call or email
	Velux1 IR 1300 nm Programmable Beacon	Call or email
	Velux1 IR 1450 nm Programmable Beacon	Call or email
	Velux1 IR 1550 nm Programmable Beacon	Call or email
	Velux1 Red Training 640 nm Programmable Beacon	Call or email
	Velux2 IR 950 nm Programmable Beacon	Call or email
	Velux2 IR 1050 nm Programmable Beacon	Call or email
	Velux2 IR 1200 nm Programmable Beacon	Call or email
	Velux2 IR 1300 nm Programmable Beacon	Call or email
	Velux2 IR 1450 nm Programmable Beacon	Call or email
	Velux2 IR 1550 nm Programmable Beacon	Call or email
	Velux2 Red Training 640 nm Programmable Beacon	Call or email
	Velux3 IR 950 nm Programmable Beacon	Call or email
	Velux3 IR 1050 nm Programmable Beacon	Call or email
	Velux3 IR 1200 nm Programmable Beacon	Call or email
	Velux3 IR 1300 nm Programmable Beacon	Call or email
	Velux3 IR 1450 nm Programmable Beacon	Call or email
	Velux3 IR 1550 nm Programmable Beacon	Call or email
902560	Velux4 1050 nm Programmable Beacon	Call or email
902561	Velux4 1550 nm Programmable Beacon	Call or email
902570	Velux5 1050 nm Programmable Beacon	Call or email
902571	Velux5 1550 nm Programmable Beacon	Call or email



  These Beacons are proudly manufactured in the USA





EXPORT LICENSE REQUIRED.
Infrared Beacons are ITAR Controlled and cannot be exported without written authorization from the US State Department
