HOOD

Models 511, 512, 551, and 552 are equipped with a protective hood. This hood is pre-assembled at the factory and is non-removable. Should your hood require maintenance please contact our Customer Service Department at (702) 324-6463 or email customerservice@nitevis.com

CAUTION- Tampering of Hood lock screws will void warranty.

BATTERIES

     Two (2) commonly available Type N or AA alkaline 1.5 V batteries power your HWS depending on the model. An initial set of batteries comes with your sight. The HWS is designed to maintain constant brightness at a particular setting as the batteries drain down. The reticle brightness will not fade gradually as the batteries run down but rather shut down abruptly. The first indication of the batteries draining is the reticle blinking when the unit is turned on (see Electronic Features 1).

     Another indication of low batteries is the reticle pattern blinking off and on during recoil. With high recoil guns, this can occur before the battery check indicates low battery condition. If the reticle pattern blinks off and on during recoil or turns off suddenly, replace the batteries. Please read and follow the battery replacement and battery check procedures described in your user Operator's Manual.

     Alkaline batteries from different manufacturers are not all constructed the same way. Tests show some brands are more susceptible to degradation by the shock of recoil. We recommend the use of Eveready Energizer™ batteries with the HWS. It is always good practice to replace the batteries with a fresh set before a mission.

CAUTION-There is a 12 V battery that is approximately the same size as the Type N 1.5 V battery. DO NOT USE 12 V battery. They will severely damage the sight.

     Two (2) common AA size batteries power your Model 512 HWS. An initial set of AA size alkaline batteries comes with your sight. EOTech recommends using Energizer Alkaline or Lithium AA batteries. Lithium AA batteries offer longer life, particularly at temperatures below freezing. For this reason Lithium AA batteries are recommended for cold weather operations. However, we should note that the battery checking function which is based on the characteristics of Alkaline batteries does not operate properly with Lithium batteries.

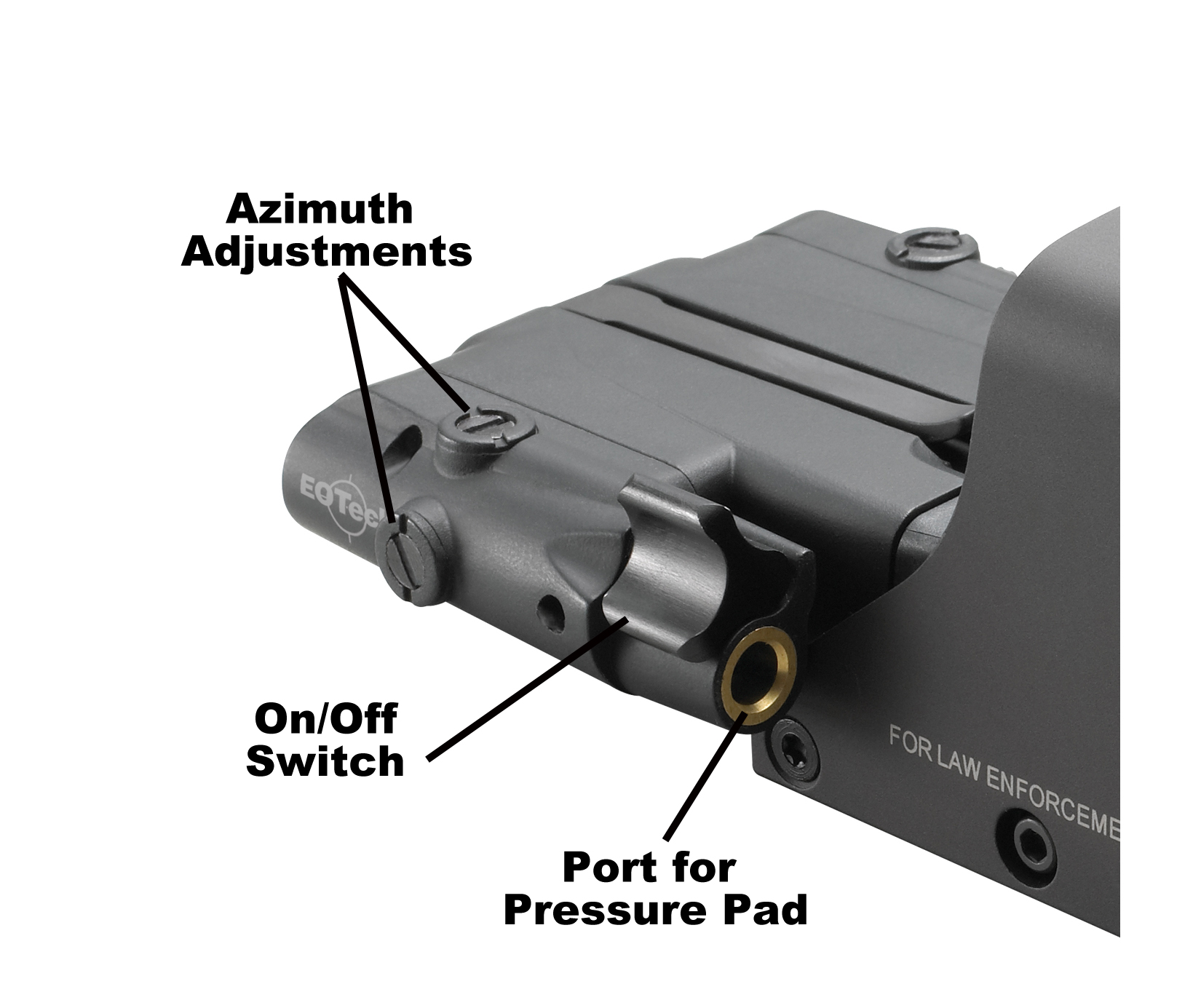

REPLACING BATTERIES

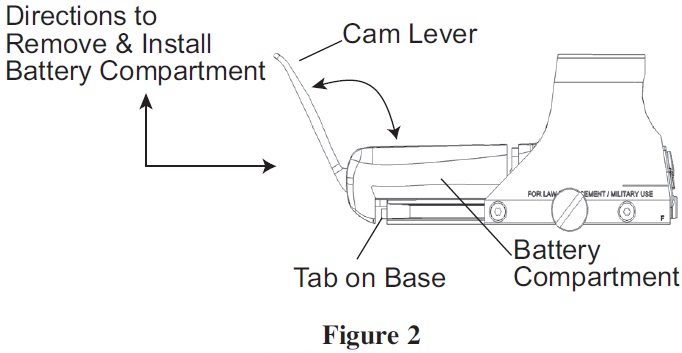

     Remove the battery compartment by lifting up on the locking cam lever and carefully sliding the battery compartment away and up from the sight housing (Figure 2) . After the battery compartment is removed, slide the batteries out and replace them with a fresh set. The labels on the bottom of battery compartment show the correct battery orientation. Always make sure the gasket is free of dirt before the battery compartment is re-installed or the water proofing may be compromised. To re-install the battery compartment, point the sight towards the ground and slide battery compartment onto the base. Make sure there is enough clearance between the contact and the batteries to avoid bending the contacts. Hold the battery compartment down firmly against the base and close the locking cam. Before you push down on cam lever, make sure the battery compartment sits all the way down and is parallel to the base. Verify correct battery installation immediately by turning on the sight and checking if the holographic reticle appears. If the batteries are left in the sight backwards, they will be drained of their power.

ELECTRONIC FEATURES

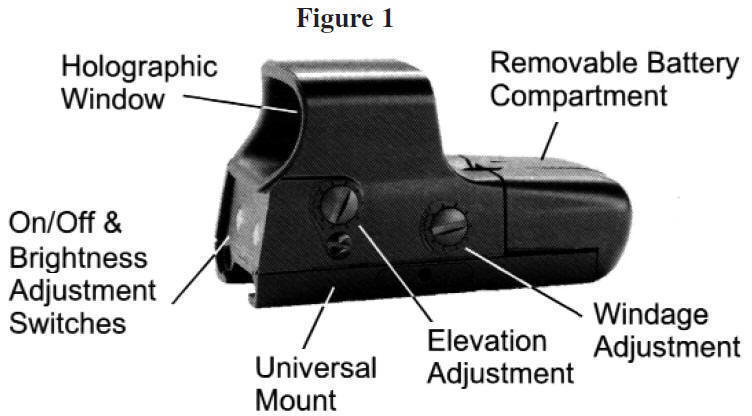

All electronic controls are via push-button switches located at the rear of the unit housing as shown in Figures 1. To ensure proper operation of the push button switches we recommend pressing firmly on the center of the switch.

1. ON/ Auto-Battery Check

Depressing the Up or Down Arrow push-button switches will turn the sight ON at Level 12. See step 4 under this section for description of Auto shutdown. The sight will automatically perform a battery check every time it is turned on. If the batteries have less than 20% of life left, the sight will turn on with the reticle image blinking on and off for 5 seconds. If the remaining battery life is more than 20%, the sight will turn on with a steady reticle pattern. The battery condition can be checked any time by turning the sight off and back on.

2. OFF

To turn the sight off depress both UP and DOWN arrows simultaneously. Verify by looking through heads-up display window.

3. Brightness Adjustment

Push-button switches vary the brightness intensity of the holographic reticle pattern. Depressing and releasing the push-button switches moves the brightness level UP or DOWN one (1) step from the previous setting. Depressing and holding the up arrow or down arrow switch will change brightness level up or down continuously in steps. There are twenty (20) brightness settings providing a dynamic range of 146,000:1 from the lowest setting to the highest setting.

4. Auto Shutdown

The HWS is equipped with auto shutdown capability. If the sight is turned on by depressing the UP button, it will automatically shut itself OFF 8 hours after the last push-button control is used. The sight will automatically shut OFF after 4 hours if it is turned on by depressing the DOWN button.

WINDAGE AND ELEVATION ADJUSTMENTS

     Your HWS features click mechanisms for elevation and windage adjustments. The elevation and windage adjustment are located on the Right-hand side of the sight (Figure 1). The knob towards the front is your windage adjustment and the knob towards the rear is your elevation adjustment (Figure 1). Both of these adjustment mechanisms are grooved with a slotted screw head and require the use of a screwdriver, coin, or spent brass to turn.

     To move the point of impact RIGHT, turn the windage adjustment screw clockwise; to move the point of impact LEFT, turn the windage adjustment screw counterclockwise .

     The elevation and windage adjustments have been initially set at the factory such that the line of sight to the center of the reticle is parallel to the mounting rail on the weapon. The sight should be close to being at zero with a properly installed mounting rail. Please do not turn the adjustments before mounting the sight on the firearm. Be sure to check that the mount and the sight remain secured after the first shots are fired.

CAUTION-When encountering a sudden increase in resistance in these adjustments, the end of the adjustment range has been reached. DO NOT TRY to turn the adjustments any farther or serious damage may occur to the sight.

LASER SAFETY ISSUES

The HWS is a Class II laser product. The Class II level illuminating beam, however, is completely blocked by the housing. The only laser light accessible to the eye is the image beam and is at a power level within the limit of a Class IIa laser product. The illuminating beam can become accessible to the eye if the housing is broken. Turn the sight off immediately and return the broken unit to the factory for repair.

MOUNTING

1. Locate the bolt and locking bar on the underside of the sight. Loosen the bolt and the locking bar with the Allen wrench (7/64")

2. Place the bolt within a groove on the top of the rail. Individual preference and the specific firearm determine the optimal positioning to any specific groove on the rail.

3. Make sure the bolt is inserted fully into the mount’s groove and push the sight as far forward as possible. Tighten bolt.

NOTE 1: Loosen bolt just enough to mount and dis-mount the sight.
Do not back bolt out completely to avoid losing the mounting hardware.

NOTE 2: A Picatinny (MIL-STD-1913) rail cannot be installed directly on some weapons. EOTech sells mount adapters to provide a standard Picatinny rail for various weapons used in today’s military and law enforcement applications. Contact a factory representative if you are unclear on the mounting adapter you should use on your weapon.

BORE SIGHTING AND ZEROING

Bore sighting is a good preliminary procedure in achieving proper alignment of your sight to the firearm. If the rail is not mounted parallel to the barrel, major elevation adjustments may be accomplished by shimming the dovetail rail. It is important not to use the elevation adjustment of the sight for major adjustments. Your sight’s internal elevation and windage adjustments should be reserved for fine-tuning to achieve zero at the called for distance. Final zeroing of your firearm and sight should be done with live ammunition and based on your expected shooting distance. If you anticipate most of your shooting at short range, zero in at 50 yards (45.7m). Groups of three to six shots will be useful for averaging the point of impact.

FCC COMPLIANCE

The HWS complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that may cause undesired operation.

MAINTENANCE AND CARE

Your HWS is a precision instrument that deserves reasonably cautious care.
The following tips are provided to ensure long lasting use of the sight.

1. The optical system and the window are coated with anti-reflection material. When cleaning the glass surfaces, first blow away any dirt and dust. Fingerprints and lubricants can be wiped off with lens tissue or a soft cotton cloth, moistened with lens cleaning fluid or glass cleaner sold in any camera store. Never clean the glass surface with a dry cloth or paper towel; always dampen the glass surfaces prior to cleaning

2. All moving parts of the sight are permanently lubricated. Do not try to lubricate them.

3. No maintenance is needed on the sight’s surface, except to occasionally wipe off with a soft cloth. Use only a water-based cleaner such as glass cleaner, ammonia, or soap and water. Never use any solvent-type cleaner such as alcohol or acetone.

4. Never disassemble the sight’s optical assembly. The optical cavity is purged, nitrogen filled, and sealed to achieve fog proof performance.

Disassembly will void the warranty.

REPAIR

Send to:

L-3 EOTech

ATTN: Service Department

1201 E. Ellsworth Road

Ann Arbor, MI 48108 USA

You can contact EOTech’s Customer Service Department at:

Phone: (734) 741-8868, and press Option 8, or visit their webpage www.L-3com.com/eotech

Email: general@L-3com.com

     To Ensure proper operation of the push button switches we recommend pressing firmly on the center of the switch

If your HWS should need repair, please contact EOTech's Customer Service Department at the number shown above to receive a return authorization number for repair. Send the sight and return authorization number to the address above and include your name, address, and telephone number, as well as a written description of the problem you are encountering. Also, include your receipt at the time of purchase. Whenever possible, ship the sight in its original box.

     The HWS is equipped with mounting hardware to attach to a standard 1" dovetail or Picatinny (MIL-STD-1913) style rail. To achieve the best results and accuracy, the HWS must be mounted properly. The rail needs to be as parallel as possible to the bore to permit the maximum elevation and windage adjustments. We strongly recommend you have the rail installed by a qualified gunsmith. To mount the sight, please follow these steps.

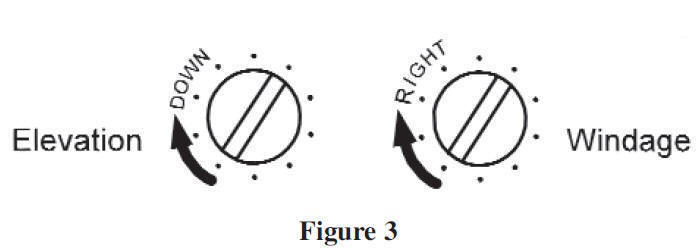

     The elevation and windage adjustments are shown in Figure 3. For both elevation and windage, each click will change the bullet’s point of impact 1/2 Minute of Angle (MOA), which translates to 1/4 inch at 50 yards (0.64 cm at 45.7 m), 1/2 inch at 100 yards (1.3 cm at 91.5 m). Also, one full rotation of either knob will change your point of impact 10 MOA. This translates into 5 inches at 50 yards (12.7 cm at 45.7 m), 10 inches at 100 yards (25.4 cm at 91.5 m). To move the point of impact UP, turn the elevation adjustment screw counterclockwise; to move the point of impact DOWN, turn the elevation adjustment screw clockwise.
